SNL-160056002.4 GHz Radio Control Receiver

OPERATING INSTRUCTION Prior to use, please read this manual thoroughly. Keep this manual in a convenient place for quick and easy reference. GR-4 HoTT 2.4GHz Receiver Manual Contents Before use------------------------------------------------------- • Support and Service----------------------------------------------- - Customer Support------------------------------------------------------------ - Internet sales site----------------------------------------------------- - A/S regulation------------------------------------------------------- • OPENHOBBY A/S Center----------------------------------------------------------- • Box Contents----------------------------------------------------------------- • Warning Notes----------------------------------------------------------- • System Features----------------------------------------------------------------- • Specification------------------------------------------------------------------- • Product Description-------------------------------------------------------------- • HoTT • Operation • Binding and Range test • Switch Functions-------------------------------------------------------------------P7 • LED and Buzzer Indication------------------------------------------------------------------------ • Receiver Specification and Port Description BEFORE USE Thank you for purchasing Graupner GR-4 HoTT 2.4GHz Receiver. This system is extremely versatile and may be used by beginners and pros alike. In order for you to make the best use of your system, please read this manual carefully. If you have any difficulties while using your system, please consult the manual, our online Frequently Asked Questions (on the web pages referenced below), your hobby dealer, or the Graupner Service Center. Due to unforeseen changes in production procedures, the information contained in this manual is subject to change without notice. SUPPORT AND SERVICE • Customer support Please feel free to ask any question by e-mail or phone. We’ve been trying to deal with your question. We are open from nine to six, Monday to Friday in Korea. We may respond to your question by e-mail as soon as possible when we are close. • Internet sales site Please feel free to contact “www.openhobbby.com” to get all information on product features, specifications, running events and the newest product line up. • A/S regulation Only when the product is faulty after normal operation within the warranty period, we will repair the product for free based on our regulations. The repair will be paid for by the consumer when the damage is due to use in improper ways or beyond the warranty period. • Warranty regulation Refer the WARRANTY CARD in a Package OPENHOBBY A/S CENTER 202 Dong- 201, Chunui Techno-Park II, 18, 198 street, Bucheon-ro, Wonmi-Gu, Bucheon-Shi, Gyungki-Do KOREA 420-857 Phone: 82-70-7863-3674 Fax: 82-70-7863-3670 Customer Service E-mail: [email protected] BOX CONTENTS GR-4 HoTT Receiver Manual Warranty Card Temperature/Voltage Sensor (S8362) WARNING NOTES • Never operate your car or truck in a crowded street with traffic. Especially, do not drive in a place near railway, chemical substance, gas to prevent any damage. • This product is not intended for use by inexperienced or disabled person without direct supervision of a responsible, knowledgeable adult. This is not suitable for children under 18 years. • The radio system is affected by signal environment and the electronic jamming signals can cause disorientation and loss of control of your aircraft. • Please read the manual to make the best use of the product • Make sure to check all operations of channels before use. • For the safe use, please operate the Range Check Mode before use. • Be careful not to turn your transmitter off while in use. • Do not touch or grab antenna during the use. • Do not operate your model in the rain or run through standing water • Fail Safe should be set before use to prevent uncontrollable situation occurred by any interruption. It is recommended to set throttle channel to Neutral condition or brake condition. • Always operate your program setup mode after stopping motor’s power or engine and disconnecting drive battery. • Make sure whenever you start operating your transmitter, turn your transmitter on and then turn your receiver on. Whenever you stop your transmitter, turn your receiver off first and your transmitter. • Always disconnect the battery pack from the speed control when not in use to avoid short circuits and possible fire hazard. • Always insulate exposed wiring with heat shrink tubing or electrical tape to prevent short circuits, which can damage ESC. • Don‘t make any changes on the structure and design of your controller unless they are described in the manual. • Only those components and accessory parts which have been recommended by us may be used. Use only genuine and matching Graupner/SJ connectors and accessory parts. • Make sure whenever you start connecting and operating the controller, that your transmitter is switched on, and has the throttle set to position “STOP”. Binding & RF Range Test BIND Press and hold Bind button for 3 sec while your receiver is powered on and then LED indicator is off. Now press Bind button of your transmitter and then receiver’s LED indicator is off. RF RANGE TEST When BIND button is touched after the connection between transmitter and receiver, RF RANGE TEST is now activated. RF TEST is continued during 90 seconds and it is automatically deactivated. RF RANGE TEST is deactivated by touching BIND button during RF RANGE TEST mode. Please note that your model is not controllable if your model is far away from you during Test mode due to the short transmit distance. Binding Button Binding Button Control Button Receiver Specification and Port Description 1. GR-4 Receiver Specification 2. Receiver Port Description Channel 2CH Frequencies 2400 – 2483.5Mhz Modulation FHSS Input Voltage 3.6 ~ 8.4V Output Power 60mW Operating Current 35mA Display Indicator…

Text truncated - open the document above for the full version.

Graupner CO.,Ltd Application for FCC ID: SNL-16005600 To whom it may concern: This communication port of this device is covered, and not for consumer use. Users cant upgrade the equipment. Yours sincerely,

Graupner CO.,Ltd FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Graupner CO.,Ltd Address 202Dong 8th F,18, Bucheon-ro 198beon-gil, Wonmi-gu, City Bucheon-si, Gyeonggi-do Country Korea declare that the following representative (agent): Name (person) Tony Wu Company name Bontek Compliance Laboratory Co., Ltd. Address 1/F, Block East H-3,OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, City Shenzhen,Guangdong Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.4GHz Radio Control Receiver Type or Model(s) GR-4, GR-4L Tradename or Brand(s) HoTT We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SHEN ZHEN 2014-04-01 Durk Churl Gahng manager

V V V

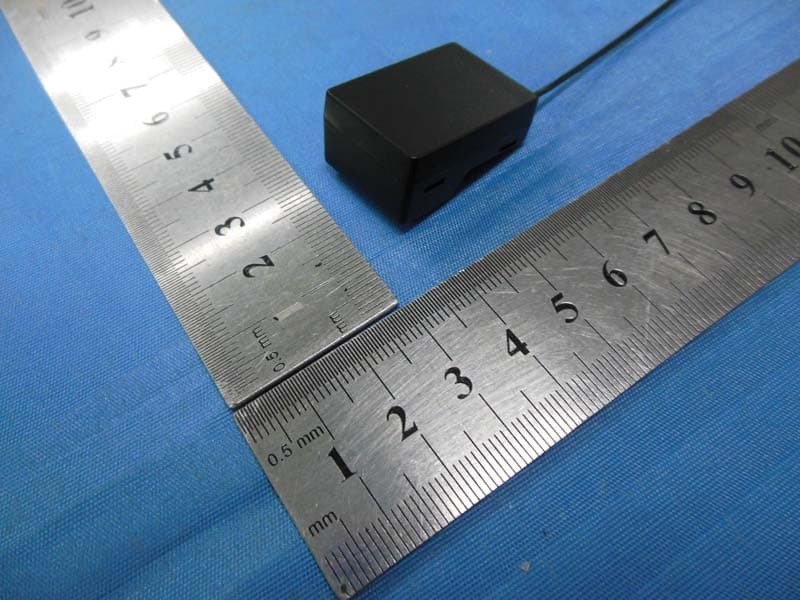

External Photographs EUT –Front View EUT – Rear View Antenna location EUT – Side View

FCC LABEL Location FCC LABEL Location

Internal Photographs EUT - Open View EUT - PCB View

Radio Frequency Exposure Report On Behalf of Graupner CO.,Ltd FCC ID: SNL-16005600 Product Description: 2.4GHz Radio Control Receiver Model No.: GR-4 Supplementary Model: GR-4L Prepared for: Graupner CO.,Ltd 202Dong 8 th F,18, Bucheon-ro 198beon-gil, Wonmi-gu, Bucheon- si, Gyeonggi-do, Korea Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT14CR058E-1 Issue Date: March 31, 2014 Test Date: March 12~ 31, 2014 Tested by: Reviewed by: Lion Cai Owen Yang Approved by: Kendy Wang Report No.: BCT14CR058E -1 Page 2 of 5 TABLE OF CONTENTS 1 - GENERAL INFORMATION ....................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................................ 3 1.2 OBJECTIVE ................................................................................................................................................................. 3 1.3 GENERAL DESCRIPTION OF TEST .................................................................................................................................. 4 1.4 HUMAN EXPOSURE ASSESSMENT RESULTS ................................................................................................................... 4 Report No.: BCT14CR058E -1 Page 3 of 5 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: Graupner CO.,Ltd Address of Applicant: 202Dong 8 th F,18, Bucheon-ro 198beon-gil, Wonmi-gu, Bucheon-si, Gyeonggi-do, Korea Manufacturer 1: SJ Technology(Shenzhen)Co.,Ltd Address of manufacturer: F6, 1 Bldg, A Area, Yintianxifa Industrial Area, Xixiang Town, Baoan District Shenzhen, Guangdong Province, China Manufacturer 2: Graupner CO.,Ltd Address of Manufacturer: 202Dong 8 th F,18, Bucheon-ro 198beon-gil, Wonmi-gu, Bucheon-si, Gyeonggi-do, Korea General Description of E.U.T Items Description EUT Description: 2.4GHz Radio Control Receiver Model No.: GR-4 Trade Name: HoTT Supplementary Model: GR-4L Frequency Band: 2404.056~2479.095MHz Number of Channels: 70 Type of Modulation: FHSS Antenna Gain: 1.5dBi Antenna Type: Integral Antenna Rated Voltage: Input: DC 3.6V~8.4V, Approx 70mA Adapter description: Model: N/A Input: N/A Output: N/A Remark: * The test data gathered are from the production sample provided by the manufacturer. * Supplementary models have the same circuit, but with different appearance 1.2 Objective The objective of the following report is used to demonstrate that EUT operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the relative provisions of FCC 47CFR Part 1.1307 Report No.: BCT14CR058E -1 Page 4 of 5 1.3 General Description of Test Items Description EUT Frequency band FHSS: 2.400GHz ~ 2.483GHz WLAN: 2.400GHz ~ 2.483GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: __________________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Others: __________________________ Antenna diversity Single antenna Multiple antennas: Tx diversity Rx diversity Tx/Rx diversity Max. output power 19.74dBm (0.0942W) Antenna gain (Max) 1.5dBi (Numeric gain:1.41) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 19.74dBm (0.0942W) at 2404.056MHz (with 1.41 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. 1.4 Human Exposure Assessment Results Report No.: BCT14CR058E -1 Page 5 of 5 EUT parameter (data from the separate report) Given Where G: numerical gain of transmitting antenna; TP: Transmitted power in watt; d: distance from the transmitting antenna in meter Max average output power in Watt (TP) 19.740dBm (0.0942W) Antenna gain (G) 1.5 dBi (Numeric gain: 1.41 Exposure classification S=1mW/cm 2 Minimum distance in meter (d) (from transmitting structure to the human body) 20cm (0.2m) Yields 2 30 3770 xPxG S d = , P=0.0942W, G=1.41, d=0.2 S=0.264mW/cm 2 Or 30xPxG d= 3770S , S=1, P=0.0155W, G=1.41 d=0.0325m Conclusion: S=0.264mW/cm 2 is significant lower than the General Population Exposure Power Density Limit 1mW/cm 2 or except the distance when human body proximity to the antenna is less than3.25cm then will reach the General Population Exposure Power Density Limit (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)
