SNL-160062002.4 GHz Radio Control System

Graupner CO.,Ltd FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Graupner CO.,Ltd Address 8 th F,202 Dong,Chunui Techno-Park2,18, Bucheon-ro 198beon-gil,Wonmi-gu City Bucheon-shi,Kyungki-do Country South Korea declare that the following representative (agent): Name (person) Tony Wu Company name Bontek Compliance Laboratory Co., Ltd. Address 1/F, Block East H-3,OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, City Shenzhen,Guangdong Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.4GHz Radio Control Computer Receiver Type or Model(s) X-8N Tradename or Brand(s) HoTT We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SHEN ZHEN 2014-06-01 Durk Churl Gahng manager

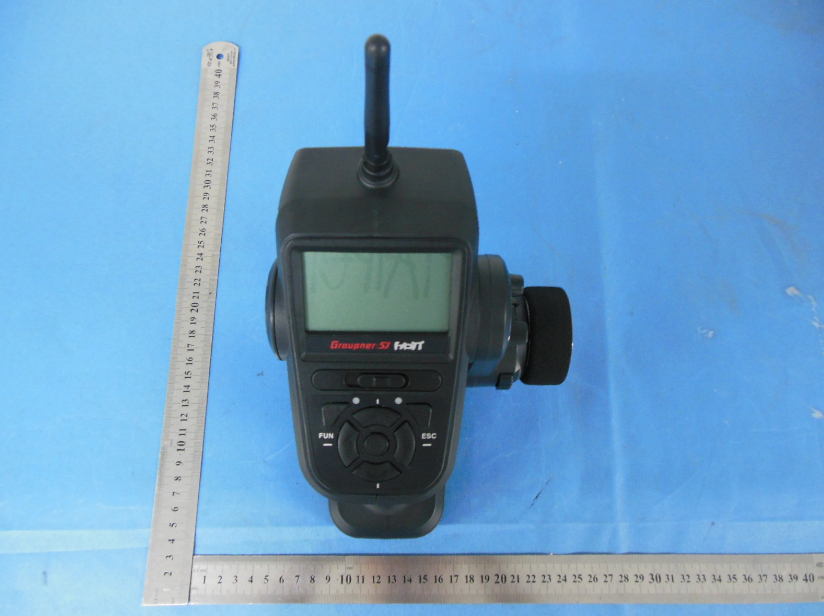

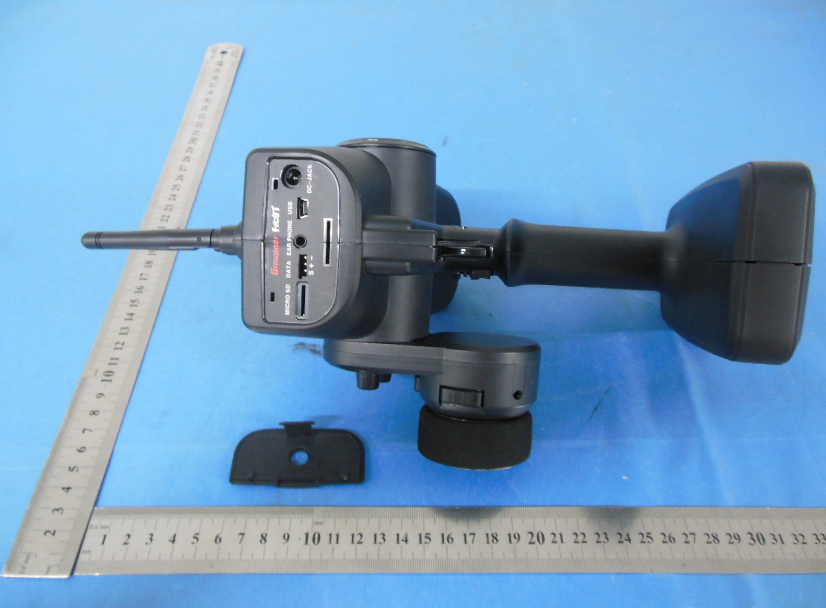

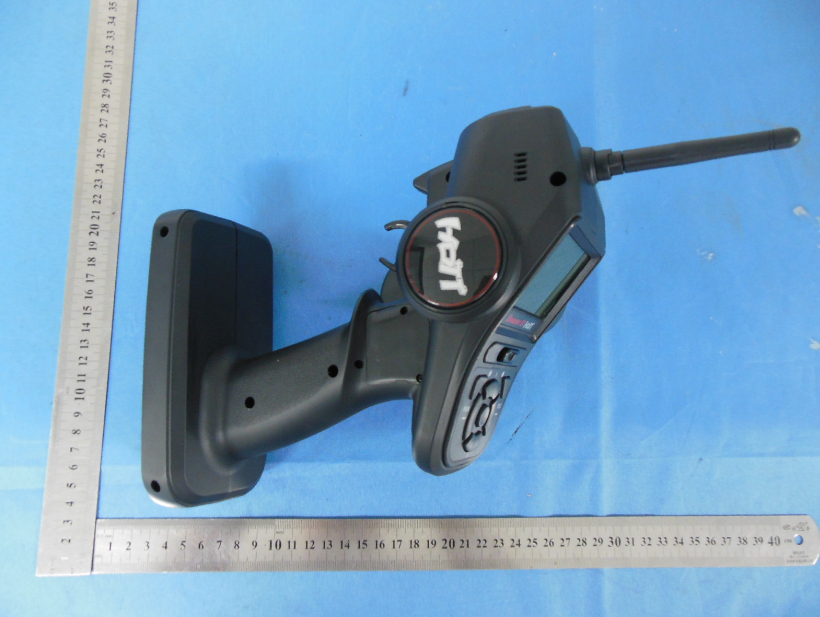

External Photographs EUT –Front View EUT – Rear View Antenna location EUT – Side View

Graupner CO.,Ltd

Internal Photographs EUT - Open View EUT - PCB View EUT - PCB View EUT - PCB View EUT - PCB View EUT - PCB View

FCC RF Exposure FCC ID: SNL-16006200 Frequency: 2403.920 - 2472.056 MHz Mid-Channel Peak Power, Conducted, highest valud measured: 18.17 dBm == 65.61 mW Antenna Gain: G = 1.2 dBi Peak, Radiated = 18.17 dBm + 1.2 dBi = 19.37 dBm = 86.5 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: Given the handgrip and position of the swivel antenna, it generally is more than 50mm from the human hand or human body while operating the device. The power this device generates is 86.5 mW, thus below the 96mW that is allowed at 50mm. Conclusion: The emitted power appears to be below the required limit, so PASS.

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of Graupner CO.,Ltd FCC ID: SNL-16006200 Product Description: 2.4GHz Radio Control Computer Receiver Model No.: X-8N Supplementary Model: N/A Prepared for: Graupner CO.,Ltd 8 th F,202 Dong,Chunui Techno-Park2,18, Bucheon-ro 198beon- gil,Wonmi-gu,Bucheon-shi,Kyungki-do, South Korea Prepared by: Bontek Compliance Testing Laboratory Co., Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT14ER204E Issue Date: June 10, 2014 Test Date: May21~ June 10, 2014 Tested by: Reviewed by: Jiankuai.Li Owen Yang Approved by: Kendy Wang Report No.: BCT14ER204E Page 2 of 42 FCC ID: SNL-16006200 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) AND TEST METHODOLOGY ....................................................................... 5 1.3 TEST FACILITY ...................................................................................................................................................... 5 FCC – REGISTRATION NO.: 970318 ......................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ...................................................................................................................... 6 2.1 EUT CONFIGURATION .......................................................................................................................................... 6 2.2 EUT EXERCISE ..................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES ............................................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................................. 6 2.5TEST EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 3. SUMMARY OF TEST RESULTS .......................................................................................................................... 7 4. TEST OF AC POWER LINE CONDUCTED EMISSION.................................................................................... 8 4.1 APPLICABLE STANDARD ....................................................................................................................................... 8 4.2 TEST SETUP DIAGRAM ......................................................................................................................................... 8 4.3 TEST RESULT ....................................................................................................................................................... 8 5. TEST OF HOPPING CHANNEL BANDWIDTH .................................................................................................. 9 5.1 APPLICABLE STANDARD ....................................................................................................................................... 9 5.2 EUT SETUP .......................................................................................................................................................... 9 5.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 9 5.4 TEST PROCEDURE ................................................................................................................................................ 9 5.5 TEST RESULT ....................................................................................................................................................... 9 6. TEST OF HOPPING CHANNEL SEPARATION ............................................................................................... 12 6.1 APPLICABLE STANDARD ..................................................................................................................................... 12 6.2 EUT SETUP ........................................................................................................................................................ 12 6.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 12 6.4 TEST PROCEDURE .............................................................................................................................................. 12 6.5 TEST RESULT ..................................................................................................................................................... 12 7. TEST OF NUMBER OF HOPPING FREQUENCY ........................................................................................... 15 7.1 APPLICABLE STANDARD ..................................................................................................................................... 15 7.2 EUT SETUP ........................................................................................................................................................ 15 7.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 15 7.4 TEST PROCEDURE .............................................................................................................................................. 15 7.5 TEST RESULT ..........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated emission below 30MHz Radiated emission 30MHz~1GHz Radiated emission above 1GHz
