Conference phones for every situation The Konftel 300W User Guide ENGLISH B Our patented audio technology, OmniSound ® , is embedded into all Konftel phones to ensure crystal-clear voice transmission. We’re now taking OmniSound ® to the next level. OmniSound ® 2.0 provides the Konftel 300W with the capability to deliver an even more impressive audio quality. Just like OmniSound ® full duplex, OmniSound ® 2.0 uses an omni-directional microphone and three speakers for optimal audio performance. OmniSound ® 2.0 is enhanced with innovative features – noise suppression minimises distracting background noise, wideband voice transmission gives 7 kHz during VoIP calls and an equalizer allows you to adjust sound levels during your meeting. DECT conforms to the GAP standard DECT – Digital Enhanced Cordless Telephone. DECT incorporates encryption for maximum call security. GAP (Global Access Profile) ensures the interoperability of DECT equipment of different manufacturers. Konftel AB hereby declares that this conference unit complies with all essential require- ments and other relevant provisions of Directive 1999/5/EC. Warning! Do not expose the Konftel 300W, charging stand or batteries to water or moisture. Warning! Do not open the casing of the Konftel 300W. Warning! Only use the power adapter provided to connect the unit to the mains. Warning! Only use the battery provided or a Konftel-recommended replacement battery. Warning! Do not attempt to open or modify the battery. Warning! Extreme heat, short-circuiting or any attempt to modify the battery may cause it to ignite or explode. 1 TAblE of ConTEnTs Description 2 General ..................................................2 Maintenance ..........................................2 keypad...................................................4 Display screen ........................................5 Navigation and selection in menus ...........6 General 7 Unpacking .............................................7 Connecting and installing the unit ............8 Select connectivity option with the line mode .....................................................9 Using a computer ...................................9 Recharging batteries ..............................10 Connect to a DECT system 11 Registration ..........................................11 Answering and making calls 13 Answering calls......................................13 Making calls ..........................................13 Making three-way calls (DECT) ................14 VoIP calls via a computer ........................14 Calls via mobile phones ..........................15 During a call 16 Adjusting the speaker volume ..................16 Placing calls on temporary hold ...............16 Ending calls ..........................................16 Switching lines during calls .....................17 Conference guide 18 Creating conference groups.....................18 Making conference group calls ................18 Making a temporary conference group call (multi-party call) using the Instant Guide ...................................................19 Displaying conference group participants .19 Editing conference groups .....................20 Deleting conference groups ....................20 Delete all conference groups ..................20 Conference guide settings ......................21 Displaying conference guide status ..........21 Phonebook 22 Searching for contacts ..........................22 Adding contacts ...................................22 Editing contacts ...................................22 Deleting contacts ..................................23 Deleting all conference groups ...............23 Displaying phonebook status ..................23 Recording 24 Starting a recording ...............................24 Mute function ........................................24 Hold .....................................................24 Ending a recording .................................24 Listening to a recording .........................25 Managing recordings .............................26 Adjusting the recording indicator ............26 Displaying recording feature status .........26 settings 27 DECT...................................................27 Selecting languages ..............................27 Deactivating keypad tones .....................27 Adjusting date and time ........................28 Adjusting ring level volume ....................28 Adjusting Flash/R-pulse duration ............28 Adjusting microphone volume with mobile phone connected .......................29 Adjusting sound (equaliZer)....................29 Changing text on the display screen ........29 Sleep mode ..........................................29 Upgrading ............................................29 Resetting .............................................29 Checking status ....................................30 Upgrading software 31 Upgrading from a PC..............................31 optional accessories 32 Troubleshooting 33 Technical specifications 34 Konftel DECT base station (accessories) .36 service and guarantee 37 2 DEsCRiPTion GEnERAl The Konftel 300W is a battery-driven wireless conference phone that can be connected to DECT systems, mobile phones or PCs. It can be connected to a Konftel DECT base station or any GAP-compatible DECT system. The conference phone has a host of innovative features: • A fully wireless unit that provides talk time of up to 48 hours without having to recharge. • OmniSound ® 2.0 audio technology. • USB connectivity allows the phone to be used to make VoIP calls. • The line mode enables you to combine and switch easily between connectivity tech- nologies – DECT, USB, mobile. • Conference guide for easy set-up of multiparty calls. • Record your meetings with an SD memory card so that you can listen to them later on. • Can be upgraded with smart features, making it future-proof. • Two-year guarantee. MAin TE nAnCE Clean the equipment with a soft, dry cloth…

Text truncated - open the document above for the full version.

Date: Oct 15, 2009 To whom it may concern, Declarations FCC ID: SNN1066 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the conference phone unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Station Unit Reaction of Conference Phone Unit 1 Switch-off companion device NA NA 2 On Hook by companion device B NA 3 Switch-off device NA NA 4 On Hook on device side NA C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned.

[SNN1066_circuit.pdf] [SNN1066_block.pdf] [SNN1066_descri.pdf]

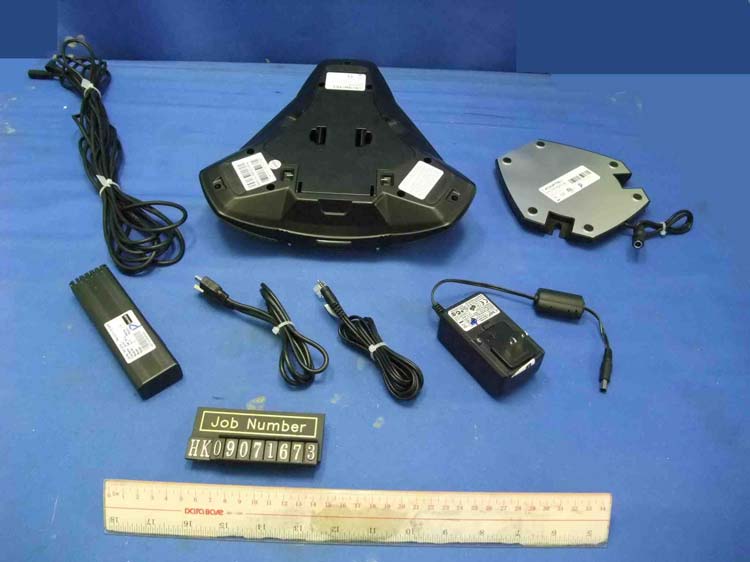

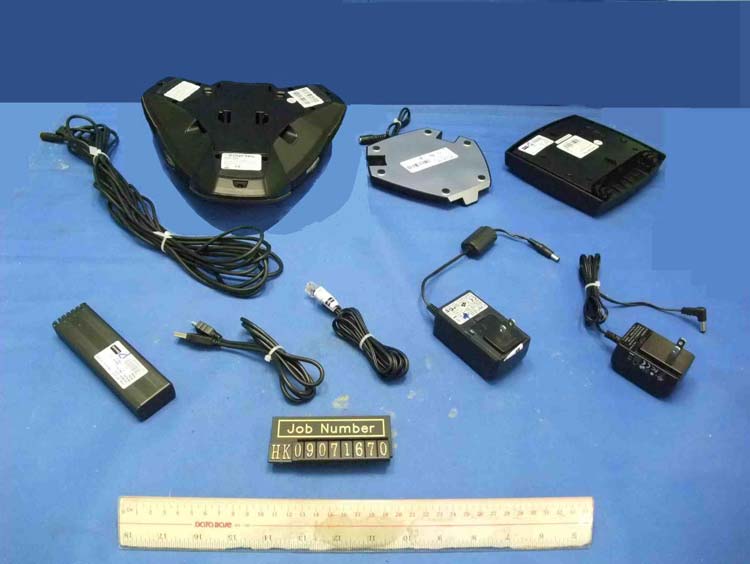

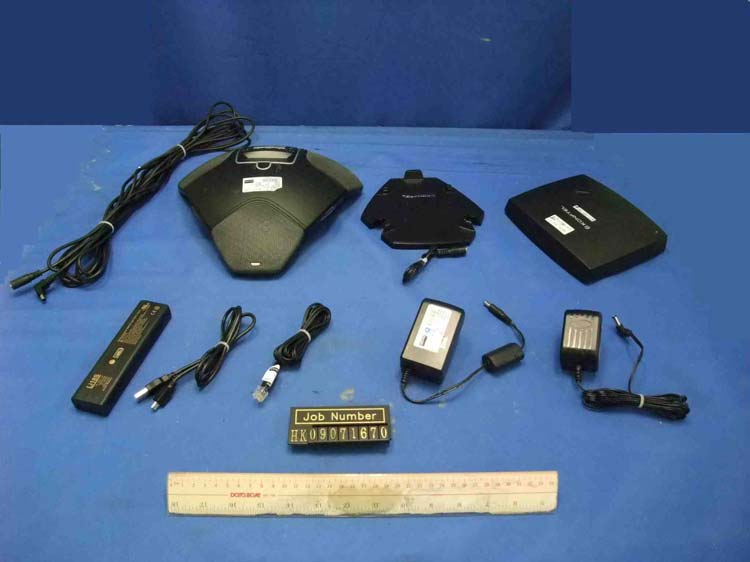

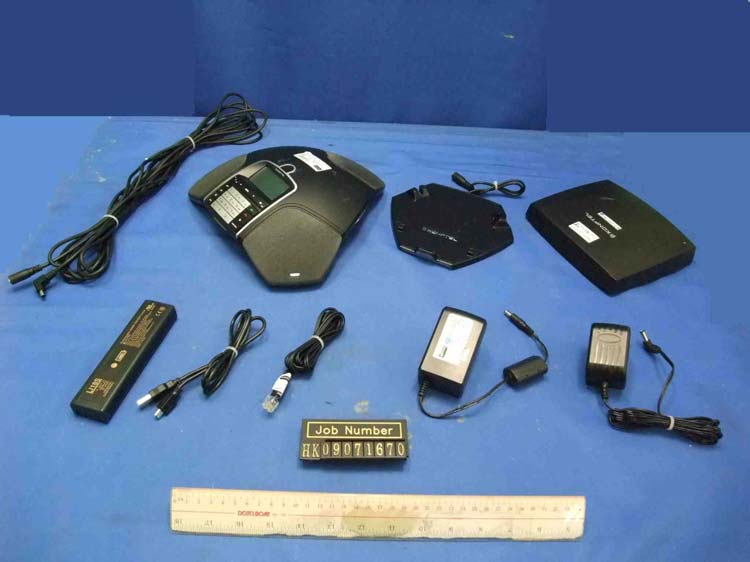

INTERTEK TESTING SERVICES External Photos FCC ID: SNN1066 external photos - 1 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: SNN1066 external photos - 2 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: SNN1066 external photos - 3 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: SNN1066 external photos - 4 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: SNN1066 external photos - 5 of 5

FCC ID: SNN1066 US: 5RWW400B1066 Konftel DECT Base station Item no. 840102099 Support: +46 (0)90 70 64 89 www.konftel.com Serial no. 83410001 R1A Konftel no. 840101067-01-001 rev B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID: SNN1066 US: 5RWW400B1066 Konftel DECT Base station Item no. 840102099 Support: +46 (0)90 70 64 89 www.konftel.com Serial no. 83410001 R1A 49.5 mm 39.5 mm Item no. 900102095 Li. Ion Battery This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Konftel 300W Item no. 840101067 Support: +46 (0)90 70 64 89 www.konftel.com FCC ID: SNN1066 3171853 43.2 mm 27.5 mm Stefan Andersson 2010-02-25B 1(1)130071-61-001 Label: Product, DECT Base US Color: Color print on white label Type of label: 3M Adhesive label - Recycling compatible Label material 8000 Barcode EAN128 PosFont Konftel logotype Product Item number 840102099 Support: +46 (0)90 70 64 89 www.konftel.com FCC ID: SNN1066 US: 5RWW400B1066 Waste bin mark 1 2 3 4 5 6 7 8 Trade Gothic Trade Gothic Trade Gothic Trade Gothic FCC ID: SNN1066 US: 5RWW400B1066 49.5 mm R2.9 mm 39.5 mm 1 2 3 4 5 6 78 Konftel DECT Base station Item no. 840102099 Support: +46 (0)90 70 64 89 www.konftel.com Serial no. 83410001 R1A Barcode EAN128 containing serial number and rev state. Serial number 834XXXXX, counting from 83410001. Revision number RXX, counting from R1A. Stefan Andersson 2010-03-31C 1(1)130059-61-001 Label: Product, 300W US, bottom housing Color: black print on white label Type of label: 3M Adhesive label - Recycling compatible Label material 8000 ARTPAPER+MATT PP COATING PosFont Konftel logotype Product Item number 840101067 Support: +46 (0)90 70 64 89 www.konftel.com FCC logo and FCC ID: SNN1066 Waste bin mark ETL mark 1 2 3 4 5 6 7 8 1 2 3 4 5 678 Trade Gothic Trade Gothic Trade Gothic Trade Gothic Konftel 300W Item no. 840101067 Support: +46 (0)90 70 64 89 www.konftel.com FCC ID: SNN1066 3171853 43.2 mm R3 mm 27.5 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 43.5 mm R2.9 mm Stefan Andersson 2010-01-04B 1(1)130054-61-001 Label: FCC Part 15 disclaimer, 300W bottom housing + DECT base station Color: black print on white label Type of label: 3M Adhesive label - Recycling compatible Label material 8000 27.8 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 2 of 10 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 3 of 10 Conference Phone Unit assembly Conference Phone Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 4 of 10 Conference Phone Unit Main PCB comp side (View 2) Conference Phone Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 5 of 10 Conference Phone Unit Main PCB solder side (View 2) Conference Phone Unit Baseband and RF Module PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 6 of 10 Conference Phone Unit Baseband and RF Module PCB comp side (View 2) Conference Phone Unit Baseband and RF Module PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 7 of 10 Conference Phone Unit LCD Display front side Conference Phone Unit LCD Display rear side INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 8 of 10 Conference Phone Unit Charging Stand in use LED front side (View 1) Conference Phone Unit Charging Stand in use LED front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 9 of 10 Conference Phone Unit Charging Stand in use LED rear side (View 1) Conference Phone Unit Charging Stand in use LED rear side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: SNN1066 internal photos - 10 of 10 Conference Phone Unit Battery and Charging Stand Contact assembly front side Conference Phone Unit Battery and Charging Stand Contact assemb ly rear side

INTERTEK TESTING SERVICES FCC ID: SNN1066 RF exposure - 1 of 2 For Maximum Permissible Exposure (MPE) evaluation of the base station unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the Base Station Unit of tested model of Konftel 300W, the maximum field strength measured (FS) was 122.1 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-conference phones operation is 20.83%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 486.54 mW The radiated (EIRP) source-based time-averaging output power = (486.54 * 0.208) mW = 101.35 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0202 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base station unit at least 20cm from nearby persons.” INTERTEK TESTING SERVICES FCC ID: SNN1066 RF exposure - 2 of 2 For Maximum Permissible Exposure (MPE) evaluation of the conference phone unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the Conference Phone Unit of tested model of Konftel 300W, the maximum field strength measured (FS) was 120.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor is 4.17%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 321.46 mW The radiated (EIRP) source-based time-averaging output power = (321.46 * 0.042) mW = 13.40 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0027 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the conference phone unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: SNN1066 26bw - 1 of 3 A0 Base station unit, Lowest channel, Traffic carrier Base station unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: SNN1066 26bw - 2 of 3 A0 Base station unit, Lowest channel, Dummy carrier Base station unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: SNN1066 26bw - 3 of 3 A0 Conference phone unit, Lowest channel, Traffic carrier Conference phone unit, Highest channel, Traffic carrier

Report no.: HK09071670-1 Unit: Base Station Unit Mode: Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.FEB.2010 19:45:24 Report no.: HK09071670-1 Unit: Base Station Unit Mode: Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 388.5 kHz 32.32 L1 gnd -25.77 1 Quasi Peak 532.5 kHz 34.44 N gnd -21.55 1 Quasi Peak 672 kHz 32.59 L1 gnd -23.40 1 Quasi Peak 897 kHz 31.10 L1 gnd -24.89 1 Quasi Peak 1.14 MHz 31.84 L1 gnd -24.16 1 Quasi Peak 1.6305 MHz 33.96 N gnd -22.03 1 Quasi Peak 2.508 MHz 33.07 N gnd -22.92 1 Quasi Peak 4.02 MHz 31.41 L1 gnd -24.58 1 Quasi Peak 5.7255 MHz 41.71 N gnd -18.28 1 Quasi Peak 6 MHz 46.06 N gnd -13.93 2 CISPR Average6.0495 MHz 30.73 L1 gnd -19.26 Date: 24.FEB.2010 19:45:17 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) EUT’s AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.MAR.2010 18:21:40 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) EUT’s AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 181.5 kHz 51.90 N gnd -12.51 2 CISPR Average186 kHz 39.70 L1 gnd -14.51 1 Quasi Peak 231 kHz 47.65 L1 gnd -14.76 2 CISPR Average231 kHz 39.12 L1 gnd -13.29 2 CISPR Average375 kHz 31.74 L1 gnd -16.64 1 Quasi Peak 379.5 kHz 40.74 L1 gnd -17.54 2 CISPR Average420 kHz 31.95 L1 gnd -15.49 1 Quasi Peak 429 kHz 40.54 L1 gnd -16.73 1 Quasi Peak 573 kHz 38.98 N gnd -17.01 2 CISPR Average712.5 kHz 28.54 N gnd -17.45 2 CISPR Average897 kHz 28.36 N gnd -17.63 1 Quasi Peak 910.5 kHz 39.01 N gnd -16.98 1 Quasi Peak 1.095 MHz 37.40 N gnd -18.60 1 Quasi Peak 2.103 MHz 40.25 N gnd -15.74 1 Quasi Peak 2.5395 MHz 39.27 N gnd -16.72 2 CISPR Average2.589 MHz 29.05 N gnd -16.94 2 CISPR Average3.48 MHz 27.95 N gnd -18.04 1 Quasi Peak 3.579 MHz 38.13 N gnd -17.86 1 Quasi Peak 4.5195 MHz 37.06 N gnd -18.94 2 CISPR Average4.596 MHz 27.52 N gnd -18.47 Date: 19.MAR.2010 18:21:20 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) EUT’s AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 6.2205 MHz 35.32 L1 gnd -24.67 1 Quasi Peak 13.533 MHz 34.71 N gnd -25.28 1 Quasi Peak 18.582 MHz 37.73 L1 gnd -22.26 2 CISPR Average18.582 MHz 32.40 L1 gnd -17.59 Date: 19.MAR.2010 18:21:31 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) NB’s AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.APR.2010 17:52:41 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) NB’s AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 46.35 N gnd -17.66 1 Quasi Peak 244.5 kHz 37.14 N gnd -24.79 2 CISPR Average1.167 MHz 30.27 L1 gnd -15.72 1 Quasi Peak 1.752 MHz 36.72 L1 gnd -19.27 2 CISPR Average1.752 MHz 34.47 L1 gnd -11.52 1 Quasi Peak 2.337 MHz 38.97 L1 gnd -17.02 2 CISPR Average2.337 MHz 35.34 L1 gnd -10.65 2 CISPR Average3.507 MHz 30.71 L1 gnd -15.29 1 Quasi Peak 4.038 MHz 40.25 L1 gnd -15.74 2 CISPR Average4.9605 MHz 38.00 L1 gnd -8.00 1 Quasi Peak 5.541 MHz 47.19 L1 gnd -12.80 1 Quasi Peak 6.135 MHz 47.83 L1 gnd -12.16 2 CISPR Average6.135 MHz 41.94 L1 gnd -8.06 2 CISPR Average7.989 MHz 35.67 L1 gnd -14.32 1 Quasi Peak 8.007 MHz 42.35 N gnd -17.65 2 CISPR Average13.4025 MHz 36.18 L1 gnd -13.81 1 Quasi Peak 13.4115 MHz 41.28 L1 gnd -18.71 2 CISPR Average17.5695 MHz 32.70 N gnd -17.30 1 Quasi Peak 18.177 MHz 37.63 N gnd -22.36 1 Quasi Peak 21.894 MHz 35.41 L1 gnd -24.58 Date: 8.APR.2010 17:52:12 Report no.: HK09071670-1 Unit: Conference Phone Unit Mode: DECT Talking & SD Card Recording Mode (Charging with Stand) NB’s AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average21.894 MHz 30.10 L1 gnd -19.89 Date: 8.APR.2010 17:52:22

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: SNN1066 inband - 1 of 3 A0 Base station unit, Lowest channel, Traffic carrier Base station unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: SNN1066 inband - 2 of 3 A0 Base station unit, Lowest channel, Dummy carrier Base station unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: SNN1066 inband - 3 of 3 A0 Conference phone unit, Lowest channel, Traffic carrier Conference phone unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: SNN1066 peaktp - 1 of 3 A0 Base station unit, Lowest channel, Traffic carrier Base station unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: SNN1066 peaktp - 2 of 3 A0 Base station unit, Lowest channel, Dummy carrier Base station unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: SNN1066 peaktp - 3 of 3 A0 Conference phone unit, Lowest channel, Traffic carrier Conference phone unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: SNN1066 psd - 1 of 3 A0 Base station unit, Lowest channel, Traffic carrier Base station unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: SNN1066 psd - 2 of 3 A0 Base station unit, Lowest channel, Dummy carrier Base station unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: SNN1066 psd - 3 of 3 A0 Conference phone unit, Lowest channel, Traffic carrier Conference phone unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Konftel AB Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices FCC ID: SNN1066 Model: Konftel 300W Test Report Number: HK09071670-1 Issue Date: April 14, 2010 KS/ cl INTERTEK TESTING SERVICES Test Report Number: HK09071670-1 Page 1 of 65 FCC ID: SNN1066 MEASUREMENT/TECHNICAL REPORT Konftel AB - Model: Konftel 300W FCC ID: SNN1066 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK09071670-1 Page 2 of 65 FCC ID: SNN1066 Table of Contents 1.0 Summary of Test Results.......................................................................................... 5 2.0 General Description................................................................................................... 8 2.1 Product Description ................................................................................................... 8 2.2 Technical Description ................................................................................................ 8 2.3 Test Methodology...................................................................................................... 8 2.4 Test Facility ...............................................................................................................8 3.0 System Test Configuration...................................................................................... 10 3.1 Justification ............................................................................................................. 10 3.2 Conducted Emission Test Configuration ................................................................. 11 3.3 Conducted Monitoring and Operational Test Configuration ..................................... 11 3.4 EUT Exercising Software ........................................................................................ 11 3.5 Details of EUT and Description of Peripherals......................................................... 12 3.6 Measurement Uncertainty ....................................................................................... 13 3.7 Equipment Modification ........................................................................................... 13 4.0 Measurement Results.............................................................................................. 15 4.1 Antenna Requirement ............................................................................................. 15 4.2 Digital Modulation Techniques ................................................................................ 15 4.3 Emission Bandwidth................................................................................................ 16 4.4 Directional Gain of the Antenna............................................................................... 17 4.5 Peak Transmit Power .............................................................................................. 18 4.6 Power Spectral Density ........................…
