SNNRMTKonftel Remote Control

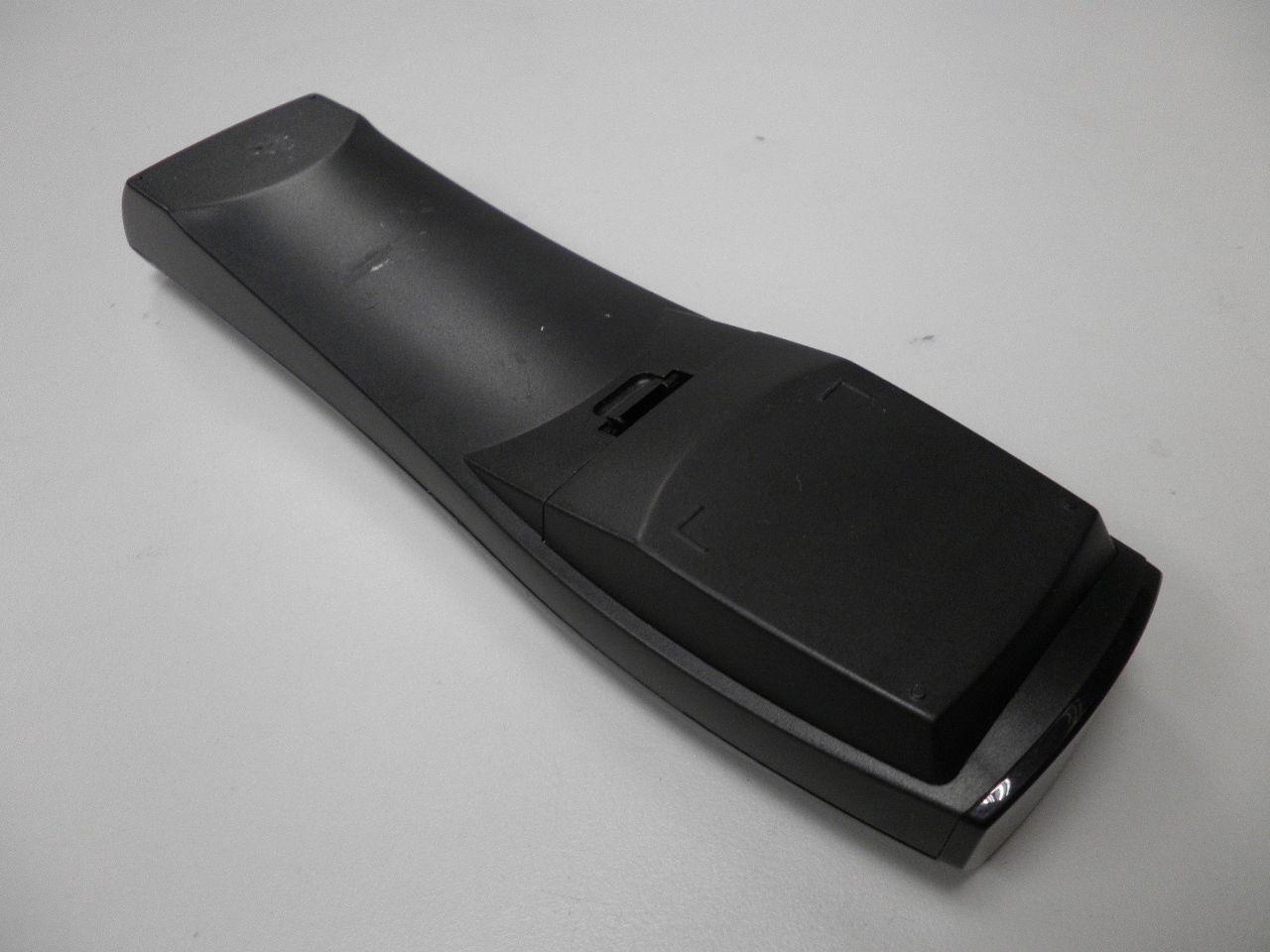

www.konftel.com Konftel AB, Box 268, SE-901 06 Umeå, Sweden Tel: +46 90 706 489 Fax: +46 90 131 435 [email protected] 110248-61-001 Rev 1C Konftel Remote Control Specifications RF carrier frequency 433.92 MHz Dimensions (W x H x L) 54 x 190 x 25 mm Unit weight (excl. batteries) 90 g Battery type AAA x 3 pcs INSTALLING BATTERIES Three AAA batteries are required for operation.  Remove the battery cover.  Check the polarity of the batteries and the “+/-” marks inside the battery compartment.  Insert the batteries following the marks.  Push the battery cover back in place. Battery safety • Use new batteries of the recommended type and size only. Risk of explosion if battery is replaced by an incorrect type. • Do not mix old and new batteries. • To help avoid the chance of chemical leaks remove the batteries from the remote if you do not intend to use the remote for an extended period of time. • Dispose of old batteries properly. Do not burn or bury them. PAIRING  Select MENU > SETTINGS > REMOTE CONTROL on the conference phone.  Press OK to set the conference phone in pairing mode.  Press the and buttons on the remote control simultaneously for three seconds. The red LED on the remote control starts flashing and a pairing confirmation appears on the confe­ rence phone display.  Press OK on the conference phone to confirm that you want to pair the units. FCC statements 1) Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC statements This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouil- lage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology FCC > FC C E-filing > EAS > Grantee Search >Grantee Search ResultsFCC Site Map Grantee Search Results One item found.1 Grantee CodeGrantee NameMailing AddressP.O. B o xCityStateCountryZip CodeContactDate Received SNNKonftel ABBOX 268 Ume N/ASweden 90106Tommy Edlund 10/27/2004 Export options: CSV | Excel | XML | PDF New Grantee Search Last Reviewed/Updated on 09/29/2009 Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act

PosFont Color: Black print on white label Type of label: 3M Adhesive label - Recycling compatible Label material 8000 Trade Gothic Model no. 900102123 DC 4.5V AAAx3 1108 is production month and shall be changed for each batch Year: 2011 is 11 Month: 1-12 IC: 2408A-RMT FCC ID: SNNRMT 31,5 mm R1 mm 30 mm Stefan Andersson 2011-08-17A 1(1)130168-61-001 Label: Product, Remote control Model no. 900102123 DC 4.5V AAAx3 1108 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 2408A-RMT FCC ID: SNNRMT Made in China FIG. 12 BACK LABEL LOCATION AND ORIENTATION CABINET BOTTOM A A A A A A A A A A A A A A A A A A A A A A A A A BW0933 QC SPECIFICATION BACK LABEL BATTERY DOOR 70.00 SYMMETRIC

X1: 4MHz ANT X2: 433.92M Hz

FCC Test Report E4319267301KY Type / Model Name: 900102123 Trade name: Konftel Product Description: Konftel Remote Control Applicant: Konftel AB FCC ID: SNNRMT File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 2 of 16 FCC --- T E S T R E P O R T Test Report No. : E4319267301KY Dec 30, 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : 900102123 Product Description : Konftel Remote Control Applicant : Konftel AB Address : BOX 268, Umeå, SE-90106, Sweden Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 3 of 16 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 ANTENNA REQUIREMENT 9 5.2 AVERAGE FACTOR 10 5.3 RADIATED EMISSION 12 5.4 BANDWIDTH 14 5.5 PROVISION OF MOMENTARY OPERATION 15 6 USED TEST EQUIPMENT AND ACCESSORIES 16 File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 4 of 16 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2010-10-01 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 5 of 16 2 SUMMARY GENERAL REMARKS: N/A FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : 16-12-2011 Testing commenced on : 16-12-2011 Testing concluded on : 30-12-2011 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 6 of 16 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Top View Bottom View File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 7 of 16 3.2 Power supply system utilised Power supply voltage: 4.5Vdc (3*AAA batteries) 3.3 Short description of the Equipment under Test (EuT) The EuT is a remote control and working with 433.92MHz. The EuT is a transmitter. The EuT used to change the state of the corresponding receiver by transmitting the modulated signal. The EuT is operated with 4.5Vdc, three AAA batteries. Tested samples: One Set Serial number: Not Labelled Dimensions: L: 18.5 cm W: 5.0 cm H: 2.5 cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transmitting mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable LengthType Line Line termination [m] shieldedunshielded N/A Peripheral devices : Kind of equipment Model and/or Manufacturer N/A File No. E4319267301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 8 of 16 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC Registration number: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 860-1060 mbar 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 “Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements” and is documented in the quality system acc. to ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer does have the sole responsibility for the continued compliance of the device. File No. E4319267301KY emitel (…
