SO4YX510-PCSPCS BI- DIRECTIONAL SIGNAL BOOSTER

One Meca Way Norcross, Georgia 30093 Ph: 770-239-5475 x2478 Fax: 770-239-5473 CONFIDENTIALITY REQUEST Federal Communications Commission Date: 12/15/06 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Wireless Extenders, Inc. respectfully requests confidentiality of certain materials provided with the submission of the YX510-PCS under FCC ID: S04YX510PCS in accordance with FCC Regulations 0.459. This confidentiality request applies to the exhibits contained in this filing and list below. (1) Schematic diagrams (06-0291P – Schematics.pdf) (2) Detailed block diagrams (06-0291P – System Block Diagram.pdf) (3) Operational descriptions (06-0291P – Theory of Operation.pdf) (4) Parts lists (06-0291P – Parts List.pdf) (5) Tune up procedures. (06-291P – Tune-up Procedure.pdf) The YX510-PCS has been developed at considerable effort and expense by Wireless Extenders, Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Pieter C. Seidel Signature: Title: Engineering Manager Date: 12/15/06

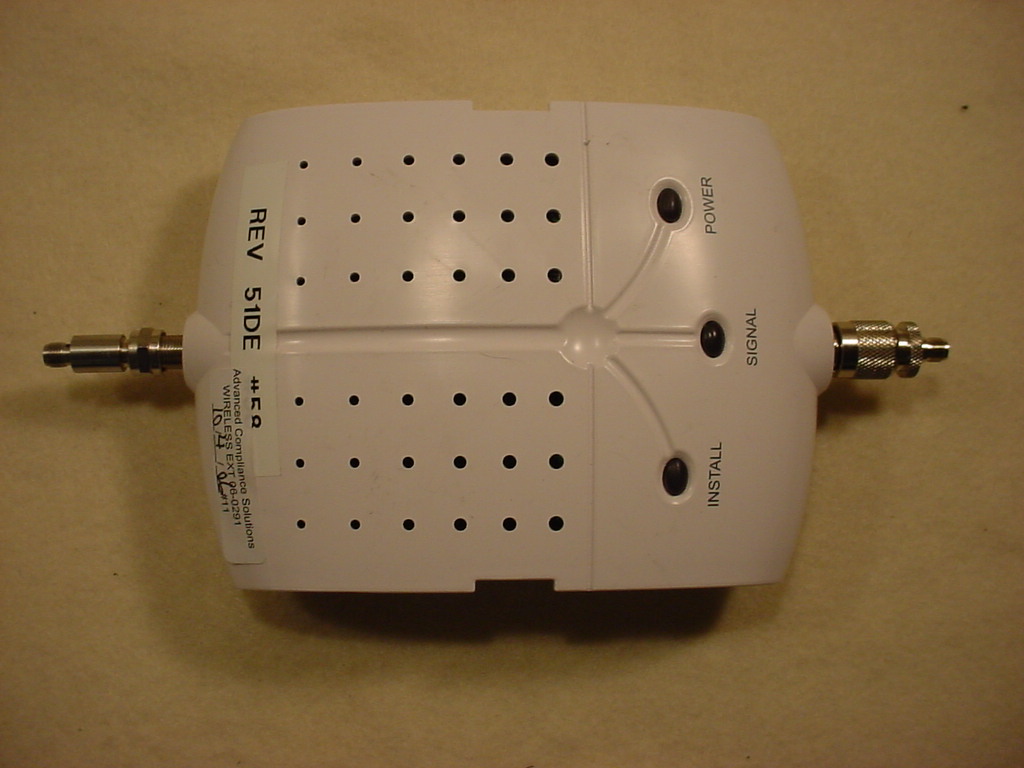

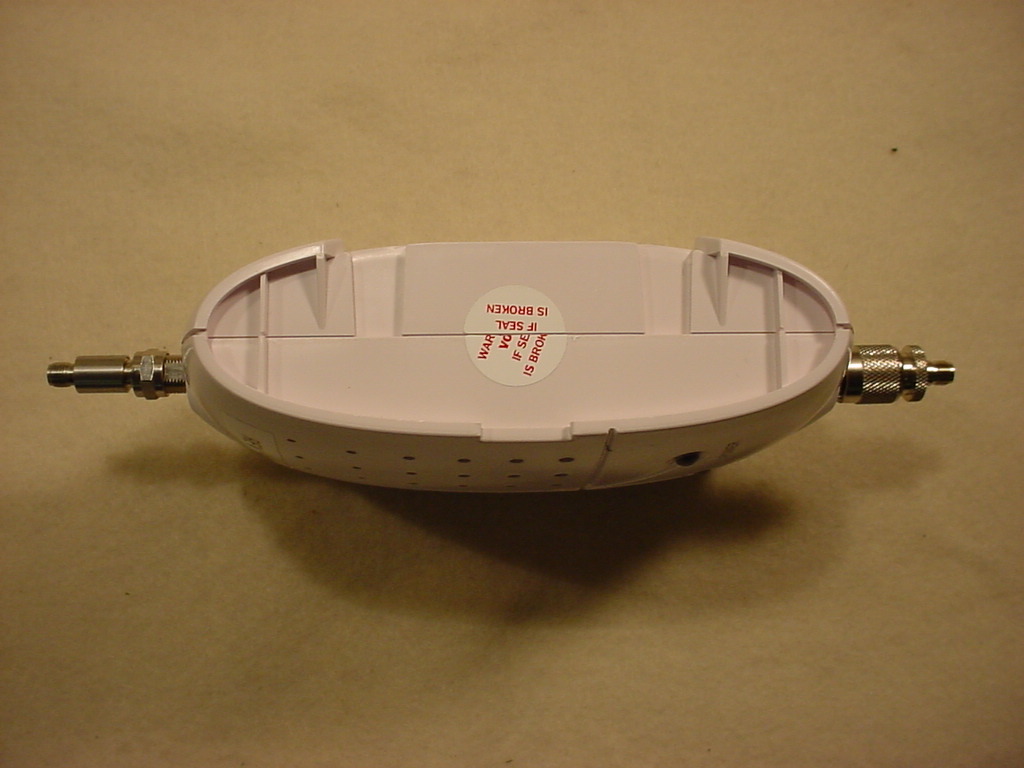

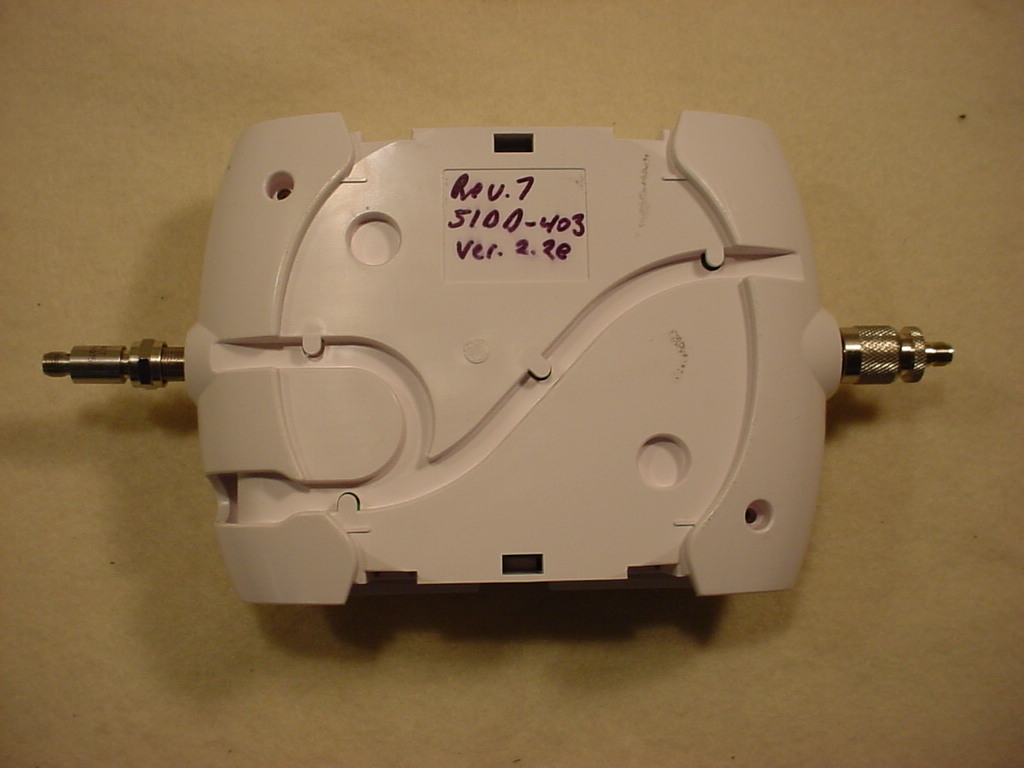

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS External Photographs Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External - Top Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Bottom Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External - Side Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: External - Side

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS Label Information Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Label Information – Sample Label Figure 2: Label Information – Label Location MODEL: YX510-PCS 51PA- FCC ID: SO4YX510-PCS IC: 5544A-YX510PCS Label Location

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS Internal Photographs Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – PCB Front Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – PCB Front – Unshielded Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – PCB Back Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – PCB Back – Unshielded

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS RF Exposure Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 General Information: Applicant: Wireless Extenders ACS Project: 06-0291P FCC ID: SO4YX510-PCS Device Category: Uplink – Fixed, Downlink - Mobile Exposure Conditions: Uncontrolled/General Population Technical Information: Note: Multiple antennas are available with this device. Antennas specified below indicate the antennas with the maximum gain for each path. UPLINK: Antenna Type: Directional Antenna Gain Maximum: 13dBi Max Transmitter Output Power: 25.96dBm Max System EIRP: 38.96dBm / 7.9W Operating Configuration: Fixed DOWNLINK: Antenna Type: Directional Antenna Gain Maximum: 7dBi Max Transmitter Output Power: 13.36dBm Max System EIRP: 20.36dBm / 0.109W Operating Configuration: Mobile NOTE: Multiple antennas are available for both the uplink and downlink applications. Listed above are antennas with the highest gain. MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Calculations were performed at the frequencies with the highest output power as determined during testing. Maximum Permissible Exposure (MPE) General Population/Uncontrolled Exposure 185025.961.00394.461319.953 260.926Uplink 199013.361.0021.6875.012 200.022Downlink Configuaration Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS Test Begin Date: October 4, 2006 Test End Date: December 1, 2006 Report Issue Date: December 22, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 18 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.3 Test Methodology and Considerations 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 4 2.3.1 Semi-Anechoic Chamber Test Site 5 2.3.2 Open Area Tests Site (OATS) 6 2.4 Conducted Emissions Test Site Description 7 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment and Accessories 9 6.0 EUT Setup and Block Diagram 9 7.0 Summary of Tests 10 7.1 RF Power Output 10 7.1.1 Measurement Procedure 10 7.1.2 Measurement Results 10 7.2 Occupied Bandwidth (Emission Limits) 11 7.2.1 Measurement Procedure 11 7.2.2 Measurement Results 11 7.3 Spurious Emissions at Antenna Terminals and Inter-modulation Products 12 7.3.1 Measurement Procedure 12 7.3.2 Measurement Results 12 7.4 Band-edge Compliance 14 7.4.1 Measurement Procedure 14 7.4.2 Measurement Results 14 7.5 Field Strength of Spurious Emissions 15 7.5.1 Measurement Procedure 15 7.5.2 Measurement Results 15 7.6 Frequency Response 16 7.5.1 Measurement Procedure 16 7.5.2 Measurement Results 16 7.7 Radiated Emissions (Unintentional Radiators) 17 7.7.1 Measurement Procedure 17 7.7.2 Measurement Results 17 7.8 Power Line Conducted Emissions 18 7.8.1 Measurement Procedure 18 7.8.2 Measurement Results 18 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling RF Exposure – MPE Calculations Installation/Users Guide Theory of Operation Parts List System Block Diagram Tune-up Procedure Schematics Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 06-0291-24E Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 2 Subpart J and Part 24 Subpart E of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The YX510 is a Smart Bi-Directional Amplifier (SBDA) system which captures the signal arriving outside a consumer’s home and amplifies it inside the home, as well as capturing the signal from the user’s phone and amplifying it to the outdoor network. Wireless Extenders designed the YX510 to meet BOTH the needs of the wireless carrier and the wireless consumer. The YX510 is available in three model variants, YX510-CEL, YX510-PCS, and a dual band version YX510-PCS-CEL. All models utilize the same PCB, which is fully populated for the YX510-PCS-CEL model to offer dual band capabilities. For the single band model variants the PCB portion which is not utilized is depopulated. This report addresses the YX510-PCS operation only. An additional report is available for the YX510-CEL operation. Manufacturer Information: Wi-Ex One Meca Way Norcross, GA 30093 Detailed photographs of the EUT are filed separately with this filing. 1.3 Test Methodology and Considerations The EUT was configured and tested utilizing the maximum input drive level resulting in maximum gain conditions for all tests. If the maximum input drive level is exceeded, internal attenuators are activated to produce a level RF output and eliminate the device from operating beyond the maximum RF output power that is below the saturated RF output power. For unintentional radiated emissions measurements the EUT was configured with one port loaded with a 50 Ohm non-radiating load and the other port loaded with a representative antenna. Both ports could not be loaded with representative antennas within the test environment due to the isolation required between antennas and the fact the device would receive and transmit any received signals via the antennas. Both the uplink and downlink ports were evaluated with antennas attached and the worst case provided in this report. Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 06-0291-24E Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612-0 Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 06-0291-24E Advanced Compliance Solutions Pa…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E-A Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS Test Begin Date: October 4, 2006 Test End Date: December 1, 2006 Report Issue Date: December 22, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 34 pages ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 2 Table of Contents 1.0 Occupied Bandwidth 1.1 Uplink 3 1.2 Downlink 6 2.0 Spurious Emissions at Antenna Terminals and Inter-modulation Products 2.1 CDMA Uplink 9 2.2 TDMA Uplink 12 2.3 CW Uplink 15 2.4 GSM Uplink 17 2.5 CDMA Downlink 19 2.6 TDMA Downlink 22 2.7 CW Downlink 25 2.8 GSM Downlink 27 3.0 Band-edge 3.1 CDMA Uplink 29 3.2 TDMA Uplink 30 3.3 GSM Uplink 31 3.4 CDMA Downlink 32 3.5 TDMA Downlink 33 3.6 GSM Downlink 34 Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 3 1.0 Occupied Bandwidth (Input vs. Output) 1.1 Uplink Offset 6 dB A SGL LVL * * RBW 30 kHz VBW 100 kHz SWT 2.5 msRef 6 dBm Center 1.85125 GHzSpan 2 MHz200 kHz/ Att 30 dB ** 2 PK VIEW 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 21.NOV.2006 13:50:57 Figure 1: Occupied Bandwidth - Uplink CDMA Low Channel Offset 6 dB A SGL LVL * * RBW 30 kHz VBW 100 kHz SWT 2.5 msRef 0 dBm Center 1.88 GHzSpan 2 MHz200 kHz/ Att 30 dB ** 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 21.NOV.2006 14:08:39 Figure 2: Occupied Bandwidth - Uplink CDMA Mid Channel Offset 6 dB A SGL LVL Ref 0 dBmAtt 30 dB ** 200 kHz/Center 1.90875 GHzSpan 2 MHz * * RBW 30 kHz VBW 100 kHz SWT 2.5 ms 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 21.NOV.2006 14:10:42 Figure 3: Occupied Bandwidth - Uplink CDMA High Channel Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 4 A SGL Offset 6 dB LVL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 10 dBmAtt 40 dB * Center 1.85004 GHzSpan 100 kHz10 kHz/ 1 PK VIEW 2 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -66.15 dBm 1.849990000 GHz Date: 27.NOV.2006 08:51:36 Figure 4: Occupied Bandwidth - Uplink TDMA Low Channel A SGL Offset 6 dB LVL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 10 dBmAtt 40 dB * Center 1.87998 GHzSpan 100 kHz10 kHz/ 1 PK VIEW 2 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -65.96 dBm 1.880030000 GHz Date: 27.NOV.2006 08:55:09 Figure 5: Occupied Bandwidth - Uplink TDMA Mid Channel Offset 6 dB A SGL LVL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 0 dBm Center 1.90997 GHzSpan 100 kHz10 kHz/ Att 30 dB ** 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -75.35 dBm 1.909920000 GHz Date: 21.NOV.2006 14:52:28 Figure 6: Occupied Bandwidth - Uplink TDMA High Channel Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 5 Att 40 dB ** Offset 6 dB A SGL LVL * * RBW 3 kHz VBW 10 kHz SWT 115 msRef 0 dBm Center 1.8502 GHzSpan 1 MHz100 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 21.NOV.2006 16:11:18 Figure 7: Occupied Bandwidth - Uplink GSM Low Channel Att 40 dB ** Offset 6 dB A SGL LVL * * RBW 3 kHz VBW 10 kHz SWT 115 msRef 0 dBm Center 1.88 GHzSpan 1 MHz100 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 21.NOV.2006 16:28:02 Figure 8: Occupied Bandwidth - Uplink GSM Mid Channel A Offset 6 dB LVL SGL * * RBW 3 kHz VBW 10 kHz SWT 115 msRef 0 dBmAtt 30 dB * Center 1.9098 GHzSpan 1 MHz100 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 27.NOV.2006 14:50:12 Figure 9: Occupied Bandwidth - Uplink GSM High Channel Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 6 1.2 Downlink A SGL Att 40 dB ** * * RBW 30 kHz VBW 100 kHz SWT 2.5 msRef 0 dBm Center 1.93125 GHzSpan 2 MHz200 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -10.59 dBm 1.931520000 GHz Date: 27.NOV.2006 09:21:20 Figure 10: Occupied Bandwidth - Downlink CDMA Low Channel Att 40 dB ** A SGL * * RBW 30 kHz VBW 100 kHz SWT 2.5 msRef 0 dBm Center 1.96 GHzSpan 2 MHz200 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 27.NOV.2006 09:32:48 Figure 11: Occupied Bandwidth - Downlink CDMA Mid Channel Att 40 dB ** A SGL * * RBW 30 kHz VBW 100 kHz SWT 2.5 msRef 0 dBm Center 1.98875 GHzSpan 2 MHz200 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 27.NOV.2006 09:42:24 Figure 12: Occupied Bandwidth - Downlink CDMA High Channel Model: YX510-PCS FCC ID: SO4YX510-PCS ACS Report: 05-0291-24E-A Advanced Compliance Solutions Page 7 Att 40 dB ** A SGL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 0 dBm Center 1.93004 GHzSpan 100 kHz10 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Date: 27.NOV.2006 09:59:17 Figure 13: Occupied Bandwidth - Downlink TDMA Low Channel Att 40 dB ** A SGL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 0 dBm Center 1.95998 GHzSpan 100 kHz10 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -74.36 dBm 1.960030000 GHz Date: 27.NOV.2006 10:10:04 Figure 14: Occupied Bandwidth - Downlink TDMA Mid Channel Att 40 dB ** A SGL * * RBW 300 Hz VBW 1 kHz SWT 1.15 sRef 0 dBm Center 1.98997 GHzSpan 100 kHz10 kHz/ 1 PK VIEW 2 PK MAXH * -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -76.35 dBm 1.989930000 GHz Date: 27.…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 24 Transmitter Certification Test Report FCC ID: SO4YX510-PCS FCC Rule Part: CFR 47 Part 24 Subpart E ACS Report Number: 06-0291-24E Manufacturer: Wireless Extenders Equipment Type: PCS Bi-Directional Signal Booster Model: YX510-PCS Test Setup Photographs Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Test Setup – Intentional Spurious Emissions Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Test Setup – Intentional Spurious Emissions Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Test Setup – Intentional Spurious Emissions - Substitution Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Test Setup – Unintentional Radiated Emissions Figure 5: Test Setup – Unintentional Radiated Emissions Model: YX510-PCS FCC ID: SO4YX510-PCS 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Test Setup – AC Power line Conducted Emissions Figure 6: Test Setup – AC Power line Conducted Emissions
