SO4YX550-AWS-VLTE4G Cellular Signal Amplifier

zBoost ® SOHO YX550 4G AWS/VLTE User Guide zBoost products have a 30-day money back guarantee when purchased directly from Wi-Ex®. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 1 Year Manufacturer Warranty. Register at www.Wi-Ex.com v.062512 zBOOST ® SOHO YX550 4G AWS/VLTE USER GUIDE i About zBoost ® from Wi-Ex ® Wi-Ex , the leader in cell phone signal boosters manufactures zBoost, the award-winning line of cell phone signal boosters that enhance the performance of your cell phone, smartphone and wireless data card.Patented technologies protect the carrier network. 1-year manufacturer warranty – register your product at www.Wi-Ex.com . zBoost products have more awards, more sales and more locations than all other signal boosters...COMBINED. FCC InformationFCC ID: SO4YX550-AWS-VLTEWarning: Changes or modi fi cations to this device not expressly approved by Wi-Ex® could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In accordance with FCC requirements of human exposure to radiofrequency fi elds, the radiating element (antenna) shall be installed such that a minimum separation distance of 20cm (8in) is maintained from all persons. Industry Canada RegulationsIC ID: 5544A-YX550AWSVLTThis Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The term “IC:” before the radio certi fi cation number only signi fi es that Industry Canada technical speci fi cations were met. RF Exposure: The manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. zBOOST ® SOHO YX550 4G AWS/VLTE USER GUIDE ii zBOOST ® SOHO YX550 4G AWS/VLTE USER GUIDE iii Package Contents: zBoost SOHO YX550 4G AWS/VLTE ⑦ ③ ④ ⑤ ⑥ Before you begin, make sure all of the following parts came with your zBoost SOHO YX550 4G AWS/VLTELiterature Contents: ① Set-up overview for zBoost SOHO YX550 4G AWS/VLTE (User Guide online only)Product Contents:② zBoost Base Unit ③ Base Unit Antenna ④ Power Supply ⑤ RG-59 (mini) Coax Cable, 50 feet ⑥ Signal Antenna ⑦ Signal Antenna Mounting Hardware Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les situations lorsque plusieurs signauxporteurs sont présents, l’évaluation devrait être réduite de 3.5 dB, en particulier lorsque le signal de sortie est ré-émise et peut provoquer des interférences adjacentes à la bande utilisateurs. Ce pouvoir est de la réduction par le biais de la sortie d’alimentation ou la réduction de gain et non par un atténuateur à la sortie du dispositif.Please note: This unit has been approved for use in Canada under RSS 131, however, consent for the use of this device to improve cellular or PCS coverage, must be obtained through your cellular or PCS provider, prior to placing the unit in operation. Please refer to the Industry Canada document CPC 2-1-05, Section 6.1 available or viewable at: http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.htmlCopyright NoticeThis manual is copyrighted. All rights reserved. This manual, whole or in part, may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form for distribution. This manual whole or in part, may not be modi fi ed without prior consent, in writing, from Wireless Extenders.Copyright © 2012 by Wireless Extenders, Inc. TrademarksWireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are registered trademarks of Wireless Extenders, Inc.Safety GuidelinesIn accordance with FCC requirements of human exposure to radiofrequency fi elds, the radiating element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained between th…

Text truncated - open the document above for the full version.

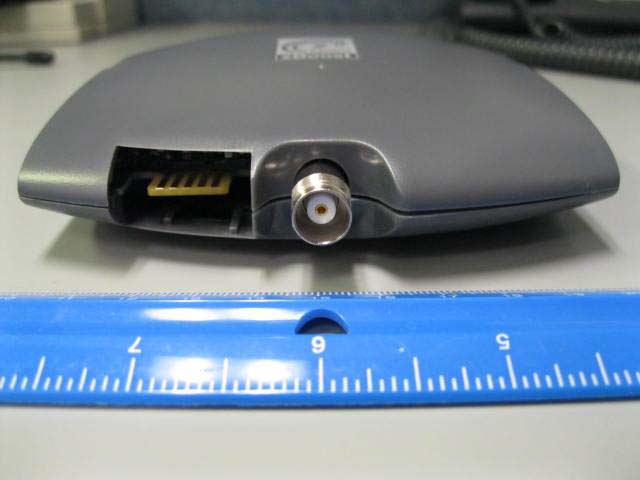

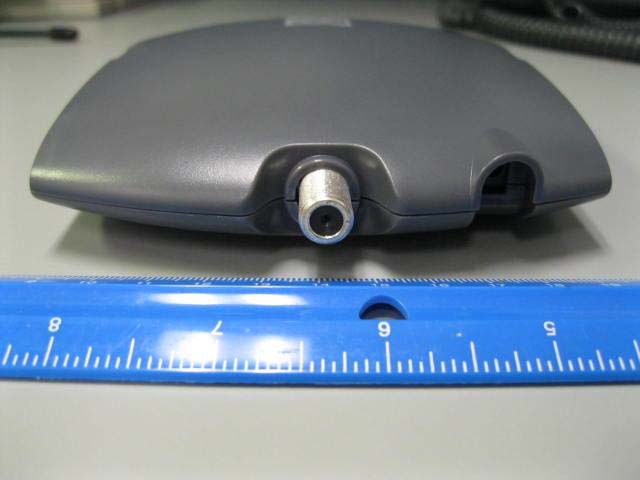

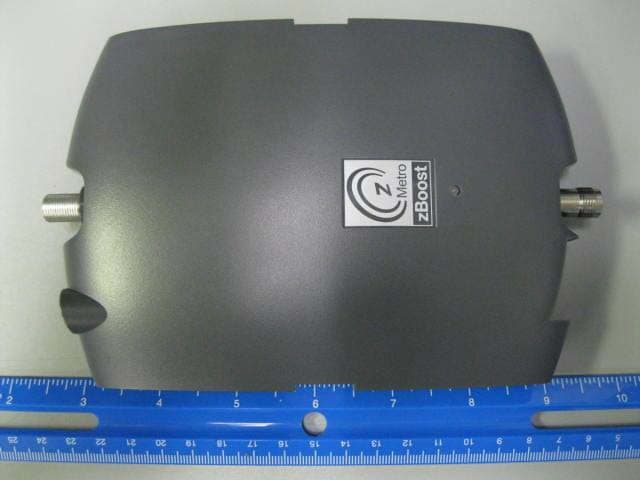

Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 105 of 108 FCC Part 27 Test Report 13 EXHIBIT C - EUT PHOTOGRAPHS 13.1 EUT – Top View 13.2 EUT – Bottom View Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 106 of 108 FCC Part 27 Test Report 13.3 EUT – Side View 1 13.4 EUT – Side View 2

Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 102 of 108 FCC Part 27 Test Report 11 EXHIBIT A - FCC ID LABEL REQUIREMENTS 11.1 FCC ID Label Requirement FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code 11.2 FCC ID Label Contents 11.3 FCC ID Label Location Label here

Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 107 of 108 FCC Part 27 Test Report 13.5 EUT – Main Board Top View 13.6 EUT – Main Board Bottom View Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 108 of 108 FCC Part 27 Test Report 13.7 EUT – Main Board without Shielding 13.8 AC/DC Power Supply View --- End of Report ---

Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 100 of 108 FCC Part 27 Test Report 10 FCC §1.1307(b), §27.52 & §2.1091 - RF EXPOSURE INFORMATION 10.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 1 (100) 30 1.34-30 824/f 2.19/f 1 (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz 1 = Plane-wave equivalent power density 10.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Test Results: WCDMA/HSPA Band (Band 4) Uplink Maximum peak output power at antenna input terminal (dBm): 20.02 Maximum peak output power at antenna input terminal (mW): 100.46 Prediction distance (cm): 20.00 Prediction frequency (MHz): 1732.4 Antenna Gain, typical (dBi): 5.0 Antenna Gain, typical (numeric): 3.16 Power density at predication frequency and distance (mW/cm 2 ): 0.063 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 101 of 108 FCC Part 27 Test Report WCDMA/HSPA Band (Band 4) Downlink Maximum peak output power at antenna input terminal (dBm): 10.09 Maximum peak output power at antenna input terminal (mW): 10.21 Prediction distance (cm): 20 Prediction frequency (MHz): 2132.4 Antenna Gain, typical (dBi): 3.00 Antenna Gain, typical (numeric): 2.00 Power density at predication frequency and distance (mW/cm 2 ): 0.004 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 LTE Band (Band 13) Uplink Maximum peak output power at antenna input terminal (dBm): 20.59 Maximum peak output power at antenna input terminal (mW): 114.55 Prediction distance (cm): 20 Prediction frequency (MHz): 782 Antenna Gain, typical (dBi): 3.0 Antenna Gain, typical (numeric): 2.0 Power density at predication frequency and distance (mW/cm 2 ): 0.0455 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5213 LTE Band (Band 13) Downlink Maximum peak output power at antenna input terminal (dBm): 13.56 Maximum peak output power at antenna input terminal (mW): 22.70 Prediction distance (cm): 20 Prediction frequency (MHz): 755 Antenna Gain, typical (dBi): 3.0 Antenna Gain, typical (numeric): 2.0 Power density at predication frequency and distance (mW/cm 2 ): 0.0090 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5033 Results For uplink and downlink, the highest power density levels at 20 cm are below the MPE uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 27 TEST AND MEASUREMENT REPORT For Wireless Extenders, Inc. One Meca Way, Norcross, GA 30093, USA FCC ID: SO4YX550-AWS-VLTE Report Type: Original Report Product Type: 4G Cellular Signal Amplifier Test Engineer: Jeffrey Wu Report Number: R1205301-27 Report Date: 2012-07-02 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 2 of 108 FCC Part 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 7 2.5 INTERNAL CONFIGURATIONS OF EUT................................................................................................................ 7 2.6 EUT POWER SUPPLY INFORMATION.................................................................................................................. 7 2.7 INTERFACE PORTS AND CABLES........................................................................................................................ 8 2.8 TEST SETUP BLOCK DIAGRAM........................................................................................................................... 8 3 SUMMARY OF TEST RESULTS...................................................................................................................... 10 4 FCC §2.1046 & §27.50 – RF OUTPUT POWER............................................................................................... 11 4.1 APPLICABLE STANDARD.................................................................................................................................. 11 4.2 TEST PROCEDURE............................................................................................................................................ 11 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 11 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.5 TEST RESULTS................................................................................................................................................. 12 5 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH ......................................................................................17 5.1 APPLICABLE STANDARD.................................................................................................................................. 17 5.2 TEST PROCEDURE............................................................................................................................................ 17 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 17 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 17 5.5 TEST RESULTS................................................................................................................................................. 18 6 FCC §2.1051 & §27.53 - SPURIOUS RADIATED EMISSIONS..................................................................... 45 6.1 APPLICABLE STANDARD.................................................................................................................................. 45 6.2 TEST PROCEDURE........................................................…

Text truncated - open the document above for the full version.

Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 103 of 108 FCC Part 27 Test Report 12 EXHIBIT B - TEST SETUP PHOTOGRAPHS 12.1 Radiated Emissions - Front View 12.2 Radiated Emissions 30 MHz to 1 GHz- Rear View Wireless Extenders, Inc. FCC ID: SO4YX550-AWS-VLTE Report Number: R1205301-27 Page 104 of 108 FCC Part 27 Test Report 12.3 Radiated Emissions above 1 GHz- Rear View
