SO4YX741-PCS-CELIndustrial Booster

zBoost YX741 User Manual 30 day money back guarantee when purchased directly from zBoost ® . If product is purchased from a reseller or third party, you are subject to the policies of the third party. 1 Year Manufacturer Warranty . Register your zBoost product at www.zBoost.com zBoost® YX741 User Manual i zBoost® YX741 User Manual FCC ID: SO4YX741-PCS-CELWARNING . Th is is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS . You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in signifi cant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Warning: Changes or modifi cations to this device not expressly approved by zBoost could void the user’s authority to operate the equipment. You MUST operate this device with approved antennas and cables as specifi ed by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. FCC Information Industry Canada Regulations IC ID: 5544A-YX741PCSCELTh is Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Th e term “IC:” before the radio certifi cation number only signifi es that Industry Canada technical specifi cations were met. RF Exposure: Th e manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output is re-radiated and can cause interference to adjacent band users. Th is power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device . Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les situations lorsque plusieurs signauxporteurs sont présents, l’évaluation devrait être réduite de 3.5 dB, en particulier lorsque le signal de sortie est ré-émise et peut provoquer des interférences adjacentes à la bande utilisateurs. Ce pouvoir est de la réduction par le biais de la sortie d’alimentation ou la réduction de gain et non par un atténuateur à la sortie du dispositif.Please note: Th is unit has been approved for use in Canada under RSS 131, however, consent for the use of this device to improve cellular or PCS coverage, must be obtained through your cellular or PCS provider, prior to placing the unit in operation. Please refer to the Industry Canada document CPC 2-1-05, Section 6.1 available or viewable at: http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.html zBoost® YX741 User Manual zBoost® YX741 User Manual ii iii Copyright NoticeTh is manual is copyrighted. All rights reserved. Th is manual, whole or in part, may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form for distribution. Th is manual whole or in part, may not be modifi ed without prior consent, in writing, from zBoost.Copyright © 2014 by zBoost. TrademarksWireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are registered trademarks of zBoost.Safety GuidelinesIn accordance with FCC requirements of human exposure to radiofrequency fi elds, the radiating element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained between the radiating element and the user and/or general population. Limited LiabilityIn no event shall zBoost be liable for any direct, indirect, special, punitive, incidental, exemplary or consequential damages, or any damages, whether in an action under contract, negligence, or any other theory, arising out of or in connection with the set up of, use of, inability to use, or performance of the information, services, products, and materials available from this manual. Th ese limitations shall apply notwithstanding any failure of essential purpose of any limited remedy. Because some jurisdictions do not allow limitations on how long an implied warranty last, or the exclusion or limitation of liability for consequential or incidental damages, the above limitations may not apply to you.For full warranty guidelines, see page 14. Safety and Product Warranty Information Changes or modifi cations not expressly approved by zBoost could void the user’s authority to operate this equipment and/or void the product warranty. Package Contents: zBoost YX741 Before you begin, make sure all of the following parts came with your zBoost YX741. Item Quantity Part # Description 1 1 DMAN-0042 YX741 Manual 2 1 APCA-0031 YX741 Base Unit 3 1 CPSP-0010 Base Unit Power Supply, Black Note zBoost® YX741 User Manual zBoost® YX741 User Manual iv 1 Optional zBoost Accessories Table of Contents FCC Information................................................................................................................ ................i Industry Canada Regulations ................................................................................................... ...........i Safety and Product Warranty Information ....................................................................................... .ii Copyright Notice .............................................................................................................. .................ii Trademarks .…

Text truncated - open the document above for the full version.

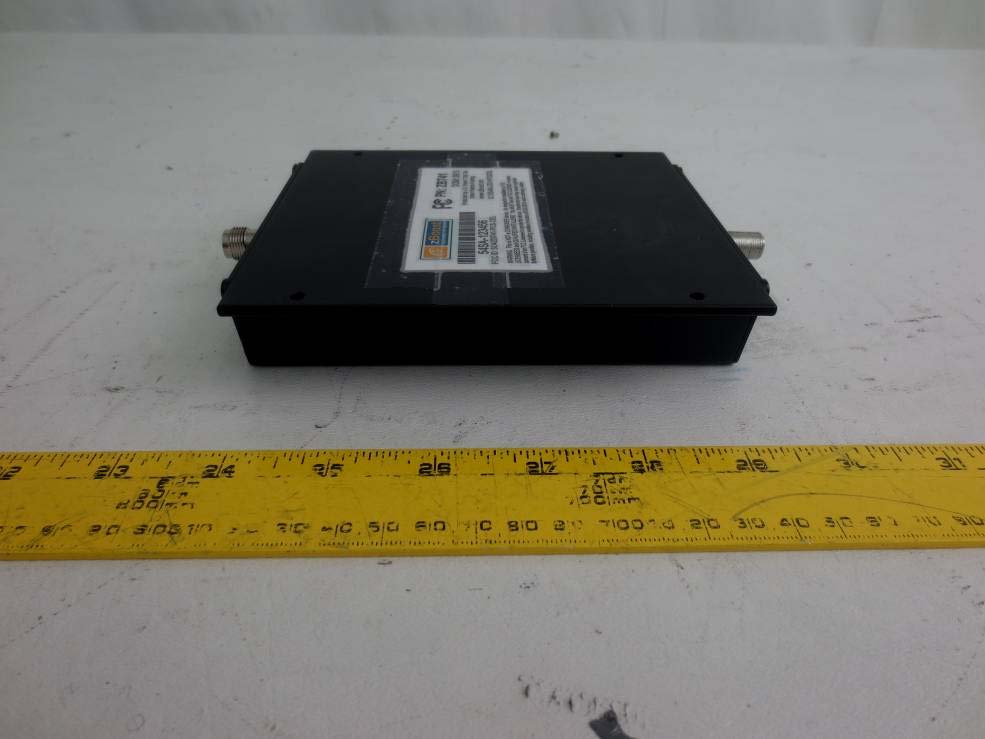

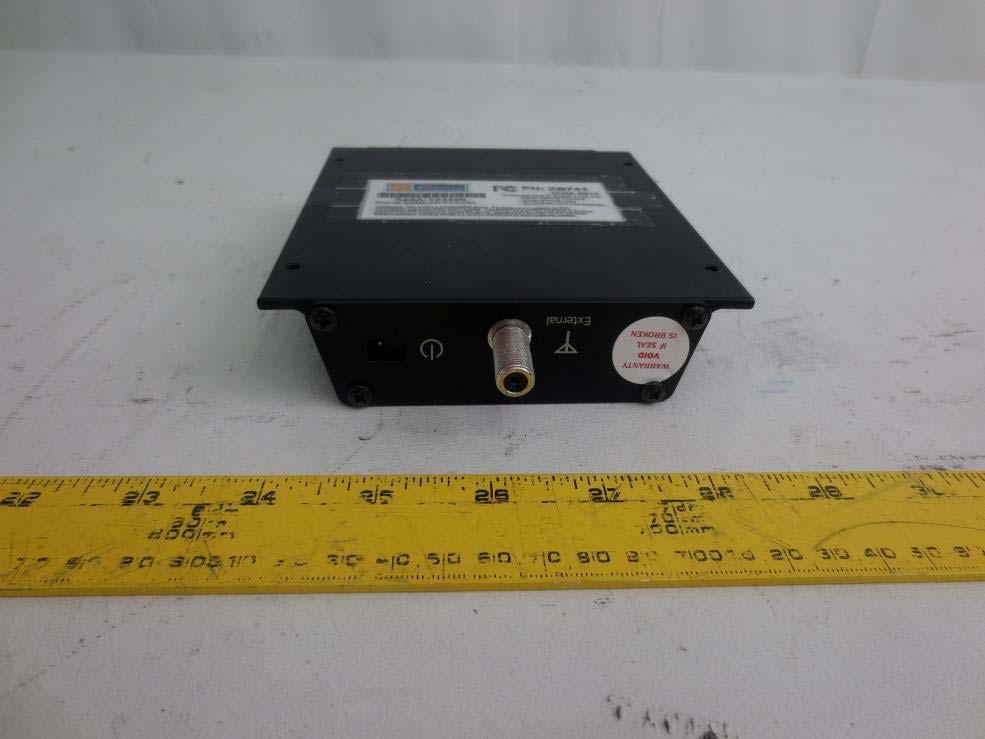

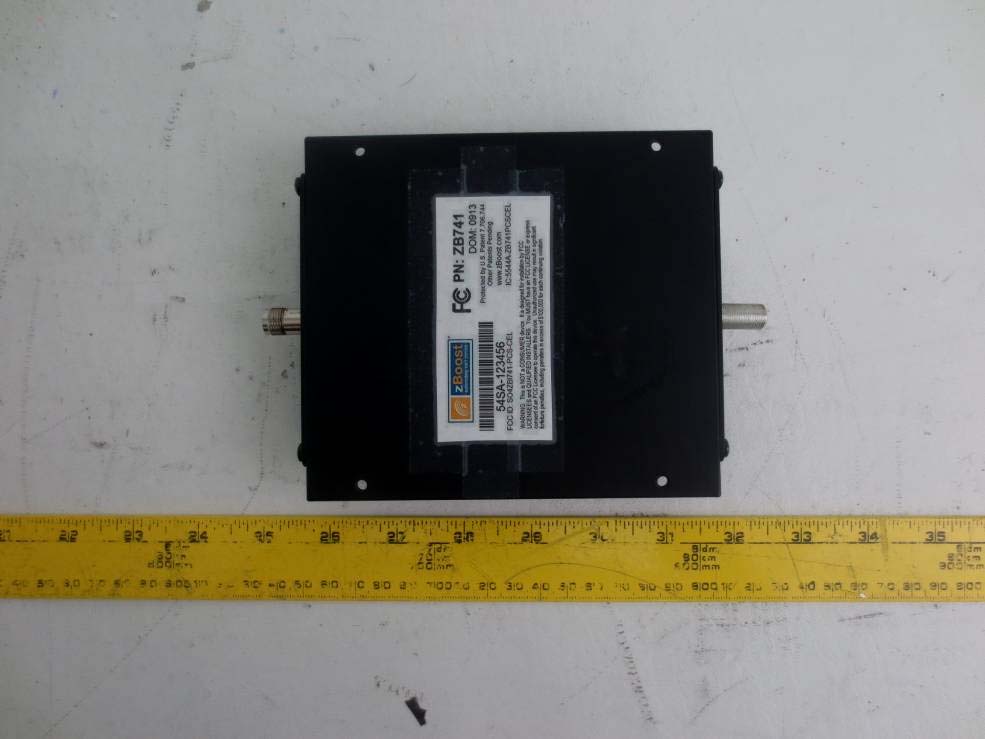

Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 71 of 75 FCC Part 22H/24E Test Report 12 Exhibit C- EUT Photographs 12.1 EUT Top View 12.2 EUT - Bottom View Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 72 of 75 FCC Part 22H/24E Test Report 12.3 EUT - Front View 12.4 EUT - Rear View Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 73 of 75 FCC Part 22H/24E Test Report 12.5 EUT – Side View (1) 12.6 EUT – Side View (2)

FCC ID Label and Location zB oostt YX741 BottomSide Internal Ant External Ant

Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 74 of 75 FCC Part 22H/24E Test Report 12.7 EUT – PCB Component View 12.8 EUT – PCB Solder View Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 75 of 75 FCC Part 22H/24E Test Report 12.9 EUT – AC/DC Adapter View --- END OF REPORT ---

Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 65 of 75 FCC Part 22H/24E Test Report 9 FCC §1.1307(b)(1) & §2.1091 - RF Exposure 9.1 Applicable Standards According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 9.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 9.3 Test Results Cellular Band Uplink Maximum peak output power at antenna input terminal (dBm): 20.00 Maximum peak output power at antenna input terminal (mW): 100.00 Prediction distance (cm): 20 Prediction frequency (MHz): 848.20 Antenna Gain, typical (dBi): 5 Cable Loss (dB) 8 Maximum Antenna Gain+ Cable Loss (numeric): 0.501 Power density at predication frequency and distance (mW/cm 2 ): 0.0692 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5654 Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 66 of 75 FCC Part 22H/24E Test Report Cellular Band Downlink Maximum peak output power at antenna input terminal (dBm): 9.99 Maximum peak output power at antenna input terminal (mW): 9.98 Prediction distance (cm): 20 Prediction frequency (MHz): 869.2 Antenna Gain, typical (dBi): 5 Cable Loss (dB) 8 Maximum Antenna Gain+ Cable Loss (numeric): 0.501 Power density at predication frequency and distance (mW/cm 2 ): 0.0062 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5794 PCS Band Uplink Maximum peak output power at antenna input terminal (dBm): 20.00 Maximum peak output power at antenna input terminal (mW): 100.00 Prediction distance (cm): 20 Prediction frequency (MHz): 1880.0 Antenna Gain, typical (dBi): 3 Cable Loss (dB) 5 Maximum Antenna Gain+ Cable Loss (numeric): 1.584 Power density at predication frequency and distance (mW/cm 2 ): 0.0396 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 PCS Band Downlink Maximum peak output power at antenna input terminal (dBm): 10.02 Maximum peak output power at antenna input terminal (mW): 10.05 Prediction distance (cm): 20 Prediction frequency (MHz): 1930.2 Antenna Gain, typical (dBi): 3 Cable Loss (dB) 5 Maximum Antenna Gain+ Cable Loss (numeric): 1.584 Power density at predication frequency and distance (mW/cm 2 ): 0.0039 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Results For uplink and downlink, the highest power density levels at 20 cm are below the MPE uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 20.21, 22H, 24E TEST AND MEASUREMENT REPORT For Wi-Ex, Inc. One Meca Way, Norcross, GA 30093, USA FCC ID: SO4YX741-PCS-CEL Report Type: Original Report Product Type: Dual-Band Amplifier Prepared By: Chen Ge Report Number: R1401271-2224 Report Date: 2014-03-17 Reviewed By: Bo Li Test Engineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 2 of 75 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................... 5 1.2 MECHANICAL DESCRIPTION .............................................................................................................................. 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 5 1.5 TEST METHODOLOGY ........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................... 6 1.7 TEST FACILITY ................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION ................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ................................................................................................................................ 8 2.3 EQUIPMENT MODIFICATIONS ............................................................................................................................. 8 2.4 EUT INTERNAL CONFIGURATION ...................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................. 8 2.6 POWER SUPPLY AND LINE FILTERS .................................................................................................................... 8 2.7 INTERFACE PORTS AND CABLING ...................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ........................................................................................................................ 9 4 FCC §2.1046, §22.913 & §24.232 – RF OUTPUT POWER .............................................................................. 10 4.1 APPLICABLE STANDARDS ................................................................................................................................ 10 4.2 TEST PROCEDURE ............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 10 4.5 TEST RESULTS ................................................................................................................................................. 11 5 FCC §2.1049, §22.917& §24.238 - OCCUPIED BANDWIDTH ....................................................................... 13 5.1 APPLICABLE STANDARDS ................................................................................................................................ 13 5.2 TEST PROCEDURE ............................................................................................................................................ 13 5.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 13 5.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 13 5.5 TEST RESULTS ................................................................................................................................................. 13 6 FCC §2.1053, §22.917& §24.238 - SPURIOUS RADIATED EMISSIONS ..................................................... 23 6.1 APPLICABLE STANDARDS ................................................................................................................................ 23 6.2 TEST PROCEDURE ............................................................................................................................................ 23 6.3 TEST EQUIPMENT LIST AND DETAILS ..............................…

Text truncated - open the document above for the full version.

Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 69 of 75 FCC Part 22H/24E Test Report 11 Exhibit B - Test Setup Photographs 11.1 Radiated Emissions - Front View (Below 1 GHz) 11.2 Radiated Emissions - Rear View (Below 1 GHz) Wi-Ex, Inc. FCC ID: SO4YX741-PCS-CEL Report Number: R1401271-2224 Page 70 of 75 FCC Part 22H/24E Test Report 11.3 Radiated Emissions - Front View (Above 1 GHz) 11.4 Radiated Emissions - Rear View (Above 1 GHz)
