SO4YX545-PCS-CELCell Phone Signal Booster

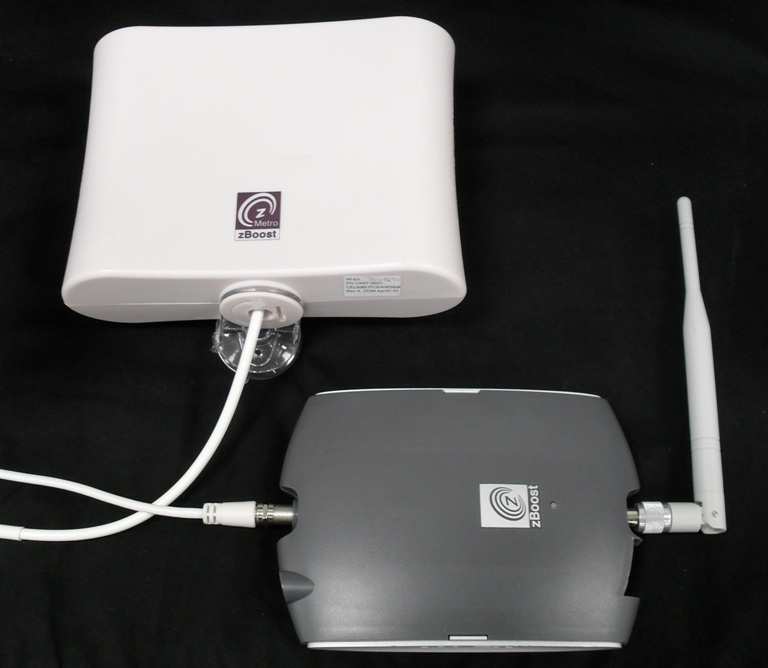

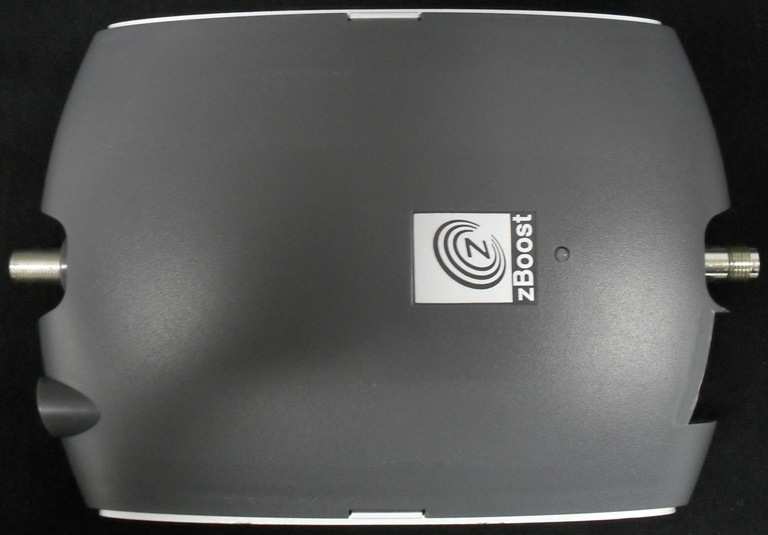

Fast Flashing REDSolid RED At Initial Power Up Only After Initial Power Up Solid GREEN Slowly Alternating RED and GREEN zBoost is working, but at reduced performance and coverage due to “non-ideal” setup. Increase the distance between antenna and amplifier to achieve maximum performance and coverage.Normal condition at power up.Indicates insufficient distance between the antenna and the amplifier. The amplifier is operating at significantly reduced coverage.System is receiving signals from either the mobile device or the base station transceiver which are too strong for proper operation. Fast Alternating RED and GREEN followed by no light The amplifier is disabled. Solid GREEN Solid RED Normal conditionSystem is receiving signals from either the mobile device or the base station transceiver which are too strong for proper operation. Unplug your system and re-orient the Signal Antenna and/or Base Unit to reduce excessive signal. If LED remains RED after reconnecting power, contact customer support at 1-800-871-1612. SET-UP OVERVIEW zBoost ® SOHO YX545 DMAN-0038 Rev A SETTING UP YOUR zBOOST ® SIGNAL BOOSTER Designed for consumers, zBoost cell phone signal boosters extend a Cell Zone TM for multiple users and ALL devices operating on 800 and 1900 MHz frequency bands except those using Nextel/iDEN, 4G or 2100MHz. zBoost boosts signal up to 2500 square feet, making it perfect for your home or office. Boost voice and data transmission and increase call clarity in 4 easy steps:FIRST: Mount the Signal Antenna. Choose a location for the Signal Antenna using your cell phone to determine the area of strongest signal. The coverage your zBoost provides is largely determined by the quality of signal received by the Signal Antenna. Choose one of the following options for placement of the Signal Antenna keeping in mind that if your best signal is one bar, your coverage will be limited to one small room. To maximize signal coverage, place the Signal Antenna where you find the strongest signal (up high or outside) and at least 2 feet away from any metal. Download the YX545 SOHO User Guide at www.Wi-Ex.com BASE UNIT LED INDICATORS SECOND: Place the zBoost Base Unit where you want to create a Cell Zone TM . Connect the Base Unit Antenna to the Base Unit and place it where you need signal. For the widest possible signal area, it is recommended that you position the Base Unit near the middle of a room or mount it on an interior wall. This Base Unit uses an omni-directional antenna that delivers signal in a circular pattern around the antenna. The zBoost SOHO requires at least 15 feet of vertical separation between the Base Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will increase the performance and decreasing the distance will limit zBoost performance. (If 15 feet of separation is not possible, you may try our new METRO model, which was designed for lofts and urban dwellings and requires no vertical separation.)Keep the Base Unit off the floor and at least 2 feet away from other cords, metal objects or other wireless devices such as wireless routers or wireless access points. The zBoost SOHO performs best when there are no obstructions between the zBoost Base Unit and your mobile device.THIRD: Run the provided coaxial cable between the Base Unit and Signal Antenna. Use the provided 50 feet of RG-59(mini) coaxial cable to connect the Signal Antenna and the Base Unit. Should you need additional cable length, 15 foot extensions (Part #: YX30-15w) are available at www.Wi-Ex.com. Please note: Cable longer than 75 feet is not recommended.FOURTH: Connect the zBoost Base Unit to the provided power supply and plug into a power outlet. When your zBoost ® system is in place and fully connected, walk throughout your home or office and verify that you are able to reliably place calls. If the signal strength has improved, your zBoost is working. Remember, coverage varies based on outdoor signal level, building construction, and antenna placement. Coverage in adjoining rooms (next to, above, or below) will be reduced by walls and ceiling/floors. Upon initial power up, a solid GREEN LED should appear indicating normal conditions. If a RED light appears, adjustments may be needed to optimize PACKAGE CONTENTS zBoost Base Unit Base Unit Antenna Coax Cable RG-59(mini), 50 ft Power Supply Signal Antenna Mounting Hardware Signal Antenna (comes in 2 pieces) zBoost Base Unit Power Supply Base Unit Antenna Coaxial Cable Signal Antenna 15 ft separation Easiest Set-up Place Signal Antenna inside, by a window Better Performance Place Signal Antenna outside of window* Best Performance Place Signal Antenna on roof or in attic *Note: An 8 inch window entry cable may be needed for this option. It is available for purchase at www.Wi-Ex.com (Part #: YX030-08W) performance. If you find the increased signal coverage is acceptable, however, no additional adjustments are needed. See LED Indicator section for more information.Should you desire to improve coverage, you may:• Relocate the Signal Antenna in order to capture a better signal – higher is usually better. • Increase the distance between the Base Unit Antenna and the Signal Antenna. • Purchase an upgrade antenna available at www.Wi-Ex.com SETUP OVERVIEW User Guide available at www.Wi-Ex.com Setup Overview For questions or assistance, contact Wi-Ex customer service at 1-800-871-1612 or email [email protected]. PCS band Cellular band Uplink: 1850-1910 MHz Downlink: 1930-1990 MHz Uplink: 824-849 MHz Downlink: 869-894 MHz Band supported 60dB 60dB A, D, B, E, F, C A, B, A’, B’ CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G Power Consumption- Power Supply NetworksWall Supply Input FCC Parts 15 & 24 (PCS), Parts 15 & 22 (CEL), Industry Canada Base Unit Size and Weight Operating Conditions Coverage (open areas)Frequency System GainSystem Certifications 5” x 7” x 1.25” – 9 oz.Indoor Use Only (40° - 105° F) This product uses patented technology to protect th…

Text truncated - open the document above for the full version.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. DOM: 0610 PN: YX545 WWW.WI-EX.COM Patent Pending IC:5544A-YX545PCSCELFCC ID: SO4YX545-PCS-CEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. DOM: 0610 PN: YX545 WWW.WI-EX.COM Patent Pending IC:5544A-YX545PCSCELFCC ID: SO4YX545-PCS-CEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. DOM: 0610 PN: YX545 WWW.WI-EX.COM Patent Pending IC:5544A-YX545PCSCELFCC ID: SO4YX545-PCS-CEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. DOM: 0610 PN: YX545 WWW.WI-EX.COM Patent Pending IC:5544A-YX545PCSCELFCC ID: SO4YX545-PCS-CEL

Page 1 YX545 Tuning Procedure All RF tests and calibrations use a signal generator and a spectrum analyzer. The unit is inserted into a fixture and the following procedure is followed: 1. The units are programmed with the current firmware, and verified. 2. Test mode is entered, and the serial number is set. 3. For each RF path: a. The frequency response is verified. b. The maximum gain is measured and saved. c. The LNA gain is determined and saved. d. The input is adjusted to provide maximum output power, +9 dBm for downlinks and +20 dBm for uplinks. e. The attenuator is calibrated by varying the PWM and measuring attenuation versus PWM. f. The output detector is calibrated by varying the input power and measuring the A/D of the detector versus output power. 4. The EEPROM checksum is calculated and saved. 5. The unit is restarted, and the banner message coming from the unit at startup is verified to have the correct model, SW version, and serial number.

§ 1.1310 Radiofrequency radiation exposure limits Conducted Power (dBm):20.9123 milliWatts Maximum Antenna Gain (dBi):5 Minimum TX Cable Loss (dB):0 Minimum TX Jumpers and Adapter Loss(dB): EIRP (dBm):25.9or388 milliWatts At frequency (MHz):836 General MPE Limit (mW/cm^2):0.557 Occupational MPE Limit (mW/cm^2):2.787 Given the following equation Equation 1: Solve for r: Equation 2: Using Equation 1, the power density at 20 cm is:0.08 mW/cm^2 Margin to General MPE Limit-8.58 dBnegative n u General Results: Using Equation 2, the MPE limit is met at:7.4 cmor0.07 Occupational Results: Using Equation 2, the MPE limit is met at:3.3 cmor0.03 2 4r GP P tt d   d tt P GP r 4  umber is be meters meters § 1.1310 Radiofrequency radiation exposure limits Conducted Power (dBm):23.0200 milliWatts Maximum Antenna Gain (dBi):5 Minimum TX Cable Loss (dB):0 Minimum TX Jumpers and Adapter Loss(dB): EIRP (dBm):28.0or634 milliWatts At frequency (MHz):1880 General MPE Limit (mW/cm^2):1.000 Occupational MPE Limit (mW/cm^2):5.000 Given the following equation Equation 1: Solve for r: Equation 2: Using Equation 1, the power density at 20 cm is:0.13 mW/cm^2 Margin to General MPE Limit-8.99 dBnegative n u General Results: Using Equation 2, the MPE limit is met at:7.1 cmor0.07 Occupational Results: Using Equation 2, the MPE limit is met at:3.2 cmor0.03 2 4r GP P tt d   d tt P GP r 4  umber is be meters meters

Client: Product Designation: YX545 Report Number: 100114624ATL-005 All services undertaken are subject to the following general policy: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST, or any agency of the US Government. Tested by: Tests performed by:Report reviewed by: Standard: Richard C. Bianco EMC Project Engineer Jeremy O. Pickens EMC Department Manager Wi-Ex 3174 Catawba Ct. Pleasanton, CA 94566 Contact: Scott Terry Phone: 408.838.1302 TEST REPORT August 11, 2010 Intertek Testing Services NA Inc. 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 FCC Part 22; and FCC Part 24; FCC Part 15, Subpart B Page 1 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek 2.0 Test Summary 1.0 Introduction and Conclusion Test DateTest Full NameResultSection 06/06/2010RF Output Power (Conducted) (FCC Part 2.1046 Cond)PASS4.0 06/07/2010Conducted emissions on AC power lines (Conducted Emissions)PASS5.0 06/01/2010Radiated emissions (E-field) (Radiated Emissions)PASS6.0 06/07/2010Occupied Bandwidth (FCC Part 2.1049)PASS7.0 06/06/2010Spurious emissions at antenna terminals (FCC Part 2.1051)PASS8.0 FCC Part 22 Radiated Power (ERP) and FCC Part 24 Radiated Power (EIRP) (Radiated Power) was waived due to is not required for an amplifier. NA 06/04/2010Field strength of spurious radiation (FCC Part 2.1053)PASS9.0 Revision History (Revision History)10.0 Frequency Stability (FCC Part 2.1055) was waived due to is not required for an amplifier.NA The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatum text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Page 2 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek 3.0 Description of Equipment Under Test Eq uip me nt Unde r T est Description Manu fac ture r Mo del N umbe r Serial Nu mb er Signal Amplifier Wi-Ex YX545 NA EUT receive date: 05/19/2010 EUT receive condition: Good Description of EUT provided by Client: The product is a cellular band and PCS band signal amplifier for both downlink (signals from the network to the subscriber’s equipment) and uplink (signals from subscriber’s equipment to the network). The YX545 SOHO model is d esigned for small office and home office environments. Description of EUT exercising: The EUT was powered with 120Vac/60Hz and placed in a normal configuration. Signal generators were used to supply the input signal during testing. Page 3 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek RF Output Power (Conducted) (FCC Part 2.1046 Cond)4.0 Method: Connect the transmitter output to a calibrated coaxial attenuator. Connect the other end of the attenuator to a power meter. Transmitter output was read off the power meter in dBm. Perform the test at the middle channel and on the highest power levels, which can be setup on the transmitter. Canada typically requires this test to be repeated at +60° C and at -30° C. Results: The sample tested was found to Comply. SWT 500 ms A 1MA Unit dBm 12 dB Offset Ref Lvl 25 dBm Ref Lvl 25 dBm RF Att 40 dB Center 836 MHzSpan 20 MHz2 MHz/ RBW 1 MHz VBW 1 MHz 1MAX -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] 20.85 dBm 835.93987976 MHz Date: 4.JUN.2010 16:47:10 Conducted Power - EDGE @ 836MHz Plot: Page 4 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek RF Output Power (Conducted) (FCC Part 2.1046 Cond)4.0 SWT 500 ms A 1MA Unit dBm 12 dB Offset Ref Lvl 25 dBm Ref Lvl 25 dBm RF Att 40 dBRBW 1 MHz VBW 1 MHz Center 1.88 GHzSpan 20 MHz2 MHz/ 1MAX -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] 23.00 dBm 1.87993988 GHz Date: 4.JUN.2010 16:50:13 Conducted Power - EDGE @ 1880MHz Plot: Page 5 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek RF Output Power (Conducted) (FCC Part 2.1046 Cond)4.0 A Unit dBm 1MA 6.3 dB Offset RBW 1 MHz VBW 1 MHzRef Lvl 15 dBm Ref Lvl 15 dBm RF Att 30 dB 2 MHz/Center 881 MHzSpan 20 MHz SWT 500 ms 1MAX -80 -70 -60 -50 -40 -30 -20 -10 0 10 -85 15 1 Marker 1 [T1] 9.96 dBm 881.06012024 MHz 1 [T1] 9.96 dBm 881.06012024 MHz Date: 6.JUN.2010 08:30:06 Conducted Power - EDGE @ 881MHz Plot: Page 6 of 76EMC Report for Wi-Ex on the YX545 08/11/2010Report Number: 100114624ATL-005Issued: Intertek RF Output Power (Conducted) (FCC Part 2.1046 Cond)4.0 A Unit dBm 1MA 6.3 dB Offset SWT 500 ms RBW 1 MHz VBW 1 MHzRef Lvl 15 dBm Ref Lvl 15 dBm RF Att 30 dB 2 MHz/Center 1.96 GHzSpan 20…
