SOY-HAW2DRHi-Gain Wireless-300N Smart Dish Repeater

website www.hawkingtech.com e-mail [email protected] © COPYRIGHT 2012 HAWKING TECHNOLOGIES,INC. ALL RIGHTS RESERVED. USER’S MANUAL  Hi-Gain™ Wireless-300N Smart Dish RepeaterHAW2DR COPYRIGHT Copyright ©2012 by Hawking Technologies, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company LIMITED WARRANTY Hawking Technology guarantees that every HAW2DR Hi-Gain™ Wireless-300N Smart Dish Repeater is free from physical defects in material and workmanship under normal use for one (1) year from the date of purchase. If the product proves defective during this one-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: [email protected] Federal Communication Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. Contents Chapter I: Product Information ........................................................................................... 1 1-1 Introduction and safety information ......................................................................... 1 1-2 Safety Information .................................................................................................... 3 1-3 System Requirements ..........................…

Text truncated - open the document above for the full version.

Date: October 9, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: SOY-HAW2DR To Whom it may concern, We, Hawking Technologies, Inc., declare that the device (FCC ID: SOY-HAW2DR) 1. is able to be operated on both master and client mode. 2. Ad Hoc function is available on client mode. 3. does not work in non-US/Canada frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Hawking Technologies, Inc. Address : 8 Faraday, Suite B, Irvine, California 92618 United States Signature : _________________________________ Name and Job Title. : Amy Tang / Product Manager E-mail : [email protected] Te l . : 949-206-6900

Confidentiality Request Letter Date: 2012/10/9 Federal Communications Commission Authorization and Evaluation Division FCC ID：SOY-HAW2DR Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Hawking Technologies, Inc. Applicant’s company address : 8 Faraday, Suite B, Irvine, California 92618 United States Signature : _________________________________ Job Title and Dept. : Amy Tang / Product Manager E-mail : [email protected] Tel. : 949-206-6900

Date: 2012/10/9 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: SOY-HAW2DR Product name: Hi-Gain Wireless-300N Smart Dish Repeater To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model HAW2DR to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Hawking Technologies, Inc. Address : 8 Faraday, Suite B, Irvine, California 92618 United States Signature : _________________________________ Name and Job Title. : Amy Tang / Product Manager E-mail : [email protected] Tel. : 949-206-6900

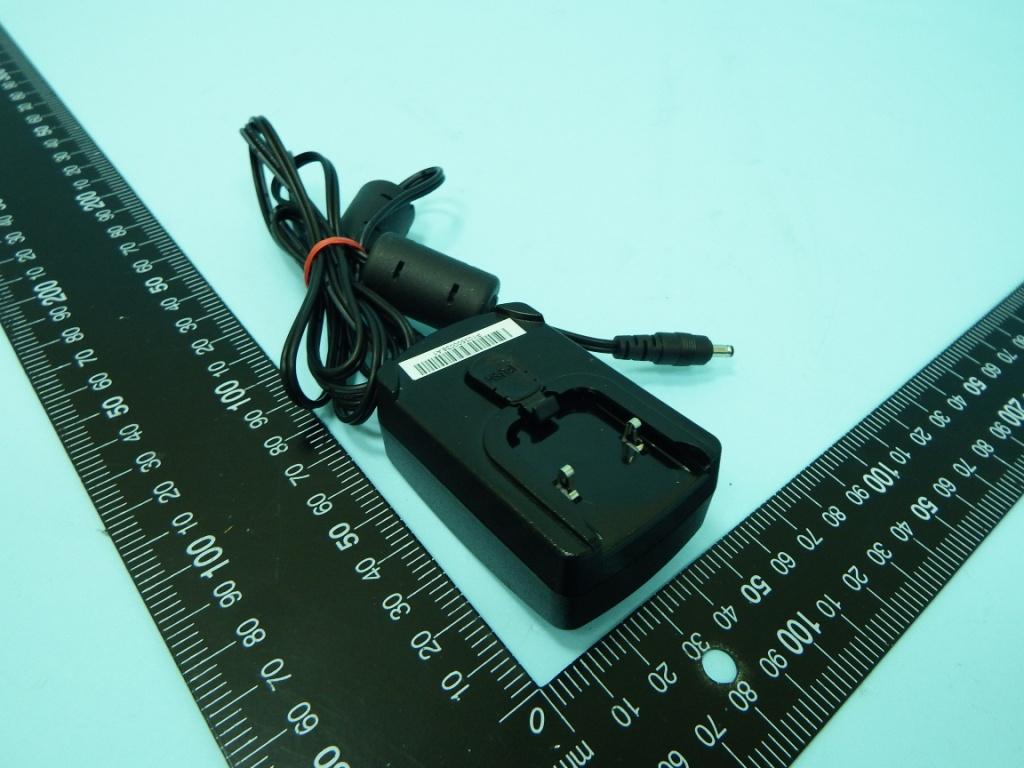

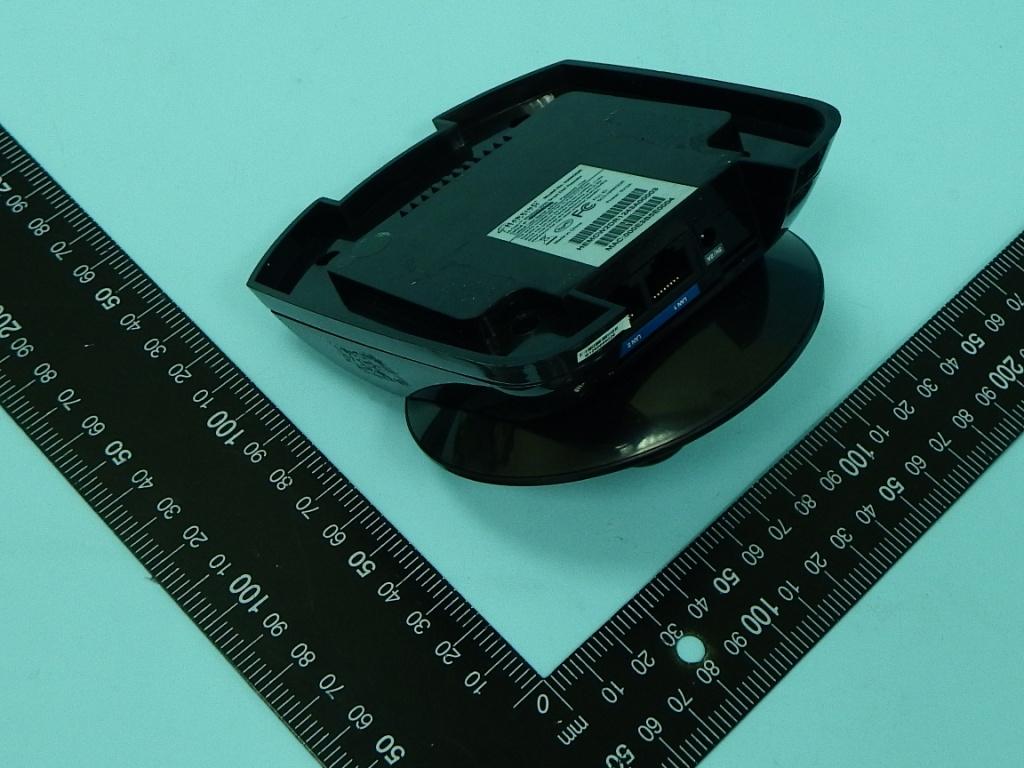

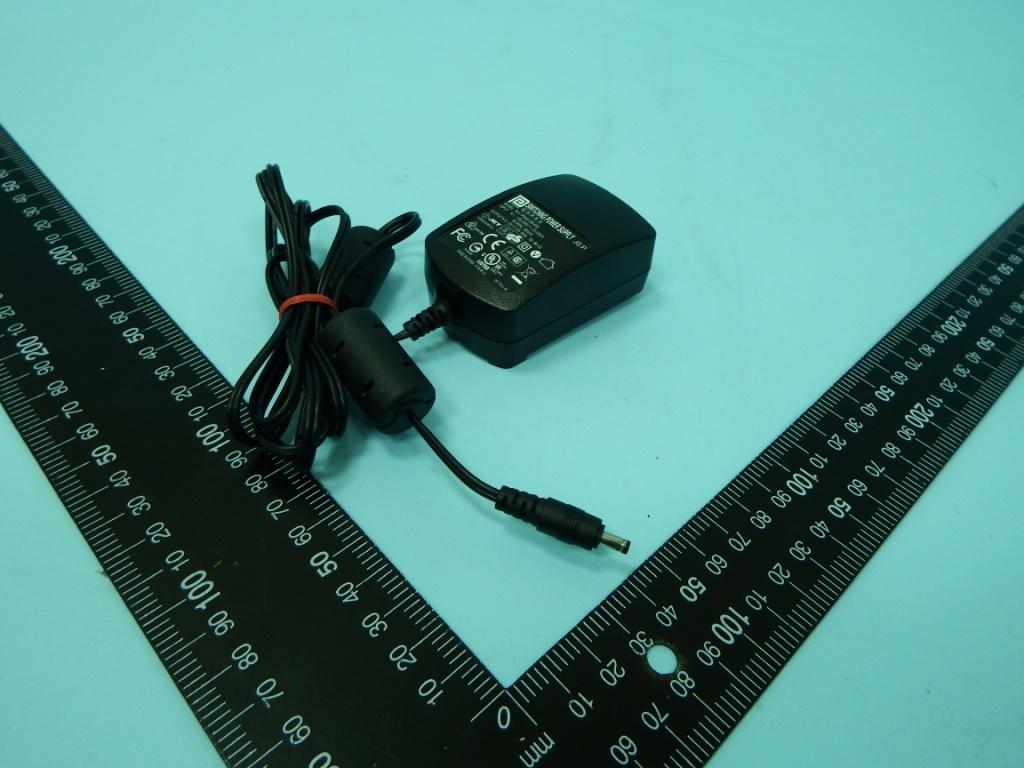

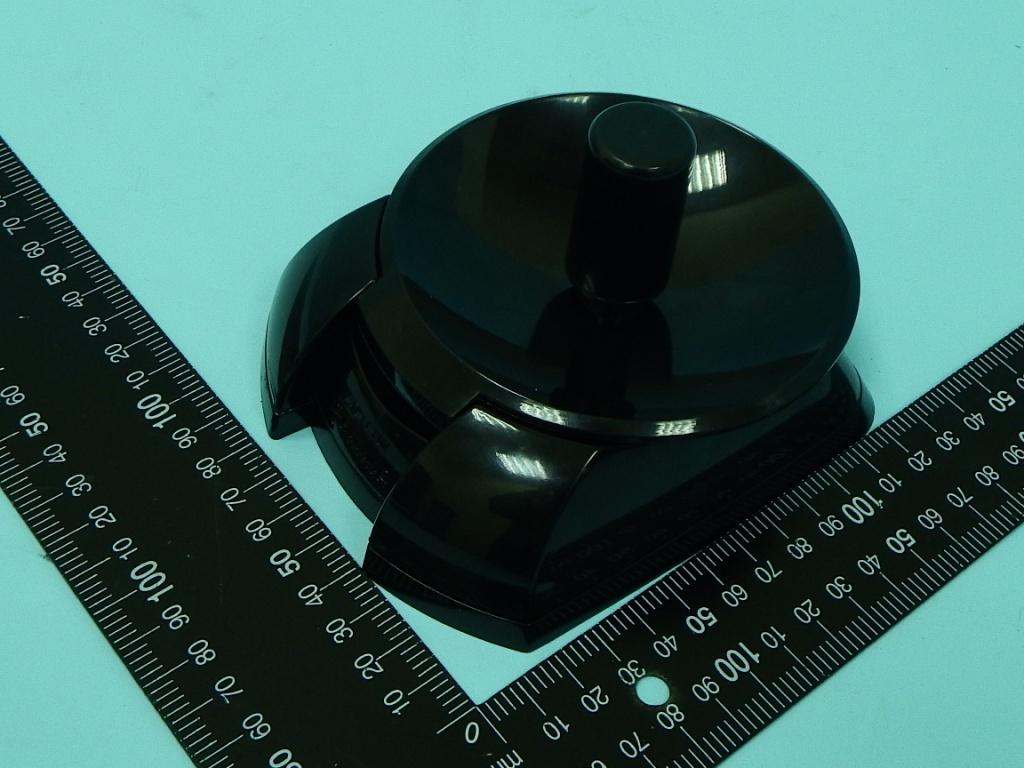

FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B1 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B2 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B11 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B12 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must acccept any interference received including interference that may cause undesired operation. FCC ID: SOY-HAW2DR Sample Serial Barcode Sample Mac Address HEMCAW2DRyywwxxxxx 00 0E 3B 5E 00 00 - 00 0E 3B 5E FF FF Model No. HAW2DR Hi-Gain™ Wireless-300N Smart Dish Repeater Default IP: 192.168.5.200 Default User Name: admin Password: 1234 Made in China Power: 5V/2A

FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B3 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B4 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B5 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B6 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B7 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B8 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP261554 SPORTON International Inc. PAGE NUMBER : B9 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA261554 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA261554 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA261554 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) b 1 1 Correlated 21.13 g 1 1 Correlated 19.51 n (HT20) 2 2 Uncorrelated 22.19 n (HT40) 2 2 Uncorrelated 18.96 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 21.13 6.00 27.13 0.10274 11G-20M 1 19.51 6.00 25.51 0.07075 11N2.4G-20M 2 22.19 4.28 26.48 0.08838 11N2.4G-40M 2 18.96 4.28 23.24 0.04198 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : 1 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Hi-Gain Wireless-300N Smart Dish Repeater Brand Name : Hawking Model No. : HAW2DR FCC ID : SOY-HAW2DR Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : Hawking Technologies, Inc. 8 Faraday, Suite B; Irvine CA 92618, USA The product sample received on Jun. 19, 2013 and completely tested on Dec. 06, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.4661350MHz 36.52 (Margin 10.06dB) - AV 51.08 (Margin 5.50dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 8.85 / 40M: 36.16 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 27.13 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -5.27 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.380MHz: 28.94dB Restricted Bands [dBuV/m at 3m]: 2390.000MHz 65.71 (Margin 8.29dB) - PK 52.89 (Margin 1.11dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4874MHz 55.96 (Margin 18.04dB) - PK 52.86 (Margin 1.14dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR261554 Rev. 01 Initial issue of report Dec. 19, 2013 2500-2690 FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Outpu…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR261554 SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
