SOY-HOD45BHi-Gain Outdoor Dual-Band Wireless-N Access Point/Bridge

website www.hawkingtech.com e-mail [email protected] © COPYRIGHT 2013 HAWKING TECHNOLOGIES,INC. ALL RIGHTS RESERVED. USER’S MANUAL  Hi-Gain™ Outdoor Dual Band Wireless N Access Point/Bridge HOD45B U S E R ’ S M A N U A L  1 COPYRIGHT Copyright ©2013 by Hawking Technologies, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company LIMITED WARRANTY Hawking Technology guarantees that every HOD45B Hi-Gain™ Outdoor Dual Band Wireless N Access Point/Bridge is free from physical defects in material and workmanship under normal use for one (1) year from the date of purchase. If the product proves defective during this one-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: [email protected] 2 Federal Communication Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3 Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. 4 EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries NOT intended for use None. 5 Table of Contents Chapter I: Product Information ........................................................................................... 7 1-1 Introduction and Safety Information ........................................................................ 7 1-2 Safety Information .....................................…

Text truncated - open the document above for the full version.

Date: February 5, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: SOY-HOD45B To Whom it may concern, We, Hawking Technologies, Inc., declare that the device (FCC ID: SOY-HOD45B ) 1. is acting to be operated on both master and client mode with Ad Hoc Mode (limited to operate on US/Canada frequencies only) supported within following frequency bands: a. 802.11bgn (2412~2462MHz ；2422~2452MHz) b. 5G Band 1: 5180~5240MHz ；5190~5230MHz c. 5G Band 4: 5745~5825MHz ；5755~5795MHz 2. is not able to operate on non-US/Canada frequencies, country code selection will be disabled for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Hawking Technologies, Inc. Address : 35 Hammond, Suite 150, Irvine California 92618 United States Signature : _________________________________ Name and Job Title. : Amy Tang / Product Manager E-mail [email protected] Te l . 949-206-6900

Confidentiality Request Letter Date: 2013/2/5 Federal Communications Commission Authorization and Evaluation Division FCC ID：SOY-HOD45B Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Hawking Technologies, Inc. Applicant’s company address : 35 Hammond, Suite 150, Irvine California 92618 United States Signature : _________________________________ Job Title and Dept. : Amy Tang / Product Manager E-mail : [email protected] Tel. : 949-206-6900

Date: 2013/2/26 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SOY-HOD45B Product name: Hi-Gain Outdoor Dual-Band Wireless-N Access Point/Bridge To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model HOD45B to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Hawking Technologies, Inc. Address : 35 Hammond, Suite 150, Irvine California 92618 United States Signature : _________________________________ Name and Job Title. : Amy Tang / Product Manager E-mail : [email protected] Tel. : 949-206-6900

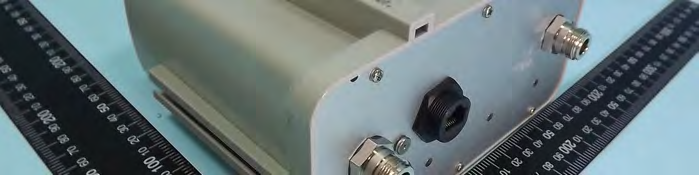

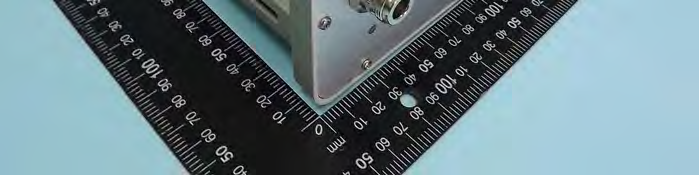

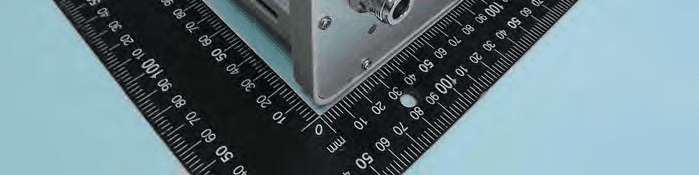

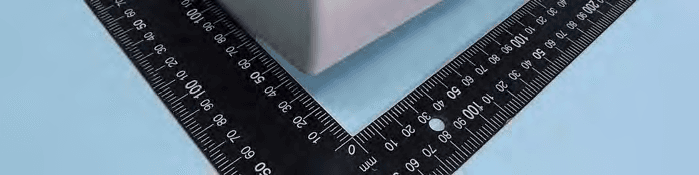

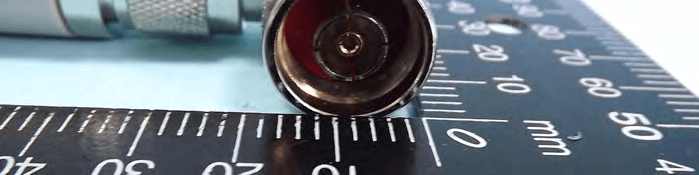

FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B1 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B2 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B4 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973

Label Location

FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B6 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B7 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B8 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B9 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B11 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B12 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B13 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B14 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B15 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP2 N2128 SPORTON International Inc. PAGE NUMBER : B16 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Feb. 25, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR2 N2128 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC Test Report Report No. : FR2 N2128 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu FCC Test Report Report No. : FR2 N2128 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 N/A 18.67 Yes g 1 1 N/A 17.06 Yes n (HT20) 2 2 Uncorrelated 22.09 Yes n (HT40) 2 2 Uncorrelated 22.17 Yes Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 - 18.67 - - 18.67 4.50 23.17 0.04128 11G-20M 1 - 17.06 - - 17.06 4.50 21.56 0.02849 11N2.4G-20M 2 19.59 18.51 - - 22.09 4.50 26.59 0.09080 11N2.4G-40M 2 19.68 18.56 - - 22.17 4.50 26.67 0.09233 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FR2 N2128 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 18.13 Yes n (HT20) 2 2 Uncorrelated 19.86 Yes n (HT40) 2 2 Uncorrelated 19.52 Yes Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 - 18.13 - - 18.13 7.00 25.13 0.06482 11N5.8G-20M 2 16.82 16.88 - - 19.86 7.00 26.86 0.09655 11N5.8G-40M 2 16.60 16.42 - - 19.52 7.00 26.52 0.08930 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FR2 N2128 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure-(5.2G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 13.99 Yes n (HT20) 2 2 Uncorrelated 11.31 Yes n (HT40) 2 2 Uncorrelated 14.00 Yes Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (A…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR2N2128 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR2N2128 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle • 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW • 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Refer as ANSI C63.10, clause 6.5 for radiated emissions from 30 MHz to 1000 MHz. Refer as ANSI C63.10, clause 6.6 for radiated emissions from above 1 GHz. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of- band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR2N2128 SPORTON INTERNATIONAL INC. Page No. : 3 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in t…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR2N2128AI SPORTON INTERNATIONAL INC. Page No. : 1 of 55 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Hi-Gain Outdoor Dual-Band Wireless-N Access Point/Bridge Brand Name : HAWKING TECHNOLOGY Model No. : HOD45B FCC ID : SOY-HOD45B Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant : Hawking Technologies, Inc 8 Faraday, Suite B, Irvine, CA 92618. USA The product sample received on Nov. 21, 2012 and completely tested on Jan. 08, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2N2128AI SPORTON INTERNATIONAL INC. Page No. : 2 of 55 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 25 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 28 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 33 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 54 APPENDIX A. TEST PHOTOS ....................................................................................................................... A6 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................... B16 FCC Test Report Report No. : FR2N2128AI SPORTON INTERNATIONAL INC. Page No. : 3 of 55 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 1.134MHz 41.42 (Margin 4.58dB) - AV 42.05 (Margin 13.95dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M: 17.08 / 40M: 34.76 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 27.64 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: -9.65 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 5725.00MHz: 34.60dB Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 52.310MHz 38.52 (Margin 1.48dB) - QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR2N2128AI SPORTON INTERNATIONAL INC. Page No. : 4 of 55 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR…

Text truncated - open the document above for the full version.
