SOY-HAWNU2Hi-Gain Wireless-150N Windows Adapter with Range Amplifier

website www.hawkingtech.com e-mail [email protected] tech support 1-888-202-3344 © COPYRIGHT 2010 HAWKING TECHNOLOGIES,INC. ALL RIGHTS RESERVED. HI-GAIN TM USB WIRELESS-150N WINDOW ADAPTER with RANGE AMPLIFIER HAWNU2 USER’S MANUAL  LIMITED WARRANTY Hawking Technology guarantees that every HAWNU2 Hi-Gain TM USB Wireless-150N Window Adapter with Range Amplifier is free from physical defects in material and workmanship under normal use for one (1) year from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. Hawking Technologies is not responsible for freight fees for items shipped to Hawking Technologies. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: [email protected] COPYRIGHT Copyright ©2010/2011 by Hawking Technologies, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This d evice and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The equipment version marketed in US is restricted to usage of the channels 1-11 only. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, German…

Text truncated - open the document above for the full version.

Date: September 1, 2010 Subject: Ad Hoc Mode Function Declaration FCC ID: SOY-HAWNU2 To Whom it may concern, We, Hawking Technologies, Inc., declare that the device (FCC ID: SOY-HAWNU2) 1. is acting as slave and operating on 2.4GHz band. 2. Ad Hoc function is available. 3. does not work in non-US/Canada frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Hawking Technologies, Inc. Address : 35 Hammond, Suite 150 , Irvine, California, United States, 92618 Signature : Name and Job Title. : Amy Tang / Product Manager E-mail [email protected] Te l . 949-206-6900 Ext. 2006

Confidential Letter Date: 2010/9/1 Federal Communications Commission Authorization and Evaluation Division FCC ID：SOY-HAWNU2 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Hawking Technologies, Inc. Applicant’s company address : 35 Hammond, Suite 150, Irvine, California, United States, 92618 Signature : Job Title and Dept. : Amy Tang / Product Manager E-mail : [email protected] Te l . : 949-206-6900 Ext. 2006

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 2106 Date: 1 September 2010 Subject: FCC Application for FCC ID: SOY-HAWNU2 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Hawking Technologies, Inc. Address : 35 Hammond, Suite 150 , Irvine, California, United States, 92618 Signature : _________________________________ Name and Job Title. : Amy Tang / Product Manager E-mail : [email protected] Te l . : 949-206-6900 Ext. 2006

Date: 2010/9/1 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: SOY-HAWNU2 Product name: Hi-Gain Wireless-150N Windows Adapter with Range Amplifier To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model HAWNU2 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Hawking Technologies, Inc. Address : 35 Hammond, Suite 150, Irvine, California, United States, 92618 Signature : Name and Job Title. : Amy Tang / Product Manager E-mail [email protected] Tel. 949-790-0800 Ext. 2006

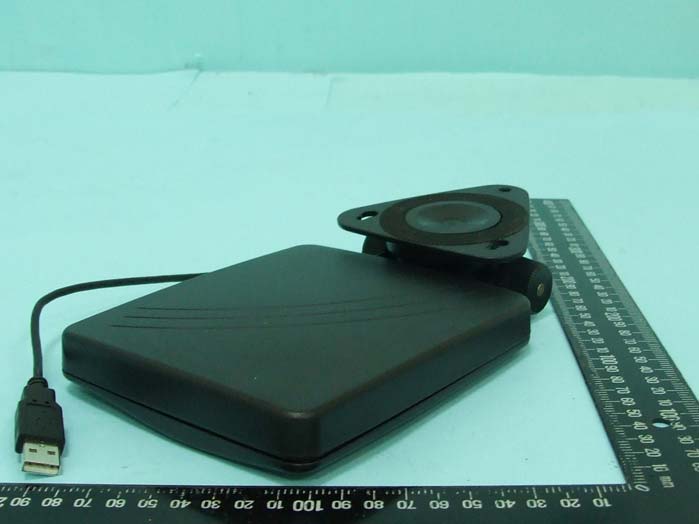

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255

Label Location

FCC ID: SOY-HAWNU2 (See Cautions in the Manual) I This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Hi-Gain TM USB Wireless-150 N Window Adapter with Range Amplifier I Model No. HAWNU2 Made in China 75 (w) X 15 (h) mm C M Y CM MY CY CMY K Bellylabe-HAWNU2_rev fcc_print.pdf 1 8/23/2010 4:52:05 PM FCC ID: SOY-HAWNU2 (See Cautions in the Manual) I This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Hi-Gain TM USB Wireless-150 N Window Adapter with Range Amplifier I Model No. HAWNU2 Made in China 75 (w) X 15 (h) mm C M Y CM MY CY CMY K Bellylabe-HAWNU2_rev fcc_print.pdf 2 8/23/2010 4:52:06 PM

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 18, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR032432AC Page No. : A1 of A3 FCC ID : SOY-HAWNU2 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR032432AC Page No. : A2 of A3 FCC ID : SOY-HAWNU2 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR032432AC Page No. : A3 of A3 FCC ID : SOY-HAWNU2 1.3. Calculated Result and Limit Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11b/g: 25.28dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 10 10 25.28 337.2873 0.6714

FCC TEST REPORT Report No.: FR032432AI Page No. : A1 of A3 FCC ID : SOY-HAWNU2 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR032432AI Page No. : A2 of A3 FCC ID : SOY-HAWNU2 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR032432AI Page No. : A3 of A3 FCC ID : SOY-HAWNU2 1.3. Calculated Result and Limit Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11n: 25.42dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 10 10 25.42 348.3373 0.6933

FCC TEST REPORT Report No.: FR032432AC SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Hi-Gain Wireless-150N Windows Adapter with Range Amplifier Model No. : HAWNU2 Brand Name : HAWKING Filin g Type : New Application Applicant : Hawking Technologies, Inc. 35 Hammond, Suite 150, Irvine, CA 92618, USA FCC ID : SOY-HAWNU2 Manufacturer : Hawking Technologies, Inc. 35 Hammond, Suite 150, Irvine, CA 92618, USA Received Date: Jul. 01, 2010 Final Test Date : Jul. 08, 2010 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR032432AC SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC ID : SOY-HAWNU2 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 3 2.4 Table for Test Modes .............................................................................................................................................................................. 4 2.5 Table for Testing Locations ..................................................................................................................................................................... 4 2.6 Table for Supporting Units ....................................................................................................................................................................... 4 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.8 EUT Operation during Test ..................................................................................................................................................................... 5 2.9 Test Configuration ................................................................................................................................................................................... 6 3 TEST RESULT ........................................................................................................................................................ 8 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 8 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 12 3.3 Power Spectral Density Measurement .................................................................................................................................................. 14 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 20 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 26 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 44 3.7 Antenna Requirements .......................................................................................................................................................................... 49 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 50 5 TEST LOCATION .................................................................................................................................................. 52 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 53 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B6 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C11 FCC TEST REPORT Report No.: FR032432AC SPORTON International Inc. Page No. : ii of ii TEL : 886-2-26…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR032432AI SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Hi-Gain Wireless-150N Windows Adapter with Range Amplifier Model No. : HAWNU2 Brand Name : HAWKING Filin g Type: New Application Applicant : Hawking Technologies, Inc. 35 Hammond, Suite 150, Irvine, CA 92618, USA FCC ID : SOY-HAWNU2 Manufacturer : Hawking Technologies, Inc. 35 Hammond, Suite 150, Irvine, CA 92618, USA Received Date : Jul. 01, 2010 Final Test Date : Jul. 08, 2010 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR032432AI SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Aug. 18, 2010 FAX : 886-2-2696-2255 FCC ID : SOY-HAWNU2 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.4 Table for Test Modes .............................................................................................................................................................................. 5 2.5 Table for Testing Locations ..................................................................................................................................................................... 5 2.6 Table for Supporting Units ....................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 6 2.8 EUT Operation during Test ..................................................................................................................................................................... 6 2.9 Test Configuration ................................................................................................................................................................................... 7 3 TEST RESULT ........................................................................................................................................................ 9 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 9 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 13 3.3 Power Spectral Density Measurement .................................................................................................................................................. 15 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 21 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 27 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 45 3.7 Antenna Requirements .......................................................................................................................................................................... 50 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 51 5 TEST LOCATION .................................................................................................................................................. 53 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 54 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B6 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C11 FCC TEST REPORT Report No.: FR032432AI SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR032432AC Page No. : B1 of B6 FCC ID : SOY-HAWNU2 Appendix B. Test Photos FCC TEST REPORT Report No.: FR032432AC Page No. : B2 of B6 FCC ID : SOY-HAWNU2 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032432AC Page No. : B3 of B6 FCC ID : SOY-HAWNU2 SIDE VIEW FCC TEST REPORT Report No.: FR032432AC Page No. : B4 of B6 FCC ID : SOY-HAWNU2 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032432AC Page No. : B5 of B6 FCC ID : SOY-HAWNU2 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032432AC Page No. : B6 of B6 FCC ID : SOY-HAWNU2 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
