SP8-IWTBB1142802.15.4 Transceiver

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 40 of 47 APPENDIX I: MANUAL Please refer to the following pages. © Copyright 2005 Innovative Wireless Technologies P1b AXON™ USER MANUAL © Copyright 2005 Innovative Wireless Technologies P1b IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications to this unit not expressly approved by Innovative Wireless Technologies, Inc. could void the user’s authority to operate this equipment. Innovative Wireless Technologies, Inc. 1047 Vista Park Drive, Suite A Forest, Virginia 24551 1-434-316-5230 (United States) www.iwtwireless.com (United States) AXON™ and Synaptrix™ are registered in the US Patent & Trademark Office. © Innovative Wireless Technologies, Inc. 2004, 2005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SP8-IWTBB1142 © Copyright 2005 Innovative Wireless Technologies P1b Axon™ Innovative Wireless Technologies User Manual 802.15.4 Transceiver Module Overview IWT’s Module is a 2.4 GHz transceiver module that offers an embedded 16-bit RISC CPU and is designed to comply with IEEE’s 802.15.4 physical layer specifications. The module offers the user a compact size, ruggedized connections, and an on-board antenna. The module is designed to work with your sensor applications by offering UART communications, 3 general-purpose I/O ports, one 12-bit Analog-to-Digital port, and a SPI compatible interface to operate a peripheral device. The module also offers a 6MHz and a 32.768kHz watch crystal for your timing needs. The AXON™ Module is Synaptrix™ ready and ZigBee™ ready. Synaptrix™ is IWT’s mesh-networking software stack. Interfaced to the programmer board, the module offers a practical design environment that allows for fast debug and easy access to the programmable interfaces. Figure 1 - Axon module with programming board © Copyright 2005 Innovative Wireless Technologies P1b FCC Statement for OEM Integrators AXON™ Module Use for maintaining RF exposure This device is intended only for OEM integrators under the following conditions: 1. Connection to the AXON™ Module should always be made through the 20 pin header. Connection to the AXON™ Module any other way not expressed in this documentation or approved by Innovative Wireless Technologies, Inc. will void the user’s ability to operate this device under the FCC certification. The header on the AXON™ Module is a SAMTEC FTMH-110-02-L-DH, and mate connection is CLM-110-02-L-D. 2. The AXON™ Module may not be co-located with any other transmitter or antenna. 3. The AXON™ Module is approved using the FCC “Unlicensed modular transmitter approval” method. Therefore the AXON™ Module must only be used with the originally approved antenna(s). As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain, co- location with another transmitter, or different antenna), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. OEM End Product Labeling The final end product that has integrated the AXON™ Module must be labeled in a visible area with the following: Contains TX FCC ID: SP8-IWTBB1142 IMPORTANT NOTE TO OEM The end user of the OEM’s product, with incorporated AXON™ Module, should NOT be provided any instructions on how to remove or install the AXON™ Module. © Copyright 2005 Innovative Wireless Technologies P1b The AXON™ Module Interface (Getting Started) Voltage must be supplied to the AXON™ Module via pins 19 and 20 on the interface header. The AXON™ Module regulates its voltage on board, but must be supplied a voltage between 3.3-6 Volts. The table below outlines the 20 pin interface to the AXON™ Module. The mechanical diagram that follows indicates where pin-1 starts. Connector Pin out TP Name Connector Pin out TP Name 1 TDI/TDO 2 SPI_CS 3 TDI 4 IWT 5 TMS 6 UART_Data_uP 7 TCK 8 UART_Data_PC 9 GND 10 SPI_SIMO 11 RESET 12 SPI_SOMI 13 SPI_CLK 14 GPIO3 15 GPIO5 16 GPIO4 17 A0 18 IWT 19 GND 20 V_Batt Once power is applied to pins 19 and 20, primary communication through the AXON™ Module will take place on pins 6 and 8. These pins are the buffered UART interface to the Module. This UART interface is 3.3-Volt logic only. To communicate with a PC and RS232 Translator must be used on the customer’s end device. The AXON™ Programmer Board, used for prototype development, translates the UART signaling to PC levels. Innovative Wireless Technologies’ document “AXON™-Synaptrix™ Network Interface Specification” outlines the communication protocol utilized on the UART plus the over the air communication protocols for your peer-to-peer and mesh network configurations. Once the UART link has been correctly initialized, your device can then utilize the AXON™ Module to communicated information wirelessly to other AXON™ Modules. This allows the end user to quickly setup communication links between two or multiple devices. If communication becomes inoperable, momentarily pulling pin 11 (RESET) low, 0-Volts, will reset the AXON™ Module. © …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 23, 2005 RE: Innovative Wireless Technologies, Inc. FCC ID: SP8-IWTBB1142 or SP8-WTBB1142 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The FCC ID shown on the 731 for and label are different. Which are correct? Note that all cover letters, 731 and documents appear to support one FCC ID. Also, 2 different FCC ID’s are shown in the labeling exhibit. Please correct all documents as necessary. Response : The correct FCC ID is shown on the 731 form – SP8-IWTBB1142. A revised label exhibit has been uploaded. 2) Please provide the list of tunable frequencies associated with this device. Response : The list of tunable frequencies has been uploaded with this response. 3) Please explain the use of a 400 kHz high pass filter for AC power line conducted measurements when measurements are made down to 150 kHz. Response : This was a typographical error in the test report. Please see the revised test report uploaded with this response. 4) Radiated spurious emissions appear to be taken with 100 kHz RBW. FCC methods require a 1 MHz RBW. Response : Please see the revised test report uploaded with this response with emissions remeasured at 1MHz RBW. 5) Is this device being approved as a DTS of DSS device? 731 form states DSS, but test report supports DTS. Response : The device is being submitted as a DTS device. Please see the revised test report and 731 form uploaded with this response. 6) 6 dB bandwidth methods specify a 30 kHz RBW. FCC methods require a RBW of >=100 kHz. Response : Please see the revised report uploaded with this response for the correct plots. 7) Section 8.1 mentions average power, while the data appears as peak. Please clarify. Note that average power measurements requires a 30 dB attenuation of all non-restricted band signals instead of 20 dB. Response : The only use of the word “average” in section 8.1 is in the description of the power sensor: “E9323A Peak and Average Power Sensor”. Data presented in section 8.3 is peak power. 8) It is suggested that the users manual should be further updated for additional FCC issues. Some issues appear to already be covered. Please consider updating the user manual to include any missing information shown on the next page. Response : Please see the revised user manual uploaded with this response. American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 Page 2 February 24, 2005 The manual should provide further information and better detail as to how the OEM must use the module in order to maintain RF exposure. In order to make sure that the integrators are given enough information, please add the following information or similar to the users manual: This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. 2) The Module is approved using the FCC ‘unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antenna(s). As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain, collocation with another transmitter, or a different antenna), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: {INSERT FCC ID HERE}". RF Exposure Statements That Must be Included in the Users Manual The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 23, 2005 RE: Innovative Wireless Technologies, Inc. FCC ID: SP8-IWTBB1142 or SP8-WTBB1142 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The FCC ID shown on the 731 for and label are different. Which are correct? Note that all cover letters, 731 and documents appear to support one FCC ID. Also, 2 different FCC ID’s are shown in the labeling exhibit. Please correct all documents as necessary. 2) Please provide the list of tunable frequencies associated with this device. 3) Please explain the use of a 400 kHz high pass filter for AC power line conducted measrurements when measurements are made down to 150 kHz. 4) Radiated spurious emissions appear to be taken with 100 kHz RBW. FCC methods require a 1 MHz RBW. 5) Is this device being approved as a DTS of DSS device? 731 form states DSS, but test report supports DTS. 6) 6 dB bandwidth methods specify a 30 kHz RBW. FCC methods require a RBW of >=100 kHz. 7) Section 8.1 mentions average power, while the data appears as peak. Please clarify. Note that average power measurements requires a 30 dB attenuation of all non-restricted band signals instead of 20 dB. 8) It is suggested that the users manual should be further updated for additional FCC issues. Some issues appear to already be covered. Please consider updating the users manual to include any missing information shown on the next page. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender. z Page 2 February 24, 2005 The manual should provide further information and better detail as to how the OEM must use the module in order to maintain RF exposure. In order to make sure that the integrators are given enough information, please add the following information or similar to the users manual: This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. 2) The Module is approved using the FCC ‘unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antenna(s). As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain, co- location with another transmitter, or a different antenna), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: {INSERT FCC ID HERE}". RF Exposure Statements That Must be Included in the Users Manual The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device.

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 33 of 47 APPENDIX B: ATTESTATION – DA 00-1407 MODULAR APPROVAL Please refer to the following page. IWT Confidential Revision P3 February 8, 2005 Federal Communications Commission To Whom It May Concern: Please be advised that Innovative Wireless Technologies, Inc. is requesting Part 15 Unlicensed Modular approval for its AXON™ Module, FCC ID: SP8-IWTBB1142. The below statements outline Innovative Wireless Technologies’ responses to DA00-1407 concerning Modular approval. 1. The AXON™ Module has shielding placed around the transceiver ASIC and its applicable passive components. 2. The AXON™ Module has buffered modulation/data inputs in the transceiver ASIC and the microcontroller located on the module. All external inputs go through the microcontroller before being passed to the transceiver section. 3. The AXON™ Module contains its own power regulatory circuitry. 4. The antenna on the AXON™ Module is permanently attached. The antenna is a chip antenna, P/N 2450AT18A100, from Johanson Technology. 5. The AXON™ Module has been tested by Rhein Tech Laboratories for Part 15 emissions compliance. The module was tested as a stand-alone transmitter complying with §15.247. 6. The AXON™ Module will have its own FCC ID label located on top of the shielding. Because of the module size only the words “FCC ID: SP8-IWTBB1142” can be used on the module label. 7. The users manual for the AXON™ Module outline the proper usage for the module and will be submitted with the application for equipment authorization. 8. The AXON™ Module is a low radiated power device,
1mW, and will not be operated in a manner as described by Table 1 of §1.1307(b)(1) that would expose the public to energy levels in excess of the Commision’s guidelines. Innovative Wireless Technologies, Inc. certifies that the above statements are true to the best of our knowledge. Thank you for your attention to this matter. Sincerely, Gary L. Raulerson, Jr. RF Staff Engineer, Program Manager Innovative Wireless Technologies, Inc.

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 34 of 47 APPENDIX C: AGENCY AUTHORIZATION LETTER Please refer to the following page. IWT Confidential Revision P3 February 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Innovative Wireless Technologies, Inc. authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or American Telecommunications Certification Body, Inc.. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Gary L. Raulerson, Jr. RF Staff Engineer, Program Manager

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 35 of 47 APPENDIX D: CONFIDENTIALITY REQUEST LETTER Please refer to the following page. IWT Confidential Revision P3 February 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. ∑ Schematics ∑ Technical Product Description ∑ Block Diagram Sincerely, Gary L. Raulerson, Jr. RF Staff Engineer, Program Manager Innovative Wireless Technologies, Inc.

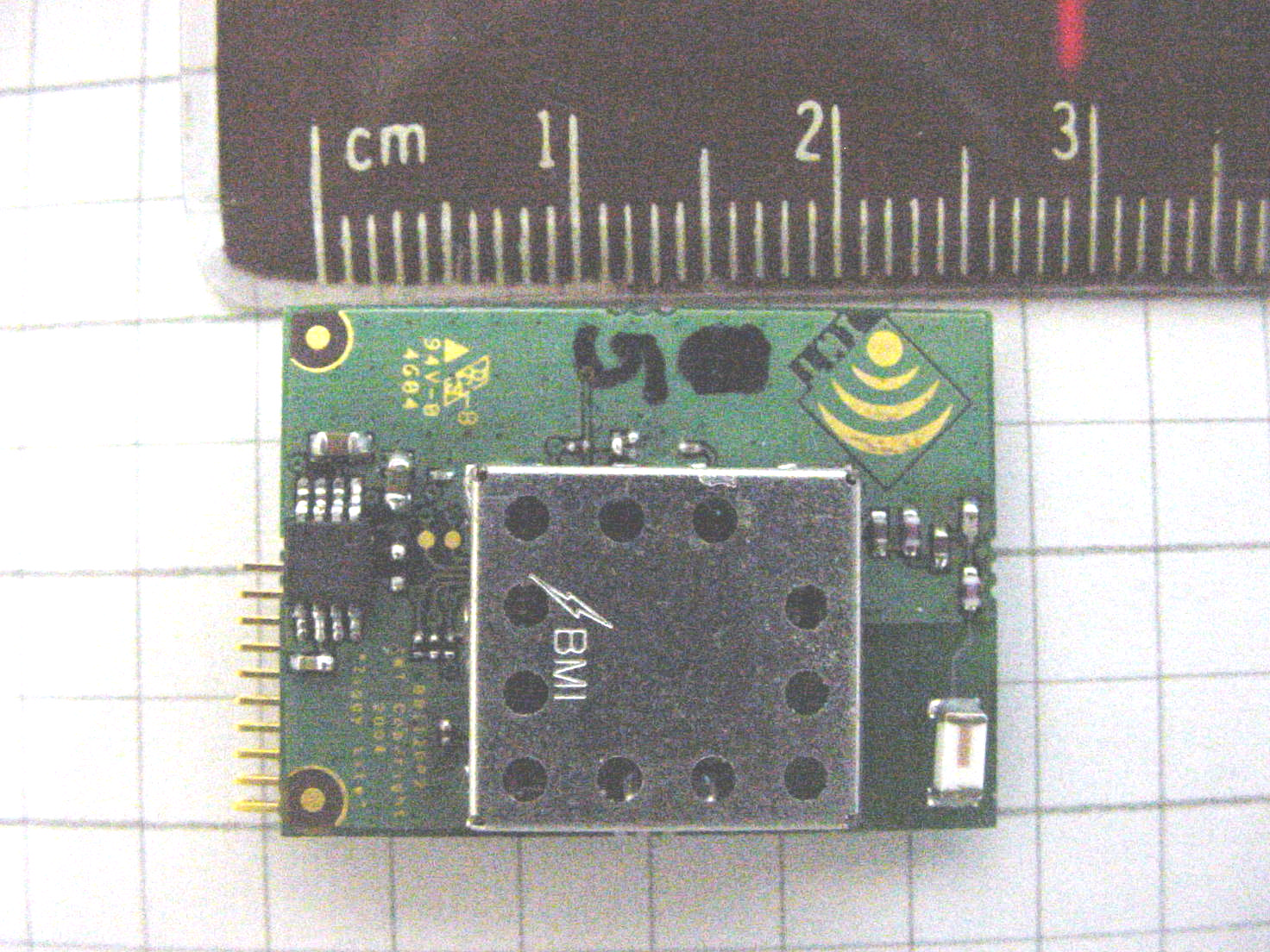

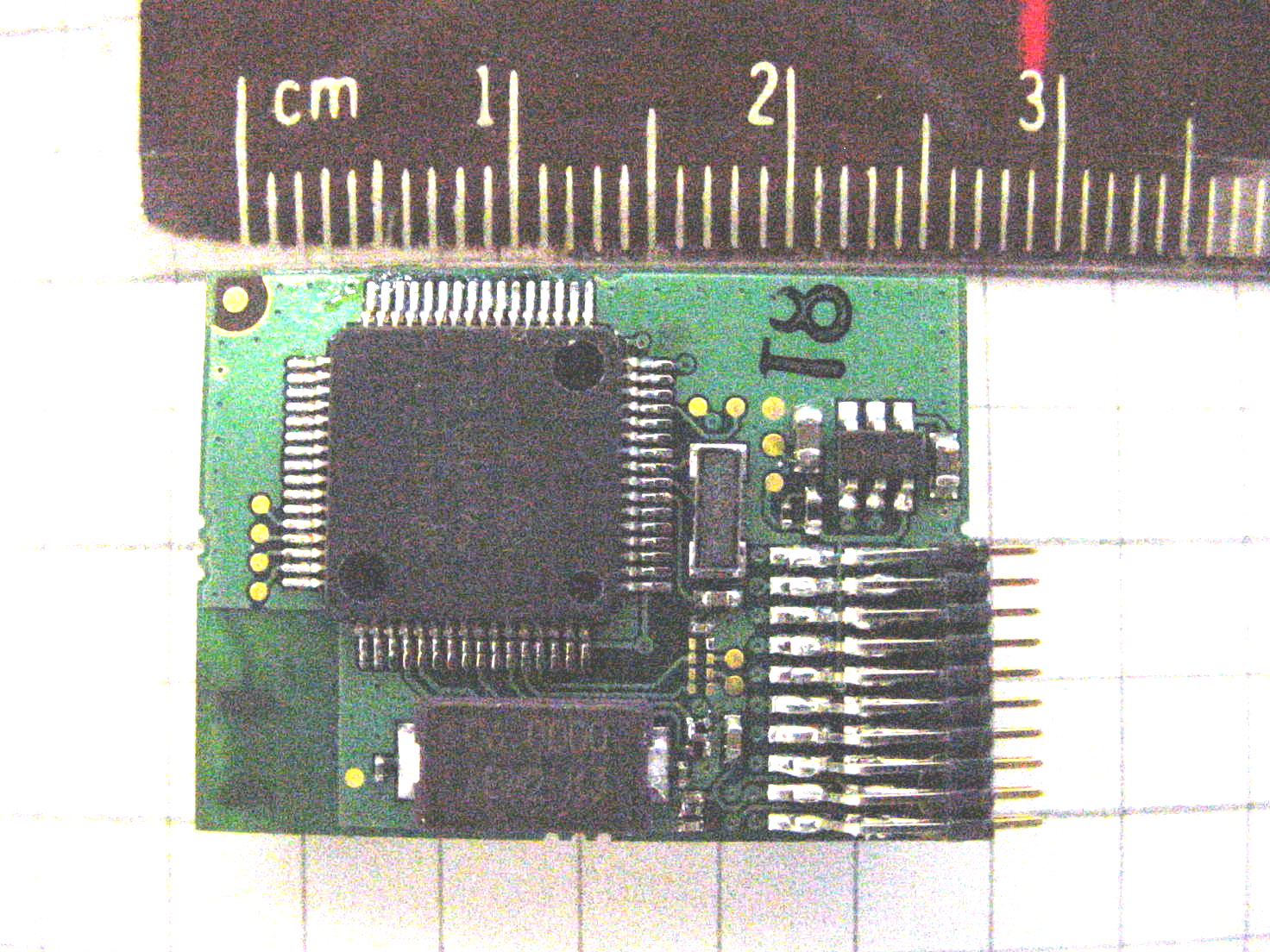

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 45 of 47 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: MODULE TOP VIEW Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 46 of 47 PHOTOGRAPH 6: MODULE BOTTOM VIEW WITH SHIELD Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 47 of 47 PHOTOGRAPH 7: MODULE BOTTOM VIEW WITHOUT SHIELD

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 36 of 47 APPENDIX E: LABEL AND LABEL LOCATION

Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 45 of 47 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: MODULE TOP VIEW Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 46 of 47 PHOTOGRAPH 6: MODULE BOTTOM VIEW WITH SHIELD Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 47 of 47 PHOTOGRAPH 7: MODULE BOTTOM VIEW WITHOUT SHIELD

IWT Confidential Revision P3 February 28, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please see below a list of all frequencies tunable by the AXON™ Module. The RF frequency of channel k is given by: Fc = 2405 +5(k-11) MHz, k = 11,12,....,26 or 2405.000 MHz 2410.000 MHz 2415.000 MHz 2420.000 MHz 2425.000 MHz 2430.000 MHz 2435.000 MHz 2440.000 MHz 2445.000 MHz 2450.000 MHz 2455.000 MHz 2460.000 MHz 2465.000 MHz 2470.000 MHz 2475.000 MHz 2480.000 MHz Thank you for your attention to this matter. Sincerely, Gary L. Raulerson, Jr. RF Staff Engineer, Program Manager

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 15.247 CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 E-mail: [email protected] Applicant: Innovative Wireless Technologies, Inc. (IWT) 1047 Vista Park Dr., Suite A Phone: 434-316-5230 x14 Forest, VA 24551 Fax: 434-316-5232 Email: [email protected] Contact: Gary Raulerson, Jr. FCC ID: SP8-IWTBB1142 DATE OF TEST REPORT: March 2, 2005 PLAT FORM: N/A RTL WORK ORDER: 2005012 MODEL: AXON TM Module RTL QUOTE NUMBER: QRTL04-423 American National Standard Institute: ANSI C63.4–2003: “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz” FCC Classification: DTS – Part 15 Digital Transmission System FCC Rule Part(s): Part 15.247: Operation within the bands 920-2480 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System Digital Interface Information Digital Interface was found to be compliant Frequency Range (MHz) Output Power* (W) Frequency Tolerance Emission Designator 2405-2480 0.0011 N/A N/A * output power is maximum peak conducted I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, and ANSI C63.4-2003. Signature: Date: March 2, 2005 Typed/Printed Name: Desmond A. Fraser Position: President Rhein Tech Laboratories Client: IWT 360 Herndon Parkway, Ste 1400 Model: AXON TM Module Herndon, VA 20170 FCC ID: SP8-IWTBB1142 http://www.rheintech.com Standard: FCC 15.247 Page 2 of 47 TABLE OF CONTENTS 1 GENERAL INFORMATION ...............................................................................................................................................5 1.1 SCOPE .....................................................................................................................................................................5 1.2 TEST FACILITY........................................................................................................................................................5 1.3 RELATED SUBMITTAL(S)/GRANT(S) .....................................................................................................................5 1.4 MODIFICATIONS .....................................................................................................................................................5 2 TEST INFORMATION........................................................................................................................................................6 2.1 TEST JUSTIFICATION.............................................................................................................................................6 2.2 EXERCISING THE EUT ...........................................................................................................................................6 2.3 TEST RESULT SUMMARY ......................................................................................................................................6 2.4 TEST SYSTEM DETAILS.........................................................................................................................................7 2.5 CONFIGURATION OF TESTED SYSTEM...............................................................................................................8 3 COMPLIANCE WITH THE RESTRICTED BAND EDGE – FCC §15.205 .........................................................................9 3.1 TEST PROCEDURE.................................................................................................................................................9 3.2 BAND EDGE TEST EQUIPMENT ............................................................................................................................9 3.3 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA .....................................................................9 4 CONDUCTED LIMITS – FCC §15.207 ............................................................................................................................12 4.1 TEST METHODOLOGY FOR CONDUCTED EMISSIONS MEASUREMENTS .....................................................12 4.2 CONDUCTED EMISSIONS TEST..........................................................................................................................12 4.3 CONDUCTED EMISSIONS TEST DATA ...............................................................................................................13 5 RADIATED EMISSION LIMITS RECEIVER/DIGITAL INTERFACE – FCC §15.209 ......................................................17 5.1 RECEIVER/DIGITAL INTERFACE RADIATED EMISSION LIMITS TEST PROCEDURE .....................................17 5.2 RECEIVER/DIGITAL INTERFACE RADIATED EMISSIONS TEST EQUIPMENT .................................................17 5.3 RECEIVER/DIGITAL INTERFACE RADIATED EMISSION LIMITS TEST DATA ..................................................17 6 RADIATED EMISSION LIMITS; SPURIOUS AND HARMONICS – FCC §15.247..........................................................18 6.1 RADIATED SPURIOUS EMISSION LIMITS TEST PROCEDURE .........................................................................18 6.2 RADIATED SPURIOUS TEST EQUIPMENT .........................................................................................................18 6.3 RADIATED EMISSIONS HARMONICS/SPURIOUS TEST DATA .........................................................................19 7 MODULATED BANDWIDTH - §15.247(A)(2)..........................................................…
