SP8-SBB0100-010-1Battery powered radio used in a mesh network of unattended sensors

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 47 of 55 Appendix M: User Manual Please refer to the following pages. FOR OFFICIAL USE ONLY 1 User Guide: mProm Module Prepared by: Innovative Wireless Technologies, Inc. Forest, Virginia Document # 7720-12-0547 Rev A FOR OFFICIAL USE ONLY 2 Table of Contents FCC STATEMENT .................................................................................................................. 3 1. MPROM SUMMARY ........................................................................................................ 3 2. MPROM CONTROL ......................................................................................................... 3 3. SAFEY PRECAUTIONS .................................................................................................. 3 4. REVISION HISTORY ....................................................................................................... 4 FOR OFFICIAL USE ONLY 3 FCC Statement Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. 1. mProm Summary The mProm™ mesh radio SBB0100-010-R4G is a battery-powered transceiver designed specifically for use in a mesh network, particularly low power sensors. In normal operation these radios are autonomous and scattered throughout a locality and serve as the communications backbone infrastructure for deployed assets. The radios operate with no direct physical user interface after power-on. 2. mProm Control IWT maintains complete control over the mProm module and any and all end products into which it is installed. 3. Safey Precautions This section contains details on the safety precautions of the mProm module. Warning: Only trained personnel should be allowed to install, replace, or service this equipment. Warning: Do not locate the antenna or cables where they may accidentally contact overhead electrical wires. Warning: Do not work on the device or connect or disconnect cables during periods of lightning activity. FOR OFFICIAL USE ONLY 4 IMPORTANT NOTE: The antenna must be installed 20 cm or more from any personnel in order to comply with FCC RF exposure requirements. When using a 9 dBi gain 900 MHz antenna, this distance should be increased to 40 cm in order to assure compliance with RF exposure requirements applicable to the general public. Brief exposure at 20 cm or greater is within occupational exposure limits. 4. Revision History Revision Date Changes Author A 12/4/12 Release J. Colling B 12/13/12 Revision to include Safety Precautions J. Colling

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 36 of 55 Appendix B: FCC Agency Authorization Letter Please refer to the following page . Page 1 of 1 IWT Confidential Page 1 of 1 6650-12-0037 R1 September 18 th , 2012 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Innovative Wireless Technologies, Inc. authorizes Reintech Test Labs to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or American Telecommunications Certification Body, Inc. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Gary Raulerson NPI Manager Innovative Wireless Technologies, Inc.

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 37 of 55 Appendix C: FCC Confidentiality Request Letter Please refer to the following page . Page 1 of 1 IWT Confidential Page 1 of 1 6650-12-0038 R2 November 13 th , 2012 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place.  Schematics  Operational Description  Block Diagrams Thank you for your attention to this matter. Sincerely, Gary Raulerson NPI Manager Innovative Wireless Technologies, Inc.

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 38 of 55 Appendix D: FCC Part 15 Unlicensed Modular Transmitter Equipment Approval Please refer to the following page. IWT Confidential 6650-12-0039 R2 November 13, 2012 Federal Communications Commission To Whom It May Concern: Please be advised that Innovative Wireless Technologies (IWT), Inc. is requesting Part 15.247, 902-928 MHz Unlicensed Frequency Hopping approval for its mProm Radio Module, IWT P/N: SBB0100010R4G to have FCC ID: SP8-SBB0100-010-1. The below statements outline Innovative Wireless Technologies’ responses to part 15.247 concerning Frequency Hopping compliance. 1. The mProm Radio Module is designed specifically for and marketed for radio communications applications in security sensor applications. The elements of the radio frequency circuitry are shielded and reside on the module assembly. 2. The mProm Radio Module has buffered modulation/data inputs, hops over 50 channels and is limited to 1 watt output power to comply with Part 15 requirements. 3. The mProm Radio Module has its own power supply regulation on the module. 4. The mProm Radio Module uses a simple Dipole Antenna, directional yagi antennas, and configurable output power that comply with FCC EIRP limits. 5. The mProm Radio Module has been tested standalone by Rheintech Test Labs for Part 15 emissions compliance. The EUT was tested as a battery powered intentional radiator complying with §15.247. 6. The mProm Radio Module will have the FCC ID label with ID number and warnings located on the module and/or the external of any mechanical housing. 7. The mProm Radio Module user manual outlines the proper usage of the EUT and will be submitted with the application for equipment authorization. 8. The mProm Radio Module will comply with RF exposure requirements, and will not be operated in a manner, as described by Table 1 of §1.1307(b)(1), that would expose the public to energy levels in excess of the Commission’s guidelines. 9. IWT will retain control over the final installation of the mProm Radio Module device in end products. The end products are exclusively designed and manufactured by IWT. Assembly of each end product is defined in IWT’s process documentation. As part of the documentation of each end product, there is a statement indicating that the mProm Radio Module device is only approved for use when installed in the device it is shipped in. Therefore, full limited module compliance is always ensured in the end product.

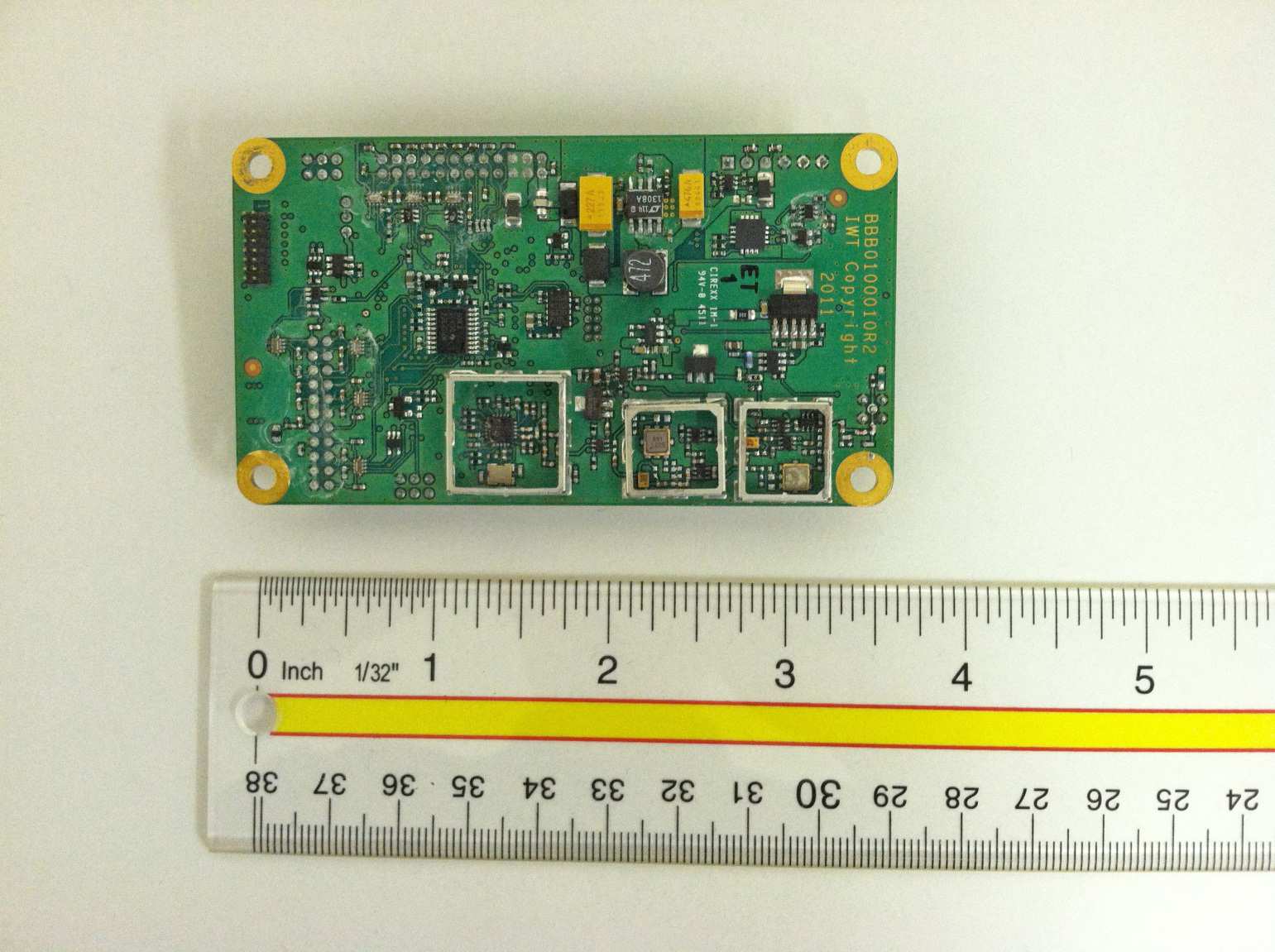

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 54 of 55 Appendix O: External Photographs Please refer to the following pages. Radio PCB – Top View Radio PCB – Bottom View, with shields Radio PCB – Bottom, without shields Sample Product containing Radio PCB Radio PCB – Bottom, without shields Sample Product containing Radio PCB

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 43 of 55 Appendix I: Label and Label Location Please refer to the following page for the ID label sample and location. Scale Title DWG NO RLB-SBB0100010 Limited Module FCC Label – SBB0100010 Drawn By: Approved By: SIZECAGE Code Date Innovative Wireless Technologies, Inc. 1100 Main Street Lynchburg, VA 24504 (434) 316-5230 Sheet REV THE DRAWING ON THIS PRINT AND INFORMATION THEREWITH ARE PROPRIETARY TO IWT, INC. AND SHALL NOT BE USED OR DISCUSSED IN WHOLE OR IN PART WITHOUT IWT’S CONSENT. 1of1None2012 Nov 9 T. Dahl J. Grohs BB Approv/DateRevision A B11/9/2012 9/18/2012 Addition of Module ID Label location Original Comments This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID: SP8-SBB0100-010-1 IC: 9568A-SBB01000101 2" +/- 0.1" 4.0" +/- 0.1" Note: White Poly with clear coat, butt cut FCC ID: SP8-SBB0100-010-1 IC: 9568A-SBB01000101 Model: SBB0100-010-R4G 0.5" +/- 0.1" 2.0" +/- 0.1" ID Label Sample for outside of device ID Label Sample for module Location exhibit The bottom side of the Coyote UGS enclosure has a milled out section for the FCC label. All other Coyote products will have the FCC label on the bottom side of the enclosure. The ID label will be located here, on the top side of the RF Board. ID Label Location

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 55 of 55 Appendix P: Internal Photographs Please refer to the following pages. Radio PCB – Top View Radio PCB – Bottom View, with shields Radio PCB – Bottom, without shields Sample Product containing Radio PCB

Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 35 of 55 Appendix A: FCC §1.1307, §1.1310, §2.1091, §2.1093; IC RSS-Gen: RF Exposure Using FCC 1.1310 Table 1B as guidance, the maximum permissible RF exposure for a controlled environment is f/300 mW/cm 2 =3 mW/cm 2 for the frequencies used in this device (903.0 to 927.0 MHz). The worst case power is used for the calculation below. The actual power density for the EUT calculated as shown below. )4/()( 2 dGPS×××= π where: S = power density P = transmitter conducted power in (mW) G = antenna numeric gain d = distance to radiation center (cm) Frequency (MHz) Yagi Antenna Gain (dBi) Conducted Power (mW) Calculated Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) 902.589 10.2 575 1.2 3.0 Notice: Radiation Exposure Statement The calculated power density is below the occupational limit. Therefore the minimum separation distance for this equipment, which is a mobile/fixed device, is 20 cm.

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.247 & IC RSS-210 Limited Modular Approval Report Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Innovative Wireless Technologies, Inc. (IWT) 1100 Main Street Tel: 434-316-5230 x114 Lynchburg, VA 24504 Fax: 434-316-5232 Contact: Gary Raulerson, Jr. FCC ID IC SP8-SBB0100-010-1 9568A-SBB01000101 Test Report Date September 13, 2012 Platform N/A RTL Work Order Number 2012045 Model SBB0100-010-R4G RTL Quote Number QRTL12-045 American National Standard Institute ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices FCC Classification DSS – Part 15 Spread Spectrum Transmitter FCC Rule Part(s) FCC Rules Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System (10-01-11) IC Rule Part(s) RSS-210 Issue 8: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS-Gen Issue 3: General Requirements and Information for the Certification of Radio Apparatus Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 902.5 – 927.0 0.575 N/A 539KFXD I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, IC RSS-210, IC RSS-Gen and ANSI C63.10. Signature: Date: September 13, 2012 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Innovative Wireless Technologies, Inc. (IWT). The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: IWT 360 Herndon Parkway Model #: SBB0100-010-R4G Suite 1400 Standards: FCC 15.247/RSS-210 Herndon, VA 20170 FCC ID: SP8-SBB0100-010-1 http://www.rheintech.com Report #: 2012045 Page 2 of 55 Table of Contents 1 General Information ............................................................................................................................... 5 1.1 Scope ................................................................................................................................................ 5 1.2 Description of EUT ............................................................................................................................ 5 1.3 Test Facility ....................................................................................................................................... 5 1.4 Related Submittal(s)/Grant(s) ........................................................................................................... 5 1.5 Modifications ..................................................................................................................................... 5 2 Test Information ..................................................................................................................................... 6 2.1 Description of Test Modes ................................................................................................................ 6 2.2 Exercising the EUT ........................................................................................................................... 6 2.3 Test Result Summary ........................................................................................................................ 6 2.4 Test System Details .......................................................................................................................... 7 2.5 Configuration of Tested System ........................................................................................................ 8 3 Peak Output Power – FCC §15.247(b)(2); IC RSS-Gen ....................................................................... 9 3.1 Power Output Test Procedure........................................................................................................... 9 3.2 Power Output Test Data .................................................................................................................... 9 4 Band Edge Compliance of RF Conducted Emissions – FCC §15.247(d); IC RSS-Gen ..................... 10 4.1 Band Edge Test Procedure ............................................................................................................. 10 4.2 Test Results .................................................................................................................................... 11 5 Antenna Conducted Spurious Emissions – FCC §15.247(d); IC RSS-210 A8.5 ................................ 13 5.1 Antenna Conducted Spurious Emissions Test Procedures ............................................................ 13 5.2 Antenna Conducted Spurious Emissions Test Results .................................................................. 13 6 20 dB Bandwidth – FCC §15.247(a)(1)(i); IC RSS-210 A8.1(a) .......................................................... 14 6.1 20 dB Bandwidth Test Procedure ................................................................................................... 14 6.2 20 dB Modulated Bandwidth Test Data .......................................................................................... 14 6.3 20 dB Bandwidth Plots ................................…
