SP9-00003PORTABLE BLUETOOTH SPEAKER

Item # IMW645 Owner’s Manual Introduction Thank you for purchasing the Altec Lansing IMW 645 Portable Bluetooth Speaker with Surround Sound. You can use this speaker to listen to audio wirelessly from devices such as smart phones, computers, iPods, tablets and most other Bluetooth sound sources. Please read this manual carefully FIRST in order to get the most out of your speaker. Package Contents 1. IMW 645 xlJacket Portable Bluetooth Speaker with Surround Sound 2. Extra Skin 3. AC Adapter 4. 3.5mm Auxiliary Cable 5. Owner’s Manual with W arranty Information Technical Specifications - Battery Life: up to 8 hours - AC Adaptor: 16V, 1.59A - Power Adapter Input Rating: 100~240V, ~50/60Hz Charging Your Speaker 1. Connect one end of the included AC power adapter cable to the IMW645 DC input jack. Then plug the other end of the AC adapter into a suitable power outlet to recharge your speaker’s internal rechargeable battery. NOTE: The internal battery of your speaker takes approximately four hours to charge when completely drained. 2. W hen charging, a red LED light will illuminate to indicate that the unit is charging. The red light will turn off when your unit is fully charged. Understanding the LED Status Indicators Power and Bluetooth Indicator Light Blinking Blue LED = Bluetooth not connected. (Ready to pair.) Solid Blue LED = Bluetooth connected. Charging Indicator Lights Solid Red LED = Charging Red LED OFF = Charged Full. Powering Your Speakers ON & OFF 1. Press and hold the “POW ER” button for 2 seconds to turn on the unit. The Bluetooth LED light will start blinking slowly. Now you can ready to pair your audio source with your IMW 645 speaker. 2. Press and hold the “POW ER” button for 2 seconds to turn off the unit. Power Saving Mode The IMW 645 will enter a power saving mode if no audio is played for 30 minutes. Press and hold power button for two seconds to wake the IMW 645. Setting Up Your IMW645 Bluetooth Music Receiver Bluetooth Device Compatibility Your speaker connects with all Bluetooth devices that support the A2DP profile including iPads, iPhones, iPod touches, and most smart phones, laptops and tablets. Pairing a Bluetooth Device with Your Speaker Press and hold the “POW ER” button for two seconds to turn on the unit. The Bluetooth LED light will start blinking slowly. Now you are ready to pair your device with your IMW645 speaker. 1. Go to the Bluetooth Manager of your Bluetooth device. 2. Search Bluetooth devices and select “IMW 645” to start connecting. 3. Enter “0000” if your device asks for the PIN code. 4. Once paired, the unit will beep and the Blue LED light will turn on steadily. 5. Although the unit can only stream audio from one device at a time, it is capable of being paired with up to eight devices. This means that you only have to enter the PIN code one time for each device. Connecting a Paired Bluetooth Device 1. You should only need to pair your Bluetooth device with your speaker one time. 2. The next time your Bluetooth device and the unit are in range of each other, and the Bluetooth feature is turned on, they should automatically connect. 3. The unit will only automatically connect to the last Bluetooth device it was connected to. 4. If your paired device does not automatically connect, navigate to the Bluetooth menu on your device and select “IMW 645” from the list. Note: Your IMW645 can pair with and remember multiple Bluetooth devices; however it can only connect with one device at a time. For more detailed instructions, please visit the FAQ section. Playing Audio from Your Bluetooth Device 1. Once your media device is connected to the unit, simply start playing the music, movie or game and all the audio will automatically be played through IMW 645. 2. Press “BLUETOOTH” to play/pause the audio. 3. Press + or - to adjust the volume level of the unit. 4. Keep in mind that the IMW 645 has a 30 foot Bluetooth wireless range. Note: The volume controls on your media device work separately from the volume controls on IMW645. 3D Surround Effect This setting allows you to adjust the surround sound effect. Press the “3D” button repeatedly to toggle between turning this setting on or off. When there is an incoming call: 1. Press “BLUETOOTH” to pick up the call. 2. Press and hold “BLUETOOTH” to reject the call. 3. During a call: Press “BLUETOOTH” again to hang up the call. To Disconnect Your Bluetooth Device Turn off the connected device or press “BLUETOOTH” for two seconds to disconnect the Bluetooth device. *The Blue Bluetooth indicator flashes slowly after disconnect the device. Reconnecting Your Device If you move out of range or turn off the Bluetooth feature on your device, the unit will disconnect from your device. To reconnect, simply access the Bluetooth Manager on your device and select IMW 645. You will not be asked to enter the PIN code again. You can also press “BLUETOOTH” to reconnect the Bluetooth device. Out of Range or Lost Signal If the music device is out of range (beyond 30 feet) of the unit or if there is something blocking the Bluetooth signal, the LED light will flash slowly to indicate that the Bluetooth connection with the music device has been lost. To avoid a lost connection: 1. Move the music device back into range (within 30 feet), and/or make sure there’s a clear line of sight between the unit and the Bluetooth device. 2. If the connection is lost, the connection will need to be reestablished. Follow the directions under “Reconnecting Your Device”. NFC To pair the IMW 645 with NFC enabled devices, hold your NFC enabled phone directly against the IMW 645's “W ireless Check in for NFC” mark for 2 seconds. Once the pairing is successful, the speaker will make a sound to confirm. (Some devices may ask for confirmation from the user.) FAQ: Frequently Asked Questions 1. I am having Bluetooth pairing or connection problems, what do I do? A.) Make sure your Bluetooth device is turned on and is on the discoverable mode.(blinking blue light den…

Text truncated - open the document above for the full version.

Kysho Multimedia Ltd Flat F, 5/F, Valiant Industrial Centre, 2-I2 AuPui HongKong China Wan Street, Fo Tan, AGENCY AUTHORTZATION LETTER Federal Communications Commission Authorization and Evaluation Division FCC ID: SP9-00003 To whom it may concem: Date: 2013-06-7 We, the undersigned, hereby authorize Richard Li from SGS-CSTC Standards Technical Services Co.. Ltd. to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the ,ignlng of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Richard Li within the scope of this authorization shall have the same effects as our own. . .".."1_ This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you. C<impany Name: Kysho Multimedia Ltd. Tel:852-2799 2895 Fax:852-2755 0533 \ Email: kysholtd @ netvi gator. com

KYsho Multimedia Ltd Flat F, 5/F, Valiant Industrial C.nt .' 2-12 AuPui Wan Street' Fo Tan' HongKong Federal Communications Commission Authorization and Evaluation Division confidentiality Request regarding application for certification of Fcc ID: SP9-00003 PursuanttoSections0.45Tand0.45gofthecommission'sRules'weherebyrequestconfidential treatment of information accompanying this application as outlined below: The above materials contain trade secrets and proprietary information not customarily released to the public. The publiJ;ir..l"Jt. of *,.r. nluti.iat, muy be harmful to the applicant and provide unjustified benefits to its competltors' The applicant understands that pursuant to Section 0'457 of the Rules' disclosure of this application and all u."on1punying aocut"ntation will not be made before the date of the Grant for this aPPlication. Exhibit TYPe Block Diagram Schematics Operational DescriPtion Part List -a"r- Fax 852-27 55 0533 Email : kYsholtd @netvi gator' com File Name SP9-00003 Block Diagram'Pdf SP9-00003rSchematics.Pdf SP9-00003 Operational Description'pdf SP9-00003 Part List.Pdf a'suda / President y Name: KYsho Multimedia Ltd' 'el:852-2799 2895

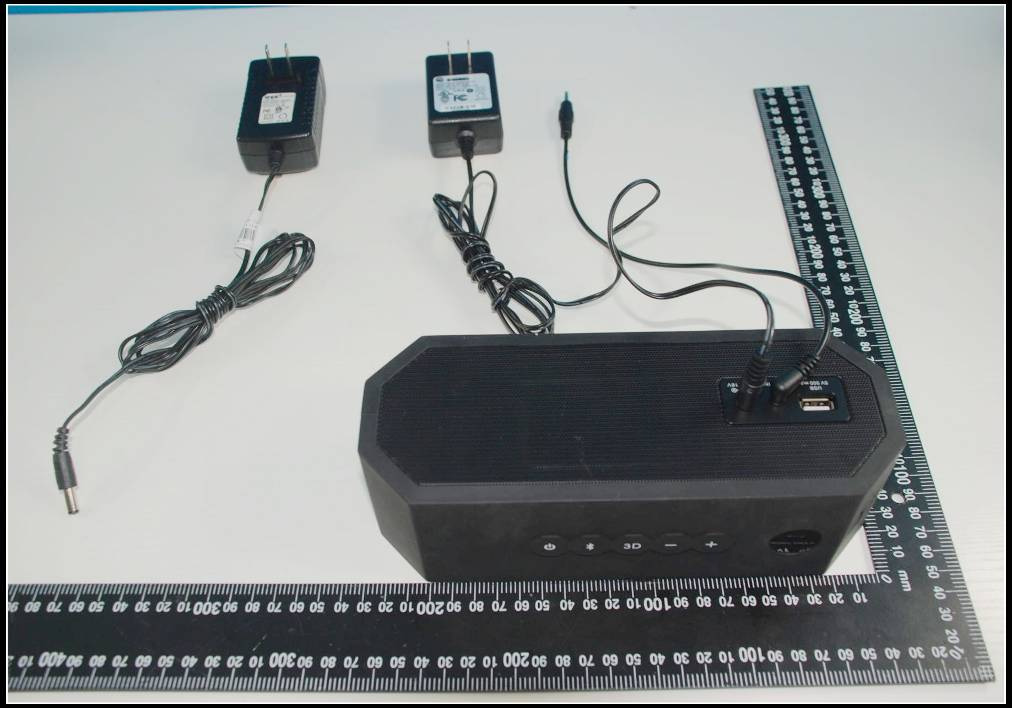

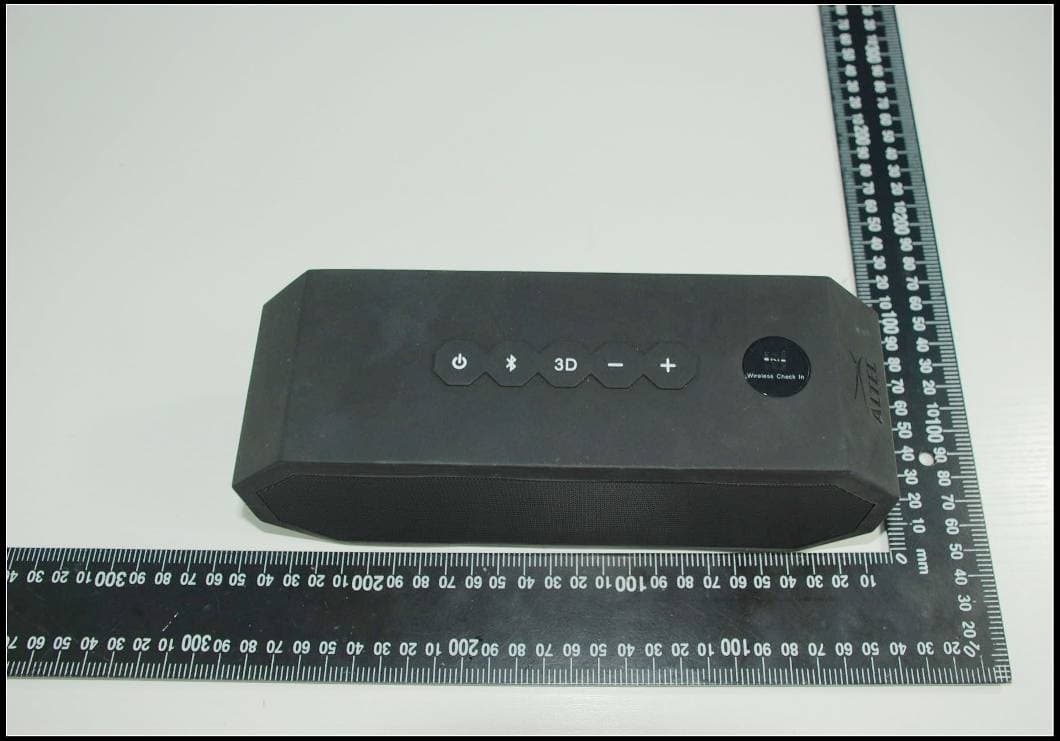

External Photos Adapter 1 Model: AS360-160-AA180 Adapter 2 Model: JF030WR-1600159U

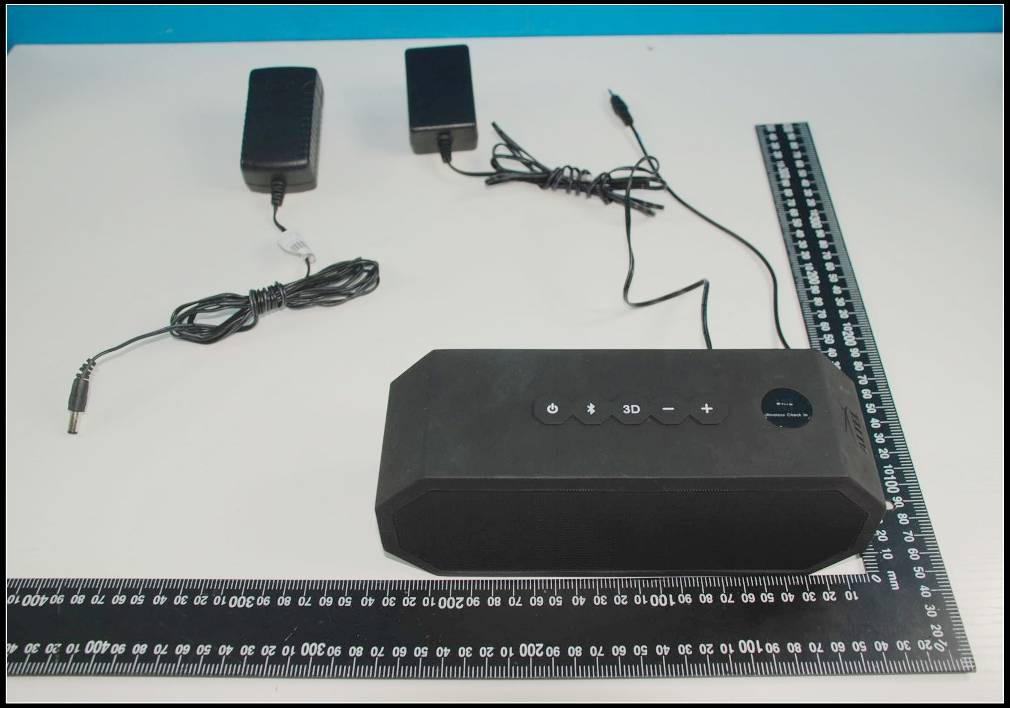

Internal Photos Adapter 1 Model: AS360-160-AA180 Adapter 2 Model: JF030WR-1600159U
