SPEBT02A2Bluetooth Speakerphone

Product Specification and User Manual ® SUNITEC ENTERPRISE CO., LTD. Tong-Fu-Yu Ind, Ku-Keng, Guan-Lan, Bao-An District, Shenzhen 518110, China. TEL:86-755-28088244/28089953 FAX:86-755-28088153 Email: [email protected] http://www.sunitec.com.tw User Manual Product Name: Bluetooth Speakerphone Product Model. BT-02A2 Customer NOKIA Document version V1.0 Product Development Department DATE Prepared By: 2006-07-28 Approved By: 2006-07-28 BT-02A2 www.sunitec.com.tw 1, 1 Product Specification and User Manual ® DOCUMENT CHANGE HISTORY Version Date Person Remarks Draft V0.1 2006-05-31 yuanshun V1.0 2006-07-28 yuanshun First release BT-02A2 www.sunitec.com.tw 2, 2 Product Specification and User Manual ® 1. Product Features: This versatile Bluetooth speakerphone is specially designed for user to enjoy convenience and freedom of wireless Communication. Dual capacity of use on desk-top like a Conference Speakerphone and in-car like a Hands-Free Car kit. Unique Privacy Handset/Mute control button allows user to use this kit like a normal handset for private Communication purpose. Advanced built-In Dual-Mic.(BEAM FOAMING) with D.S.P. solution for Echo Cancellation & Noise Suppression gives you impeccable full duplex sound quality you’ve never dreamed of. 2. Product Specifications: z Bluetooth compliance: Bluetooth v1.2 z Supports Headset and Handsfree profiles. z Output Power: Class 2 device. z Operating range: Up to 10m. z Operating frequency: 2.402GHz~2.480GHz. z Support Multiple paired. (Up to 8 Bluetooth Phone can be paired). z Up to 10 hours talk time and 500 hours standby time. z Charger time: 2 hours. z Charger in Voltage: DC 5V 400mA. z Battery Type: BL-5B 820mA z Size: L 126 * W 47 * H 16 mm z Weight: 80g 3. Product Appearance: 4. Button Functionality: Buttons Functions Description MFBButton Power ON/OFF Pairing Answering Call/End Call/Cancel Call Reject Call Voice Dial Last No. Redial “Volume” Buttons Volume adjustment Transfer Call Restore to Factory Default Setting “Mode” Button Privacy Handset switch Passkey Code 0000 BT-02A2 www.sunitec.com.tw 3, 3 Product Specification and User Manual ® 5. Operating Functionality Turning On/Off the Speakerphone Turning On: Speakerphone is under off mode: Press and hold the MFB for 3 seconds until you hear a short beep. The LED will flash blue for 3 seconds. Turning Off: Speakerphone is under standby mode: Press and hold the MFB for 3 seconds until you hear a long beep. The LED will flash red for 3 seconds. IMPORTANT: Press the MFB again each time you turn on the speakerphone to react the paring so that the connection in between the speakerphone and paired mobile handset is resumed. Pairing to Phone: Prior to using the speakerphone for the first time, you must pair it with a Bluetooth-enabled mobile handset. The following steps describes pairing instruction for a typical Bluetooth-enabled mobile handset. (a) Place the speakerphone and mobile handset no more than 1 meter apart. (b) Ensure the speakerphone is under OFF mode. (c) Press and hold the MFB for 6 seconds until you hear a long beep. The LED will flash red and blue alternatively. It’s now ready for pairing. (d) Activate your mobile handset’s Bluetooth function by referring to your mobile handset user guide for details. Mean while, the handset will search for accessible Bluetooth devices. (e) Select “BT-02A2” from the list. (f) Enter the pre-programmed passkey “0000” and press “OK” to pair the speakerphone and the handset. When pairing is completed, you may hear a long beep and LED will flash blue 3 times. Now the speakerphone is under standby mode with LED flashes blue every 3 seconds. (g) Press “Return” to go back to your handset’s main menu. (For most of the mobile handset models, a headset icon will be shown on the screen.) You should now be able to make and receive calls through the speakerphone. Please place the mobile handset to the speakerphone no more than 10 meters. (Obstruction could cause shorter sensing distance.) IMPORTANT: Under the pairing mode, if the pairing cannot be completed within 2 minutes, the speakerphone’s LED will flash off and speakerphone will be under off mode. Please repeat step (c) to (g) to pair the speakerphone and mobile handset again. Connection/Link between Speakerphone and Mobile Handset: After pairing is completed, speakerphone is always under standby mode. Before you place or answer a call, if the headset ICON is not shown on phone screen, please follow the simple steps to activate the Bluetooth connection/link through your handset or speakerphone until the headset ICON is on the screen. (a) On Handset: Select “BT-02A2” from the paired list on your handset screen. (b) On Speakerphone: Short press MFB and select “Accept” on handset screen to accept connection. IMPORTANT: Whenever Bluetooth connection/link is removed, for example: power off on speakerphone/mobile handset or out of 10 meter sensing distance, please activate connection/link as suggested. Disconnection between Speakerphone and Mobile Handset: You may connect your speakerphone with another Bluetooth handset. Please follow the simple steps to disconnect the speakerphone with the pre-paired handset. (a) Power off the speakerphone. (b) Select “disconnecting” to remove previous connection from your handset list. BT-02A2 www.sunitec.com.tw 4, 4 Product Specification and User Manual ® Using the Speakerphone Once pairing is completed, you may access the following functions. Some of the below-mentioned function is only accessible for handsets supported with Hands-Free Profile. (a) Answering a Call: To answer a call, wait for the speakerphone to ring, then short press the MFB to accept the call or answer the call via your mobile handset in the normal way. (b) Ending a Call: Short press the MFB, to end your call or end the call via your mobile handset in the normal way. Mean while you can hear a short beep from the speaker. (c) Reject a Call: When you hear the ringing tone, press and hold the MFB for 3 s…

Text truncated - open the document above for the full version.

910805 1 International Co., Ltd. 3B02&3B03, No.5 Hsin-Yi Rd., Sec. 5, Taipei 110, Taiwan Tel: 886-2-27223333 (Rep.) Fax: 886-2-27225050 _____E-mail: [email protected] web site: www.celltrend.com.tw___ Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 2 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (signature) Meg Wang Sales Manager CellTrend International Co., Ltd. 3B02, NO.5, HSIN-YI ROAD, SEC.5, TAIPEI 110, TAIWAN, R.O.C.

910805 3 International Co., Ltd. 3B02&3B03, No.5 Hsin-Yi Rd., Sec. 5, Taipei 110, Taiwan Tel: 886-2-27223333 (Rep.) Fax: 886-2-27225050 _____E-mail: [email protected] web site: www.celltrend.com.tw___ Federal Communications Commission FCC ID: SPEBT02A2 Product Name: Bluetooth Speakerphone Model Name: BT-02A2, BT-02XXX(X=0-9,A-Z or Blank) Trade Name: CELLTREND Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Meg Wang (Signature) (Printed) Title : Sales Manager Applicant : CELLTREND INTERNATIONAL CO., LTD. Address : 3B02, NO.5, HSIN-YI ROAD, SEC.5, TAIPEI 110, TAIWAN, R.O.C. Tel : 886-2-27223333 Fax: 886-2-27225050 Date : 2007,Feb.,9

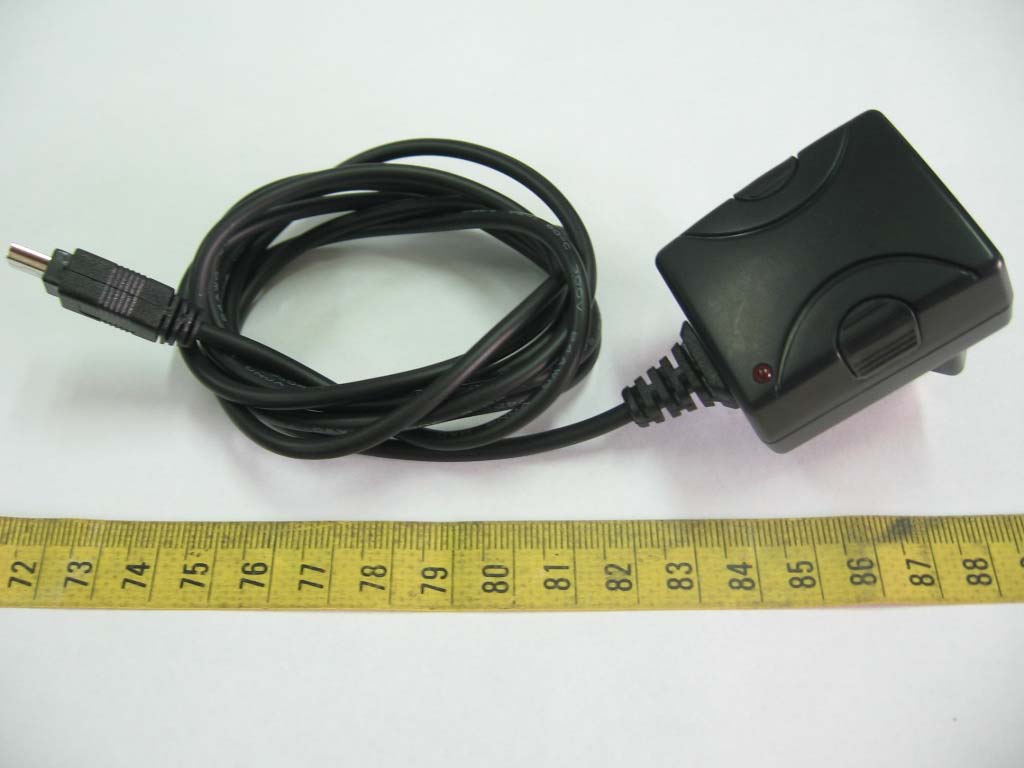

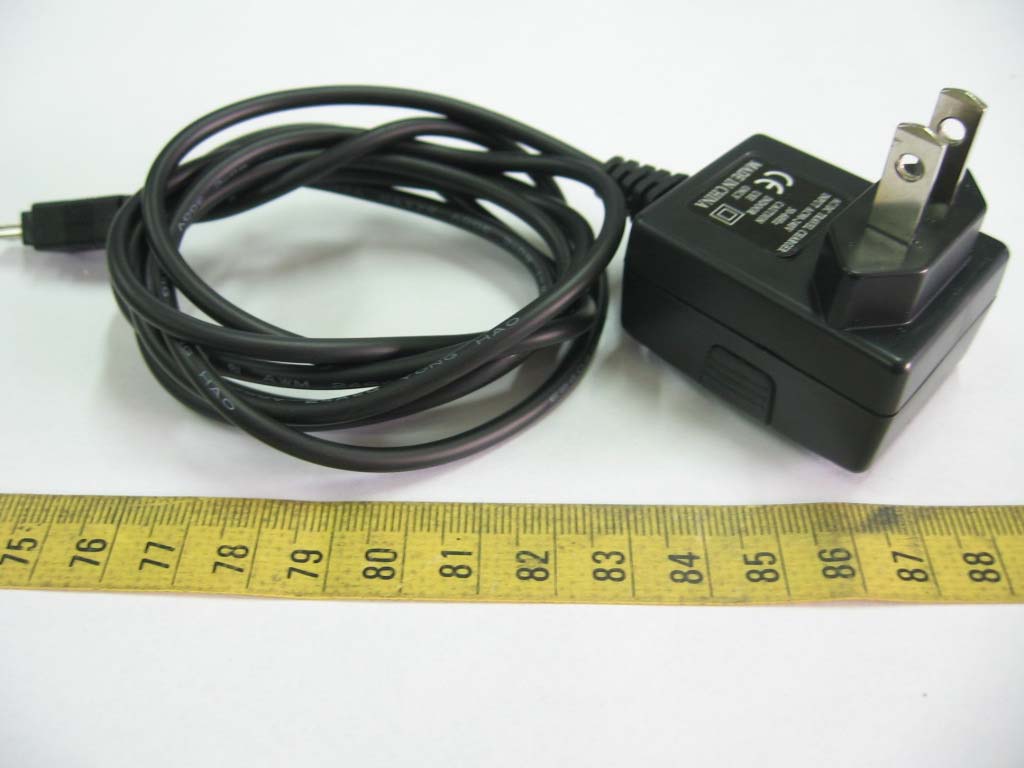

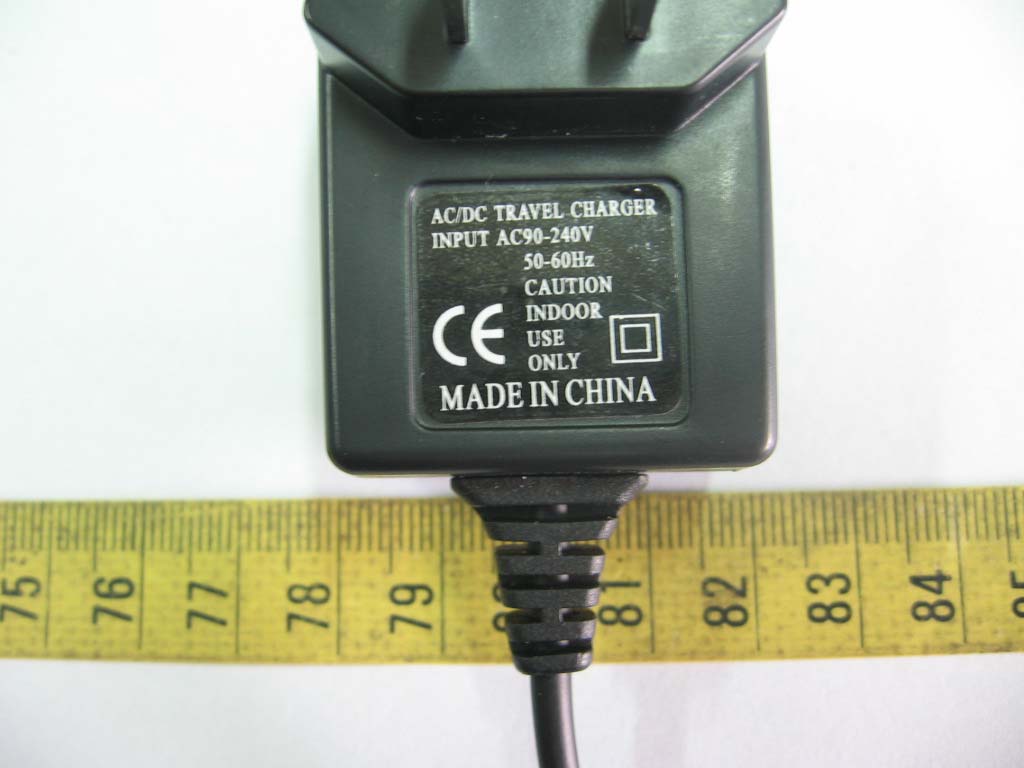

ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Top View of EUT Front View of EUT ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of EUT Bottom View of EUT ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Adaptor Top View of Adaptor Side View of Adaptor ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of Adaptor Front View of Adaptor

ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Battery ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Speakerphone Model : BT-02A2 FCC ID : SPEBT02A2 for APPLICANT : CELLTREND INTERNATIONAL CO., LTD. ADDRESS : 3B02, NO. 5, HSIN-YI ROAD, SEC. 5, TAIPEI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 07-02-RBF-062 ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : CELLTREND INTERNATIONAL CO., LTD. 3B02, NO. 5, HSIN-YI ROAD, SEC. 5, TAIPEI, TAIWAN, R.O.C. Manufacture : MEGATREND IND. CO., LTD. TONG-FU-YU IND., KU-KENG GUAN-LAN, BAO-AN DISTRICT, SHENZHEN, CHINA. Description of Device : a) Type of EUT : Bluetooth Speakerphone b) Trade Name : CELLTREND c) Model No. : BT-02A2 d) Power Supply : I/P: 90-240VAC 50-60Hz ; DC 3.7V Battery e) The data also apply to : BT-02XXX(X=0-9,A-Z or Blank) Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Mar. 28, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 Tx Portion .......................................................................................................................................... 11 4.4.2 Radiated Emissions in Restricted Bands ............................................................................................ 14 4.4.3 Other Emissions ................................................................................................................................. 15 4.5 Field Strength Calculation ......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 17 5.1 Standard Applicable ................................................................................................................... 17 5.2 Measurement Procedure............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation ............................................................................................................. 20 5.5 Conducted Measurement Equipment ......................................................................................... 20 5.6 Photos of Conduction Measuring Setup................................…

Text truncated - open the document above for the full version.

ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 Photos of Radiation Measuring Setup ETC Report No. : 07-02-RBF-062 FCC ID.: SPEBT02A2 Rev. No 2.1 Photos of Conduction Measuring Setup
