SPEBTFS1A1XBluetooth FM Transmitter and Car Kit Combo

SKU#: VS37W/2 Description: Bluetooth Speaker Editor: Xue feng Sun Approved by: Henry Chen Version: 1.0 Page: 1/1 3B02 & 3B03, No.5, Hsin-Yi Rd., Sec. 5, Taipei 11011, Taiwan, R. O. C. Tel: 886 2 27223333 Fax: 886 2 27225050 www.celltrend.com.tw LCD Display 3 8 1. Multi-Function Button (MFB) 2. Sound Previous 3. Sound Next 4. Frequency Up 5. Frequency Down 6. Built-in Mic 7. Blue LED 8. Multi-Purpose USB Port(14 pins) for Audio-in/out & Charge 9. USB Charge Port for Handset & MP3 (5V, 400mAH) 10. Detachable Cigarette Lighter Plug 11. Audio-In Adaptor (Optional) 12. Reset 1. Bluetooth symbol 2. Connection to Line 1 3. Connection to Line 2 4. Battery Power 5. 15 units - Digits/Letters/Symbols Display (5 x 8dots per unit) (a) If display is bigger than 15 units, it’ll rotate. (b) When car kit is powered on, 1 & 4 will flash on. 1 2 3 4 5 12 SKU#: VS37W/2 Description: Bluetooth Speaker Editor: Xue feng Sun Approved by: Henry Chen Version: 1.0 Page: 2/2 3B02 & 3B03, No.5, Hsin-Yi Rd., Sec. 5, Taipei 11011, Taiwan, R. O. C. Tel: 886 2 27223333 Fax: 886 2 27225050 www.celltrend.com.tw Bluetooth FM Transmitter Car Kit About Bluetooth FM Transmitter Car Kit #BTF-S1A1X Unlimited Every Frequency Selection - (FM 88.1MHZ - 107.9MHZ), w/Versatile LCD indication gives you best convenience of channel selection for different areas. Smallest size with built-in A2DP & AVRCP gives you powerful audio streaming in stereo quality you’ve never dreamed of. Built-in D.S.P. for echo cancellation and noise suppression gives you impeccable call quality. Advanced Power-Saving features – Automatic power off within 10 minutes(approx.) after Bluetooth connection/link is removed. Auto switching between calls and music streaming. Detachable cigarette lighter plug with built-in USB charge port to charge your mobile handset & MP3. (5V, 400 mAH) Dual capacity of desk-top use like a conference handset and in-car use like a hands-free car kit keeps your calls and music on the move. About Bluetooth Technology Bluetooth wireless technology is set to revolutionize the personal connectivity by providing freedom from wired connections-enabling links and connectivity between mobile computers, mobile handsets, portable handheld devices and other Bluetooth enables devices within 10 meters. Utilizing global sound & digital data 2.4G ISM transmission. It makes global communication in the way you've never dreamed of! Getting to Know Your FM Transmitter Car Kit Getting Started To use your car kit, please follow these simple steps: (a) Charge your car kit. Prior to using the car kit, it is recommendable to charge the battery fully for the first time use. To speed up charge, it’s recommended to charge the car kit without powering on. (b) Connect the cigarette light plug to your vehicle cigarette lighter hole to charge the built-in battery. (c) Place your car kit and a Bluetooth-enabled handset (or audio device) no more than 1 meter apart for pairing. (d) Ensure your car kit and handset (or audio device) is within 10 meters - Bluetooth sensing distance. Charging Your Car kit (a)Prior to using the car kit, it is recommendable to charge the battery fully for the first time use. To speed up SKU#: VS37W/2 Description: Bluetooth Speaker Editor: Xue feng Sun Approved by: Henry Chen Version: 1.0 Page: 3/3 3B02 & 3B03, No.5, Hsin-Yi Rd., Sec. 5, Taipei 11011, Taiwan, R. O. C. Tel: 886 2 27223333 Fax: 886 2 27225050 www.celltrend.com.tw charging, you may leave your car kit powered off. This car kit is dual-charge enabled, please follow the simple steps: (1)Cigarette Lighter Plug: Connect the cigarette lighter plug to the car kit and plug the unit to the vehicle cigarette lighter hole. (2)Multi-Purpose USB Port: Connect the optional plug-in saver/charger (or travel charger) to the multi-purpose USB port and plug the saver/charger (or travel charger) to the cigarette lighter hole (or wall outlet). (b)Battery Power Indication: Charging indication is like this. => => => When charge is completed (up to 4.2V), the full charge indication and will flash on constantly. After 3 seconds, you may see current status indication, for example: . Important: (a) When car kit is powered off and charged, LCD will only flash on backlight, and . (b) Charge time: Normal full charge time is 2 to 3 hrs. (Approx.). (c) Charge indication: When charge is initiated, within 15 seconds(approx.), the LCD backlight will flash on for 3 seconds, then flash off. LCD will display and battery charge indication will be like this . Charge indication will be delayed for a few minutes if the car kit has not been used for a long time or the battery is drained off. (d) Low voltage indication: Whenever low battery power is encountered, the flat battery indication will flash on and car kit will emit two beeps every 30 seconds. It’s recommended to charge the car kit immediately to prolong durability & standby time of battery. Under low voltage status, if the battery is not charged within certain time (15 minutes approx.), the battery indication will blink and the car kit will be powered off. (e) Whenever encountering noise from speaker, please press and hold the for 6 seconds. Turning On/Off the Car kit Turning On: Car kit is under off mode:. (a) Press and hold the MFB for 5 seconds(approx.) until the LED, LCD backlight, and flash on. Release the MFB. Then, the backlight will flash off after 3 seconds with LED flashes every 15 seconds. 3.3V 3.7V 4.0V 4.2V SKU#: VS37W/2 Description: Bluetooth Speaker Editor: Xue feng Sun Approved by: Henry Chen Version: 1.0 Page: 4/4 3B02 & 3B03, No.5, Hsin-Yi Rd., Sec. 5, Taipei 11011, Taiwan, R. O. C. Tel: 886 2 27223333 Fax: 886 2 27225050 www.celltrend.com.tw (b) Car kit will be under standby mode. Within 10 minutes, if it’s not connected to any Bluetooth devices, it’ll power off. Important: Under standby mode, various situations could be encountered. They are categorized as follows. Please refer to descriptions under Bluetooth pairing & link for details. (a) Th…

Text truncated - open the document above for the full version.

910805 1 CELLTREND INTERNATIONAL CO., LTD. 3B-02, NO. 5, HSIN-YI RD., SEC. 5, TAIPEI 110. TAIWAN, R.O.C. FAX: 886.2.27225050 TEL: 886.2.27223333(REP) EMAIL: [email protected] Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

1 Lucy Tsai From:Iris Lin [[email protected]] Sent:Thursday, April 10, 2008 7:01 PM To:Lucy Tsai Cc:R00/??? Subject:Re: CELLTREND INTERNATIONAL CO., LTD., FCC ID: SPEBTFS1A1X, Assessment NO.: AN08T7783, Notice#1 Attachments:Exhibit-E-User_Manual_rev 2.pdf; Exhibit-C-Test_Report(Bluetooth).rev 2.pdf; DC CAR CHARGE Photo.jpg; Exhibit-M-Antenna Spec._rev.pdf Dear Lucy, Please refer to the below confirmation for your questions. Ans#3. Please refer to the updated antenna spec. that the antenna gain is 2.0dB. Ans#4. Please refer to the updated test report with correct test plot. Ans#5&6. Please refer to the updated manual with 15.109 statement. Please refer to the setup photo that is wihout AC power adaptor because this EUT is connected with DC Card Charger as attached photo. And we have remove earphone in the user manual. If you have any question, pls let us know ASAP. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN TEL: 886-2-26023052 ext.10 FAX: 886-2-26010910 ----- Original Message ----- From: "Lucy Tsai" <[email protected]> To: "Iris Lin" <[email protected]> Cc: "R00/???" <[email protected]> Sent: Tuesday, April 01, 2008 10:42 AM Subject: RE: CELLTREND INTERNATIONAL CO., LTD., FCC ID: SPEBTFS1A1X, Assessment NO.: AN08T7783, Notice#1 Dear Iris, Please see my comments below. Best Regards, Lucy -----Original Message----- From: Iris Lin [mailto:[email protected]] Sent: Monday, March 31, 2008 6:51 PM To: Lucy Tsai Cc: R00/??? Subject: Re: CELLTREND INTERNATIONAL CO., LTD., FCC ID: SPEBTFS1A1X, Assessment NO.: AN08T7783, Notice#1 Dear Lucy, Ans#1: We have submitted FM applicaiton for the captioned project yesterday as attached application records. [Lucy] There has some questions came out and will be sent to you later. 2 Ans#2. Please refer to the updated report as attachment. [Lucy] OK. Ans#3. Pelase refer to the attached antenna spec. [Lucy] Inside the specification, it doesn't mention the antenna gain value. Please have a check. Ans#4. Please refer to the updated report as attachment. [Lucy] The high channel is 0.37dBm as indicated in the test plot but not -0.37dBm. Please correct. Ans#5. We have deleted this item in the user manual as attached updated version. And we also added statement 15.1091 in the manual. Ans#6. We have added 15.105 statement in the attached manual. [Lucy] Q#5-6 is ok, but I just found that you have removed 15.19 statement from the user manual. If then, please add them to the label. Besides, I just found that AC power adapter and car charge have been also removed from the user manual. However, in the external photos and test setup photos, car charge is applied. Please clarify. Besides, in my original issue, I have mentioned that there are no ear phone jack found per external photos shown. However, the user manual still has it. Please clarify it as well. If you have any question, please let us know ASAP. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN (???) TEL: 886-2-26023052 ext.10 FAX: 886-2-26010910 ----- Original Message ----- From: "Lucy Tsai" <[email protected]> To: "Iris Lin" <[email protected]> Sent: Sunday, March 30, 2008 5:11 AM Subject: FW: CELLTREND INTERNATIONAL CO., LTD., FCC ID: SPEBTFS1A1X, Assessment NO.: AN08T7783, Notice#1 Dear Iris, Please address following issues. Q#1: As indicated in the block diagram and other exhibits, this is composite device with Bluetooth module and FM transmitter inside and then that FM transmitter should be submitted for another application as composite device. Please submit. Q#2: In test report page 15-17, "--" means the emission is too low to be measued. And as indicated, the fundamental is too low to be measued and also lower than the other spurious emission. Please address this failure condition. Q#3: Please confirm how many the antenna gain is. Q#4: The output power as indicated in page 50 of test report does not agree with the test plots behind. Please explain. Q#5: As indicated in the user manual, the illustration of the product doesn't agree with external photos. For example, there are no ear phone jack in the EUT. Also, per 15.1091, 20cm safe distance from antenna to end user is required to be maintained. Please address. Also, if the EUT is capable to be powered with an AC power adapter as indicated in the user manual, AC line conducted emission shall also be tested. Q#6: No 15.105 statement found in the user manual. Please address. As for FM transmitter portion, please submit another filing firstly.

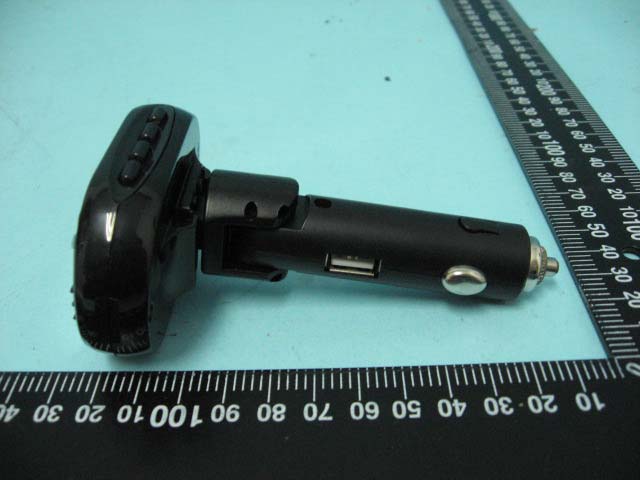

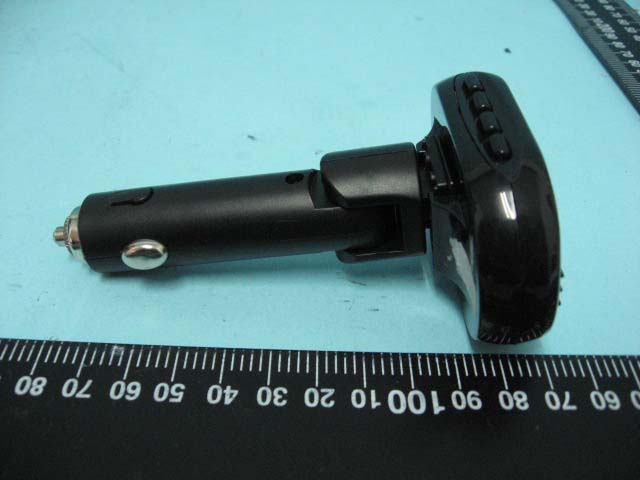

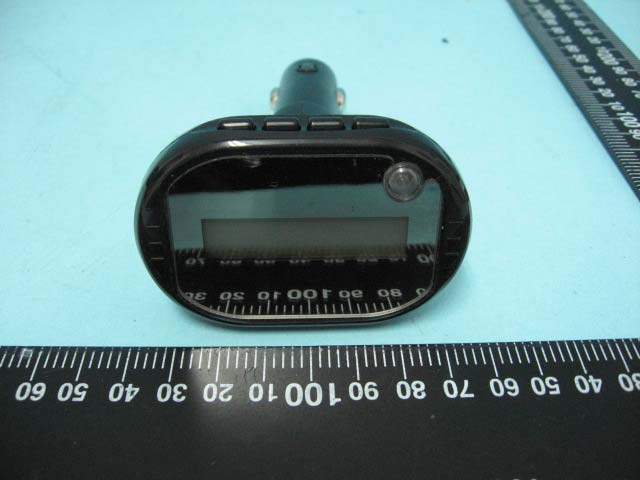

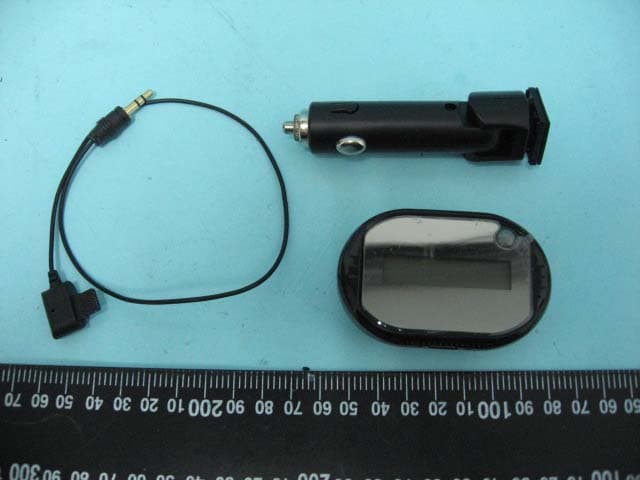

ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT Top View of EUT Side View of EUT ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT Side View of EUT Front View of EUT ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT Side View of EUT Rear View of EUT ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT Side View of EUT

ETC Report No.:08-01-RBF-108-02 FCC ID.: SPEBTFS1A1X Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT Internal View of EUT ETC Report No.:08-01-RBF-108-02 FCC ID.: SPEBTFS1A1X Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT Component View of PCB Solder View of PCB

No. SPQ-3B26Feb . 18 . 2003 TO. i.Tech Dynamic Limited SPECIFICATION Product nameSURFACE MOUNTABLE CHIP ANTENNA： Part numberAHD1103-244ST01： RJC-AP-0022E Specification： RJC-AQ-0003E Characteristics specification： RJC-AR-0005E Packing Specification： This document will be valid from Mar. 4.2003 shipment. Should you have any changes regarding this specifications,please make a contact to our sales department within 14 days after receiving this document. MITSUBISHI MATERIALS CORPORATION ADVANCED PRODUCTS COMPANY Drawing NoPage Surface mountable chip antenna AHD1103-244ST01 Specification RJC-AP-0022E1/4 Mitsubishi Materials Corporation Type AHD1103-244ST01 Date August.29.2002 1. Scope of application The specification is applied to surface mountable chip Antenna AHD1103-244ST01. 2. Part Number System (Ex.) A H D 1 1 0 3 ñ 2 4 4 ST01 T (1) (2) (3) (4) (5) (6) (7) (1) Series AHD : AHD series (2) Length 11 : Length L=10.5 mm →“11”mm (rounded off to the first digit place). (3) Width 03 :Width W=3mm (rounded off to the first digit place). (4) Hyphen (5) center frequency 244 : center frequency f0 = 2440MHz (indicated in upper 3digit of center frequency f0[MHz] ) (6) MMC internal code ex) ST01 (7) Packaging form T : Tape package 4000pcs./reel 3. Structure 3-1. material Base material Al 2 O 3 based ceramic Conductor Ag based thick film 3-2. Size and Dimensions See Fig.1. 3-3. Terminal description See Fig.1. 3-4. Visual No major defects that would effect the life or use of the components 3-5. Standard evaluation board and Land pattern See Fig.2. and Fig.3. 4. Operating temperature range -25°C to +85°C 5. Electrical Characteristics Table.1 Electrical characteristics [Note] Electrical characteristics should be measured on our evaluation board Details of evaluation board is shown in Fig.2.and Fig.3. DescriptionValue Impedance 50Ω Frequency range 2400MHz to 2484MHz V.S.W.R at B.W 3.0max Drawing NoPage Surface mountable chip antenna AHD1103-244ST01 Specification RJC-AP-0022E2/4 Mitsubishi Materials Corporation 6. Precautions 6.1. Handling Excessive stress or mechanical shock may damage to products , therefore , please be careful in handling or transporting products and assemblies with this product . 6.2. Storage Products should be stored as it packaged ( as sealed up ) under normal temperature and humidity . To avoid degradation or destruction of products , please do not store under conditions below. - In an atmosphere containing corrosive gas (SO x , NO x , Cl 2 , NH 3 etc.) - Dusty Place - Humid place , where water condenses Stored products should be used within 3 months of receipt ( If once the seal of covertape is broken , please use immediately ) If this period is exceeded please verify solderability of products . [ Recommended storage condition ] Temperature -10 °C to 40 °C Humidity 15 %R.H. to 85 %R.H Drawing NoPage Surface mountable chip antenna AHD1103-244ST01 Specification RJC-AP-0022E3/4 Mitsubishi Materials Corporation Fig.1. Dimensions (Unit:mm) ： conductor <Terminal description> [1] ： Gnd [2] ： Feeding electrode [3] ： fixing electrode (Should be connected with floating pad) 0.8 +0.1 -0.1 1.0 +0.1 -0.1 1.0 +0.1 -0.1 8.25 +0.20 -0.20 3.75 +0.10 -0.10 0.75 +0.10 -0.10 3.0 +0.2 -0.2 10.5 +0.2 -0.2 1.0 +0.1 -0.1 1.0 +0.1 -0.1 1.0 +0.1 -0.1 [1] [1] [1] [2] [2] [3][3] [3] [3] [2] [3] [3] [3] [3] [3] Drawing NoPage Surface mountable chip antenna AHD1103-244ST01 Specification RJC-AP-0022E4/4 Mitsubishi Materials Corporation 7.3 2.56.0 15.0 8.0 2.2 25.0 1.4 1.5 2.0 7.57.5 1.0 1.0 3.75 3.75 3.0 0.5 0.4 1.0 1.5 2.0 1.0 25.0 7.57.5 3.4 3.8 1.2 1.21.2 1.6 1.61.6 3.0 1.2 1.2 [Land pattern］ [ Solder resist pattern] SMA connector Micro Strip Line (50ohm) Chip antenna (Gain=2.0dB) Fig.2. Outline of standard evaluation board Fig.3. Dimensions of Land pattern (Unit : mm) Substrate : FR- 4 (Both print) Thickness : 0.8mm Cupper : 0.035mm Size : W=25mm , L=50mm φ [ Backside pattern of substrate (top view)] Ground plane Through hole Connected to backside GND plane Through hole φ0.4 Drawing No Page Surface mountable chip antenna AHD series characteristic specification RJC-AQ-0003E 1/ 3 Mitsubishi Materials Corporation. Type AHD series Date December.10.2001 1. Scope of application This specification is applied to surface mountable chip Antenna AHD series. 2. Climatic Quality Item Test Method Performance Cold test Test temperature : -25°C ± 3°C Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Dry heat test Test temperature : +85°C ± 2°C Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Damp heat Test Test temperature : +60°C ± 2°C Test relative humidity : 90% 95% Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Temperature cycle Test (+85 °C ) (ordinary temp) (-20 °C ) Fig.1. Operations per One Cycle One cycle is the operation shown in Fig.1 . This cycle is repeated 65 times After completion of the test, allow the sample to stand under the standard conditions for at 2hrs. After the test ,shall satisfy the band width specification. 30min 30min 3min 3min Drawing No Page Surface mountable chip antenna AHD series characteristic specification RJC-AQ-0003E 2/ 3 Mitsubishi Materials Corporation. 3. Solderability Item Test Method Performance Solderability Test Immerse into melted solder. Solder : H63A Flux : Rosin 25wt% (According to JIS C2571) Soldering temperature : 230°C ± 3°C Duration of immersion : 5sec. ± 1sec Preheating : 150°C , 60sec. At least 90% of the terminal electrode must be covered with new solder. Resistance to reflow soldering Heat Test Reflow soldering temperature : Peak temperature : 24…

Text truncated - open the document above for the full version.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth FM Transmitter and Car Kit Combo Model : BTF-S1A1X FCC ID : SPEBTFS1A1X for APPLICANT : CELLTREND INTERNATIONAL CO., LTD. ADDRESS : 3B-02, NO.5, HSIN-YI ROAD, SEC.5, TAIPEI TAIWAN R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 08-01-RBF-108-01 ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : CELLTREND INTERNATIONAL CO., LTD. 3B-02, NO.5, HSIN-YI ROAD, SEC.5, TAIPEI TAIWAN R.O.C. Manufacture : MEGATREND ELECTRONICS CO., LTD. TONG-FU-YU IND., KU-KENG COMMUNITY, GUAN-LAN JIE- DAO, BAO-AN DISTRICT, SHENZHEN 518110, CHINA Description of Device : a) Type of EUT : Bluetooth FM Transmitter and Car Kit Combo b) Trade Name : CELLTREND c) Model No. : BTF-S1A1X d) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2007) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Date Test Item Received : Jan. 22, 2008 Date Test Campaign Completed : Mar. 20, 2008 Date of Issue : Mar. 20, 2008 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 Tx Portion .......................................................................................................................................... 11 4.4.2 Radiated Emissions in Restricted Bands ............................................................................................ 14 4.4.3 Other Emissions ................................................................................................................................. 15 4.5 Field Strength Calculation ......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 17 5.1 Standard Applicable ................................................................................................................... 17 6 ANTENNA REQUIREMENT ................................................................................................... 18 6.1 Standard Applicable ................................................................................................................... 18 6.2 Antenna Construction................................................................................................................. 18 7 HOPPING CHANNEL SEPARATION .................................................................................... 19 7.1 Standard Applicable ................................................................................................................... 19 7.2 Measu…

Text truncated - open the document above for the full version.

ETC Report No. : 08-01-RBF-108-01 FCC ID.: SPEBTFS1A1X Rev. No 2.1 Photos of Radiation Measuring Setup
