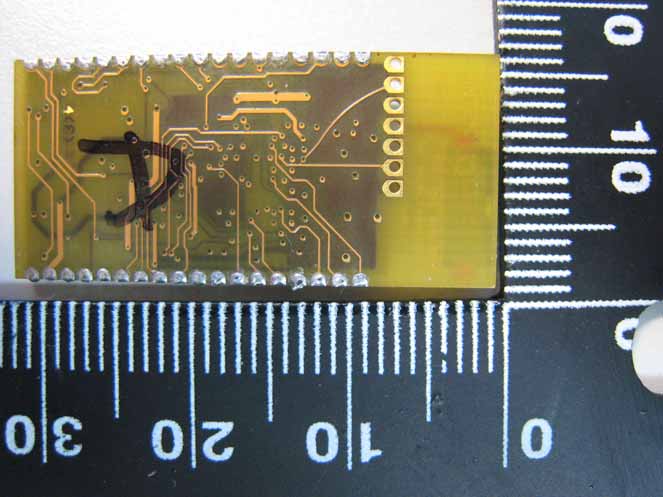

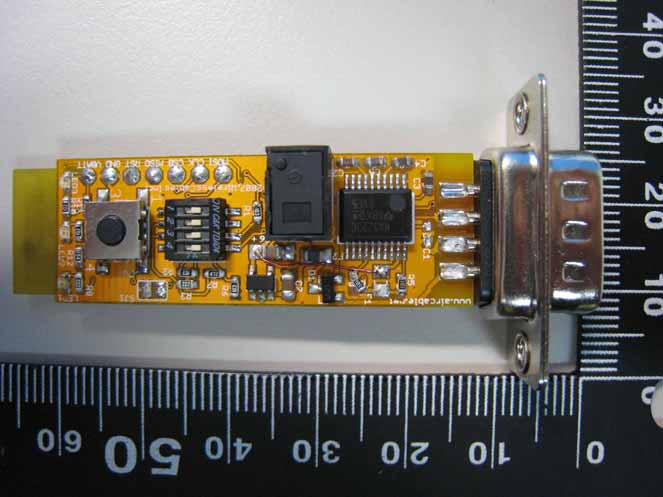

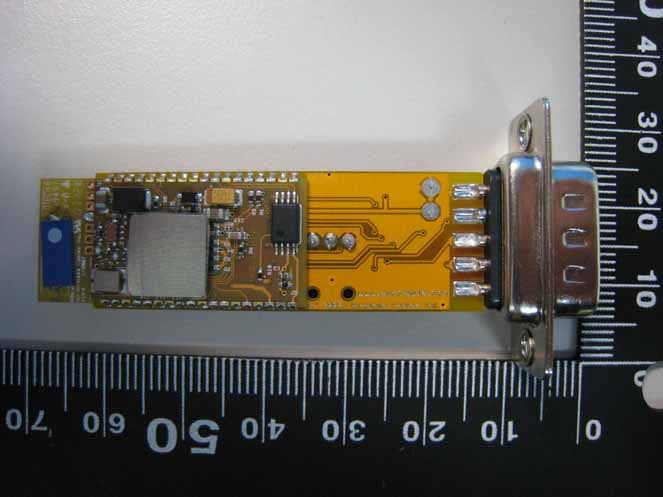

SQCAB3C2Bluetooth Module

Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Bluetooth Module AIRcable SMD ACB3C2 USER GUIDE V1.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. As long as condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: SQCAB3C2”. Manual Information That Must be Included The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used not be co-located or operating in conjunction with any other antenna or transmitter. Example Sticker: Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Description Wireless Cables Inc. provides various Bluetooth products. They are suitable for customers to exploit them to implement Bluetooth functionality into various electronic devices. The features of Bluetooth module list as below: Features Model Name AC3B2 Standard Bluetooth v1.2 Frequency Band 2.4~2.4835GHz unlicensed ISM band Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) RF Output Power Class 2 (2.5 dBm) Integrated Ceramic Antenna DC power 5V or Lithium battery I/O Interface USB Compliant USB V1.2 Overair Baud rate 320kBit/s, Beeper output 10 PIO, 2 AIO, asynchronous and synchronous serial Dimension 31 x 14.5 mm Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected]

Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ____________________________ Name: Dr. Juergen Kienhoefer Title: CEO Date: May 9, 2007

Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: [email protected] Santa Cruz, May 9, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: SQCAB3C2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Theory of operation 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____________________________ Name: Dr. Juergen Kienhoefer Title: CEO Date: May 9, 2007

Helen Zhao Subject: FW: FW: Wireless Cables Inc., FCC ID: SQCAB3C2, Assessment NO.: AN07T6882, Notice#1 6/15/2007 From: vicky.liu [mailto:[email protected]] Sent: Thursday, June 14, 2007 6:43 PM To: Helen Zhao Cc: [email protected] Subject: Re:FW: Wireless Cables Inc., FCC ID: SQCAB3C2, Assessment NO.: AN07T6882, Notice#1 Dear Helen: Thank you for your reply and my answer is as belowing. Vicky -----Original Message----- Sent: Monday, June 11, 2007 5:54 PM Subject: Wireless Cables Inc., FCC ID: SQCAB3C2, Assessment NO.: AN07T6882, Notice#1 Question #1: Please submit a clearer copy of schematic diagram and user manual(page 4-7). If possible, please resubmit a clearer modular approval letter as well. Ans: Please find attachment which is the circuit diagram and User Manual. But the modual approval letter is only this form. Question #2: The label and location only shows the label that will be affixed on the host device. How about the label on the module itself, what is the location? Please resubmit ID label format. Ans:Please find attachment which is the label drawing and location. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Compliance Certification Services Inc. Report No.70521205 Page 1 of 2 Compliance Certification Services Inc. Report No.70521205 Page 2 of 2

Company : Wireless Cables Inc. Model : AB3C2 Product : Bluetooth Module FCC IDSQCAB3C2 Label Here

Compliance Certification Services Inc. Report No.70521205 Page 1 of 2 Compliance Certification Services Inc. Report No.70521205 Page 2 of 2

May./2004 Ver.4 TDK Corporation Page 1 of 2 CHIP MULTILAYER ANTENNA FOR 2.4 GHz W-LAN / Bluetooth SAMPLE P/N:ANT8030-2R4-01* * is center frequency variation code (A to E). [MECHANICAL DIMENSIONS] B A A) Feed Point B) NC Weight: 0.08g Tolerance:¢0.2mm [Unit:mm] [ELECTRICAL CHARACTERISTICS] Product name ANT8030 -2R4-01A ANT8030 -2R4-01B ANT8030 -2R4-01C ANT8030 -2R4-01D ANT8030 -2R4-01E Center frequency 2450 MHz2500 MHz2550 MHz2600 MHz 2650 MHz Bandwidth100 MHz PolarizationLinear Antenna Gain 0 dBi (Max) Impedance50 ohm VSWR2 (Max) Operating temperature -30+85°C Storage temperature -40+85°C Note: Please use the 0dBi = -2.15dBd to convert antenna gain expressed in dBd. [RECOMMENDED PCB PATTERN] Solder Resist Tolerance:¢0.1mm [Unit:mm] 50 ohm line GND Electrode Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed. May./2004 Ver.4 TDK Corporation Page 2 of 2 Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed. x x x Item: ANT8030-2R4-01A Standard antenna: Standard dipole (Anritsu) Tx antenna: Horn (TECOM) Note: Tested antenna has been soldered on 55x20 mm 2 PCB. -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Horizontal Polarization Vertical Polarization Vertical Polarization Vertical Polarization Horizontal Polarization Horizontal Polarization 2.4 2.4425 2.485 2.4 2.4425 2.485 2.4 2.4425 2.485 0° 90°270° 0° 90°270° 0° 90°270° [ V.S.W.R.] 1 2 3 4 5 6 7 8 9 10 11 2 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3 Frequency (GHz) V.S.W.R. Note: Tested antenna has been soldered on 55x20 mm 2 PCB.

Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 44 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Module Model: AB3C2 Trade Name: AIRcable SMD Issued to Wireless Cables Inc. 1414 Soquel Ave, Ste 212, Santa Cruz, CA 95062, USA Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................8 5. FACILITIES AND ACCREDITATIONS .....................................................................................10 5.1 FACILITIES 10 5.2 EQUIPMENT...................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................12 6.1 SETUP CONFIGURATION OF EUT....................................................................................................12 6.2 SUPPORT EQUIPMENT ............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS..........................................................................................13 7.1 PEAK POWER.................................................................................................................................13 7.2 BAND EDGES MEASUREMENT .............................................................................................16 7.3 FREQUENCY SEPARATION ....................................................................................................21 7.4 NUMBER OF HOPPING FREQUENCY....................................................................................23 7.5 TIME OF OCCUPANCY (DWELL TIME) ................................................................................25 7.6 SPURIOUS EMISSIONS .............................................................................................................28 7.7 POWERLINE CONDUCTED EMISSIONS............................................................................................38 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................41 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................42 Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: 1414 Soquel Ave, Ste 212, Santa Cruz, CA 95062, USA Equipment Under Test: Bluetooth Module Tr a d e N a m e : AIRcable SMD Model: AB3C2 Date of Test: May 22 ~ 25, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Bluetooth Module Trade Name AIRcable SMD Model Number AB3C2 Model Discrepancy All the above models are identical except the model designation. Power Supply Powered from host device Frequency Range 2402 ~ 2480 MHz Transmit Power 2.5 dBm Modulation Technique FHSS (GFSK) Transmit Data Rate 1Mbps Modulation Technique GFSK for 1Mbps Number of Channels 79 Channels Antenna Specification Gain: 0 dBi Antenna Designation Chip Antenna Remark: 1. The sample selected for test was …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 42 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 43 Rev. 00 Powerline Conducted Emissions Setup Photos Powerline Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 70521205-RP1 FCC ID: SQCAB3C2 Date of Issue: May 25, 2007 Page 44 Rev. 00 Conducted Emission Setup Photo
