SQCBLE1KBluetooth 4.0 Low Energy Single Mode Module

Wireless Cables Inc. 2880 Zanker Rd, Suite 203, San Jose CA 95134 T 408.954.7301 ~ F 408.228.0687 [email protected] ~ www.aircable.net The AIRcable BLE Extremely Low Power Bluetooth 4.0 Low Energy Single Mode Module with the AIRcable Universal GATT Profile Powerful Characteristics for IO • Read and write 8 digital input and output • Configure notifications for digital inputs • Read and write 3 analog input and output • Configure notifications for analog input voltage • Battery monitor characteristics with notifications Serial Communication • SPI input and output characteristic • I2C input and output characteristic • 3 PWM output for servo control and other Single Module Solution • Very low hardware cost • Ultra low power consumption (up to 4 years on a 2032 coin cell) • Ideal solution for wireless sensors • Configureable RF output power: up to 8dBm max. The AIRcable BLE is a very simple and generic Wireless-to-Hardware interface that can be controlled by all Bluetooth Low Energy devices. The AIRcable BLE can be accessed and configured wirelessly via standard Bluetooth 4.0 Characteristics applications. Please visit our web site for details about writing applications for the AIRcable BLE. http://www.aircable.net/ble AIRcable, AIRtags and AIRmote are trademarks of Wireless Cables, Inc. CSR and BlueCore are trademarks of Cambridge Silicon Radio Bluetooth is a registered trademark of the Bluetooth SIG. All other company, product, and brand names are trademarks of their respective owners. AIRcable BLE C1K Datasheet Benefits of the AIRcable SMD • No programming required • Single module solution • Connects to various sensors • Very low hardware costs • Ideal solution for sensors and control • Compatible with all Bluetooth 4.0 devices • Easy software development and deployment • Universal GATT profile, based on the Automation IO standard The AIRcable BLE Actual Size 31mm x 14.5mm x 3.5mm Wireless Cables Inc. 2880 Zanker Rd, Suite 203, San Jose, CA 95134 T 408.954.7301 ~ F 408.228.0687 [email protected] ~ www.aircable.net Terminal Description 1PIO(10)I/O3.3V TTLPIO(10), used for button input, weak pull-down resistor 2LED(0)OSupplyconnected to PIO(2), used for EEPROM power control 3WAKEUPISupplyWakeup from deep sleep, connected to PIO(10) 4VBATTI/OSupply3V Coin cell, 3.3V supply or battery, positive terminal 5AIO(0)IAnalogAnalog input or output 0-1.3V 6AIO(1)IAnalogAnalog input or output 0-1.3V 7SPI_RESETI3.3V TTLHigh enables SPI interface for programming and debugging 8SPI_MISOI3.3V TTLSPI firmware programming, same as PIO(8) 9SPI_CSBI3.3V TTLSPI firmware programming, same as PIO(6) 10SPI_CLKI3.3V TTLSPI firmware programming, same as PIO(5) 11SPI_MOSIO3.3V TTLSPI firmware programming, same as PIO(7) 12CTSconnected to RTS for compatib ility 13TXO3.3V TTLUart async serial output, same as PIO(0) 14RTSshorted with CTS for compatibility 15RXI3.3V TTLUart async serial input, same as PIO(1) 16NCnot connected 17VINISupplyRegulator input, 3V – 12V 18GNDSupplyGround PIO(10) LED_CHG WAKEUP V B AT T AIO(0) AIO(1) SPI_RESET SPI_MISO (pio8) SPI_CSB (pio6) SPI_CLK (pio5) SPI_MOSI( pio12) TX (pio0) RX (pio1) 1V35 VIN GND PIO(9) GND PIO(6) PIO(8) PIO(11) PIO(7) PIO(2) PIO(3) PIO(4) PIO(5) SCL SDA Pin Functions Viewed from Component Side GNDANTGNDAIO2 14.50mm 31.00mm 1.27mm 1.2mm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 Optional Antenna Area 24.90mm 2.0mm 2.1mm 41 40 39 38 smd pad: 1mm x 0.5mm PCB Layout Wireless Cables Inc. 2880 Zanker Rd, Suite 203, San Jose, CA 95134 T 408.954.7301 ~ F 408.228.0687 [email protected] ~ www.aircable.net Terminal Description (cont.) 39GNDSupplyGround 40ANTI/OAnalogRF antenna connector 41GNDSupplyGround 42AIO(2)I/OAnaloganalog input or output 43GNDSupplyGround 19 20 21 22 23 24 25SDAI/O3.3V TTLI2C master data 26SCLO3.3V TTLI2C master clock 27PIO(5)I/O3.3V TTL general purpose input or output pin 28PIO(4)I/O3.3V TTLgeneral purpose input or output pin 29PIO(3)I/O3.3V TTLgeneral purpose input or output pin 30PIO(2)I/O3.3V TTLgeneral purpose input or output pin 31PIO(7)I/O3.3V TTLgeneral purpose input or output pin 32PIO(11)I/O3.3V TTLgeneral purpose input or output pin 33PIO(8)I/O3.3V TTLgeneral purpose input or output pin 34PIO(6)I/O3.3V TTLgeneral purpose input or output pin 35GNDSupplyGround 36PIO(9)I/O3.3V TTLgeneral purpose input or output pin RF Port Description For versions of the AIRcable BLE without antenna, only use the antenna port with a 50 Ohm trace to an external antenna. Impedance matching will be required. Pleaes contact Wireless Cables Inc. for these versions. FCC Requirements 1. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment 2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. When the module is installed inside of an end product, OEM customer will be instructed on how to apply the exterior label. Relevant to the OEM labeling requirements are present in the prod- uct’s user manual.

Wireless Cables Inc. 2880 Zanker Rd, Ste 203 San Jose, CA 95134 Phone: (408) 954-7301 Fax: (408) 228-0687 Email: [email protected] FCC Authorization Date: December 21, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely, Dr. Juergen Kienhoefer CEO Wireless Cables Inc.

Wireless Cables Inc. 2880 Zanker Rd, Ste 203 San Jose, CA 95134 Phone: (408) 954­7301 Fax: (408) 228­0687 Email: [email protected] Request for Confidentiality Date: April 4, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern Confidentiality Request regarding application for certification of FCC ID: SQCBLE1K In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Wireless Cables Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: ● Block Diagram ● Schematics ● Operation Description ● Bill Of Materials The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Dr. Juergen Kienhoefer CEO Wireless Cables Inc.

Wireless Cables Inc. 2880 Zanker Rd, Ste 203 San Jose, CA 95134 Phone: (408) 954­7301 Fax: (408) 228­0687 Email: [email protected] Modular Approval Request Date: April 4, 2012 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, This is to request a Modular Approval for the AIRcable BLE Bluetooth Low Energy Single Mode Module, bearing FCC ID: SQCBLE1K. Please review the submitted Test Report and associated exhibits showing compliance to the 8 requirements listed in DA 00-1407 for obtaining Modular Approval. Please don’t hesitate to contact me if you have any questions regarding this application. Sincerely, Dr. Juergen Kienhoefer CEO Wireless Cables Inc. Request for Single Modular Approval The radio element has its own shielding. This module uses a fully integrated radio on a single silicon chip. The radio portion as well as the baseband DSP and the main processor of this module has been shielded. The RF silicon design was completed with RF shielding on the silicon design and plastic package using a steel cap. Only the crystal and tuning capacitor are located outside the shield. The EUT has buffered data inputs. The silicon chip has an internal 1.35V regulator for radio, baseband and processor. The EUT meets the FCC antenna requirements using an integrated ceramic antenna. For the 9dBi antenna installation please refer to the professional installation document. The EUT was tested in a stand-alone configuration. The modules was fixed on a test fixture with the module fully exposed. Power was supplied through a 9-pin serial to USB interface from a laptop. There is a label showing “Contains FCC ID: SQCBLE1K” at the end product. The proposed label format is included. When the module is installed inside of an end product, OEM customer will be instructed on how to apply the exterior label. Relevant to the OEM labeling requirements are present in the product’s user manual. Highest RF conducted output power and EIRP are below the SAR low power threshold. SAR testing is not applicable.

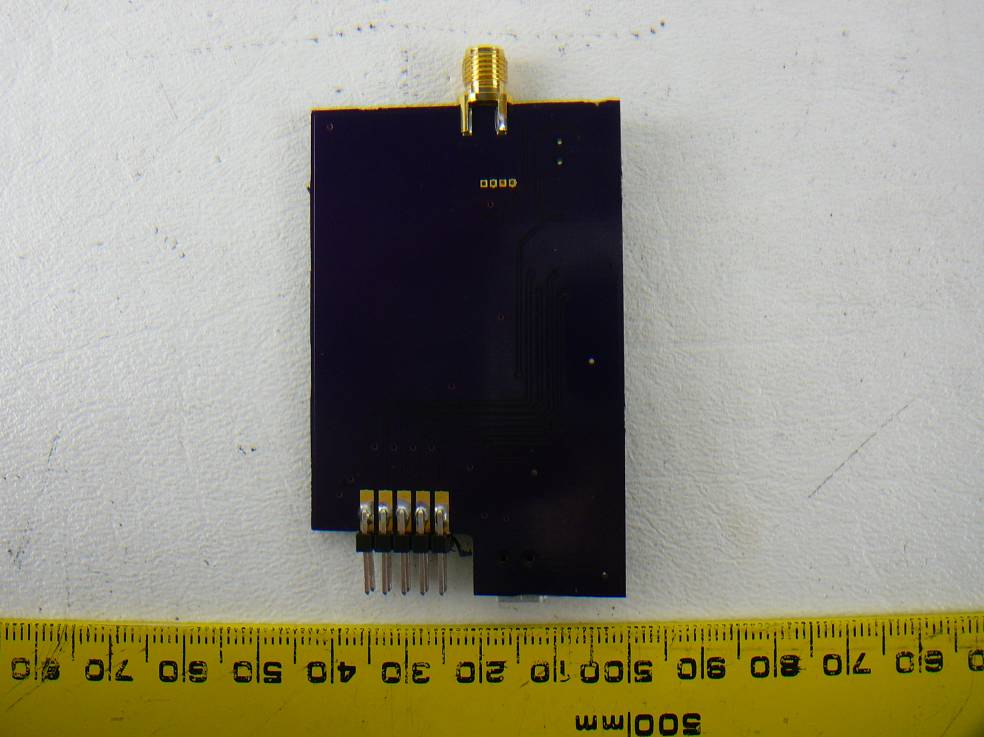

Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 44 of 46 FCC Part 15C Test Report 15 Exhibit C – EUT Photographs 15.1 EUT – Top View 15.2 EUT – Bottom View Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 45 of 46 FCC Part 15C Test Report 15.3 EUT – Module on Supporting Board Top View 15.4 EUT – Module on Supporting Board Bottom View Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 46 of 46 FCC Part 15C Test Report 15.5 EUT – Antenna view --- END OF REPORT ---

Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 40 of 46 FCC Part 15C Test Report 13 Exhibit A – FCC Equipment Labeling Requirements 13.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 13.2 FCC ID Label Contents and Location

Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 44 of 46 FCC Part 15C Test Report 15 Exhibit C – EUT Photographs 15.1 EUT – Top View 15.2 EUT – Bottom View Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 45 of 46 FCC Part 15C Test Report 15.3 EUT – Module on Supporting Board Top View 15.4 EUT – Module on Supporting Board Bottom View Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 46 of 46 FCC Part 15C Test Report 15.5 EUT – Antenna view --- END OF REPORT ---

Professional Installation Guide for Antennas Antenna Type Due to FCC restrictions the professional installer must ensure that only directional patch type antennas of gains with less or equal of 9dBi are used. For these antenna this device does not require manual power limit settings since the maximum output power of the AIRcable BLE radio module is under 10dBm. Application The omni-directional type antennas must be used directly connected to the AIRcable Host XR without a cable pig-tail. Screw on the antenna to the antenna port of the device and align the antenna vertically to give an optimum horizontal radiation pattern. Antennas of that type with gain of less or equal 9dBi (omni-directional) are certified by the FCC and allowed to use with the AIRcable BLE end products. Antenna Model : Antenna Gain Boboto TLB-2400-9B 9dBi omni-directional Schematics

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Wireless Cable, Inc. 2880 Zanker Road, Stite 203, San Jose, CA 95134, USA Report Type: Original Report Product Type: Bluetooth 4.0 Low Energy Module Prepared By: Bo Li Report Number: R1301253-247 Report Date: 2013-04-10 Reviewed By: Quinn Jiang Test En gineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: SQCBLE1K Model: AIRcable BLE Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 2 of 46 FCC Part 15C Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility ........................................................................................................................................................ 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification ......................................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................................... 7 2.3 Special Equipment .............................................................................................................................................. 7 2.4 Equipment Modifications.................................................................................................................................... 7 2.5 Local Support Equipment ................................................................................................................................... 7 2.6 EUT Internal Configuration Details .................................................................................................................... 7 2.7 Interface Ports and Cables .................................................................................................................................. 7 3 Summary of Test Results ............................................................................................................................................ 8 4 FCC §15.247 (i) & §2.1091– RF Exposure ................................................................................................................. 9 4.1 Applicable Standard ............................................................................................................................................ 9 4.2 MPE Prediction ................................................................................................................................................... 9 4.3 MPE Results ....................................................................................................................................................... 9 5 FCC §15.203 – Antenna Requirements ...................................................................................................................... 10 5.1 Applicable Standard .......................................................................................................................................... 10 5.2 Antenna List ...................................................................................................................................................... 10 5.3 Result ................................................................................................................................................................ 10 6 FCC §15.207 - AC Power Line Conducted Emissions .............................................................................................. 11 6.1 Applicable Standard .......................................................................................................................................... 11 6.2 Test Setup ......................................................................................................................................................... 11 6.3 Test Equipment List and Details ....................................................................................................................... 11 6.4 Test Setup Block Diagram ..............................................................................................…

Text truncated - open the document above for the full version.

Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 41 of 46 FCC Part 15C Test Report 14 Exhibit B – Test Setup Photographs 14.1 AC Line Conducted Emissions - Front View 14.2 AC Line Conducted Emissions Side View Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 42 of 46 FCC Part 15C Test Report 14.3 Radiated Emission below 1GHz Front View at 3 Meters 14.4 Radiated Emission below 1 GHz Rear View at 3 Meters Wireless Cable, Inc. FCC ID: SQCBLE1K Report Number: R1301253-247 Page 43 of 46 FCC Part 15C Test Report 14.5 Radiated Emission above 1 GHz Front View at 3 Meters 14.6 Radiated Emission above 1 GHz Rear View at 3 Meters
