SQG-BL620USUSB BLE Dongle - Single Mode

BL620-US USB BLE Dongle – Single Mode Central Mode BLE Module Featuring smart BASIC USB BLE Dongle - Single Mode Support Portal: http://ews-support.lairdtech.com USA: +1.800.492.2320 Europe: +44.1628.858.940 Asia: +852.2268.6567 [email protected] www.lairdtech.com/bluetooth The BL620-US single mode USB BLE dongle is derived from BL600 /BL620 and has the ability to add BLE Central Mode capabilities to any operating system supporting a USB interface and virtual COM port. The dongle provides the ability to load smartBASIC applications over the air (OTA)to a BL600 peripheral mode module. The BL600 Series modules from Laird have been enhanced with the addition of the BL620 part numbers. The BL620 uses the same module hardware as the BL600 but has a new firmware load supporting Central mode connectivity. The BL620 makes it easy to add single-mode Bluetooth Low Energy (BLE), or Bluetooth Smart™, to small, portable, power-conscious devices, including those powered by AAA or coin cell batteries. The fully approved, programmable modules feature Laird’s innovative, event-driven smart BASIC programming language, which significantly simplifies BLE integration. Based on the award winning Nordic Semiconductor nRF51822 chipset, BL620 modules provide exceptionally low power consumption with outstanding wireless range, all within a compact footprint of 19 mm x 12.5 mm. The modules incorporate all the hardware and firmware required to support development of BLE Central mode applications, including:  Radio hardware  UART, SPI, I2C, ADC, and GPIO interfaces for connecting peripherals and sensors  A complete BLE software stack  Central role functionality with GATT Client  Custom Services to suit any application’s needs  Packaged USB Dongle incorporating BL620 What makes the modules unique is smartBASIC, an event-driven programming language that enables standalone operation of the module whereby sensors can be attached via any of the interfaces without the need for an external processor. Ultimately smartBASIC accelerates initial development, creation of prototypes, and mass production by providing you with your own BLE expert within the module. The BL620-US USB Dongle is packed with BL620 to take advantage of the BL620 module, providing the ability to add BLE Central Mode capabilities to any operating system supporting a USB interface and virtual COM port. The control and configuration is via a standard virtual COM port and smartBASIC. The dongle provides the ability to load smartBASIC applications over the air (OTA)to a BL600 peripheral mode module. In addition to carrying FCC modular, IC and CE approvals, BL620 –US USB dongle is fully qualified as a Bluetooth End Products, enabling designers to develop with the BL620 central mode firmware. The details documents are subject to change. Download the product specification from www.lairdtech.com/bluetooth. BL620-US USB BLE Dongle – Single Mode Central Mode BLE Module Featuring smart BASIC CATEGORIES FEATURE IMPLEMENTATION Wireless Specification Bluetooth® V4.0 – Single-Mode – Central mode Frequency 2.402 - 2.480 GHz Max Transmit Power 4dBm Receive Sensitivity -91dBm (typical) Whisper Mode Down to -55dBm (Transmit) Link Budget 95 dB (@ 1 Mbps) Raw Data Rates 1 Mbps (over the air) Host Interfaces Total 28 lines – multi function UART TX, RX, CTS, RTS DTR, DSR, DCD, RI can be implemented in smartBASIC Default 9600, N, ,8, 1 From 1,200 to 115,200bps GPIO Up to 28 lines SPI 3 lines I2C 2 lines ADC 6 lines (plus ADC reference) Services Client and Server Capability Control Protocols Any that can be implemented using smartBASIC Encryption AES 128 bit using CCM encryption Supply Voltage Supply 5V Power Consumption Current ‘System Idle’ – 3.5uA ‘Transmit’ – 10.5mA @ 0dBm Physical Dimensions 19mm x 12.5mm x 3mm Environmental Operating Temperature -40° to +40° C (contact Laird for any query) Storage Temperature -40°C to +85°C Miscellaneous Lead Free Lead-free and RoHS compliant Warranty 1 Year Development Tools Development Kit Development board and free Software Tools ** Approvals Bluetooth® End Product Listing (EPL) FCC / IC / CE All BL620 Series Ordering Information BL620-SA-0x Single Mode BLE Module featuring smartBASIC (internal antenna) BL620-SC-0x Single Mode BLE Module featuring smartBASIC (IPEX MHF4 antenna connector) BL620-ST-0x Single Mode BLE Module featuring smartBASIC (trace pin) BL620-US-0x Packaged BL620 USB Dongle DVK-BL600-SA / ST / SC- 0x Development Kit for each BL600 series module above *** Use standard DVK-BL600 and upgrade the firmware BL620-US USB BLE Dongle – Single Mode Central Mode BLE Module Featuring smart BASIC GETTING STARTED Quick Start Guide v1.0 INTRODUCTION The goal of this document is to explain how to install the BL620-US dongle for use on your PC/Mac. REQUIREMENTS The following equipment and utilities are required:  BL620-US Dongle  Windows PC/Mac  UwTerminal (Windows) The BL620-US dongle has a Segger J-Link chip on board so when you connect the dongle to your computer it will search for the relevant driver which can be obtained from http://www.segger.com/jlink-software.html . INSTALLATION (WINDOWS) 1. Connect the dongle to your PC 2. With the J-Link driver installed, wait until Windows finishes installing device driver software. 3. Check that the device is listed in the Device Manager. See Figure 1 . 4. Open UwTerminal and type “at” and return to check you can communicate with the dongle. Note: When using the BL620-US dongle, in UwTerminal the CTS pin will always be deasserted INSTALLATION (MAC) 1. Connect the dongle to your Mac 2. Open Terminal and type “ls /dev/cu.*” to get a list of the serial devices connected. Your dongle will be something similar to cu.usbmodem####. 3. Type “screen /dev/cu.usbmodem####” replacing “####” with what was returned by the previous command. You can now communicate with the dongle using AT commands. See Figure 2 . Note: In the screen window, use ctrl + a to see a help screen with a list of…

Text truncated - open the document above for the full version.

Date: 2014/4/18 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SQG-BL620US Product name: USB BLE Dongle - Single Mode To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model BL620-US to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 913-981-5712

Date: April 18, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: SQG-BL620US To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2014/10/18. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 913-981-5712

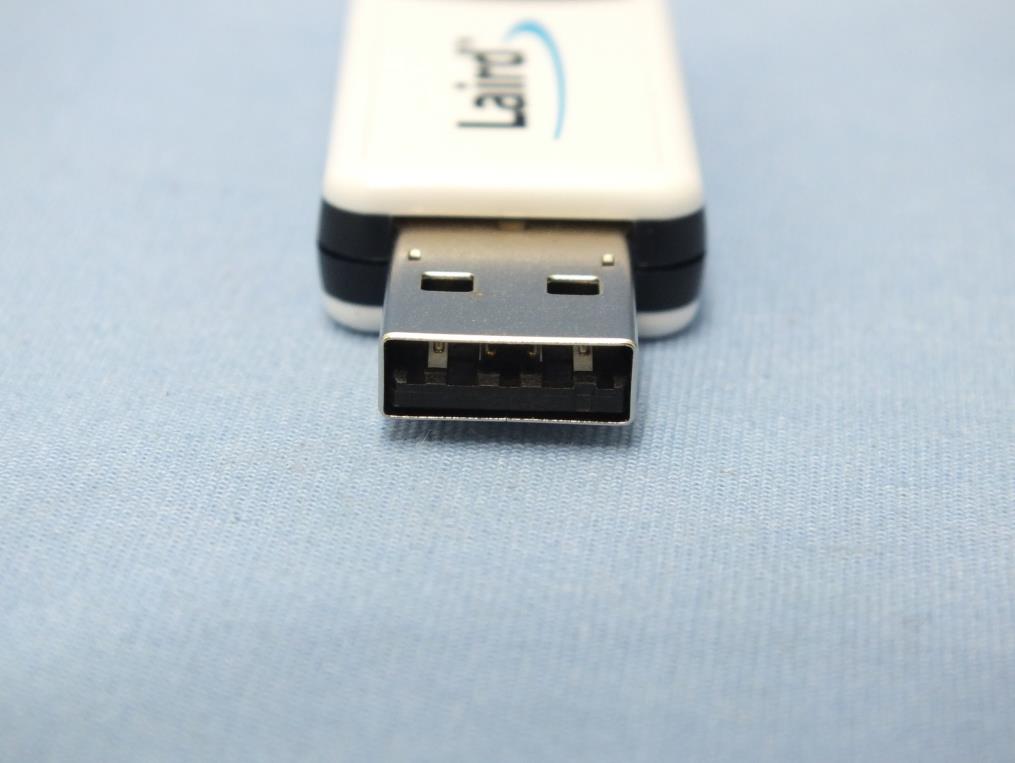

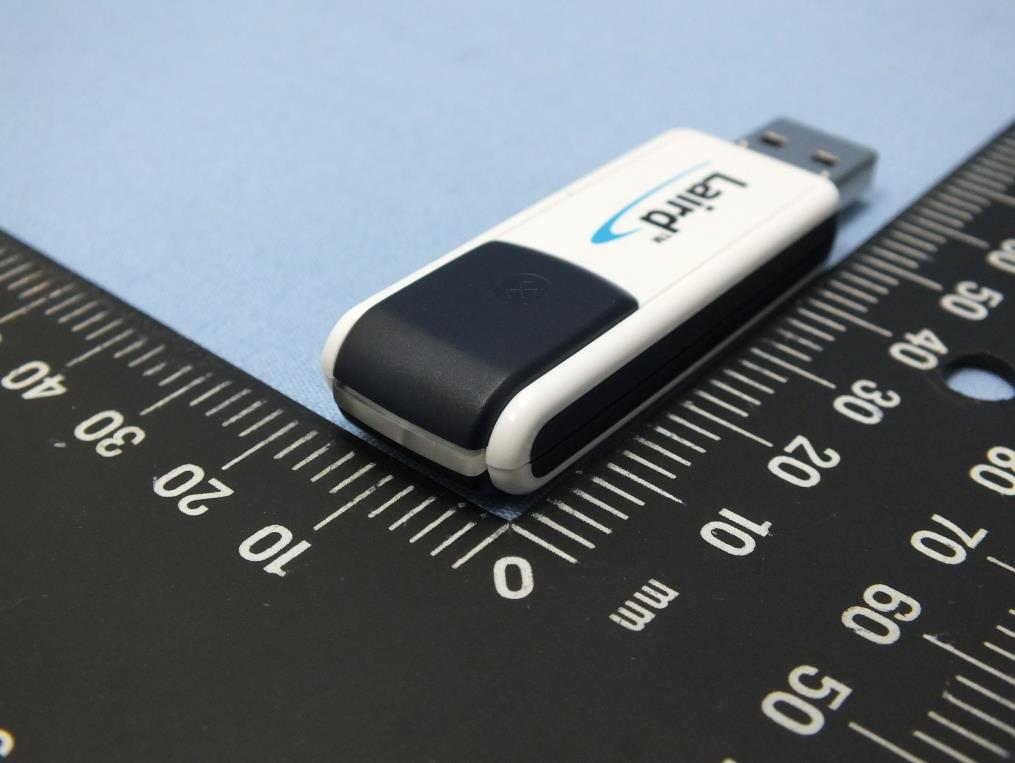

Project No.: EP440201 Page No. : 1 of 7 Photographs of EUT Project No.: EP440201 Page No. : 2 of 7

Label Location

Project No.: EP440201 Page No. : 3 of 7 Project No.: EP440201 Page No. : 4 of 7 Project No.: EP440201 Page No. : 5 of 7 Project No.: EP440201 Page No. : 6 of 7 Project No.: EP440201 Page No. : 7 of 7

Report No.: FA440201 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : SQG-BL620US Equipment : USB BLE Dongle - Single Mode Model No. : BL620-US Brand Name : Laird Technologies Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Standard : 47 CFR FCC Part 2.1093 Received Date : Apr. 02, 2014 Tested Date : Apr. 07 ~ Apr. 09, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA440201 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES .................................................. 4 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 4 1.2 EVALUATION RESULTS ....................................................................................................................... 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA440201 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA440201 Rev. 01 Initial issue Apr. 25, 2014 Report No.: FA440201 Page : 4 of 6 Report Version: Rev. 01 1 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA440201 Page : 5 of 6 Report Version: Rev. 01 1.2 EVALUATION RESULTS Frequency (MHz) Maximum Conducted Average Power (dBm) Maximum Conducted Average Power (mW) Antenna Gain (dBi) 2480 ( BT LE ) 3.97 2.50 0 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =2.50 / 5 * √2.48 = 0.787 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required. Report No.: FA440201 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-3-271-8666 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR440201 Page : 1 of 33 Report Version: Rev. 01 FCC Test Report FCC ID : SQG-BL620US Equipment : USB BLE Dongle - Single Mode Model No. : BL620-US Brand Name : Laird Technologies Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 02, 2014 Tested Date : Apr. 07 ~ Apr. 09, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR440201 Page : 2 of 33 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 AC Power Line Conducted Emissions ................................................................................................. 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Restricted Frequency Bands ........................................................................................... 21 3.6 Emissions in non-restricted Frequency Bands ..................................................................................... 31 4 TEST LABORATORY INFORMATION ............................................................................................... 33 Report No.: FR440201 Page : 3 of 33 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR440201 Rev. 01 Initial issue Apr. 25, 2014 Report No.: FR440201 Page : 4 of 33 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.151MHz 42.21 (Margin -13.75dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 138.64MHz 37.18 (Margin -6.32dB) - QP Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 4.08 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR440201 Page : 5 of 33 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 BT LE 2402-2480 0-39 [40] 1 Mbps Note 1: Bluetooth BR uses a GFSK (1Mbps). 1.1.3 Antenna Details Ant. No. Brand Type Gain (dBi) Connector Model 1 ACX Chip 0 N/A AT5020-E3R0HBANT/LF 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type 5Vdc from host 1.1.5 Accessories N/A 1.1.6 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 2 2408 11 2428 21 2448 31 2468 3 2410 12 2430 22 2450 32 2470 4 2412 13 2432 23 2452 33 2472 5 2414 14 2434 24 2454 34 2474 6 2416 15 2436 25 2456 35 2476 7 2418 16 2438 26 2458 36 2478 8 2420 17 2440 27 2460 39 2480 Report No.: FR440201 Page : 6 of 33 Report Version: Rev. 01 1.1.7 Test Tool and Duty Cycle Test tool nRFgo Studio, ver. 1.16.1.3119 Duty cycle of test signal (%) 69.91% Duty Factor (dB) 1.55 1.1.8 Power Setting Modulation Mode Test Frequency (MHz) 2402 2440 2480 GFSK/1Mbps 4 4 4 Report No.: FR440201 Page : 7 of 33 Report Version: Rev. 01 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model S/N FCC ID Length (m) 1 Notebook DELL E6430 --- --- USB, 1.5m shielded w/o core 1.3 Test Setup Chart Test Setup Diagram Report No.: FR440201 Page : 8 of 33 Report Version: Rev. 01 1.4 Test Equipment List and Calibration Data Test Item Conducted Emission Test Site …

Text truncated - open the document above for the full version.

Report No.: FR440201 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR440201 Page: : 2 of 4 Report Version: Rev. 01 Report No.: FR440201 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Test Report No.: FR440201 Page: : 4 of 4 Report Version: Rev. 01
