SQG-IGUPCAT1Sentrius IG60 Category-1 LTE Module

https://www.lairdconnect.com/ 1 © Copyright 2019 Laird. All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852 2923 0610 IGUP-CAT1 Datasheet v1.0 Note: This module is only for use inside of the Laird Sentrius IG60 Gateway. 1 GENERAL FEATURES The following are the general features of the IGUP-CAT1:  3GPP Rel.9 Compliant Protocol Stack  Twelve bands FDD-LTE: 700, 800, 850, 900, 1700/2100 (AWS), 1800, 1900, 2100, MHz (bands 1, 2, 3, 4, 5, 8, 12 ,20, 28)  Seven bands UMTS (WCDMA/FDD): 800, 850, 900, 1700/2100 (AWS), 1800, 1900 and 2100 MHz (bands 1, 2, 4, 5, 8, 9, 19)  Quad band GSM: 850, 900, 1800, and 1900 MHz  SIM application toolkit, letter classes b, c, e with BIP and RunAT support  Secure Connection with TLS  Internet Services TCP/UDP server/client,DNS, Ping, HTTP, SMTP, FTP client  Supply voltage range: 4.8-5.25V  Dimension: 55.88 x 42 x 0.8 mm  Operating temperature: -30C to +85  RoHS compliant  USB and UART interface to Sentrius IG60 host board  M.2 connector interface (proprietary pinout – contact Laird Connectivity for details)  Software control provided by Sentrius IG60 application  External antenna required 2 REGULATORY 2.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IGUP-CAT1 Datasheet https://www.lairdconnect.com/ 2 © Copyright 2019 Laird. All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852 2923 0610 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.1.1 Integration Instructions for Host Product Manufacturers Applicable FCC Rules to Module FCC Part 22/24/27 Summarize the Specific Operational Use Conditions The module is must be installed in mobile device. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna As long as the two conditions above are met, further transmitter tests are not required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Limited Module Procedures Not applicable Trace Antenna Designs Not applicable RF Exposure Considerations 20-centimeter separation distance and co-located issue shall be met as mentioned in the Summarize the Specific Operational Use Conditions section. Product manufacturer shall provide the below text in the end-product manual: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Antennas Brand Model Antenna Type Antenna Gain Antenna Connector Remarks Laird DBA6927C1 Dipole 2.2 dBi @ 1710~1910 MHz 0.5 dBi @ 699~849 MHz U.FL For WWAN IGUP-CAT1 Datasheet https://www.lairdconnect.com/ 3 © Copyright 2019 Laird. All Rights Reserved Americas: +1-800-492-2320 Europe: +44-1628-858-940 Hong Kong: +852 2923 0610 Label and Compliance Information Product manufacturers must provide a physical or e-label with the finished product that states the following: Contains FCC ID: SQG-IGUPCAT1 Information on Test Mode…

Text truncated - open the document above for the full version.

Date: 2019/10/24 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SQG-IGUPCAT1 Product name: Sentrius IG60 Category-1 LTE Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model IGUP-CAT1 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Bill Steinike, VP of Strategic Business Development Laird Connectivity Email: [email protected] Tel: 262-421 -4970

Confidentiality Request Letter Date: 2019/10/24 Federal Communications Commission Authorization and Evaluation Division FCC ID：SQG-IGUPCAT1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Turn up Procedure 5. Bill of Materials(BOM) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Bill Steinike, VP of Strategic Business Development Laird Connectivity Email: [email protected] Tel: 262-421 -4970

Date: October 24, 2019 To whom it may concern: The device (FCC ID: SQG-IGUPCAT1 / IC: 3147A-IGUPCAT1) integrates a wireless module as below Brand FCC ID IC Gemalto QIPPLS62-W 7830A-PLS62W No hardware is modified of the module. Only operating frequency ranges are modified by software setting (LTE band 7 is disabled) and all RF parameters including output power setting is not changed. According to KDB 996369 D02 Module Q and A V01, test reports of FCC ID: QIPPLS62-W; IC: 7830A-PLS62W are submitted for this new application to represent compliance of conducted test items of FCC/IC rules. Radiated emission test are performed and test reports are submitted separately. Regards, Bill Steinike, VP of Strategic Business Development Laird Connectivity Email: [email protected] Tel: 262-421 -4970

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: SQG-IGUPCAT1 Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is PMB9920 3. The modular transmitter must have its own power supply regulation. The component number is SKY87000-13-001 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). This item is not applied to licensed module 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __________________ Date: ___31 December 2019____ Signature: ___________________________

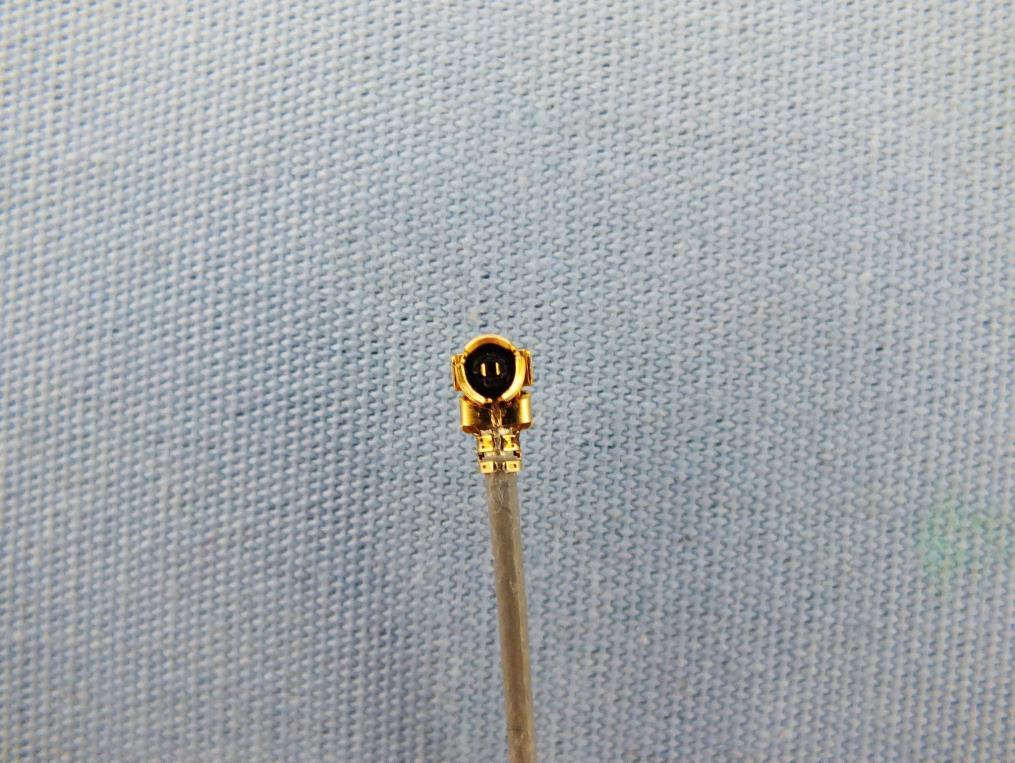

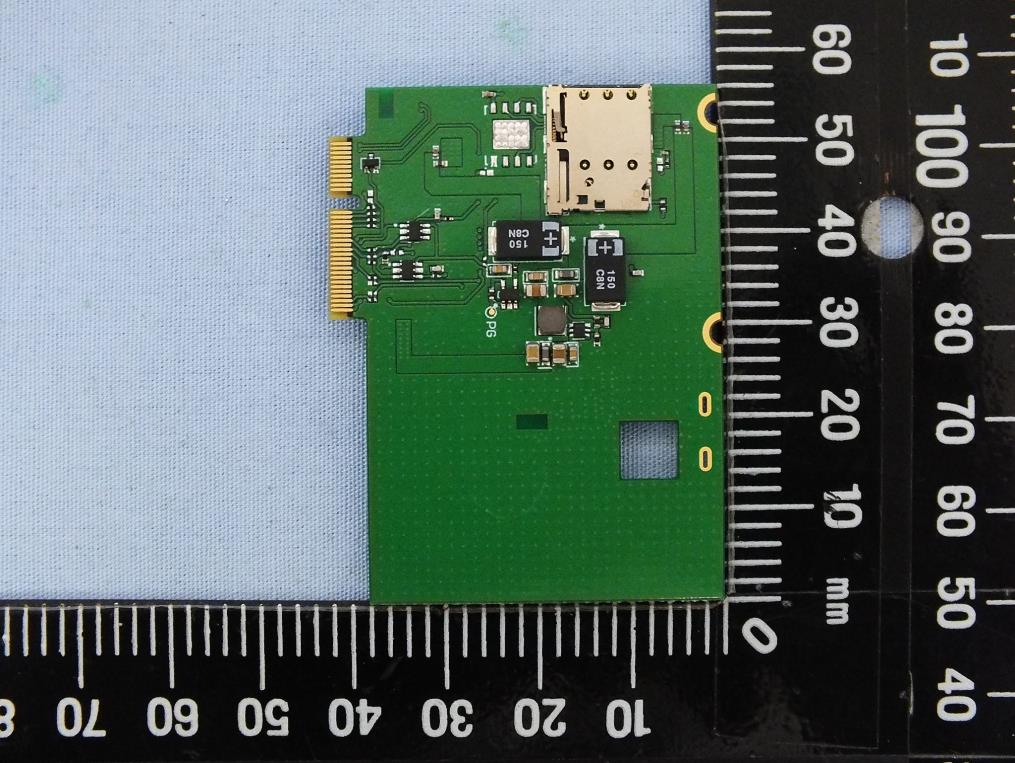

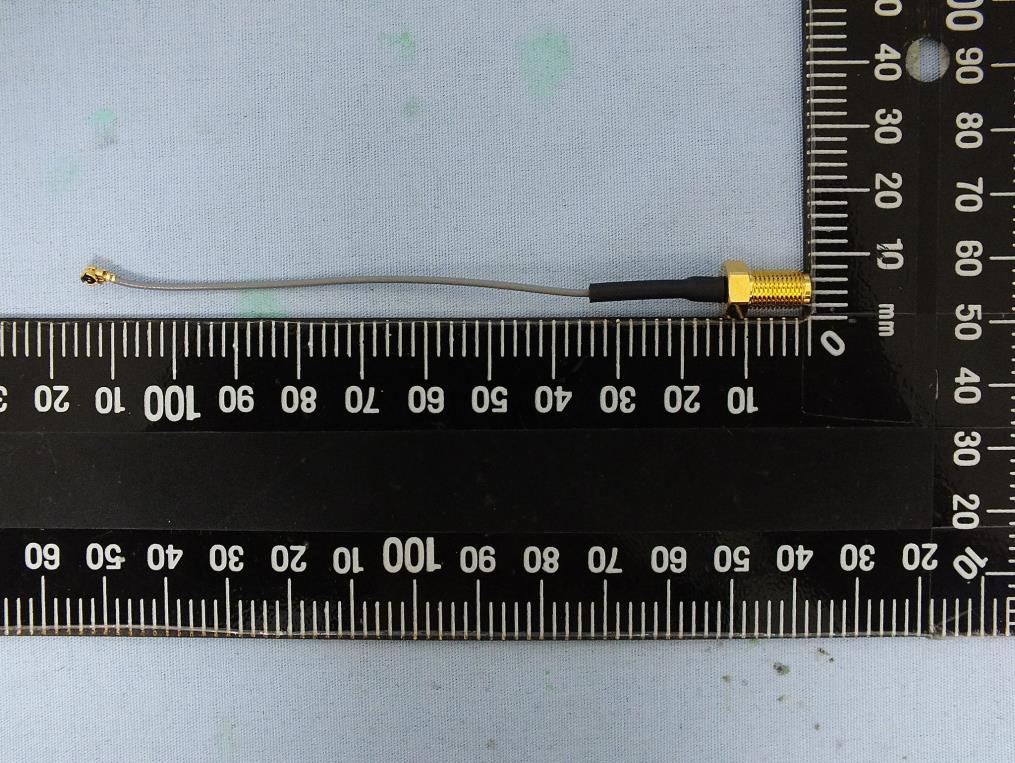

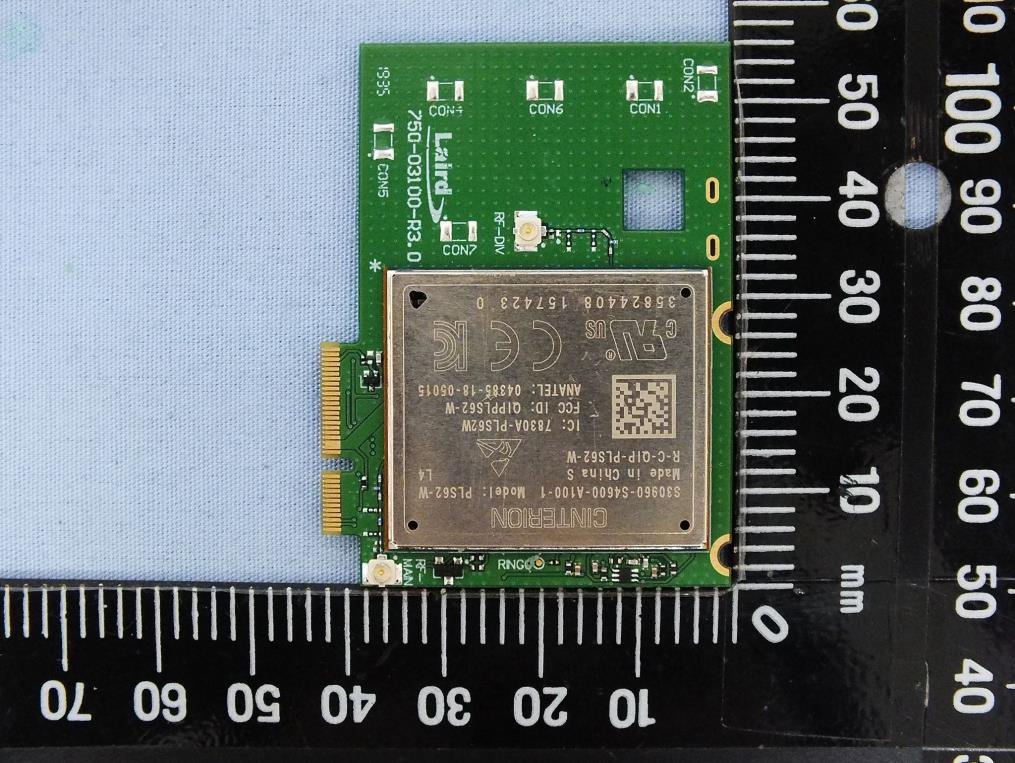

Project No.: 981901 Page No. : 1 of 9 Photographs of EUT Project No.: 981901 Page No. : 2 of 9 Project No.: 981901 Page No. : 3 of 9 Project No.: 981901 Page No. : 4 of 9 Project No.: 981901 Page No. : 5 of 9 Project No.: 981901 Page No. : 6 of 9 Project No.: 981901 Page No. : 7 of 9

Project No.: 981901 Page No. : 8 of 9 Project No.: 981901 Page No. : 9 of 9

Report No.: FA981901 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : SQG-IGUPCAT1 Equipment : Sentrius IG60 Category-1 LTE Module Model No. : IGUP-CAT1 Brand Name : Laird Applicant : Laird Connectivity, Inc. Address : W66N220 Commerce Court, Cedarburg, Wisconsin 53012, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 19, 2019 Tested Date : Sep. 24 ~ Sep. 26, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA981901 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 1.6 MAXIMUM ANTENNA GAIN EVALUATION .......................................................................................... 6 2 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA981901 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA981901 Rev. 01 Initial issue Nov. 01, 2019 Report No.: FA981901 Page : 4 of 7 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA981901 Page : 5 of 7 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Band (MHz) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Pass / Fail GSM 850 25.97 0.5 20 0.088 0.549 Pass GSM 1900 22.97 2.2 20 0.065 1.000 Pass WCDMA 850 25 0.5 20 0.071 0.549 Pass WCDMA1700 25 2.2 20 0.104 1.000 Pass WCDMA 1900 25 2.2 20 0.104 1.000 Pass LTE Band 2 25 2.2 20 0.104 1.000 Pass LTE Band 4 25 2.2 20 0.104 1.000 Pass LTE Band 5 25 0.5 20 0.071 0.549 Pass LTE Band 12 25 0.5 20 0.071 0.466 Pass Rated power refers to test report of FCC ID: QIPPLS62-W. Test report no.: I17D00184-MPE01 Report No.: FA981901 Page : 6 of 7 Report Version: Rev. 01 1.6 MAXIMUM ANTENNA GAIN EVALUATION Frequency Range (MHz) Rated Power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP,W) GSM 850 25.97 8.44 20 0.549 14.63 7 WCDMA 850 25 9.41 20 0.549 15.6 7 LTE Band 5 25 9.41 20 0.549 15.6 7 LTE Band 12 25 8.7 20 0.466 11.92 3 Note: In order to comply with both Maximum Permissible Exposure and ERP limit, the maximum antenna gain shall not be greater than boldface values in each mode. Frequency Range (MHz) Rated Power (dBm) Max Gain to comply with MPE Max Gain to comply with EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (EIRP,W) GSM 1900 22.97 14.04 20 1 10.04 2 WCDMA1700 25 12.01 20 1 5 1 WCDMA 1900 25 12.01 20 1 8.01 2 LTE Band 2 25 12.01 20 1 8.01 2 LTE Band 4 25 12.01 20 1 5 1 Note: In order to comply with both Maximum Permissible Exposure and EIRP limit, the maximum antenna gain shall not be greater than boldface values in each mode. Report No.: FA981901 Page : 7 of 7 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structu…

Text truncated - open the document above for the full version.

Report No.: FG981901P22 Page : 1 of 27 Report Version: Rev. 01 FCC Test Report FCC ID : SQG-IGUPCAT1 Equipment : Sentrius IG60 Category-1 LTE Module Model No. : IGUP-CAT1 Brand Name : Laird Applicant : Laird Connectivity, Inc. Address : W66N220 Commerce Court, Cedarburg, Wisconsin 53012, USA Standard : 47 CFR FCC Part 22 Subpart H Received Date : Aug. 19, 2019 Tested Date : Sep. 24, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FG981901P22 Page : 2 of 27 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 8 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 8 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition and Location Information ......................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TEST RESULTS................................................................................................................................... 11 3.1 Effective Radiated Power ..................................................................................................................... 11 3.2 Radiated Emissions .............................................................................................................................. 16 4 TEST LABORATORY INFORMATION ............................................................................................... 27 Report No.: FG981901P22 Page : 3 of 27 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FG981901P22 Rev. 01 Initial issue Nov. 01, 2019 Report No.: FG981901P22 Page : 4 of 27 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 22.913(a)(5) Effective Radiated Power Power[dBm]: 32.06 dBm Pass 2.1053 / 22.917(a) Radiated Emissions Meet the requirement of limit Pass 2.1051 / 22.917(a) Conducted Emissions Note Pass 2.1051 / 22.917(a) Band Edge Note Pass 2.1049 / 22.917(a) Occupied Bandwidth Note Pass - Peak to Average Ratio Note Pass 2.1055 / 22.355 Frequency Stability Note Pass Note: Refers to test report of FCC ID: QIPPLS62-W. Test report no.: I17D00184-SRD05 / I17D00184-SRD06 Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FG981901P22 Page : 5 of 27 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency GSM850 WCDMA BAND V LTE Band 5 Modulation GPRS/EDGE: GMSK/8PSK WCDMA/HSDPA/HSUPA/HSPA+: BPSK LTE: QPSK/16QAM 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) Remark 1 Dipole SMA_MALE 0.5 -- 1.1.3 EUT Operational Condition Supply Voltage Voltage Range: 4.75 VDC-5.25 VDC Report No.: FG981901P22 Page : 6 of 27 Report Version: Rev. 01 1.1.4 Operating Channel List GPRS & EDGE Channel Frequency (MHz) Low 128 824.2 Middle 189 836.4 High 251 848.8 WCDMA BAND V Channel Location Channel Frequency (MHz) Low 4132 826.4 Middle 4183 836.6 High 4233 846.6 LTE Band 5 Channel Bandwidths (MHz) Channel Frequency (MHz) 1.4 20407 824.7 1.4 20525 836.5 1.4 20643 848.3 3 20415 825.5 3 20525 836.5 3 20635 847.5 5 20425 826.5 5 20525 836.5 5 20625 846.5 10 20450 829.0 10 20525 836.5 10 20600 844.0 Report No.: FG981901P22 Page : 7 of 27 Report Version: Rev. 01 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model S/N Remarks 1 Adapter Samsung ETA-U90JWA --- --- 2 Fixture --- --- --- Provided by applicant. 1.3 Test Setup Chart Test Setup Diagram Report No.: FG981901P22 Page : 8 of 27 Report Version: Rev. 01 1.4 The Equipment List Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101498 Dec. 27, 2018 Dec. 26, 2019 Receiver R&S ESR3 101658 Dec. 11, 2018 Dec. 10, 2019 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-522 Jul. 12, 2019 Jul. 11, 2020 Horn An…

Text truncated - open the document above for the full version.

Report No.: FG981901P24 Page : 1 of 31 Report Version: Rev. 01 FCC Test Report FCC ID : SQG-IGUPCAT1 Equipment : Sentrius IG60 Category-1 LTE Module Model No. : IGUP-CAT1 Brand Name : Laird Applicant : Laird Connectivity, Inc. Address : W66N220 Commerce Court, Cedarburg, Wisconsin 53012, USA Standard : 47 CFR FCC Part 24 Subpart E Received Date : Aug. 19, 2019 Tested Date : Sep. 24, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FG981901P24 Page : 2 of 31 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 8 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 8 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition and Location Information ......................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TEST RESULTS................................................................................................................................... 11 3.1 Equivalent Isotropically Radiated Power .............................................................................................. 11 3.2 Radiated Emissions .............................................................................................................................. 17 4 TEST LABORATORY INFORMATION ............................................................................................... 31 Report No.: FG981901P24 Page : 3 of 31 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FG981901P24 Rev. 01 Initial issue Nov. 01, 2019 Report No.: FG981901P24 Page : 4 of 31 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 22.913(a)(5) Equivalent Isotropically Radiated Power Power[dBm] : 32.35 Pass 2.1053 / 22.917(a) Radiated Emissions Meet the requirement of limit Pass 2.1051 / 2…

Text truncated - open the document above for the full version.
