SQGBT900Bluetooth Dual Mode UART AT featuring smartBASIC

Intelligent BTv4.0 Dual-Mode Module Part # BT900-SA-0x, BT900-SC-0x HARDWARE INTEGRATION GUIDE VERSION 0.2 Americas: +1-800-492-2320 Option 2 Europe: +44-1628-858-940 Hong Kong: +852-2923-0610 www.lairdtech.com/bluetooth BT900-Sx Hardware Integration Guide Intelligent BTv4.0 Dual Mode Module Americas: +1-800-492-2320 Option 2 Europe: +44-1628-858-940 Hong Kong: +852-2923-0610 www.lairdtech.com/bluetooth 2 CONN-HIG-BT900 REVISION HISTORY Version Revision Date Change History 0.1 TBD Initial Preliminary Version 0.2 19May14 Draft version BT900-Sx Hardware Integration Guide Intelligent BTv4.0 Dual Mode Module Americas: +1-800-492-2320 Option 2 Europe: +44-1628-858-940 Hong Kong: +852-2923-0610 www.lairdtech.com/bluetooth 3 CONN-HIG-BT900 CONTENTS Revision History ..................................................................................................................... 2 Contents ................................................................................................................................ 3 1 Overview and Key Features ................................................................................................ 5 1.1 Features & Benefits ..................................................................................................................... 5 1.2 Application Areas ....................................................................................................................... 5 2 Specification ..................................................................................................................... 7 2.1 Specification Summary .............................................................................................................. 7 3 Hardware Specifications .................................................................................................... 9 3.1 Block Diagram and Pin-out ....................................................................................................... 9 3.2 Pin Definitions ............................................................................................................................ 10 3.3 Electrical Specifications ........................................................................................................... 12 3.3.1 Absolute Maximum ratings ......................................................................................... 12 3.3.2 Recommended Operating Parameters ................................................................... 13 3.3.3 nAutoRUN pin and Operating Modes ...................................................................... 15 3.3.4 OTA (Over the Air) smart BASIC application download ......................................... 15 4 Power Consumption ........................................................................................................ 17 4.1 Power Consumption ................................................................................................................. 17 4.2 Measured Peak Current Waveforms During BLE Advertising and Connection .............. 19 4.3 Peripheral block current consumption .................................................................................. 22 5 Functional Description .................................................................................................... 23 5.1 Power management (includes brown-out and power on reset) ....................................... 23 5.2 Clocks and TIMERS .................................................................................................................... 23 5.2.1 Clocks ........................................................................................................................... 23 5.2.2 TIMERS ........................................................................................................................... 23 5.3 Memory for smart BASIC Application Code ......................................................................... 24 5.4 RF ................................................................................................................................................ 24 5.5 UART Interface .......................................................................................................................... 24 5.6 SPI Bus ......................................................................................................................................... 25 5.7 I2C Interface ............................................................................................................................. 25 5.8 General Purpose I/O, ADC and Quadrature Decoder ....................................................... 27 5.8.1 GPIO .............................................................................................................................. 27 5.8.2 Quadrature Decoder .................................................................................................. 27 5.8.3 ADC ............................................................................................................................... 27 5.8.4 APWM and FREQ signal output on upto xSIO pins .................................................. 27 5.9 nRESET pin .................................................................................................................................. 28 5.10 nAutoRUN pin ............................................................................................................................ 28 BT900-Sx Hardware Integration Guide Intelligent BTv4.0 Dual Mode Module Americas: +1-800-492-2320 Option 2 Europe: +44-1628-858-940 Hong Kong: +852-2923-0610 www.lairdtech.com/bluetooth 4 CONN-HIG-BT900 5.11 smartBASIC runtime engine firmware upgrade .................................................................... 28 5.12 BT900-SA on-board chip antenna characteristics ................................................................ 28 6 Hardware Integration Suggestions ................…

Text truncated - open the document above for the full version.

Date: 2014/5/15 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SQGBT900 Product name: Bluetooth Dual Mode UART AT featuring smartBASIC To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model BT900-SA, BT900-SC to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 913-981-5712

Date: May 15, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: SQGBT900 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2014/11/14. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 913-981-5712

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: SQGBT900 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is CSR8811A08 3. The modular transmitter must have its own power supply regulation. The component number is CSR8811A08 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Antenna Connector is u.FL . And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under S ection 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___28 May 2014____ Signature: ___________________________

RF_062, Issue 03 Declaration of Identity Hereby, Name of manufacturer: Laird Technologies Address: 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA declares that this equipment: Type or model name: BT900-SA Trademark: Laird Technologies is technically identical with the following equipment, use same hardware and schematic, describe the difference as below: Model Name Product Description Difference BT900-SA Bluetooth Dual Mode UART AT featuring smartBASIC Integrated antenna onboard BT900-SC Bluetooth Dual Mode UART AT featuring smartBASIC No integrated antenna, only IPEX connector for external antenna Applicant : Laird Technologies Address : 11160 Thompson Ave. / Lenexa, Kansas / 66219 / USA Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 913-981-5712

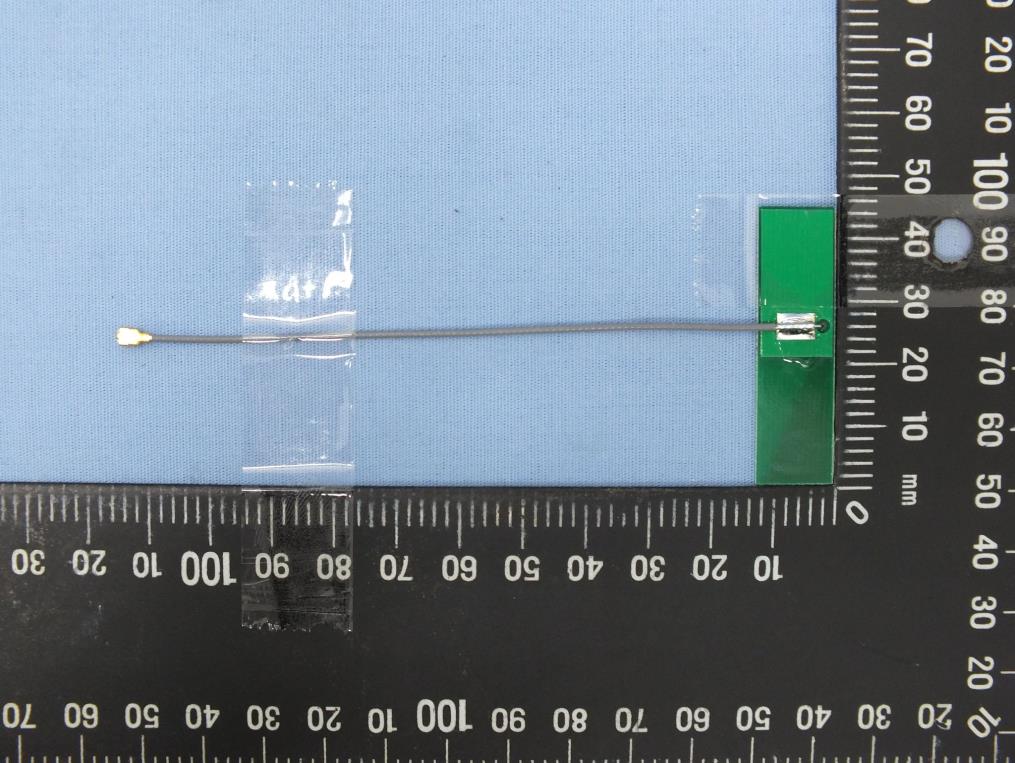

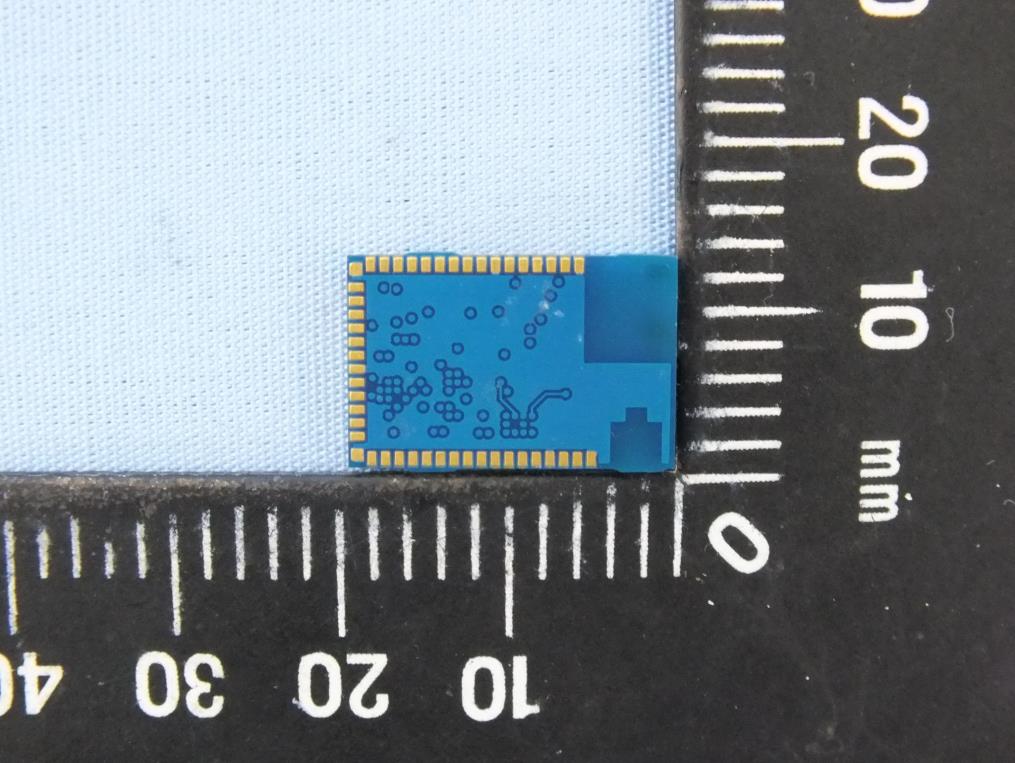

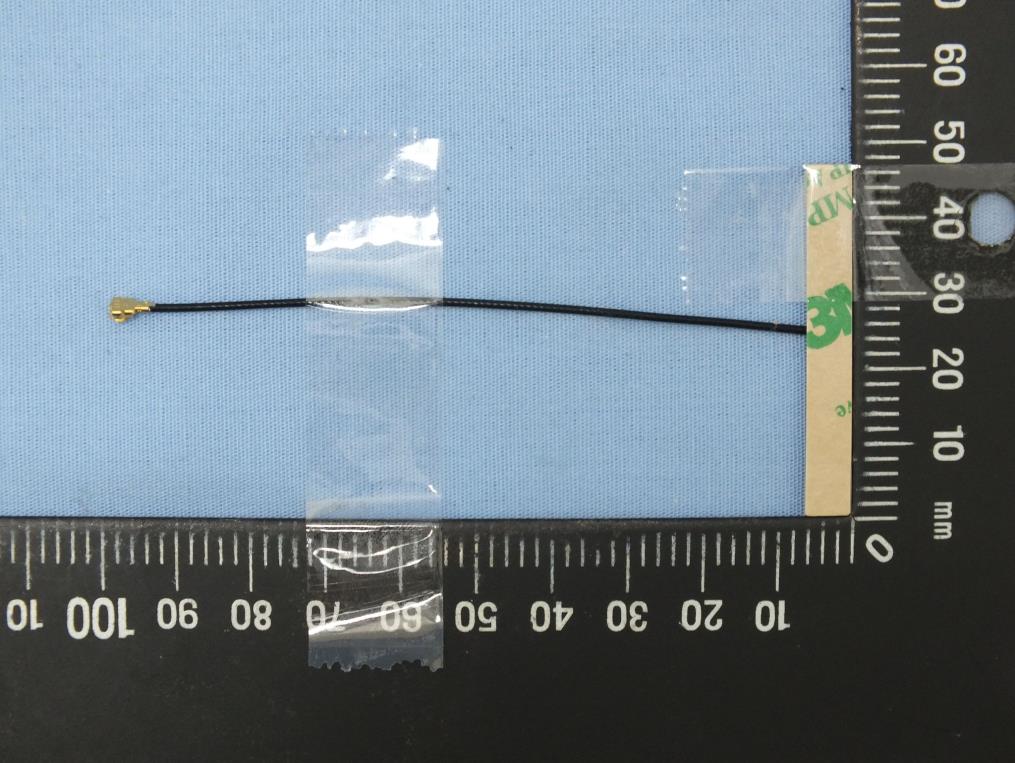

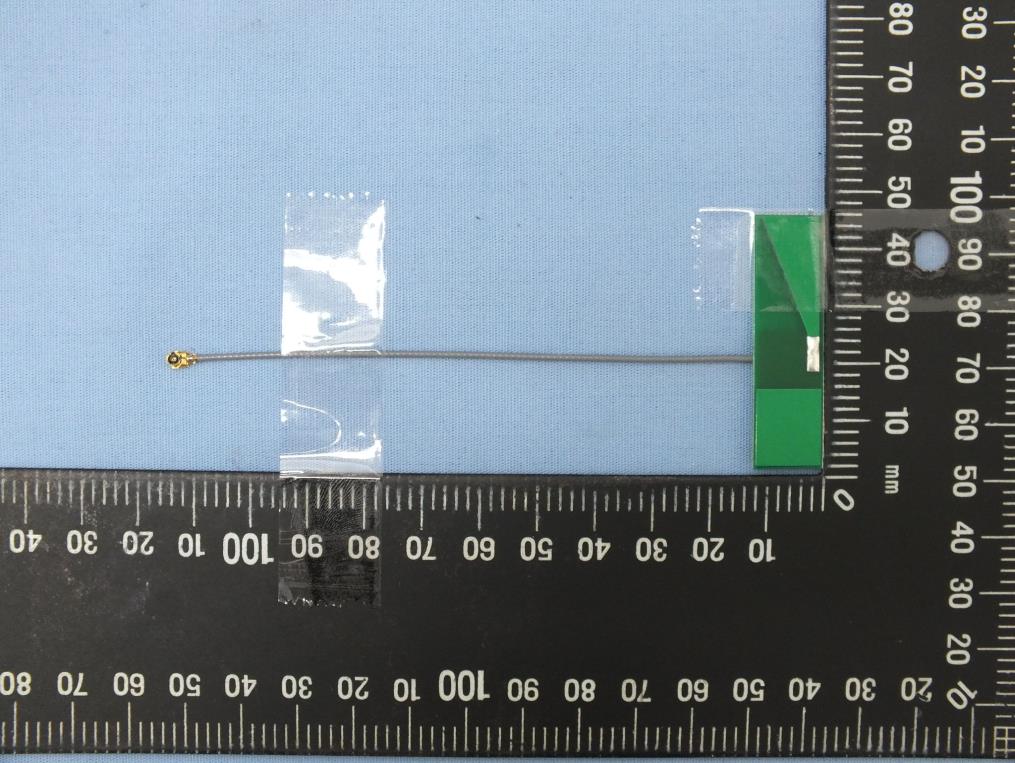

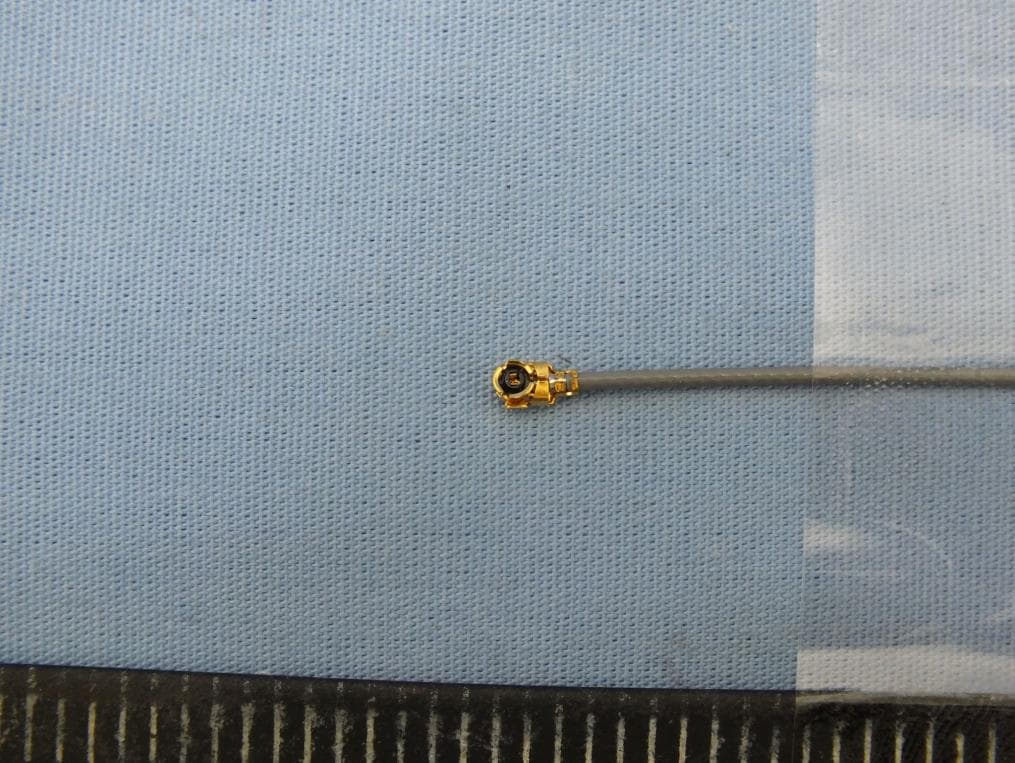

Project No.: EP442807 Page No. : 1 of 15 Photographs of EUT For model BT900-SC Project No.: EP442807 Page No. : 2 of 15 Project No.: EP442807 Page No. : 3 of 15 Project No.: EP442807 Page No. : 4 of 15 Project No.: EP442807 Page No. : 5 of 15 Project No.: EP442807 Page No. : 6 of 15 Project No.: EP442807 Page No. : 7 of 15 Project No.: EP442807 Page No. : 8 of 15 For model BT900-SA

Project No.: EP442807 Page No. : 9 of 15 For model BT900-SC Project No.: EP442807 Page No. : 10 of 15 Project No.: EP442807 Page No. : 11 of 15 Project No.: EP442807 Page No. : 12 of 15 For model BT900-SA Project No.: EP442807 Page No. : 13 of 15 Project No.: EP442807 Page No. : 14 of 15 Project No.: EP442807 Page No. : 15 of 15

Report No.: FA442807 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : SQGBT900 Equipment : Bluetooth Dual Mode UART AT featuring smartBASIC Model No. : BT900-SA, BT900-SC (please refer to 1.1.1 for more details.) Brand Name : Laird Technologies Applicant : Laird Technologies Address : 11160 Thompson Ave., Lenexa, Kansas 66219, USA Standard : 47 CFR FCC Part 2.1093 Received Date : Apr. 28, 2014 Tested Date : Apr. 29 ~ May 15, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA442807 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES .................................................. 5 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 5 2.2 EVALUATION RESULTS ....................................................................................................................... 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA442807 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA442807 Rev. 01 Initial issue May 28, 2014 Report No.: FA442807 Page : 4 of 7 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Laird Technologies BT900-SA Bluetooth Dual Mode UART AT featuring smartBASIC Integrated antenna onboard BT900-SC No integrated antenna, only IPEX connector for external antenna 1.1.2 Antenna Details Ant. No. EUT Model Type Ant. Brand / Model Gain (dBi) Connector 1 BT900-SC Dipole Nearson S181FL-L-RMM-2450S 2 UFL 2 PCB Dipole Laird EBL2449A1-15UFL 2 3 Dipole Laird MAF94190 2 4 Dipole Laird WRR2400- IP04-B(MAF94019) 1.5 5 BT900-SA Chip ACX AT3216-B2R7HAA_3216 0.5 N/A Report No.: FA442807 Page : 5 of 7 Report Version: Rev. 01 2 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA442807 Page : 6 of 7 Report Version: Rev. 01 2.2 EVALUATION RESULTS Frequency (MHz) Maximum Conducted Average Power (dBm) Maximum Conducted Average Power (mW) Antenna Gain (dBi) 2480 ( BT EDR ) 8.14 6.52 2 2480 ( BT LE ) 8.07 6.41 2 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =6.52 / 5 * √2.48 = 2.05 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required. Report No.: FA442807 Page : 7 of 7 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Li…

Text truncated - open the document above for the full version.

Report No.: FR442807AD Page : 1 of 77 Report Version: Rev. 01 FCC Test Report FCC ID : SQGBT900 Equipment : Bluetooth Dual Mode UART AT featuring smartBASIC Model No. : BT900-SA, BT900-SC (please refer to 1.1.1 for more details.) Brand Name : Laird Technologies Applicant : Laird Technologies Address : 11160 Thompson Ave., Lenexa, Kansas 66219, USA Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 28, 2014 Tested Date : Apr. 29 ~ May 15, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR442807AD Page : 2 of 77 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 17 3.3 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 61 3.4 Conducted Output Power ..................................................................................................................... 66 3.5 Number of Hopping Frequency ............................................................................................................ 68 3.6 20dB and Occupied Bandwidth ............................................................................................................ 70 3.7 Channel Separation .............................................................................................................................. 72 3.8 Number of Dwell Time .......................................................................................................................... 74 4 TEST LABORATORY INFORMATION ............................................................................................... 77 Report No.: FR442807AD Page : 3 of 77 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR442807AD Rev. 01 Initial issue May 28, 2014 Report No.: FR442807AD Page : 4 of 77 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.152MHz 57.93 (Margin -7.94dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 48.61 (Margin -5.39dB) - AV Pass 15.247(d) Band Edge Meet the requirement of limit Pass 15.247(b)(1) Conducted Output Power Power [dBm]: BR: 8.26 EDR: 7.48 Pass 15.247(a)(1)(iii) Number of Hopping Channels Meet the requirement of limit Pass 15.247(a)(1) Hopping Channel Separation Meet the requirement of limit Pass 15.247(a)(1)(iii) Dwell Time Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR442807AD Page : 5 of 77 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Laird Technologies BT900-SA Bluetooth Dual Mode UART AT featuring smartBASIC Integrated antenna onboard BT900-SC No integrated antenna, only IPEX connector for external antenna 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 BR V2.1 2402-2480 0-78 [79] 1 Mbps 2400-2483.5 EDR V2.1 2402-2480 0-78 [79] 2 Mbps 2400-2483.5 EDR V2.1 2402-2480 0-78 [79] 3 Mbps Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: Bluetooth BR uses a GFSK. Note 3: Bluetooth EDR uses a combination of π/4-DQPSK and 8DPSK. 1.1.3 Antenna Details Ant. No. EUT Model Type Ant. Brand / Model Gain (dBi) Connector 1 BT900-SC Dipole Nearson S181FL-L-RMM-2450S 2 UFL 2 PCB Dipole Laird EBL2449A1-15UFL 2 3 Dipole Laird MAF94190 2 4 Dipole Laird WRR2400- IP04-B(MAF94019) 1.5 5 BT900-SA Chip ACX AT3216-B2R7HAA_3216 0.5 N/A Note: 3 dipole antennas are used for this device, and highest …

Text truncated - open the document above for the full version.

Report No.: FR442807 Page: : 1 of 10 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test (Test Configuration 1) Report No.: FR442807 Page: : 2 of 10 Report Version: Rev. 01 Conducted Emission Test (Test Configuration 1) Report No.: FR442807 Page: : 3 of 10 Report Version: Rev. 01 Conducted Emission Test (Test Configuration 3) Report No.: FR442807 Page: : 4 of 10 Report Version: Rev. 01 Conducted Emission Test (Test Configuration 3) Report No.: FR442807 Page: : 5 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 1: Dipole antenna) Report No.: FR442807 Page: : 6 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 1: Dipole antenna) Report No.: FR442807 Page: : 7 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 2: PCB Dipole antenna) Report No.: FR442807 Page: : 8 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 2: PCB Dipole antenna) Report No.: FR442807 Page: : 9 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 3: Chip antenna) Report No.: FR442807 Page: : 10 of 10 Report Version: Rev. 01 Radiated Emission Test (Configuration 3: Chip antenna)
