SQK-7BLZ07Bluetooth Smart Module

Since this module is not sold to general end users directly, there is no user manual. For the details about this module, please refer to the specification sheet. This module should be installed in the host product according the installation manual. The following statements must be described on the user manual of host device of this module; Note to users in the United States of America Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Declaration of Conformity This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note to users in the United States of America and Canada Note to users It is strictly forbidden to use antenna except designated. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. [For mobile equipment] This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). [For portable equipment] This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate(SAR). Note to users in Canada Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Note to users in Canada This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Remarque concermant les utilisateurs au Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: SQK-7BLZ07 or Contains FCC ID: SQK-7BLZ07 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. [for IC] Contains Transmitter Module IC: 337L-7BLZ07 or Contains IC: 337L-7BLZ07 European Community Compliance Statement Note: Hereby, Fujitsu component Limited, declares that this MBH7BLZ07 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

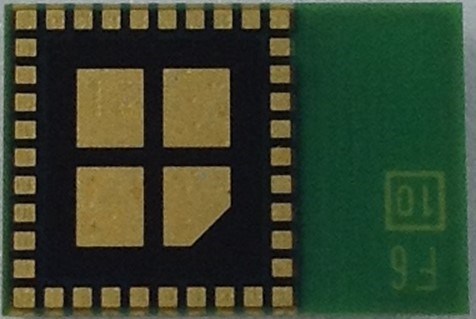

MBH7BLZ07_appearance_diagram Top Bottom Internal

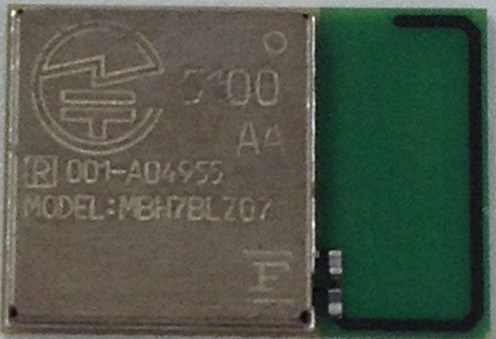

MBH7BLZ07 Authentication Indication Marking

MBH7BLZ07_appearance_diagram Top Bottom Internal

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp August 25, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: SQK-7BLZ07 To whom it may concern, We, UL Japan, Inc, hereby declare that Bluetooth Smart Module, model: MBH7BLZ07 (FCC ID: SQK- 7BLZ07) of FUJITSU COMPONENT LIMITED is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v05r02). KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the maximum average output power (Timed average power (Frame power)) was 1 mW So for this device: 1 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takayuki Shimada Engineer of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 10863245H-A-R1 Page : 2 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10863245H-A Revision Test report No. Date Page revised Contents - (Original) 10863245H-A August 25, 2015 - - 1 10863245H-A-R1 September 8, 2015 P.5 Update to FCC version. 1 10863245H-A-R1 September 8, 2015 P.20, 24 Deletion of overlapped “*1)”. 1 10863245H-A-R1 September 8, 2015 P.22 Deletion of note sentence. Test report No. : 10863245H-A-R1 Page : 3 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 8 SECTION 5: Conducted Emission ........................................................................................................ 10 SECTION 6: Radiated Spurious Emission .......................................................................................... 11 SECTION 7: Antenna Terminal Conducted Tests .............................................................................. 12 APPENDIX 1: Test data ........................................................................................................................ 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 18 Radiated Spurious Emission ............................................................................................................. 20 Conducted Spurious Emission .......................................................................................................... 26 Power Density ................................................................................................................................... 29 99%Occupied Bandwidth ................................................................................................................. 31 APPENDIX 2: Test instruments ........................................................................................................... 32 APPENDIX 3: Photographs of test setup ............................................................................................. 34 Conducted Emission ......................................................................................................................... 34 Radiated Spurious Emission ............................................................................................................. 35 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) .............................................................. 36 Test report No. : 10863245H-A-R1 Page : 4 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU COMPONENT LIMITED Address : Shinagawa Seaside Park Tower, 12-4, Higashi-shinagawa 4-chome, Shinagawa-ku, Tokyo, 140-8586, Japan Telephone Number : +81-3-3450-1639 Facsimile Number : +81-3-3474-2372 Contact Person : Takeshi Wakui SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Smart Module Model No. : MBH7BLZ07 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3 V / DC 1.8 V Receipt Date of Sample : July 29, 2015 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description Model: MBH7BLZ07 (referred to as the EUT in this report) is a Bluetooth Smart Module. General Specification Clock frequency(ies) in the system : 32 MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : GFSK Power Supply (radio part input) : DC 1.6 V Antenna type : Mono-pole Antenna Antenna Gain : -3.1dBi Test report No. : 10863245H-A-R1 Page : 5 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on September 8, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on September 8, 2015 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure SpecificationWorst marginResults Remarks Conducted Emission FCC: ANSI C63.4-2009 7. AC powerline Conducted Emission measurements FCC: Sect…

Text truncated - open the document above for the full version.

Test report No. : 10863245H-A-R1 Page : 34 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10863245H-A-R1 Page : 35 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10863245H-A-R1 Page : 36 of 36 Issued date : August 25, 2015 Revised date : September 8, 2015 FCC ID : SQK-7BLZ07 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
