SQK-FTP628WSL221AMobile Printer

Mobile Printer FTP-628WSL220 Series User's Guide FUJITSU COMPONENT LIMITED 1 I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing the FTP-628WSL220 Series Mobile Printer (hereafter referred to as “this product”). This User's Guide (hereafter referred to as “this guide”) contains precautions to use it safely and correctly. Before using this product, please read the complete this guide. In addition, please keep this guide handy for future reference. If you have any suggestions or comments about this guide, please do not hesitate to contact us. Bluetooth ® is registered trademark of Bluetooth SIG. Apple, iPod, iPhone and iPad are are trademarks of Apple Inc, registered in the U.S. and other countries. Android is trademarks of Google Inc. All other product names and service names are trademarks or registered trademarks of their respective companies. All Rights Reserved, Copyright FUJITSU COMPONENT LIMITED 2012 2 C C a a u u t t i i o o n n s s ■ Change of content The contents of this guide and this product are subject to change without prior notice. ■ Use in high safety applications This product is designed, developed and manufactured for general use, such as standard industrial, general, personal and household use. This product is not designed, developed and manufactured for “high safety applications”, such as an application which requires extremely high safety, which may have a serious effect on society, expose individuals to serious danger (death, personal injury, severe physical damage or other loss), if extremely high safety is not assured (including, without limitation, nuclear reaction control in a nuclear facility, aircraft automatic flight control, air traffic control, transport control in a mass transport system, medical equipment for life support, missile launch control of a weapons system), or an application which requires extremely high reliability (including, without limitation, submarine relay, space satellite). If you wish to use this product in an environment that requires high safety, please consult with our sales representatives. ■ Copyright This product and this guide are copyrighted works of FUJITSU COMPONENT LIMITED. This product and this manual must not be reproduced, duplicated, used, or modified, partially or in full, without permission. 3 ■ Regulatory Compliance For Customers in USA (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). 4 For Customers in CANADA (Industry Canada) This equipment complies with Industry Canada RSS210 rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. For Customers in EU (CE Marking) This product is in conformance with the requirements of European Council Directive: R&TTE Directive 1995/5/EC Applied standards: EN 60950-1 EN 300 328 EN 301 489-1 EN 301 489-17 EN 50581 ■ Export This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to the country law is prohibited. ■ Warranty We shall not be responsible for any failure caused by wrong operation or usage in the wrong environment. Moreover, we cannot be responsible for the loss, the passive damages or the claim by a third party, even if it is caused by use or failure of this product. In addition, this product’s range of failure will never exceed the amount of money paid for it. 5 S S a a f f e e t t y y C C a a u u t t i i o o n n s s ■ Explanation of Symbols The following symbols are used in this guide. Please read and understand the meaning of each symbol in this guide. If this product should malfunction, immediately stop using it, and contact your sales representative. Danger Indicates an imminent risk of causing severe personal injury or death if not used properly. This level is not described in this document. Warning Indicates possibility of causing severe personal injury or death if not used properly. Caution Indicates that a minor or some personal injury may occur or that the product itself or other user’s property may be damaged. Indicates an action that must not be performed. Detailed description is on the side of this symbol. Indicates danger, warning and caution. Detailed description is on the side of this symbol. Indicates an action that must be perform…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Mobile Printer Model Name FTP-628WSL221; FTP-628WSL222 Brand Name FUJITSU COMPONENT LIMITED Applicant FUJITSU COMPONENT LIMITED Address 1174, Oaza Suzaka, Suzaka-shi, Nagano 382-0076 Japan Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4: 2009 ICES-003 Issue 5: 2012 CISPR 22: 2008 CAN/CSA-CISPR 22-10 Report(s) NEI-FCCE-1-1312165 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331

RV-0000000 Project No.: 1312165 Page 2 of 1 6 Neutron Engineering Inc.

44mm 53mm

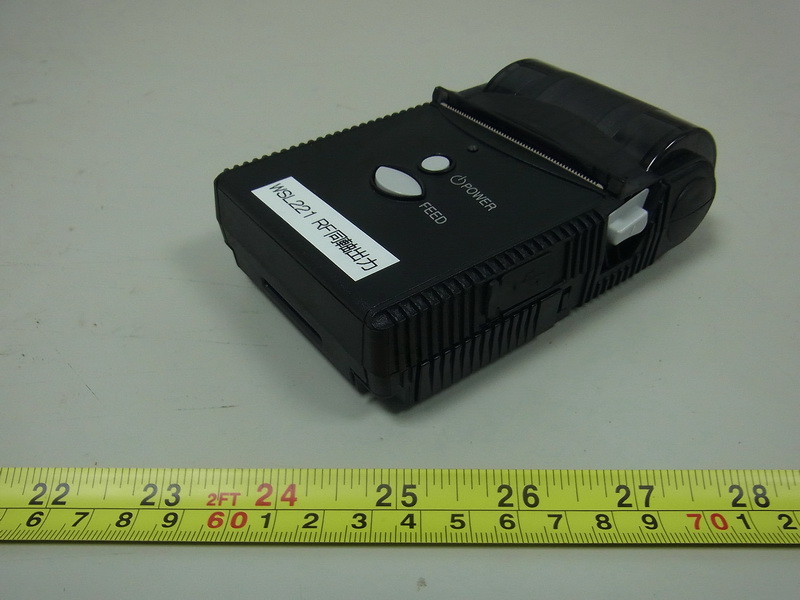

RV-0000000 Project No.: 1312165 Page 3 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 4 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 5 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 6 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 7 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 8 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 9 of 1 6 Neutron Engineering Inc. Bluetooth Module Antenna RV-0000000 Project No.: 1312165 Page 10 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 11 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 12 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 13 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 14 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 15 of 1 6 Neutron Engineering Inc. RV-0000000 Project No.: 1312165 Page 16 of 1 6 Neutron Engineering Inc.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: SQK-FTP628WSL221A Project No. : 1312165 Equipment : Mobile Printer Model : FTP-628WSL221 Applicant : FUJITSU COMPONENT LIMITED Address : 1174, Oaza Suzaka, Suzaka-shi, Nagano 382-0076 Japan According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Neutron Engineering Inc. GENERAL CONCULUSION: Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A mono-pole (Printed) N/A 1.30 Maximum measured transmitter power: Mode Output Power (dBm) Out Power (mW) Limit (mW) 1 MHz 0.9600 1.2474 10 3 MHz 0.3400 1.0814 10 According to FCC KDB447498, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The transmitter power is 1.2474 mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 1 of 104 FCC & IC Radio Test Report FCC ID: SQK-FTP628WSL221A IC: 337L-FTP628W221A This report concerns (check one) : Original Grant Class II Change Issued Date : Feb. 20, 2014 Project No. : 1312165 Equipment : Mobile Printer Model Name : FTP-628WSL221 Applicant : FUJITSU COMPONENT LIMITED Address : 1174, Oaza Suzaka, Suzaka-shi, Nagano 382-0076 Japan Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Dec. 25, 2013 Date of Test: Dec. 25, 2013 ~ Feb. 13, 2014 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 2 of 104 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 3 of 104 Table of Contents REPORT ISSUED HISTORY 6 1 CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.5 DESCRIPTION OF SUPPORT UNITS 15 4 CONDUCTED EMISSION 16 4.1 LIMIT 16 4.2 MEASUREMENT INSTRUMENTS LIST 16 4.3 TEST PROCEDURES 17 4.4 TEST SETUP LAYOUT 17 4.5 DEVIATION FROM TEST STANDARD 17 4.6 EUT OPERATING CONDITIONS 18 4.7 TEST RESULTS 19 5 ANTENNA CONDUCTED SPURIOUS EMISSION 21 5.1 LIMIT 21 5.2 MEASUREMENT INSTRUMENTS LIST 21 5.3 TEST PROCEDURES 21 5.4 TEST SETUP LAYOUT 21 5.5 DEVIATION FROM TEST STANDARD 21 5.6 EUT OPERATING CONDITIONS 21 5.7 TEST RESULTS 22 6 HOPPING CHANNEL SEPARATION 30 6.1 LIMIT 30 6.2 MEASUREMENT INSTRUMENTS LIST 30 6.3 MEASURING INSTRUMENTS SETTING 30 6.4 TEST PROCEDURES 30 6.5 TEST SETUP LAYOUT 30 6.6 DEVIATION FROM TEST STANDARD 30 6.7 EUT OPERATING CONDITIONS 30 6.8 TEST RESULTS 31 7 MAXIMUM PEAK CONDUCTED OUTPUT POWER 39 7.1 LIMIT 39 Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 4 of 104 Table of Contents 7.2 MEASUREMENT INSTRUMENTS LIST 39 7.3 TEST PROCEDURES 39 7.4 TEST SETUP LAYOUT 39 7.5 DEVIATION FROM TEST STANDARD 39 7.6 EUT OPERATING CONDITIONS 39 7.7 TEST RESULTS 40 8 RADIATED SPURIOUS EMISSION (9 KHZ TO 1 GHZ) 44 8.1 LIMIT 44 8.2 MEASUREMENT INSTRUMENTS LIST 45 8.3 MEASURING INSTRUMENTS SETTING 45 8.4 TEST PROCEDURES 46 8.5 DEVIATION FROM TEST STANDARD 46 8.6 TEST SETUP LAYOUT 46 8.7 EUT OPERATING CONDITIONS 47 8.8 TEST RESULTS 48 9 RADIATED SPURIOUS EMISSION (ABOVE 1 GHZ) 50 9.1 LIMIT 50 9.2 MEASUREMENT INSTRUMENTS LIST 51 9.3 MEASURING INSTRUMENTS SETTING 51 9.4 TEST PROCEDURES 52 9.5 DEVIATION FROM TEST STANDARD 52 9.6 TEST SETUP LAYOUT 52 9.7 EUT OPERATING CONDITIONS 53 9.8 TEST RESULTS 54 9.9 TEST RESULTS (RESTRICTED BANDS) 78 10 NUMBER OF HOPPING FREQUENCY 86 10.1 LIMIT 86 10.2 MEASUREMENT INSTRUMENTS LIST 86 10.3 MEASURING INSTRUMENTS SETTING 86 10.4 TEST PROCEDURES 86 10.5 TEST SETUP LAYOUT 86 10.6 DEVIATION FROM TEST STANDARD 86 10.7 EUT OPERATING CONDITIONS 86 10.8 TEST RESULTS 87 11 AVERAGE TIME OF OCCUPANCY 89 11.1 LIMIT 89 11.2 MEASUREMENT INSTRUMENTS LIST 89 11.3 TEST PROCEDURES 89 Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 5 of 104 Table of Contents 11.4 TEST SETUP LAYOUT 89 11.5 DEVIATION FROM TEST STANDARD 89 11.6 EUT OPERATING CONDITIONS 90 11.7 TEST RESULTS 91 12 EUT TEST PHOTO 103 Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 6 of 104 REPORT ISSUED HISTORY Revised Version No. Description Issued Date NEI-FCCP-1-1312165 Original Issue. Feb. 20, 2014 Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 7 of 104 1 CERTIFICATION E q u i p m e n t : Mobile Printer Brand Name : FUJITSU COMPONENT LIMITED Model Name : FTP-628WSL221 A p p l i c a n t : FUJITSU COMPONENT LIMITED Date of Test : Dec. 25, 2013 ~ Feb. 13, 2014 Standards : RSS-210, Issue 8, 2010 FCC Part 15, Subpart C: 2012 ANSI C63.4: 2009 The above equipment has been tested and found compliance with the requireme…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 103 of 104 12 EUT TEST PHOTO Conducted emission test photos Neutron Engineering Inc. FCC ID: SQK-FTP628WSL221A / IC: 337L-FTP628W221A RV-0000000 Report No.: NEI-FCCP-1-1312165 Page 104 of 104 Radiated spurious emission test photos
