SQK-7BLZXXBluetooth Low Energy Module

The following statements must be described on the user manual of host device of this module; Note to users in the United States of America Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Declaration of Conformity This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note to users in the United States of America and Canada Note to users It is strictly forbidden to use antenna except designated. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Note to users in Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions; 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Remarque concermant les utilisateurs au Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: SQK-7BLZXX or Contains FCC ID: SQK-7BLZXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. . [for IC] Contains Transmitter Module IC: 337L-7BLZXX or Contains IC: 337L-7BLZXX European Community Compliance Statement Note: Hereby, Fujitsu component Limited, declares that this MBH7BLZ02 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

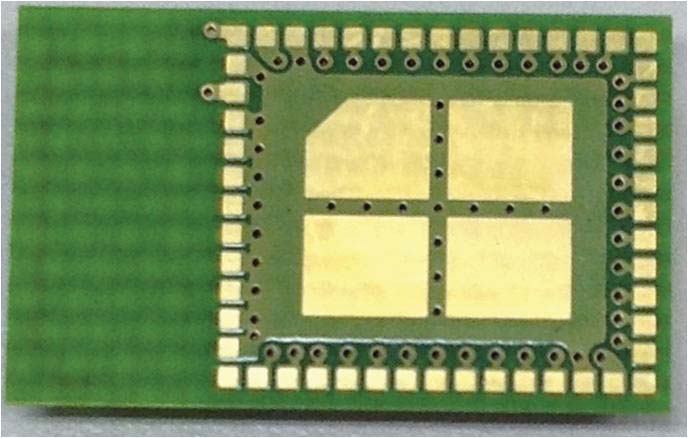

㻹㻹㻮㻴㻣㻮㻸㼆㻜㻞㼋㼍㼜㼜㼑㼍㼞㼍㼚㼏㼑㼋㼐㼕㼍㼓㼞㼍㼙 㼀㼛㼜 㻮㼛㼠㼠㼛㼙 㻵㼚㼠㼑㼞㼚㼍㼘

MBH7BLZ02 Authentication Indication

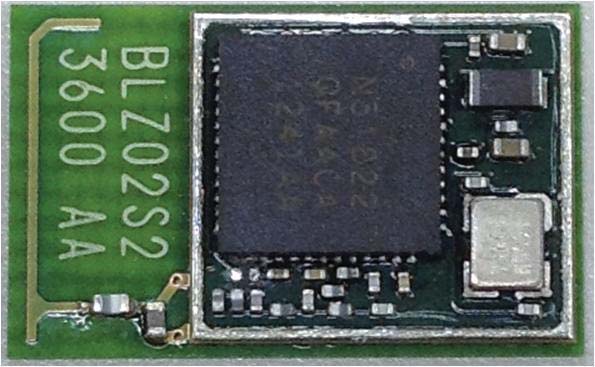

㻹㻹㻮㻴㻣㻮㻸㼆㻜㻞㼋㼍㼜㼜㼑㼍㼞㼍㼚㼏㼑㼋㼐㼕㼍㼓㼞㼍㼙 㼀㼛㼜 㻮㼛㼠㼠㼛㼙 㻵㼚㼠㼑㼞㼚㼍㼘

Applicant: FUJITSU COMPONENT LIMITED Type of Equipment : Bluetooth Low Energy Module Model No. : MBH7BLZ02 FCC ID: SQK-7BLZXX FUJITSU COMPONENT LIMITED declares that Model : MBH7BLZ02 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “MBH7BLZ02“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.99 mW (Maximum average output power) G = 0.72 Numerical Antenna gain; equal to-1.40 dBi r =20.0 cm For: MBH7BLZ02S =0.00014 mW/cm 2 No. : 10101498H RF Exposure / MPE Calculation

Test report No. : 10101498H-A-R1 Page : 2 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10101498H-A Revision Test report No. Date Page revised Contents - (Original) 10101498H-A November 20, 2013 - - 1 10101498H-A-R1 November 21, 2013 P.18-20 Correction of explanatory note for test data Test report No. : 10101498H-A-R1 Page : 3 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 22 Power Density ................................................................................................................................... 25 APPENDIX 2: Test instruments ............................................................................................................. 28 APPENDIX 3: Photographs of test setup ............................................................................................... 30 Conducted Emission ......................................................................................................................... 30 Radiated Spurious Emission ............................................................................................................. 31 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) .............................................................. 32 Test report No. : 10101498H-A-R1 Page : 4 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU COMPONENT LIMITED Address : Gotanda-Chuo Bldg.,3-5,Higashi-Gotanda 2-chome,Shinagawa-ku, Tokyo, 141-0022 Japan Telephone Number : +81-3-5449-7802 Facsimile Number : +81-3-5449-7812 Contact Person : Takeshi Wakui SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Low Energy Module Model No. : MBH7BLZ02 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.3V Receipt Date of Sample : October 31, 2013 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : Oscillator: 16MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : GFSK Power Supply (radio part input) : DC 1.8V Antenna type : Mono-pole Antenna Antenna Gain : -1.4dBi Test report No. : 10101498H-A-R1 Page : 5 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 18.4dB, 0.39263MHz, N AV 14.8dB, 0.39263MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247(issued on April 9, 2013)" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance for Performing Compliance Measu…

Text truncated - open the document above for the full version.

Test report No. : 10101498H-A-R1 Page : 30 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10101498H-A-R1 Page : 31 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10101498H-A-R1 Page : 32 of 32 Issued date : November 20, 2013 Revised date : November 21, 2013 FCC ID : SQK-7BLZXX UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
