Portable Thermal Printer FTP-628WSL User’s Manual FUJITSU COMPONENT LIMITED Preface Thank you for purchasing Fujitsu Thermal Printer FTP-628WSL. This product is a small-sized, lightweight, high-speed printer driven by battery (one Lithium-ion battery) and has IrDA (infrared) and RS-232C Bluetooth (radio transmission) communication functions. Before using, you are suggested to read this User’s Manual carefully and handle the product properly so that its functions may be utilized to the fullest extent. If you have any suggestions or comments on this Manual, please do not hesitate to let us know. *The contents of this User’s Manual may be subject to change without notice. No part of this Manual may be reproduced, transferred to other use or reprinted, without prior written permission from the Company. 02 2004.06 Contents Preface Notes on Safety 3 Precautions in the Handling of AC Adapter 6 Prohibitions/Precautions on Battery Handling  1. Precautions in the Use8 2. Printer Interface Configuration9 3. Name of Respective Parts10 4. Operation of Respective Parts12 5. Mounting of Paper Roll22 6. Selecting Power Source of AC Adapter and Battery25 7. Operating Switches25 8. Status Indication Function by LED26 9. Interface Connector Connection (RS-232C Connecting Part)28 10. Interface Setting (Dip Switch Operating Part)28 11. Function Specification29 1 List of Commands 29 2 Te s t P r i n t i n g 31 12. Hardware Specification32 13. Recording Paper (Recommended Paper)33 14. Others33 Notes on Safety Before using this product, carefully read and understand the contents of this Manual. Be sure to keep this Manual at a handy spot for easy reference during the use of this product. Do not change or repair this product yourself to avoid any unexpected failures. Products listed in this Manual are not authorized for use as critical component in applications requiring extremely high reliability such as medical devices for life support, submarine repeaters, aerospace uses, or atomic power control. For uses in such applications, please contact the sales representatives of our Company beforehand. Indication of Warning Label With the view to protecting the users and other persons from the risk of injuries and avoiding damage of properties, the matters that should be strictly observed are indicated in the following manner: “Danger” indicates an imminent risk of causing severe personal injury or death if not used properly. “Warning” indicates possibility of causing severe personal injury or death if not used properly. “Caution” indicates that a minor or some personal injury may occur or that the product itself or other user’s property may be damaged. Danger Warning Caution Warning Label Never erase or peel off the warning label. If the message on the label is unreadable due to stain or otherwise, please contact the sales representatives of the Company. Warning display Content of warning HEAD Since the print head and its support plate get a high temperature during printing, do not touch them directly. GEAR, HOOK Pay attention to fingers and hairs not to be caught in the moving part such as a gear or hook because it may cause an injury. CAUTION Please do not touch the cutter blade when you exchange the roll paper because it may cause an injury by the contact of the blade. <Precautions> The Company shall not be held responsible for any trouble caused as a consequence of using separately sold items or consumables other than those designated in this Manual. Never attempt to disassemble or repair any portion other than those indicated in this Manual. The Company shall not be held responsible for any injury caused as a consequence of improper handling or inappropriate use environment on the part of the user. Data etc. may not be recorded or stored for a long period of time or eternally. The Company shall not be held responsible for any damage or lost profit caused bythe loss of data due to malfunction, repair, inspection, etc. Please get in touch with us, if there is anything unclear with respect to the contents of this Manual. Warnings Warning level Type of danger Warning message Injury Pay attention so that your fingers, hairs, etc. may not be withdrawn into the moving parts such as gear, belt, etc. to avoid a risk of injury. When replacing the paper, be careful not to jam your fingers with the paper cover or not to touch the paper cutter. There is a risk of personal injury due clipping or contact with the cutter blade. Burn Surely turn off the printer power and check that the printer head is sufficiently cooled down before cleaning: Hot printer head may cause a burn. The printer generates heat when in operation. Accordingly, pay special consideration to the radiation of heat in the mounting design because it may cause a burn. Since the motor gets a high temperature during its operation, do not touch it directly. Since heat is not radiated immediately after the motor is stopped, touching it at this stage may cause a burn. Since the printer head and its support plate get a high temperature during printing, do not touch them directly. Since heat is not radiated immediately after the printer is stopped, touching it at this stage may cause a burn. Fire Do not use a voltage other than the specified voltage of power supply to avoid the risk of fire or electric shock. Do not put a metal or flammable substance in the inside of the aperture (for insertion or ejection of paper) to avoid fire or electric shock. Do not place the product at a highly humid or dusty place, poorly ventilate…

Text truncated - open the document above for the full version.

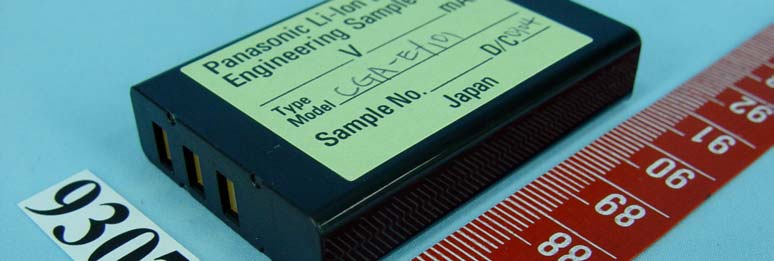

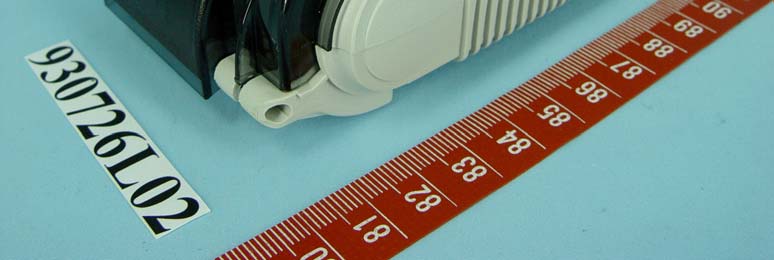

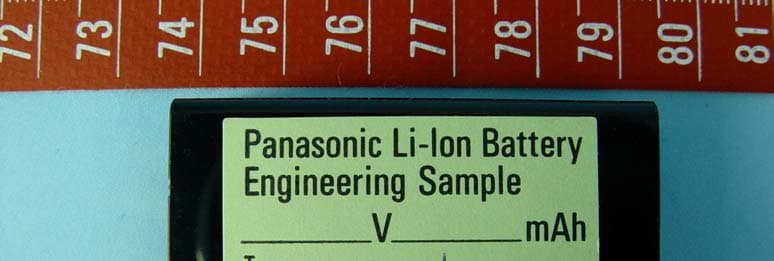

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID Label Location

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: SQK-FTP-628WSL110 Report No.RF930726L02 Operational Description The transmitter of the EUT (Bluetooth Printer) is powered by host equipment. The antenna is PIFA antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

FCC ID: SQK-FTP-628WSL110 Report No: SA930726L02 1 RF EXPOSURE REPORT REPORT NO.: SA930726L02 MODEL NO.: FTP-628WSL110 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Fujitsu Component Limited ADDRESS: 1174, Suzaka, Oaza, Suzaka-shi, Nagano 382-0076 Japan ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: SQK-FTP-628WSL110 Report No: SA930726L02 2 RF Exposure Measurement (Portable Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: SQK-FTP-628WSL110 Report No: SA930726L02 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment that is classified as Portable Device. FCC ID: SQK-FTP-628WSL110 Report No: SA930726L02 4 6 Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power1.2331.328 EIRP Power1.7331.490 *Note: The antenna is PIFA antenna with 0.5dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.490mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L021Issued: Oct. 05, 2004 FCC TEST REPORT REPORT NO.: RF930726L02 MODEL NO.: FTP-628WSL110 RECEIVED: Jul. 26, 2004 TESTED: Sep. 20 ~ Sep. 30, 2004 APPLICANT: Fujitsu Component Limited ADDRESS: 1174, Suzaka, Oaza, Suzaka-shi, Nagano 382- 0076, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L022Issued: Oct. 05, 2004 TABLE OF CONTENTS 1CERTIFICATION..........................................................................................................4 2SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY...............................................................................6 3GENERAL INFORMATION..........................................................................................7 3.1GENERAL DESCRIPTION OF EUT............................................................................7 3.2DESCRIPTION OF TEST MODES..............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................8 3.4DESCRIPTION OF SUPPORT UNITS........................................................................9 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................................9 4TEST PROCEDURES AND RESULTS.....................................................................10 4.1CONDUCTED EMISSION MEASUREMENT............................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS..............................................................................................10 4.1.3TEST PROCEDURES...............................................................................................11 4.1.4DEVIATION FROM TEST STANDARD.....................................................................11 4.1.5TEST SETUP............................................................................................................12 4.1.6EUT OPERATING CONDITIONS.............................................................................12 4.1.7TEST RESULTS........................................................................................................13 4.2NUMBER OF HOPPING FREQUENCY USED.........................................................19 4.2.1LIMIT OF HOPPING FREQUENCY USED..............................................................19 4.2.2TEST INSTRUMENTS..............................................................................................19 4.2.3TEST PROCEDURES..............................................................................................20 4.2.4DEVIATION FROM TEST STANDARD....................................................................20 4.2.5TEST SETUP............................................................................................................21 4.2.6TEST RESULTS........................................................................................................21 4.3DWELL TIME ON EACH CHANNEL..........................................................................24 4.3.1LIMIT OF DWELL TIME USED.................................................................................24 4.3.2TEST INSTRUMENTS..............................................................................................24 4.3.3TEST PROCEDURES..............................................................................................25 4.3.4DEVIATION FROM TEST STANDARD....................................................................25 4.3.5TEST SETUP............................................................................................................25 4.3.6TEST RESULTS........................................................................................................26 4.4CHANNEL BANDWIDTH...........................................................................................33 4.4.1LIMITS OF CHANNEL BANDWIDTH.......................................................................33 4.4.2TEST INSTRUMENTS..............................................................................................33 4.4.3TEST PROCEDURE.................................................................................................34 4.4.4DEVIATION FROM TEST STANDARD....................................................................34 4.4.5TEST SETUP............................................................................................................34 4.4.6EUT OPERATING CONDITION................................................................................34 4.4.7TEST RESULTS........................................................................................................35 4.5HOPPING CHANNEL SEPARATION.........................................................................39 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION.......................................................39 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L023Issued: Oct. 05, 2004 4.5.2TEST INSTRUMENTS..............................................................................................39 4.5.3TEST PROCEDURES........................................................................................…

Text truncated - open the document above for the full version.

FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0233Issued: Oct. 05, 2004 4.4 CHANNEL BANDWIDTH 4.4.1 LIMITS OF CHANNEL BANDWIDTH For frequency hopping system operating in the 2400-2483.5 MHz and 5725-5850 MHz bands, the maximum 20dB bandwidth of the hopping channel is 1 MHz. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTES: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0234Issued: Oct. 05, 2004 4.4.3 TEST PROCEDURE 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. Measure the frequency difference of two frequencies that were attenuated 20dB from the reference level. Record the frequency difference as the emission bandwidth. 4. Repeat above procedures until all frequencies measured were complete. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITION The software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0235Issued: Oct. 05, 2004 4.4.7 TEST RESULTS EUTBluetooth PrinterMODEL FTP-628WSL110 ENVIRONMENTAL CONDITIONS 24deg. C, 67%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY: Rush Kao CHANNEL CHANNEL FREQUENCY (MHz) 20dB BANDWIDTH (kHz) MAXIMUM LIMIT (MHz) PASS/FAIL 024029391PASS 3924419271PASS 7824808581PASS FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0236Issued: Oct. 05, 2004 Channel 0 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0237Issued: Oct. 05, 2004 Channel 39 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0238Issued: Oct. 05, 2004 Channel 78 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0239Issued: Oct. 05, 2004 4.5 HOPPING CHANNEL SEPARATION 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION At least 25kHz or 20dB bandwidth (whichever is greater). 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTES: The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0240Issued: Oct. 05, 2004 4.5.3 TEST PROCEDURES 1.Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2.Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. 3.By using the MaxHold function record the separation of two adjacent channels. 4.Measure the frequency difference of these two adjacent channels by SA MARK function. And then plot the result on SA screen. 5.Repeat above procedures until all frequencies measured were complete. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP EUT SPECTRUM ANALYZER FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0241Issued: Oct. 05, 2004 4.5.6 TEST RESULTS EUT Bluetooth Printer MODEL FTP-628WSL110 ENVIRONMENTAL CONDITIONS 24 deg. C, 67%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY: Rush Kao Channel Frequency (MHz) Adjacent Channel Separation Minimum Limit (kHz) Pass / Fail 024021.015MHz939PASS 3924411.014MHz927PASS 7824801.005MHz858PASS The minimum limit is 20dB bandwidth. Test results please refer to next three pages. FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0242Issued: Oct. 05, 2004 Channel 0 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0243Issued: Oct. 05, 2004 Channel 39 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0244Issued: Oct. 05, 2004 Channel 78 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0245Issued: Oct. 05, 2004 4.6 MAXIMUM PEAK OUTPUT POWER 4.6.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.6.2 INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYEERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0246Issued: Oct. 05, 2004 4.6.3 TEST PROCEDURES 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. The center frequency of the spectrum analyzer is set to the fundamental frequency and using 1 MHz RBW and 3 MHz VBW. 4. Measure the frequency difference of two frequencies that were attenuated 20dB from the reference level. Record the frequency difference as the emission bandwidth. 5. Repeat above procedures until all frequencies measured were complete. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0247Issued: Oct. 05, 2004 4.6.5 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.6.6 EUT OPERATING CONDITION The software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0248Issued: Oct. 05, 2004 4.6.7 TEST RESULTS EUT Bluetooth Printer MODEL FTP-628WSL110 ENVIRONMENTAL CONDITIONS 24 deg.…

Text truncated - open the document above for the full version.

FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0267Issued: Oct. 05, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0268Issued: Oct. 05, 2004 FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0269Issued: Oct. 05, 2004 RADIATED EMISSION TEST FCC ID: SQK-FTP-628WSL110 Report No.: RF930726L0270Issued: Oct. 05, 2004
