Bluetooth SPP Module Operation Manual Rev.01 JUN 6, 2012 Fujitsu Component Limited Page 2 Copyright © FUJITSU COMPONENT LIMITED 2012 1. INTRODUCTION.......................................................................................................................3 2. COPYRIGHT NOTICE AND DISCLAIMER...............................................................................3 3. NECESSARY ITEM....................................................................................................................3 3.1 MBH-SAKURA2 CIRCUIT DIAGRAM..........................................................................................4 4. SET-UP FOR BLUETOOTH SPP CONNECTION......................................................................5 5. REQUIRED SOFTWARE............................................................................................................6 6. SETTING OF TERA TERM........................................................................................................6 7. OPERATING PROCEDURE FOR TX/RX MODE CONTROL.....................................................7 7.1 MODE CHANGE OF THE SPP BLUETOOTH MODULE....................................................................7 7.2 OPERATION OF TEST TOOL BY CSR............................................................................................8 8. TEST COMMANDS..................................................................................................................10 8.1 TX MODE COMMAND.................................................................................................................10 8.1.1 Tx Unmodulated wave setting.........................................................................................10 8.1.2 Tx Modulated wave setting .............................................................................................10 8.1.3 Tx 79 channels frequency hopping setting......................................................................11 8.1.4 Tx AFH 20 channels AFH (Adaptive Frequency Hopping) setting.................................11 8.2 RX MODE COMMAND.................................................................................................................12 Page 3 Copyright © FUJITSU COMPONENT LIMITED 2012 1. INTRODUCTION This document describes the method of Tx/Rx mode control for Bluetooth SPP Module provided by FCL (Fujitsu Component Limited) 2. Copyright Notice and Disclaimer Copyright © 2012 FUJITSU COMPONENT LIMITED. All rights reserved BLUETOOTH, The Bluetooth Figure Mark, and the Bluetooth Combination Mark are registered trademarks owned by Bluetooth SIG, Inc. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Linux is a registered trademark of Mr. Linus Torvalds in Japan and other countries Other third-party brands and names are the property of their respective owners. This document is subject to change without any prior notice. 3. Necessary item • MBH-SAKURA2: Bluetooth SPP Module Evaluation board • USB Cable • PC • Bluetooth SPP Module with Daughter Board MBH7BTZ42-DAUGHTER MBH7BTZ52-DAUGHTER Or Bluetooth SPP Module with connector MBH7BTZ40 MBH7BTZ43 MBH7BTZ50 MBH7BTZ53 Page 4 Copyright © FUJITSU COMPONENT LIMITED 2012 3.1 MBH-SAKURA2 Circuit diagram Page 5 Copyright © FUJITSU COMPONENT LIMITED 2012 4. SET-UP for Bluetooth SPP connection Connect CN2 connector on MBH-SAKURA2 and the USB port on PC with USB cable to control Bluetooth SPP module (Figure 4-1). To work with the USB serial port (UART over USB), first download the FTDI FT232R driver (D2XX and VCP) from: http://www.ftdichip.com/Drivers/VCP.htm Install the driver according to the installation guide available on the FTDI web site. After the driver is installed, go to My Computer->Properties->Hardware->Device Manager->Portsto identify the COM port to which the USB serial port is assigned. -The baud rate is set to 115.2kbps (Default setting) Figure 4-1: Hardware Setup USB port CN2 Page 6 Copyright © FUJITSU COMPONENT LIMITED 2012 5. Required Software “BlueSuite” test tool by CSR. Account registration is required to download from the support website of CSR. When there is no account, please contact your local sales. “Tera Term” is terminal software to control Bluetooth SPP module. Tera Term is downloadable from the following website. http://ttssh2.sourceforge.jp/ 6. Setting of Tera Term When you use Tera Term, please change the setting as below.



Select COM Port No which is assigned USB Serial port Page 7 Copyright © FUJITSU COMPONENT LIMITED 2012



7. Operating Procedure for Tx/Rx mode control 7.1 Mode change of the SPP Bluetooth module
Connect CN2 connector on MBH-SAKURA2 and the USB port on PC witha USB cable to control Bluetooth SPP Module. And, launch the Tera Term.
Input the BCSP_MODE command to change from SPP mode to BCSP mode. *Note: Since it is temporary, this module will operate SPP mode after reset (or power on). Page 8 Copyright © FUJITSU COMPONENT LIMITED 2012 7.2 Operation of Test tool by CSR Close Tera Term after changing SPP Bluetooth module to BCSP mode. And, execute “BtCLI” from Windows start menu. Set up as follows and click "OK.". Select COM Port No which is assigned USB Serial port Page 9 Copyright © FUJITSU COMPONENT LIMITED 2012 The command prompt window is opend as follows.


SPP Bluetooth module is controlled by command line interface. Refer to the following page for the details of a command. (The following is example for the setup of unmodulated, BasicRate, DH5 packet.)


        Page 10 Copyright © FUJITSU COMPONENT LIMITED 2012 8. Test Commands 8.1 Tx mode command 8.1.1



Tx Unmodulated wave setting NameSetting item Transfer rate Packet type Ch The command to input DH1 - rt
0x16
0x4e2
0x0 DH3 - rt
0x16
0x9c4
0x0 1Select "TX/RX interval Value" using rt command <"cfg_frq"…

Text truncated - open the document above for the full version.

cP FUJITSU DECLARATION OF SIMILARITY June 13, 2012 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089 Phone:408-732-9162,Fax:408-732-9164 http://www.baclcorp.com Dear Sir or Madam: We FUJITSU COMPONENT LIMITED hereby declare that product: Bluetooth Module, model(s): MBH7BTZ40, MBH7BTZ42, MBH7BTZ43, MBH7BTZ50, MBH7BTZ52, MBH7BTZ53 are electrically identical with the same electromagnetic emissions and electromagnetic compatibility characteristics as model MBH7BTZ40 and MBH7BTZ52 tested by BACL. A description of the differences between the tested model and those that are declared similar are as follows: Model Mounted type Other to the host device MBH7BTZ40 FPC/FCC Connector - MBH7BTZ42 Surface-mount - MBH7BTZ43 Board to board Connector - MBH7BTZ50 FPC/FCC Connector For iOS device MBH7BTZ52 Surface-mount For iOS device MBH7BTZ53 Board to board Connector For iOS device Please contact me should there be need for any additional clarification or information. Best Regards, Responsible Party Signature Name, and Title Company Legal Address BACL-NF0028-A Takeshi W akui I Engineer Tel. +81-3-5449-7802 Fax. +81-3-5449-7812 Gotanda-chuo Bldg., 3-5, Higashi-gotanda 2-chome, Shinagawa-ku, Tokyo, 141-8630 Japan

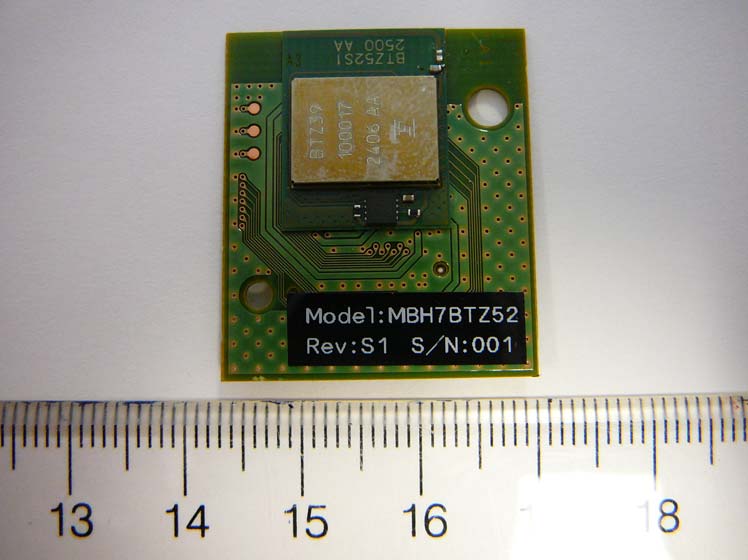

Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 83 of 91 FCC Part15C & IC RSS-210 Test Report 18 Exhibit C - EUT Photographs 18.1 EUT (MBH7BTZ40) - Front Side View 18.2 EUT (MBH7BTZ40) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 84 of 91 FCC Part15C & IC RSS-210 Test Report 18.3 EUT (MBH7BTZ42) - Front Side View 18.4 EUT (MBH7BTZ42) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 85 of 91 FCC Part15C & IC RSS-210 Test Report 18.5 EUT (MBH7BTZ43) - Front Side View 18.6 EUT (MBH7BTZ43) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 86 of 91 FCC Part15C & IC RSS-210 Test Report 18.7 EUT (MBH7BTZ50) - Front Side View 18.8 EUT (MBH7BTZ50) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 87 of 91 FCC Part15C & IC RSS-210 Test Report 18.9 EUT (MBH7BTZ52) - Front Side View 18.10 EUT (MBH7BTZ52) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 88 of 91 FCC Part15C & IC RSS-210 Test Report 18.11 EUT (MBH7BTZ53) - Front Side View 18.12 EUT (MBH7BTZ53) - Back Side View Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 89 of 91 FCC Part15C & IC RSS-210 Test Report 18.13 Supporting Board Front View 18.14 Supporting Board Back View

Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 90 of 91 FCC Part15C & IC RSS-210 Test Report 18.15 EUT (MBH7BTZ40) Without Shielding View 18.16 EUT (MBH7BTZ52) Without Shielding View

Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 75 of 91 FCC Part15C & IC RSS-210 Test Report 15 FCC §15.247(i), § 2.1091 & IC RSS-102 - RF Exposure Information 15.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 76 of 91 FCC Part15C & IC RSS-210 Test Report 15.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 15.3 MPE Results Maximum peak output power at antenna input terminal (dBm):3.69 Maximum peak output power at antenna input terminal (mW): 2.34 Prediction distance (cm): 20 Prediction frequency (MHz): 2402 Maximum Antenna Gain, typical (dBi): 1.4 Maximum Antenna Gain (numeric): 1.38 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.000642 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.00642 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.000642 mW/cm 2 (0.00642 W/m 2 ), Limit is 1 mW/cm 2 (10 W/m 2 ).

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C IC RSS-210 ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For FUJITSU COMPONENT LIMITED Gotandu-Chou Bldg., 3-5, Higashi-gotanda 2-chome, Shinagawa-ku, Tokyo 141-8630, Japan FCC ID: SQK-MBH7BTZXXC2 IC: 337L-MBH7BTZXXC2 Report Type: Original Report Product Type: Class 2 Bluetooth Module Test Engineer: Lionel Lara Report Number: R1206111-247 Report Date: 2012-06-28 Reviewed By: Victor Zhang RF/EMC Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Fujitsu Component Limited FCC ID: SQK-MBH7BTZXXC2, IC: 337L-MBH7BTZXXC2 Report Number: R1206111-247 Page 2 of 91 FCC Part15C & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ..............................................................................................................................6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................6 1.2 MECHANICAL DESCRIPTION OF EUT ..............................................................................................................6 1.3 OBJECTIVE......................................................................................................................................................6 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................6 1.5 TEST METHODOLOGY.....................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................6 1.7 TEST FACILITY................................................................................................................................................7 2 SYSTEM TEST CONFIGURATION .................................................................................................................8 2.1 JUSTIFICATION................................................................................................................................................8 2.2 EUT EXERCISE SOFTWARE.............................................................................................................................8 2.3 SPECIAL ACCESSORIES....................................................................................................................................8 2.4 EQUIPMENT MODIFICATIONS..........................................................................................................................8 2.5 LOCAL SUPPORT EQUIPMENT..........................................................................................................................8 2.6 POWER SUPPLY AND LINE FILTERS.................................................................................................................8 2.7 INTERFACE PORTS AND CABLING....................................................................................................................8 2.8 INTERNAL PARTS LIST AND DETAILS..............................................................................................................9 3 SUMMARY OF TEST RESULTS ....................................................................................................................10 4 FCC §15.203 & IC RSS-GEN §7.1.4 – ANTENNA REQUIREMENTS ........................................................11 4.1 APPLICABLE STANDARD...............................................................................................................................11 4.2 RESULT.........................................................................................................................................................11 5 FCC §15.207 & RSS-GEN §7.2.2 - AC LINE CONDUCTED EMISSIONS .................................................12 5.1 APPLICABLE STANDARDS.............................................................................................................................12 5.2 TEST SETUP..................................................................................................................................................12 5.3 TEST EQUIPMENT LIST AND DETAILS............................................................................................................12 5.4 TEST SETUP BLOCK DIAGRAM......................................................................................................................13 5.5 TEST PROCEDURE.........................................................................................................................................13 5.6 TEST ENVIRONMENTAL CONDITIONS............................................................................................................13 5.7 CORRECTED AMPLITUDE & MARGIN CALCULATION....................................................................................14 5.8 SUMMARY OF TEST RESULTS........................................................................................................................14 5.9 CONDUCTED EMISSIONS TEST PLOTS AND DATA..........................................................................................15 6 FCC §15.205, §15.209, §15.247(D) & IC RSS-210 §2.2, §2.6, §A8.5 – SPURIOUS RADIATED EMISSIONS ............................................................................................................…
