SSNLSM3001306Wireless Scanner Mouse

OWNER’S MANUAL Mouse Scanner Please read this manual carefully before operating your set and retain it for future reference. The S/W included with the product may be updated or changed to improve performance without notice. LSM300 (Windows version) Getting Started3 Getting Started 1 Safety Information There are two types of precautions: “Warning” and “Caution”. > Warning : Failure to observe these instructions may result in serious injury or death. > Caution : Failure to observe these instructions may result in minor injury or damage to the product. , Note : Following the tips can prevent malfunction or damage to the product. 7 : This symbol indicates a prohibited use of the product. - After reading this manual, make sure to keep it in a place where you can easily access while using the product. - The following safety information is intended to guide you to the safe and correct use of the product and prevent unwanted accident or damage. > Warning Do not use or store the product in direct sunlight or near a hot object (e.g., a heater or replace). y Otherwise, this may result in fire due to excessive heat. Do not direct the laser beam towards your eyes. y Otherwise, this may cause damage to your eyesight or a loss of vision. If the product is emitting smoke, unusual odors or sounds, stop using the product immediately and disconnect it from the computer. y Otherwise, this may cause fire or electric shock. Do not use the product if liquid such as water, chemicals or oil is spilled on the product. y Otherwise, this may cause fire or electric shock. Do not place a container filled with liquid such as vase, flowerpot, cup, cosmetics/ toiletry or chemicals/medicine near the product. y Otherwise, this may result in personal injury or death due to fire or electric shock. Getting Started4 Getting Started 1 > Caution Do not install the product in an extremely hot (over 35 °C) or cold (under 5 °C) area, or with high temperature variation. y Otherwise, this may cause malfunction or damage to the product. Do not install the device in an area prone to static electricity or excessive heat. y Otherwise, this may cause malfunction or damage to the product. Do not disassemble, modify or repair the product. y Otherwise, this may cause the product to break down, increase the safety risk, and voids the warranty of the product. Do not apply excessive shock to the product. y Otherwise, this may cause malfunction or damage to the product. Be careful not to drop the product or apply excessive shock to the scan window on the bottom of the product. y Otherwise, this may cause malfunction or damage to the product. Do not install the product in a humid or dusty area. y Otherwise, this may cause malfunction or damage to the product. Be careful not to spill liquid such as water, chemicals or oil on the product. y Otherwise, this may cause malfunction or damage to the product. Do not apply excessive bending or shock to the cable. y Otherwise, this may cause malfunction or damage to the product. Always read and follow the user manual when using or removing the product. y Improper use may cause malfunction or damage to the product. Getting Started5 Getting Started 1 FCC ID : SSNLSM300R, SSNLSM3001306 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Radiation Exposure Statement : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter. CAUTION: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Responsible Party : LG Electronics USA, I…

Text truncated - open the document above for the full version.

Date (18/07/2013) TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, (LG Electronics Inc., 50, Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, +82-43-279-3052) hereby authorize (TUV SUD BABT, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (31/12/2013). Sincerely, Name: Hyun Su Park Telephone Number: +82-43-279-3308 Email: [email protected]

Date (18/07/2013) TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: SSNLSM3001306 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, LG Electronics Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Hyunsu Park Telephone Number: +82-43-279-3308 Email: [email protected]

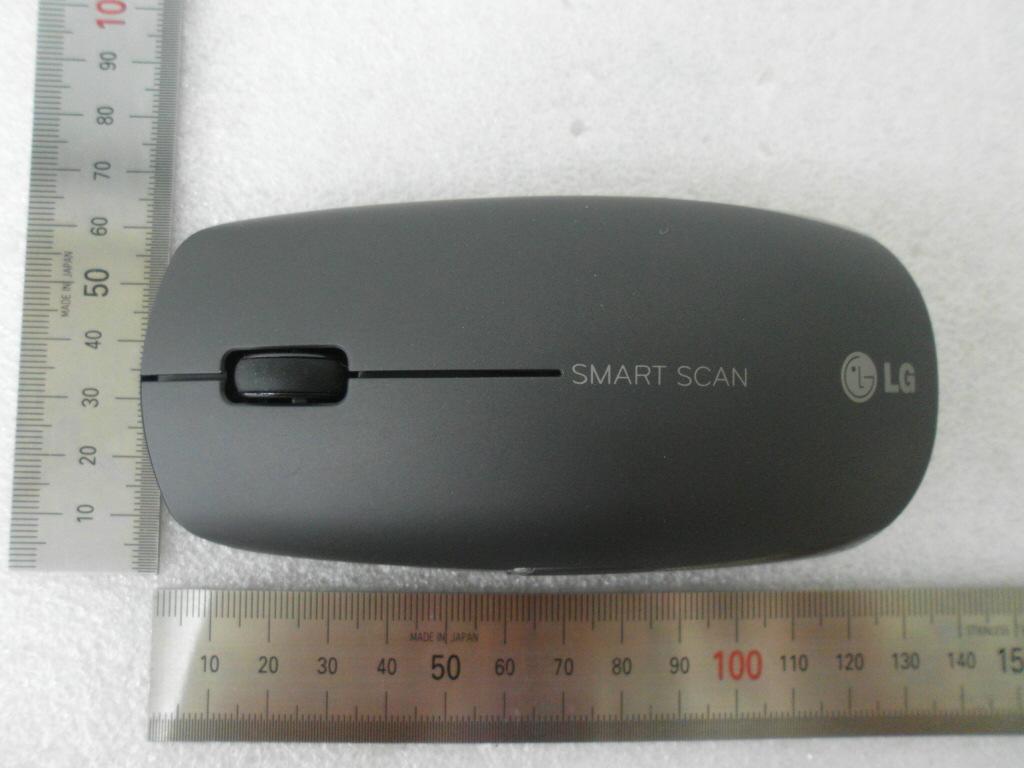

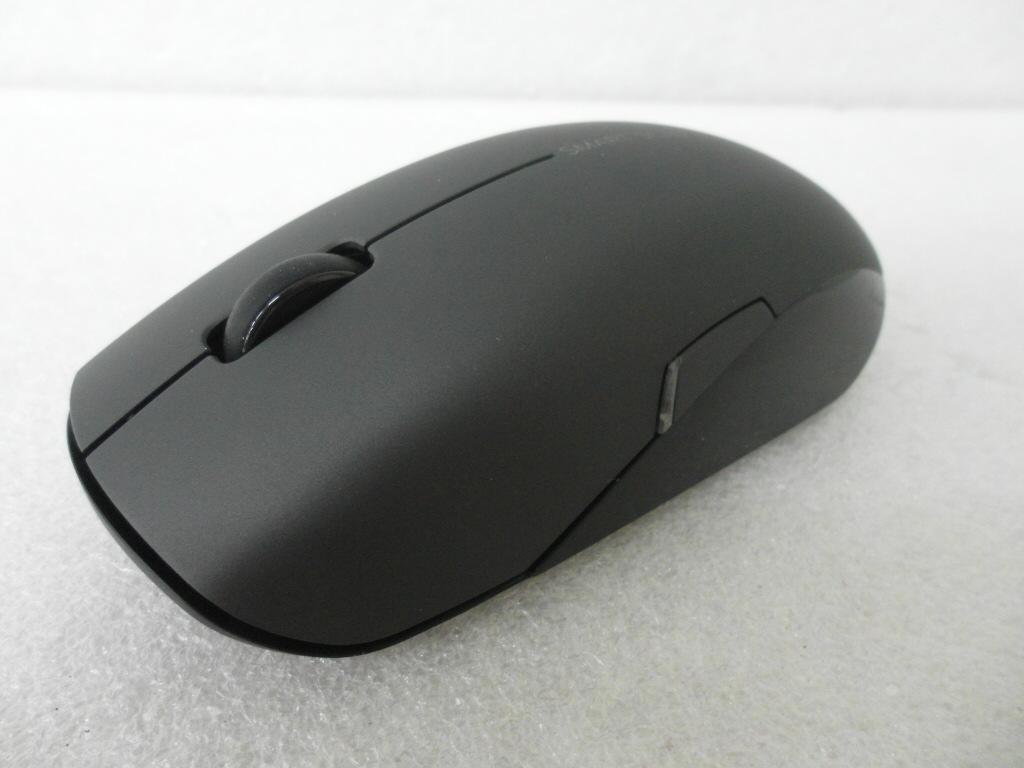

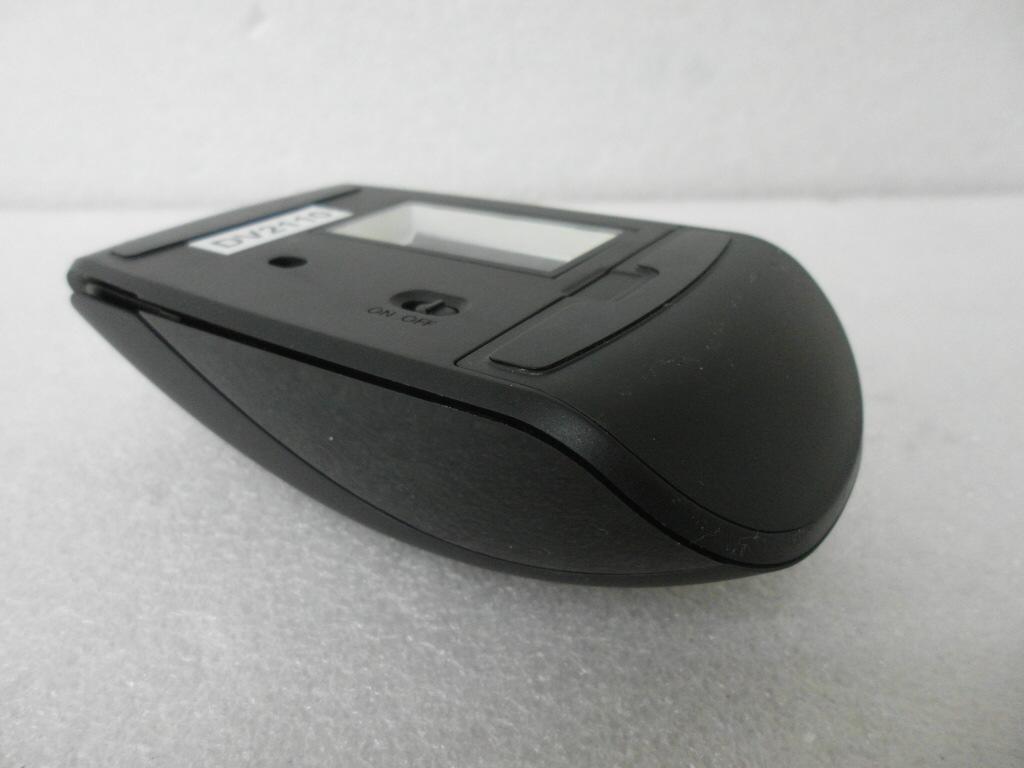

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Antenna

LG Electronics Inc. CEM Smart Accessory Tel : +82 43 279 3308 Fax : +82 43 279 3117 MPE Calculation to support SAR test exclusion [FCC ID: SSNLSM3001306] According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance > 50 mm are determined by: [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz Max. Conducted Power + tune up tolerance = 0.55 mW Distance = 50 mm f (mid) = 2.442 GHz [(96) + (50-50) * 10] mW > 0.55 96 mW > 0.55mW Therefore, this device was excluded from SAR testing according to the above results. LG Electronics Inc. Name: Hyun Su Park Telephone Number: +82-43-279-3308 Email: [email protected] Seoul/Korea, 09. Aug. 2013 Place and date Signature and company stamp.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01214 Date: 2013-07-31 Page 1 of 32 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TEST REPORT For FCC Test Report No. : CTK-2013-01214 Date of Issue : 2013-07-31 FCC ID : SSNLSM3001306 Model/Type No. : LSM300xB Kind of Product : Wireless scanner mouse Applicant : LG Electronics Inc. Applicant Address : 50, Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, 361-480, Korea Manufacturer : LG Electronics Inc. Manufacturer Address : 9, No. 23 Street, HEDA, Hangzhou 310018, China Contact Person : Jung Yong Lee Telephone : +82-43-279-3071 Received Date : 2013-07-17 Test period : Start : 2013-07-18 End : 2013-07-30 The test results presented in this report relate only to the object tested. Tested by Reviewed by Won-Jae, Hwang Test Engineer Young-Joon, Park Technical Manager Date: 2013-07-31 Date: 2013-07-31 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01214 Date: 2013-07-31 Page 2 of 32 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2013-07-31 Issued (CTK-2013-01214) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01214 Date: 2013-07-31 Page 3 of 32 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY...........................................................................................2 1.0 General Product Description................................................................................4 1.1 Tested Frequency...............................................................................................4 1.2 Device Modifications...........................................................................................5 1.3 Peripheral Devices.............................................................................................5 1.4 Calibration Details of Equipment Used for Measurement.........................................5 1.5 Test Facility.......................................................................................................5 1.6 Model Differences..............................................................................................5 1.7 Laboratory Accreditations and Listings..................................................................6 2 Summary of tests....................................................................................................7 2.1 Technical Characteristic Test......................................................................................8 2.1.1 6dB Bandwidth............................................................................................8 2.1.2 Maximum peak Conducted Output Power......................................................11 2.1.3 Power Spectral Density...............................................................................14 2.1.4 Band - edge..............................................................................................17 2.1.5 Field Strength of Emissions.........................................................................22 2.1.6 AC Conducted Emissions.............................................................................29 APPENDIX A – Test Equipment Used For Tests.................................................................32 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01214 Date: 2013-07-31 Page 4 of 32 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.0 General Product Description Equipment model name LSM300xB Serial number Prototype EUT condition Pre-production, not damaged Frequency Range 2412 MHz – 2472 MHz RF output power -2.59 dBm Number of channels 5 Transfer Rate 2 Mbps Type of Modulation GFSK Channel Spacing 15 MHz Power Source 3 Vdc (2 AAA Alkaline 1.5 V Batteries) Antenna Type PCB antenna Gain : -1.08 dBi 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2412 2442 2472 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01214 Date: 2013-07-31 Page 5 of 32 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer DELL INC. Inspiron 6400 - Switching Adapter2 DDongguang Lite Power 2nd Plant LA65NS0-00 - 1.4 Calibration Details of Equipment Used for Measurement Test equipment and test accessories are calibrated on regular basis. The maximum time between calibrations is one year or what is recommended by the manufacturer, whichever is less. All test equipment calibrations are traceable to the Korea Research Institute of Standards and Science (KRISS), therefore, all test data recorded in this report is traceable to KRISS. …

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com
