STE-QUADCOMM-2100RV-Quadcomm

QUAD BAND OTA (Verizon) User’s Manual Notice Trademark R-tron is a registered trademark of R-tron Inc. Other products and company names mentioned here in this manual might be trademarks or trade names of their respective owners. Copyright Copyright © R-tron Inc. 2000-2010 All Rights Reserved Any reproduction, distribution, or revisions of any or all portions of this manual is prohibited without written permission from R-tron Inc. Notice This document describes the specifications, installation, and operation of the OTA repeater. Hardware and software mentioned in this document are subject to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document, performance, and design of the product. Specifications, dimensions, and other statements mentioned in this document are subject to change without notice. Questions or Comments Address: R-tron America Inc. 6402 College Boulevard, Overland Park, KS 66211 Phone: +1-913-344-9977, 1-888-31R-TRON Fax: +1-913-344-9988 E-mail: [email protected] Website: www.rtronamerica.com FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to The following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. RF Exposure Statement FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Precautions Opening the OTA equipment could result in electric shock and may cause severe injury. Connect the equipment frame ground to the building ground. Operating the OTA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE INFORMATION A minimum separation distance of cm must be maintain ed between the user and the external antenna of the repeater to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov This equipment is for indoor use only and enables the communication wiring to communicate inside the building only. Contents Glossary ...............................................................................................................................2 1. Introduction .......................................................................................................................3 2. Description........................................................................................................................6 2.1. Main Unit Overview.......................................................................................................................... ...........7 2.2. Internal Configuration................................................................................................................... .............8 2.2.1. Block diagram.......................................................................................................................... ..............9 2.2.2. AC-DC Adaptor........................................................................................................................... ........10 2.2.3. RFU(RF Unit)................................................................................................................................ ........11 2.2.4. MCU(Main Control Unit)...................................................................................................................12 2.2.5. Duplexers........................................................................................................................ .....................13 3. Hardware Installation......................................................................................................11 3.1. Check List of Items.............................................................................................................................. .....14 3.2. Mounting........................................................................................................................... .........................15 3.3. Grounding....................................................................................................................... ............................17 3.4. Cable Connection........................................................................................................................ .............18 3.5. Power On................................................................................................................................. ...................18 4. Operation........................................................................................................................ 16 4.1. System Requirements.................................................................................................................. ............21 4.2. Network Setup.............................................................................................................................. ............21 4.2.1. Windows XP................................................................................................................................. .......21 4.2.2. Windows 2000.............................................................................................................................. .....23 4.2.3. Windows Vista.............................................................................................................................. .....24 4.3. System Log in...........................................................................…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, YONG HOON KANG / CTO R-tron, Inc.

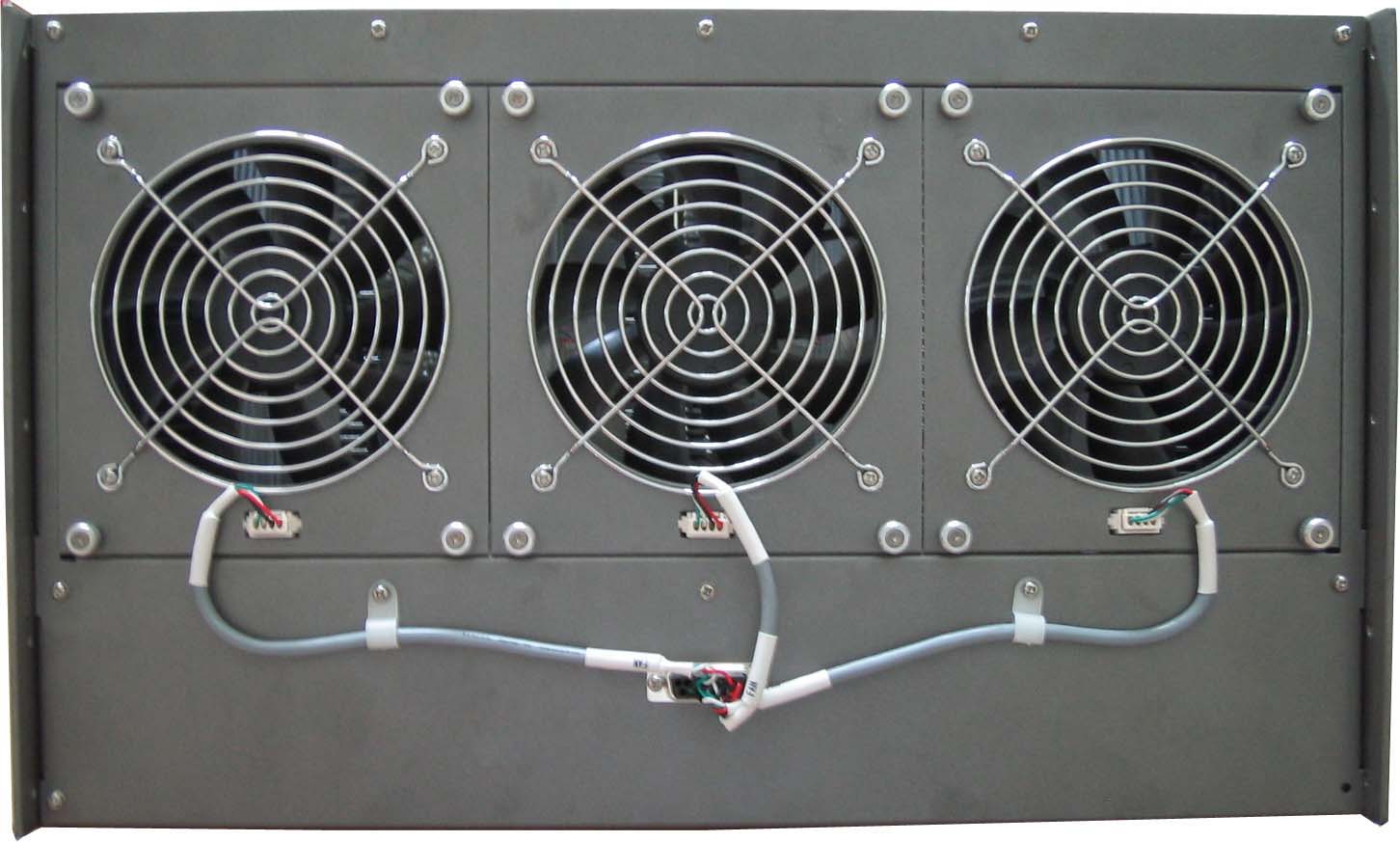

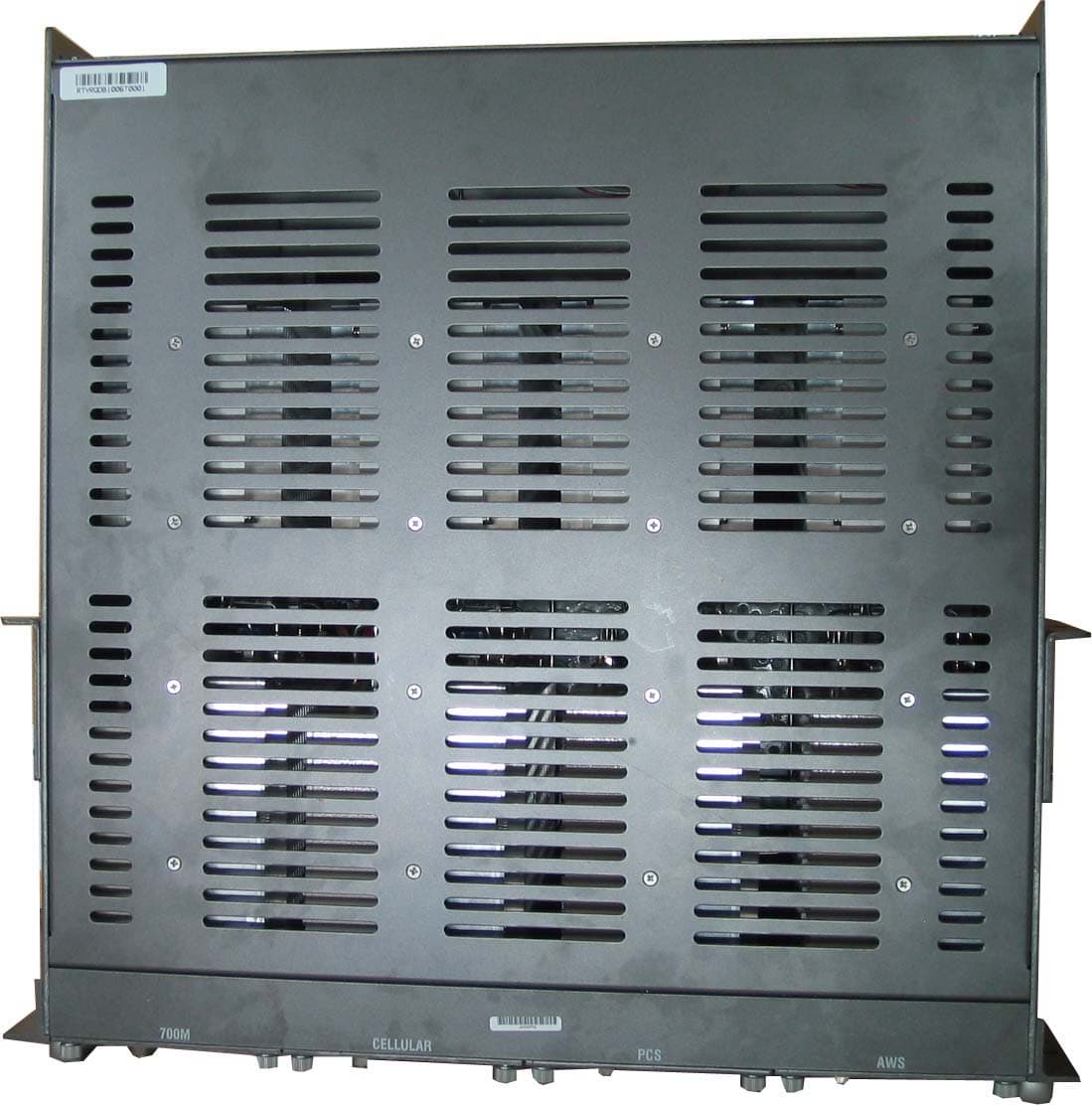

External Photo Repeater <Front View> <Rear View> <Side View> <Side View> <Top View>

2100 RFU <Top View>

<TOP PCB Top View> <TOP PCB Bottom View>

<BOTTOM View>

<BOTTOM PCB Top View> <BOTTOM PCB Bottom View>

< HPA TOP PCB Top View> < HPA TOP PCB Bottom View>

< HPA TOP PCB Top View> < HPA TOP PCB Bottom View>

2100 UL HPA <HPA Top View>

PSU <PSU Top View>

PSU <PSU Top View>

<PSU PCB Top View> <PSU PCB Bottom View>

Duplexer <INNOR VIEW> MCU <TOP SIDE> <BOTTOM SIDE> Front Board <TOP SIDE> <BOTTOM SIDE>

2100 RFU <Top View>

<TOP PCB Top View> <TOP PCB Bottom View>

<BOTTOM View>

<BOTTOM PCB Top View> <BOTTOM PCB Bottom View>

< HPA TOP PCB Top View> < HPA TOP PCB Bottom View>

< HPA TOP PCB Top View> < HPA TOP PCB Bottom View>

2100 UL HPA <HPA Top View>

PSU <PSU Top View>

PSU <PSU Top View>

<PSU PCB Top View> <PSU PCB Bottom View>

Duplexer <INNOR VIEW> MCU <TOP SIDE> <BOTTOM SIDE> Front Board <TOP SIDE> <BOTTOM SIDE>

Report Number : F690501/RF-RTL004068-1 Page: 35 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 8. RF Exposure Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 8.1 Friis transmission formula : Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1500 -- -- F/300 6 1500 - 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1500 -- -- F/1500 6 1500 - 100000 -- -- 1 30 Report Number : F690501/RF-RTL004068-1 Page: 36 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 8.2 Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 8.2.1 Output Power into Antenna & RF Exposure Evaluation Distance AWS band Uplink mode Channel Frequency (㎒) Output Power to Antenna (㏈m) Antenna Gain (㏈i) R (㎝) Low 1 711.25 30.54 9 26.761 Mid 1 732.50 30.31 9 26.062 High 1 753.75 30.09 9 25.410 Downlink mode Channel Frequency (㎒) Output Power to Antenna (㏈m) Antenna Gain (㏈i) R (㎝) Low 2 111.00 30.57 4.5 15.996 Mid 2 130.00 30.77 4.5 16.368 High 2 153.75 30.08 4.5 15.118

Report Number : F690501/RF-RTL004068-1 Page: 2 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Maximum Channel Power ------------------------------------------------------------------- 6 3. Field Strength of Spurious Radiation --------------------------------------------------- 11 4. Occupied Bandwidth 26 dB ---------------------------------------------------------------- 15 5. Spurious Emissions at Antenna Terminal--------------------------------------------- 22 6. Band Edge -------------------------------------------------------------------------------------- 29 7. Frequency Stability --------------------------------------------------------------------------- 32 8. RF Exposure Evaluation --------------------------------------------------------------------- 35 Report Number : F690501/RF-RTL004068-1 Page: 3 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :R-tron Inc. Address :Jisan IT Venture Center 3F, 1004-9 Doksna-Dong, Gumchon-Gu, Seoul, Korea Contact Person : You-Sik, Choi Phone No. : 82-2-6343-1023 1.3. Description of EUT Kind of Product RV-Quadcomm Model Name Quadcomm-2100 Serial Number N/A Power Supply 110 ~ 220 Vac Rated Power 30 dBm (Uplink, Downlink) Frequency Range 1 710.00㎒ ~ 1 755.00㎒(Uplink), 2 110.00 ㎒ ~ 2 155.00 ㎒(Downlink) Antenna Gain 9 ㏈i(Yagi_Uplink), 4.5 ㏈i(Patch_Downlink) 1.4. Description of test mode Uplink mode Measured Channel Power Test mode Channel Channel No. Frequency (㎒) ㏈m ㎽ Low 25 1 711.25 30.54 1 132 Mid 450 1 732.50 30.31 1 074 CDMA2000 High 875 1 753.75 30.09 1 021 EV-DO Low 25 1 711.25 30.41 1 099 Report Number : F690501/RF-RTL004068-1 Page: 4 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Downlink mode Measured Channel Power Test mode Channel Channel No. Frequency (㎒) ㏈m ㎽ Low 25 2 111.25 30.57 1 140 Mid 450 2 132.50 30.77 1 194 CDMA2000 High 875 2 153.75 30.08 1 019 EV-DO Mid 450 2 132.50 30.62 1 153 We found out the test mode with the highest power level after we analyze. So we chose CDMA2000 (worst case) as a representative. 1.4. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Agilent E4440A Mar. 31, 2011 Power Divider Agilent 87302C Jan. 07, 2011 Attenuator Agilent 8498A Apr. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 AC power Supply Deakwang Slidas Sep. 25, 2010 Preamplifier H.P. 8447F Jun. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBSC4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 15, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jun. 22, 2011 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number : F690501/RF-RTL004068-1 Page: 5 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results APPLIED STANDARD : FCC Part 27 Section in FCC part Test Item Result §2.1046 §27.50 Maximum Channel Power Complied §27.53(g) Field Strength of Spurious Radiation Complied §2.1049 Occupied Bandwidth 26dB Complied §27.53(g) Spurious Emission at Antenna Terminal Complied §27.54(g) Frequency Stability Complied §27.53(g) Band Edge Complied §1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Test Report Revision Revision Report number Description 0 F690501/RF-RTL004068 Initial 1 F690501/RF-RTL004068-1 Revised FCC ID Report Number : F690501/RF-RTL004068-1 Page: 6 of 36 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. Maximum Channel Power 2.1. Set up 2.2. Limit According to 47 CFR Part 2 section § 2.1046 and Part 27 section § 27.50(h)(1), the maximum EIRP of a base station shall not exceed 33 dBW + 10 lg (X/Y) dBW , where X is the ac…
