STE-QUADCOMM-800RV-Quadcomm

QUAD BAND OTA (Verizon) User’s Manual Notice Trademark R-tron is a registered trademark of R-tron Inc. Other products and company names mentioned here in this manual might be trademarks or trade names of their respective owners. Copyright Copyright © R-tron Inc. 2000-2010 All Rights Reserved Any reproduction, distribution, or revisions of any or all portions of this manual is prohibited without written permission from R-tron Inc. Notice This document describes the specifications, installation, and operation of the OTA repeater. Hardware and software mentioned in this document are subject to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document, performance, and design of the product. Specifications, dimensions, and other statements mentioned in this document are subject to change without notice. Questions or Comments Address: R-tron America Inc. 6402 College Boulevard, Overland Park, KS 66211 Phone: +1-913-344-9977, 1-888-31R-TRON Fax: +1-913-344-9988 E-mail: [email protected] Website: www.rtronamerica.com FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to The following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. RF Exposure Statement FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Precautions Opening the OTA equipment could result in electric shock and may cause severe injury. Connect the equipment frame ground to the building ground. Operating the OTA with antennas in very close proximity facing each other could lead to severe damage to the repeater. RF EXPOSURE INFORMATION A minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the external antenna of the repeater to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov This equipment is for indoor use only and enables the communication wiring to communicate inside the building only. Contents Glossary ...............................................................................................................................2 1. Introduction.......................................................................................................................3 2. Description........................................................................................................................6 2.1. Main Unit Overview.......................................................................................................................... ...........7 2.2. Internal Configuration................................................................................................................... .............8 2.2.1. Block diagram.......................................................................................................................... ..............9 2.2.2. AC-DC Adaptor........................................................................................................................... ........10 2.2.3. RFU(RF Unit)................................................................................................................................ ........11 2.2.4. MCU(Main Control Unit)...................................................................................................................12 2.2.5. Duplexers........................................................................................................................ .....................13 3. Hardware Installation......................................................................................................11 3.1. Check List of Items.............................................................................................................................. .....14 3.2. Mounting........................................................................................................................... .........................15 3.3. Grounding....................................................................................................................... ............................17 3.4. Cable Connection........................................................................................................................ .............18 3.5. Power On................................................................................................................................. ...................18 4. Operation........................................................................................................................ 16 4.1. System Requirements.................................................................................................................. ............21 4.2. Network Setup.............................................................................................................................. ............21 4.2.1. Windows XP................................................................................................................................. .......21 4.2.2. Windows 2000.............................................................................................................................. .....23 4.2.3. Windows Vista.............................................................................................................................. .....24 4.3. System Log in..............................................................…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, YONG HOON KANG / CTO R-tron, Inc.

If you have not received all pages, please call the direct phone number. FAX : 031-428-5859 TEL : 031-428-5886 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, R-tron Inc., would like the following documents regarding this submission for FCC ID: STE-QUADCOMM-800 to be kept confidential. 1. Schematics 2. Operating description 3. Block Diagram 4. Part List/Tun-up Procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, YONG HOON KANG / CTO R-tron, Inc.

Re: Request of Confidentiality for FCC ID: STE-Quadcomm-700,STE-Quadcomm-800 STE-Quadcomm-1900, STE-Quadcomm-2100 To Whom It May Concern: We are also hereby request Short-Term Confidentiality for 180 days after the grant as Outlined in Public Notice DA 04-1705. This provision will give R-TRON temporary confidentialiy of commercially sensitive information prior to product relesas. External Photos Internal Photos Test-setup Photos SHORT-TERM User’s manual

Chris Harvey From: Jo, Jenny (Gunpo) [[email protected]] Sent: Tuesday, August 17, 2010 1:08 AM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: R-tron, Inc., FCC ID: STE-QUADCOMM-800, Assessment NO.: AN10T0709, Notice#1 Attachments: RV-Quadcomm FCC label.pdf; FCC_Test Report_RV-Quadcomm_800_rev1.pdf; Antenna Installation Guide.zip; CONFIDENTIALITY FORM_FCC.pdf Page 1 of 2 8/24/2010 Dear Chris Please find attached revised document and see the comment in blue after your inquiry. Many thanks, Jenny Jo(Ms)/조찬화 GSM Lab/Wireless Division Assistant Section Chief -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, August 11, 2010 8:28 PM To: Jo, Jenny (Gunpo); Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: R-tron, Inc., FCC ID: STE-QUADCOMM-800, Assessment NO.: AN10T0709, Notice#1 Dear Jenny and Feel, You are listed as the Technical Contact for the above referenced TCB application. The following items need to be resolved before the review can be continued: 1. The FCC ID Label uses the term 'FCC Reg No' but should use the term "FCC ID:" and the characters used for the ID on the label are required to be capital letters. The incorrect label shows "FCC Reg No : STE-Quadcomm-800" but should have "FCC ID: STE-QUADCOMM-800". Please submit a corrected FCC ID Label. Æ Corrected FCC label format is attached. 2. The test report and confidentiality letters also have this same lower case letters issue. Please correct these letters with the correct FCC ID. Æ Corrected Confidentiality letter and test report’s revised. 3. The test report documents RF Exposure MPE calculation using a max 3dBi antenna. The calculation submitted needs to be revised to calculate the Power Density at 20cm instead of calculating the safe distance because MPE is only valid for distances of 20cm or greater. Please correct the MPE calculation. Also, please provide this MPE calculation as a separate exhibit (you can extract it from the report). Æ Pls. refer to revised test report (page 38) 4. There has been no installation guidance regarding Donor and Server antenna selection and placement to address radiated power and RF Exposure for this device. Is there guidance provided for antenna selection or is this device subject to RF Exposure at the time of licensing? Æ Pls. refer to antenna installation guide 5. The Users Manual indicates that this device is designed for CDMA2000 and EV-DO signals. The RF Test report shows input and output signals form one type of signal, but does not define what type of modulation was used nor is there any justification for using only one modulation to represent both types of modulations. Please update the test report to address these issues. Æ Pls. refer to revised test report (page 4) The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 2 of 2 8/24/2010

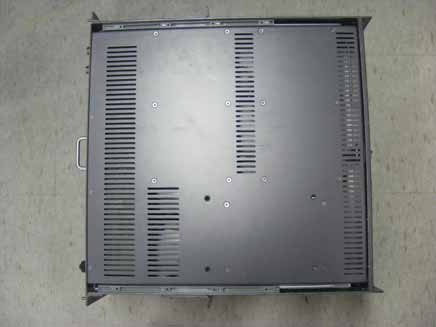

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Top view of EUT Bottom view of EUT

Report Number: F690501/RF-RTL004065-1 Page: 2 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ---------------------------------------------------------------------------------------3 2. RF Output Power ------------------------------------------------------------------------------------------6 3. Occupied Bandwidth 26 ㏈ ---------------------------------------------------------------------------- 12 4. Spurious Emissions At Antenna Terminal -----------------------------------------------------------17 5. Band Edge --------------------------------------------------------------------------------------------------24 6. Field Strength of Spurious Radiation -----------------------------------------------------------------29 7. Frequency Stability --------------------------------------------------------------------------------------- 34 8. RF Exposure Evaluation -------------------------------------------------------------------------------- 37 Report Number: F690501/RF-RTL004065-1 Page: 3 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.7. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :R-tron Inc. Address :Jisan IT Venture Center 3F, 1004-9 Doksna-Dong, Gumchon-Gu, Seoul, Korea Contact Person : You-Sik, Choi Phone No. : 82-2-6343-1023 1.3. Description of EUT Kind of Product RV-Quadcomm Model Name Quadcomm-800 Serial Number N/A Power Supply 110 ~ 220 Vac Rated Power 25 dBm (Uplink, Downlink) Frequency Range 824 ㎒ ~ 849 ㎒(Uplink), 869 ㎒ ~ 894 ㎒(Downlink) Antenna Gain 3 ㏈i(Yagi_Uplink), 3 ㏈i(Patch_Downlink) 1.4. Description of test mode Uplink mode Measured Channel Power Test mode Channel Channel No. Frequency (㎒) ㏈m ㎽ Low 1013 824.70 25.34 342 Mid 363 835.89 25.16 328 CDMA2000 High 777 848.31 24.77 300 EV-DO Low 1013 824.70 25.25 335 Report Number: F690501/RF-RTL004065-1 Page: 4 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Downlink mode Measured Channel Power Test mode Channel Channel No. Frequency (㎒) ㏈m ㎽ Low 1013 869.70 25.05 320 Mid 363 880.89 25.54 358 CDMA2000 High 777 893.31 25.54 358 EV-DO High 777 893.31 25.41 348 We found out the test mode with the highest power level after we analyze. So we chose CDMA2000 (worst case) as a representative. 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Agilent E4440A Mar. 31, 2011 Power Divider Agilent 87302C Jan. 07, 2011 Attenuator Agilent 8498A Apr. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 AC power Supply Deakwang Slidas Sep. 25, 2010 Preamplifier H.P. 8447F Jun. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBSC4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 15, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jun. 22, 2011 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL004065-1 Page: 5 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22 Section in FCC part Test Item Result §2.1053 §22.917(e) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(e) Spurious Emission at Antenna Terminal Complied §2.1055 §22.355 Frequency Stability Complied §22.917(e) Band Edge Complied §1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL004065 Initial 1 F690501/RF-RTL004065-1 Revised FCC ID Report Number: F690501/RF-RTL004065-1 Page: 6 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. RF Output Power 2.1. Limit Requirements: CFR 47, Section §2.1046 2.2. Test Procedu…
