STESNCDMA37CWireless Booster (CDMA)

System Manual RSN-CDMA-37-C Proprietary & Confidential Page 1 Issue: 1.0 RSN-CDMA-37-C Manual R-tron Inc. System Manual RSN-CDMA-37-C Proprietary & Confidential Page 2 Issue: 1.0 CAUTION This equipment is indoor use and all the communication System Manual RSN-CDMA-37-C Proprietary & Confidential Page 3 Issue: 1.0 Abbreviations Abbreviations used in this manual, in RSN-CDMA-37-C. AC Alternating Current ANT Antenna CDMA Code Division Multiple Access DC Direct Current GND Grounding GUI Graphic User Interface LED Light Emitting Diode PSU Power Supply Unit MCU Main Control Unit UDC Up Down Converter RF Radio Frequency TEMP Temperature VSWR Voltage Standing Wave Ratio System Manual RSN-CDMA-37-C Proprietary & Confidential Page 4 Issue: 1.0 1. Introduction RSN-CDMA-37-C is used to fill out areas in CDMA mobile systems, such as base station fringe areas, business and industrial buildings, etc. RSN-CDMA-37-C receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously with the following features: „ 65MHz bandwidth service „ Band Selection (5MHz , 10MHz , 15MHz , 20MHz , 5MHz+5MHz , 10MHz+5MHz, 15MHz+5MHz, 20MHz+5MHz, 5MHz+5MHz+5MHz) service „ Roll Offs: 50dBc at 1 MHz outside pass-band The RSN-CDMA-37-C is controlled by powerful microprocessors. Operational status LEDs are visible on the bottom of the repeater. The repeater works with convection cooling without fan because it has a radiator behind the body of RSN-CDMA-37-C. Alarm LEDs Local port Remote port Server antenna port UL and DL output monitoring port AC in and Switch Donor antenna port Ground contact DC Outlet for external device System Manual RSN-CDMA-37-C Proprietary & Confidential Page 5 Issue: 1.0 Operational parameters, such as gain, power levels, alarm condition, Automatic Gain Control condition, etc. are set using a desktop or notebook and the remote access is capable of control the RSN-CDMA-37-C. System Manual RSN-CDMA-37-C Proprietary & Confidential Page 6 Issue: 1.0 2. Description 2.1 System Specifications 2.1.1 Electrical Specifications Parameter Down Link Up Link Operating Frequency 1930MHz~1995MHz1850MHz~1915MHz Gain 45dB to 95dB Roll off ≤50dBc @Fedge+/-1MHz Gain ripple ±1.5dB Delay 5.0uS Max VSWR 1.5Max Input Range -45dBm ~ -58dBm Power supply 85V~264V, 50/60Hz typ. Operating temperature -10 Storage temperature -20~ 60 Consumption power ≤100W Band Selection 5MHz , 10MHz , 15MHz , 20MHz 5+5MHz , 10+5MHz , 15+5MHz , 20+5MHz 5+5+5MHz System Manual RSN-CDMA-37-C Proprietary & Confidential Page 7 Issue: 1.0 2.1.2 Mechanical Specifications Parameter Specification RF connectors N-female x 2, SMA-female x 2 Size 14.49 X17.52 X 9.33(Inch), 368 X 445 X 237(mm) Weight 27kg (59.5lbs) AC IN 110 -125Vac Note external devices only Power outlet for compatible MAX 2A DC OUT +12Vdc or -12Vdc UL Output -30dB CPL. DL Output -30dB CPL. DONOR ANTENNA LOCAL http://192.168.0.1:83 REMOTE SERVER ANTENNA ALARM R-tron lnc. MAKER : MADE IN KOREA : STESNCDMA37C 1 10 -125Va c , 60Hz , 4A RSN-CDMA-37-C SERIAL NO. / DATE : FCC REG. NO. : POWER PRODUCT PART NUMBER :COMPLIES WITH PART 24, FCC RULES. I. T.E 31CY E258109 System Manual RSN-CDMA-37-C Proprietary & Confidential Page 8 Issue: 1.0 2.2 Sub Unit Overview RSN-CDMA-37-C is composed of the following sub units: „ UDC(Up Down Converter) „ HPAs(High Power Amplifiers) „ Duplexers „ Main Control Unit (MCU) „ Power Supply Unit (PSU) „ EMI Filter PSU MCU UDC UL HPA DL HPA EMI Filter Duplexer Duplexer System Manual RSN-CDMA-37-C Proprietary & Confidential Page 9 Issue: 1.0 2.2.1 Block diagram The following, Figure explains how the RSN-CDMA-37-C serves signals. Donor antenna Duplexer Duplexer Service antenna System Manual RSN-CDMA-37-C Proprietary & Confidential Page 10 Issue: 1.0 2.2.2 UDCs The UDC Module is basically a bi-directional amplifier that sharply filters out unwanted noise. <DL UDC> <UL UDC> System Manual RSN-CDMA-37-C Proprietary & Confidential Page 11 Issue: 1.0 2.2.3 Duplexers A multiplexer is a device that combines two or more signals onto a common channel or medium to increase its transmission efficiency. System Manual RSN-CDMA-37-C Proprietary & Confidential Page 12 Issue: 1.0 2.2.4 Main Control Unit (MCU) MCU is the control unit of RSN-CDMA-37-C. It controls and monitors operational parameters. It also generates alarms, an event log and many other functions of the RSN-CDMA-37-C. *Pin Map* Port Connected to J6 MCU Vcc(+12V) J7 CDMA DL,UL Control Pin J8 PSU Alarms / Status LEDs P1 Local P2 Remote System Manual RSN-CDMA-37-C Proprietary & Confidential Page 13 Issue: 1.0 2.2.5 Power Supply The Power Supply Unit (PSU) supplies a steady DC power to RSN-CDMA-37-C by drawing power from the general in-wall AC outlets *Specification* Item Specifications Environmental Operating Temp -10~50 Humidity 20%~90%RH Cooling method Natural air Voltage AC115V Rated Output(DC) 6V, 5A / 12V, 5A / -12V, 5A / 27V, 10A DC Frequency 60Hz typ Leakage Current 0.5mA max.@110V AC System Manual RSN-CDMA-37-C Proprietary & Confidential Page 14 Issue: 1.0 2.2.6 High Power Amplifier (HPA) The High Power Amplifiers the transmitted signal from a base station at the final stage of the repeater and vice versa. <DL HPA> <UL HPA> System Manual RSN-CDMA-37-C Proprietary & Confidential Page 15 Issue: 1.0 2.2.7 Noise(EMI) Filter 2.2.8 Communication & LED Board

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] March 05, 2008 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re: R-tron, Inc. FCC ID: STESNCDMA37C Wireless Booster(CDMA) Part 24 Certification Request for Confidentiality To whom it may concern: We the undersigned R-tron,Inc. here by authorize ESTECH Co.,Ltd.(EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 24 approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, yours Sincerely, Jong Hwa, Park/R&D Center Director R&D Center R-tron, Inc.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] March 05, 2008 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re: R-tron, Inc. FCC ID: STESNCDMA37C WirelessF Booster (CDMA) Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, R-tron Inc. hereby requests confidentiality of the Block Diagram, Circuit Diagrams, Repeater Description, Technical Tuneup Specification, Parts List, EUT Photographs and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which R-tron Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, R-tron Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, R-tron, Inc.

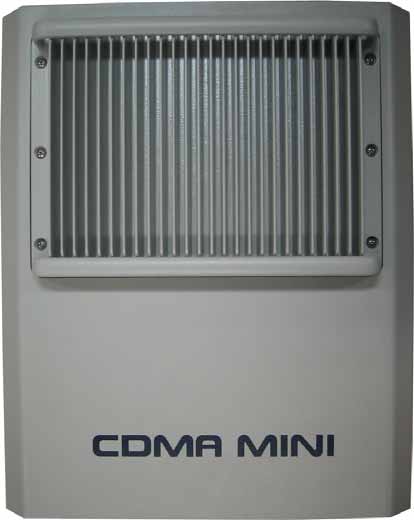

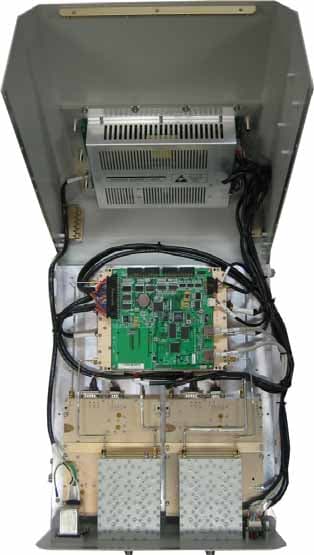

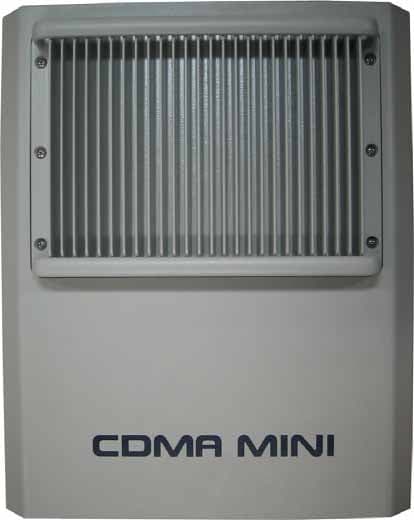

RSN-CDMA-37-C EUT-Photograph *Repeater* <Front View > < Rear View > <Top view> <Bottom view> <Left side view> <Right side view> < The Inside of the Repeater >

< The Inside of the Repeater > *UDC* <CDMA DL Top View> <CDMA DL PCB Top View> <CDMA DL Bottom View> <CDMA DL PCB Bottom View> <CDMA UL Top view> <CDMA UL PCB Top view> < CDMA UL Bottom View> < CDMA UL PCB Bottom View> *HPAs <UL HPA> <Inner view> < CDMA UL> < CDMA UL> < CDMA DL> < CDMA DL> *MCU Board* <Top View> <Bottom View> *Power Supply Unit* *Duplexers* *Communication & LED Board* <Front side> <Rear side> * EMI Noise Filter*

S PG π4 S PG π4

Product Name Model Name RSN-CDMA-37-C ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT Wireless Booster(CDMA) Report Number : ESTR0803-0041 of 29 Applicant FCC ID STESNCDMA37C ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 R-TRON, Inc. Report Number : ESTR0803-0041 of 29 FCC ID : STESNCDMA37C Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC Test Report Applicant Product Report Number RSN-CDMA-37-C KOREA R-TRON, Inc. Test Result Pass 2008-03-18 2008-01-21 ~ 2008-03-10 Other ESTR0803-004 Jisan IT Venture Bldg., 2/3F, 1004-9/10, Doksan-Dong, Gumcheon- Gu, Seoul, Korea Wireless Booster(CDMA) NONE R-TRON, Inc. Report Number : ESTR0803-0042 of 29 Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 24 Subpart E Tested by Approved by I.K. Hong/ Engineer (Signature) Eun-young Son/ Engineering Manager (Signature) Report Number : ESTR0803-0042 of 29 FCC ID : STESNCDMA37C 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 11 6. Spurious and Harmonic Emission at Antenna Terminal Page 14 7. Field Strength of Spurious Radiation Page 24 8. Frequency stability Page 27 Contents ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-0043 of 29Report Number : ESTR0803-0043 of 29 FCC ID : STESNCDMA37C 1. General Information 1.1 EUT Description Channel Uplink :1851.25 ~ 1908.75MHz Uplink&Downlink(25/600/1175) CDMA Frequency Downlink :1931.25 ~ 1988.75MHz Input: 110VAC(85 ~ 145VAC), Output: DC 7V Power Rating ͑͑ ESTECH CO., LTD. http://www.estech.co.kr FCC ID STESNCDMA37C Modulation Type Product Name Model Name Wireless Booster(CDMA) RSN-CDMA-37-C Report Number : ESTR0803-0044 of 29Report Number : ESTR0803-0044 of 29 FCC ID : STESNCDMA37C 2. Laboratory Information 3. Summary of Test Results Result ͑͑ ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. PASS PASS PASS PASS PASS 2.1046 2.1049 2.1051 2.1053 2.1055 RF Output Power Occupied Bandwidth PASS Field Strength of Spurious Radiation Frequency stability Spurious and Harmonic Emission at Antenna Terminal Modulation Characteristics2.1047 Report Number : ESTR0803-0045 of 29 FCC ID : STESNCDMA37C 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests Manufacturer Agilent ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal GeneratorE4432B Equipment Spectrum Analyzer Power output shall be measured at the RF outut terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on circuit elements as specified. The electrical characteristics of the radio frequency load attached to the output terminals when this test is made shall be stated Model E4407B HP Report Number : ESTR0803-0046 of 29 4.3.1 Test Results (Uplink) Conducted power Low25 Mid.600 High1175 37.13 36.93 1851.2537.01 Freq (MHz)Power Output (dBm)Ch No. 1880.00 1908.75 Report Number : ESTR0803-0046 of 29 FCC ID : STESNCDMA37C 4.3.2 Test Results (Downlink) Low25 Mid600 High1175 ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Ch No.Freq (MHz)Power Output (dBm) 1931.2536.78 1960.0037.02 1988.7537.11 Report Number : ESTR0803-0047 of 29Report Number : ESTR0803-0047 of 29 FCC ID : STESNCDMA37C 4.4 Test Plot Uplink RF Power Output (25) RF Power Output (600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-0048 of 29 RF Power Output (1175) Report Number : ESTR0803-0048 of 29 FCC ID : STESNCDMA37C Downlink RF Power Output (25) RF Power Output (600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-0049 of 29 RF Power Output (1175) Report Number : ESTR0803-0049 of 29 FCC ID : STESNCDMA37C Input Signal Output Power Uplink (600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-00410 of 29 Downlink (600) Report Number : ESTR0803-00410 of 29 FCC ID : STESNCDMA37C 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests 5.3 Test Results ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal Generator EquipmentModel E4407B E4432B The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. Manufacturer Spectrum AnalyzerAgilent HP Report Number : ESTR0803-00411 of 29 (Uplink) (Downlink) 11751908.751.38 6001880.001.39 251851.251.37 26dB Bandwidth(MHz)ChannelFrequency(MHz) ChannelFrequency(MHz)26dB Bandwidth(MHz) 251931.251.37 6001960.001.37 11751988.751.38 Report Number : ESTR0803-00411 of 29 FCC ID : STESNCDMA37C 5.4 Test Plot Uplink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-00412 of 29 26dB Channel Bandwidith(1175) Report Number : ESTR0803-00412 of 29 FCC ID : STESNCDMA37C Downlink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0803-00413 of 29 26dB Channel Bandwidith(1175) Report Number : ESTR0803-00413 of 29 …
