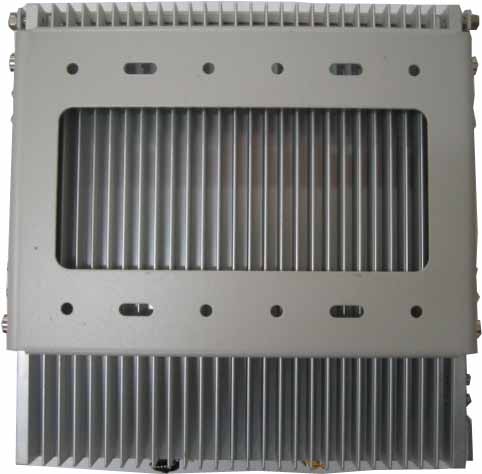

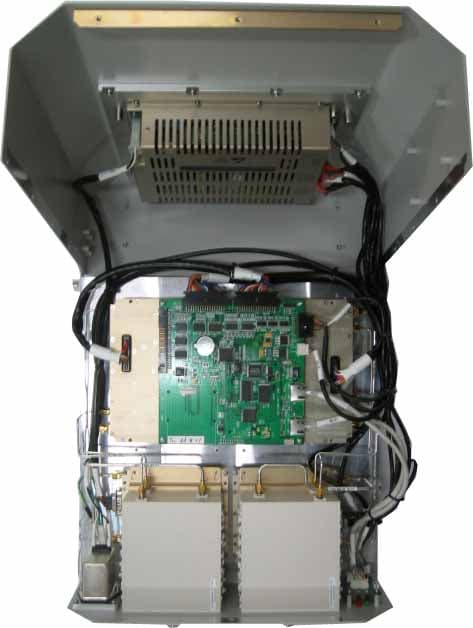

STESNIDEN25DCWireless Booster

R-tron Proprietary & Confidential Page 1 Issue: 1.0 RSN-iDEN-25-DC Manual R-tron Inc. 1 User’s Manual Safety Precautions Safety Precautions Warning Opening the iDEN MINI could result in electric shock and may cause severe injury. Warning Connect the equipment frame ground to building ground. Warning Operating the iDEN MINI with antennas in very close proximity facing each other could lead to severe damage to the Booster. Caution RF EXPOSURE INFORMATION A minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the external antenna of Booster to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov Caution This equipment is for indoor use and enables the communication wiring to communicate only inside the building. RSN-iDEN-25-C (0213).indd 12008-02-13 ¿ÀÈÄ 2:53:04 System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 2 Issue: 1.0 1. Introduction RSN-iDEN-25-DC Booster is used to fill out uncovered areas in iDEN mobile systems, such as base station fringe areas, road tunnels, business and industrial buildings, etc. An RSN-iDEN-25-DC Booster receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously. To be able to receive and transmit signals in both directions, the Booster is connected to a donor antenna directed towards the base station and to a service antenna directed towards the area to be covered. Control of the Booster is performed using a desktop or notebook loaded through the RJ-45 Jack DC Outlet for external device Remote port Local port Alarm LEDs 900MHz DL Output -30dB CPL Server antenna port 800MHz DL Output -30dB CPL Donor antenna port Modem Ant AC in and Switch 900MHz UL Output -30dB CPL 800MHz UL Output -30dB CPL Ground contact System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 3 Issue: 1.0 which can communicate with the Booster. Remote operation can be performed. RSN-iDEN-25-DC Booster work as bi-directional amplifiers. A Booster receives, amplifies, and retransmits signals inbound and outbound simultaneously, i.e. from the base station via the Booster to the mobile stations and from the mobile stations via the Booster to the base station. The Booster can be connected to a donor antenna directed towards the base station, and to a server antenna directed towards the area to be covered. The donor antenna is connected to the Booster with type-N connector. On the other hand, the server antenna is an external antenna. The RSN-iDEN-25-DC Booster are controlled by powerful microprocessors. Operational status LEDs are visible on the bottom of the Booster. The Booster works with convection cooling without fan because it has a radiator behind the body of RSN-iDEN-25-DC. Operational parameters, such as gain, power levels, alarm condition, Automatic Gain Control condition, etc. are set using a desktop or notebook and the RJ-45 jack, which communicate, either locally or remotely via the UTP(Unshielded Twisted Pair Wire) cable, with the Booster. System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 4 Issue: 1.0 2. System Design 2.1 RSN-iDEN-25-DC Specification 2.1.1 Mechanical Specification Parameter Specification RF Ports N-female x 2, SMA-female x 5 Size 13.98 X 14.37 X 7.62(inch), 355 X 365 X 193.5(mm) Weight 17.154Kg(37.82lbs) <Table 2-1> Mechanical Specification DONOR ANTENNA MODEM ANT 110 -125Vac AC IN SERVER ANTENNA Note external devices only Power outlet for compatible http://192.168.0.1:83 LOCAL MAX 2A +12Vdc or -12Vdc DC OUT REMOTE ALARM 800MHz UL Output -30dB CPL. 900MHz DL Output -30dB CPL. 800MHz DL Output -30dB CPL. 900MHz UL Output -30dB CPL. COMPLIES WITH PART 90, FCC RULES.MAKER SERIAL NO. / DATE : FCC REG. NO. POWER PRODUCT PART NUMBER 110 -125Vac , 60Hz , 2A RSN -iDE N-25-C R-tron lnc. :: STES NI DE N25C: : MADE IN KOREA I.T.E 31CY E258109 System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 5 Issue: 1.0 2.1.2 Electrical & Environmental Specification A. Spectrum Characteristics Parameter iDEN 800 iDEN 900 Operating Frequency DL 851MHz - 869MHz 935MHz ~ 940MHz UL 806MHz ~ 824MHz 896MHz ~ 901MHz Roll off characteristics DL & UL 65dBc @±500kHz from each edge of operating band (in all temperature) Flatness 2.5dB (in all temperature) Gain DL & UL 50dB to 80dB(in all temperature) Delay DL & UL 8.0μs Max. VSWR DL & UL 1.5 Max. Composite Output Power DL 25dBm UL 25dBm UL Noise Figure 5dB Max. (@80dB Gain) 12dB Max. (@50dB Gain) <Table 2-2> RF Specification System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 6 Issue: 1.0 B. Environmental specification Item Standard Remark Power supply 110V~125V, 60Hz Operating temperature -10 ~ 50 Humidity 95 % <Table 2-3> System Features System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 7 Issue: 1.0 2.2 Sub Unit Overview RSN-iDEN-25-DC is composed of the following sub units: „ UDC(Up Down Converter) „ HPAs(High Power Amplifiers) „ Multiplexers „ Main Control Unit (MCU) „ Power Supply Unit (PSU) „ EMI Filter UDC MCU DL HPA Multiplexers UL HPA EMI Filter PSU System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 8 Issue: 1.0 2.2.1 Block diagram The following, Figure explains how the RSN-iDEN-25-DC serves signals. 2.2.2 UDC Modules The UDC Module is basically a bi-directional amplifier that sharply filters out unwanted noise. System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 9 Issue: 1.0 2.2.3 Multiplexers <Rear view> <Top view> <Front view> System Manual RSN-iDEN-25-DC R-tron Proprietary & Confidential Page 10 Issue: 1.0 2.2.4 Main Control Unit (MCU) MCU is the control unit of RSN-iDEN-25-DC. It controls and monitors operational parameters. It also generates alarms, an event log and many other functions of the RSN-iDEN-25-DC. *Pin Map* Port Connected to J6 MCU Vcc(+12V…
