STESNIDEN30CiDen Mini Repeater

User’s Manual RSN-iDEN-30-C RSN-iDEN-30-C Address: R-tron Inc. 6402 College Boulevard Overland Park, KS 66211 Phone: +1-913-344-9977 , 1-888-31R-TRON Fax: +1-913-344-9988 Internet:www.r-tron.com Trademark R-tron is registered trademarks of R-tron Inc. Other products and company names mentioned herein this manual might be trademarks or trade names of their respective owners. Copyright Copyright © R-tron Inc. 2000-2007 All Rights Reserved Any reproduction, distribution, or revisions of any or all portions of this manual is prohibited without written permission from R-tron Inc. Notice This document describes the specifications, installation and operation of iDEN MINI. Hardware and software mentioned in this document are subject to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document and the performance and design of the product. Specifications, dimensions and other statements mentioned in this document are subject to change without notice. Questions or Comments Address: R-tron Inc. 6402 College Boulevard Overland Park, KS 66211 Phone: +1-913-344-9977, 1-888-31R-TRON Fax: +1-913-344-9988 Internet:www.r-tron.com Notice 1 User’s Manual Safety Precautions Safety Precautions Warning Opening the iDEN MINI could result in electric shock and may cause severe injury. Warning Connect the equipment frame ground to building ground. Warning Operating the iDEN MINI with antennas in very close proximity facing each other could lead to severe damage to the repeater. Caution RF EXPOSURE INFORMATION A minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the external antenna of repeater to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov Caution This equipment is for indoor use and enables the communication wiring to communicate only inside the building. 2 Contents Glossary 1. Introduction 2. Description 2.1 Main Unit Overview 2.2 Sub Unit Overview 2.2.1 Block Diagram 2.2.2 PSU (Power Supply Unit) 2.2.3 UDC (Up Down Converter) 2.2.4 MCU (Main Control Unit) 2.2.5 HPAs (High Power Amplifiers) 2.2.6 Multiplexer 3. Hardware Installation 3.1 Check List of Items 3.2 Mounting 3.3 Grounding 3.4 RF Cable Connection 3.5 Power On 4. Operation 4.1 Connections 4.2 System Requirements 4.3 Network Setup 4.3.1 Windows XP 4.3.2 Windows 2000 4.3.3 Windows Vista 4.4 System Login 4.5 System Setup 5. Troubleshooting 6. Specifications 3 4 5 5 7 8 8 9 10 11 11 12 12 13 15 15 16 17 17 18 18 18 21 23 26 29 42 44 3 User’s Manual Glossary The following is a list of abbreviations and terms used in this manual. Glossary ALC (Automatic Level Control) ALC feature prevents the repeater from exceeding its maximum output power, by reducing the gain automatically. ALC is used to adjust the gain to an appropriate level for a range of input signal levels. ASD (Automatic Shutdown) Automatic shut down protects the repeater itself from the oscillation or excessive input signal and eliminates any degradation to the network. There are three parameters, ASD LEVEL, ASD TIME and ASD COUNT. If the output power gets higher than “ASD LEVEL”, the repeater will shut down for “ASD TIME” time and then turn the amp back on and measure the output power again. If this repeats “ASD COUNT” times, the repeater will shut down completely. Abbreviation AC ALC ANT ASD DC GND GUI iDEN LED PSU RF TEMP VSWR Definition Alternating Current Automatic Level Control Antenna Automatic Shutdown Direct Current Grounding Graphic User Interface Integrated Digital Enhanced Network Light Emitting Diode Power Supply Unit Radio Frequency Temperature Voltage Standing Wave Ratio 4 1. Introduction iDEN MINI repeater is used to fill out areas in iDEN mobile systems, such as base station fringe areas, business and industrial buildings, etc. iDEN MINI receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously with the following features: • 7MHz or 18MHz-bandwidth service @ 800MHz’s • 5MHz-bandwidth service @ 900MHz’s • Adjustable Band Edge @ 800MHz’s and 900MHz’s • Roll Offs: 65dBc at 0.5MHz outside pass-band Overview: Service 817MHz 18MHz-bandwidth 824MHz806MHz 862MHz 869MHz851MHz901MHz896MHz Repeater Donor antenna Plugged in an AC outlet Donor iDEN 800iDEN 900 Base Station Service Mobile Station Service antenna 940MHz935MHz 7MHz-bandwidth 18MHz-bandwidth5MHz-bandwidth5MHz-bandwidth 7MHz-bandwidth iDEN 800 ULiDEN 800 DLiDEN 900 ULiDEN 900 DLiDEN 800 ULiDEN 800 DLiDEN 900 ULiDEN 900 DL 5 User’s Manual 2. Description 1. Ground rod : Connects repeater frame ground to building ground. 2. AC IN : AC Power socket and AC Power switch. 3. MODEM ANT : Connects the Modem antenna. 4. Donor Antenna Port : Connects the Donor antenna. 5. UL Output MON. : Displays the output of Up Link RF connected with a measuring instrument and outputs 20dB lower than the actual output of RF. (30dB lower for iDEN MINI) 6. DL Output MON. : Displays the output of Down Link RF connected with a measuring instrument and outputs 20dB lower than the actual output of RF. (30dB lower for iDEN MINI) 7. Service Antenna Port : Connects the Service antenna. 8. ALARM : When an alarm of the On Site Alarm occurs, the red LED blinks and when it operates without any problem, the green LED blinks. 2. Description 2.1 Main Unit Overview 1. Ground rod 3. MODEM ANT 10. DC OUT 9. Mode Selection Jack 2. AC IN 4. Donor Antenna Port 8. ALARM 7. Service Antenna Port 5.UL Output MON. 6. DL Output MON. 6 9. Mode Selection Jack : The mode selection jack has two modes: Local Mode & Remote Mode. LOCAL Mode : This mode should be selected only if the iDEN MINI is used alone without being connected to a collocated repeater functioning as a local. (Use this mode for the Operation) REMOTE Mode : This mode should be selected…

Text truncated - open the document above for the full version.

22 4. Operation SelectInternet Protocol (TCP/IP) and click Properties. Step 3 CheckObtain an IP address automatically and click OK. Step 4 Close all windows. Step 5 23 User’s Manual 4. Operation 4.3.3 Windows Vista Click the Start button and Control Panel. Step 1 ClickNetwork and Internet. Step 2 24 4. Operation ClickNetwork and Sharing Center. Step 3 ClickView status of Local Area Connection. Step 4 25 User’s Manual 4. Operation ClickProperties and a caution pop-up window will appear. Click OK. Step 5 SelectInternet Protocol Version 4 (TCP/IPv4) and click Properties. Step 6 26 4. Operation 4.4 System Login CheckObtain an IP address automatically and click OK. Step 7 Close all windows. Step 8 Open your Web browser and type “192.168.0.1:83” into the URL address box. Then press the Enter key. Step 1 27 User’s Manual 4. Operation The logon screen will appear. Type “operator” for the ID and “rtron” for the password and then click OK. Step 2 The pop-up message for the login success will appear. Click OK. Step 3 28 4. Operation The login process is complete. The Initial screen will appear. Step 4 In case of the initial login, you should input Cascade Code and Location Information of Network Setup. Otherwise a warning pop-up window will appear and you cannot access any of the menus. Step 5 29 User’s Manual 4. Operation Operator has no authorization to access this menu. ClickClock in the left menu. In this menu, you can set the date and the time. ClickSet Date/Time. 4.5 System Setup 4.5.1 Security 4.5.2 Clock 30 4. Operation ClickNetwork in the left menu. 4.5.3 Network •Cascade Code: Inputs the allocated value, otherwise you cannot access system setup. • Heartbeat Interval: Sets the time to transmit the Heartbeat to NMC Server. • Static IP for Remote Control: Uses to connect with External Monitoring Device for Remote Access. It is not necessary to set up these values due to run as a DHCP client. •Location Information: Inputs the latitude and longitude, otherwise you cannot access system setup. • Product Information: This is for vendor. DO NOT change the values. • NMC Server IP: DO NOT input this unless Sprint asks to change it, otherwise Heartbeat transmission or Remote Access may not work. 31 User’s Manual 4. Operation CheckIDEN 800 or IDEN 900 in the left menu. 4.5.4 Control Parameter Setup < IDEN 900 > < IDEN 800 > 32 4. Operation •Reset To Factory Defaults - To reset the factory default, click INITIALIZE. - To restore the previous settings, click RESTORE. •Bandwidth/Frequency: - For IDEN 800 If you select 18 MHz for bandwidth, the values of the frequency range are 851~869, 850.8~868.8, 850.6~868.6. If you select 7 MHz for bandwidth, the values of the frequency range is 862~869, 861.8~868.8, 861.6~868.6. - For IDEN 900 The values of the frequency range is 935~940, 934.8~939.8, 934.6~939.6. 817MHz 18MHz-bandwidth 824MHz806MHz 862MHz 869MHz851MHz901MHz896MHz iDEN 800iDEN 900 940MHz935MHz 7MHz-bandwidth 18MHz-bandwidth5MHz-bandwidth5MHz-bandwidth 7MHz-bandwidth iDEN 800 ULiDEN 800 DLiDEN 900 ULiDEN 900 DLiDEN 800 ULiDEN 800 DLiDEN 900 ULiDEN 900 DL The Operating Bandwidth and Frequencies of iDEN Mode Bandwidth 18MHz-bandwidth iDEN 800 iDEN 900 Operating Frequency Downlink 851~ 869MHz 850.8 ~ 868.8MHz 850.6 ~ 868.6MHz Uplink 806 ~ 824MHz 805.8 ~ 823.8MHz 805.6 ~ 823.6MHz 7MHz-bandwidth Downlink 862 ~ 869MHz 861.8 ~ 868.8MHz 861.6 ~ 868.6MHz Uplink 817 ~ 824MHz 816.8 ~ 823.8MHz 816.6 ~ 823.6MHz 5MHz-bandwidth Downlink 935 ~ 940MHz 934.8 ~ 939.8MHz 934.6 ~ 939.6MHz Uplink 896 ~ 901MHz 895.8 ~ 900.8MHz 895.6 ~ 900.6MHz 33 User’s Manual 4. Operation •DL Gain: Type values between 50 and 80 and then click APPLY. •UL Gain: Type values between 50 and 80 and then click APPLY. Note Please make sure DL Automatic Level Control,UL Automatic Level Control are turned off before the gain setup. Otherwise, it may cause an error. •DL Automatic Level Control: Type under 30 and then click APPLY and ON. •UL Automatic Level Control: Type under 30 and then click APPLY and ON. [Example] For the repeater with 30dBm Maximum Output power, 80dB Maximum Gain G%*DLQFRQWUROUDQJHĺ,ILQSXWVLJQDOLV%PDQG$/&LVVHWDVG%P the gain will be 60dB to adjust to the level. If input signal is -55dBm, the output power will be 25dBm by the limitation of the maximum gain even though the ALC is set as 30dBm. • Automatic Shutdown: Type the desired values for dBm,seconds and times and then click APPLY and ON. (e.g. 35 dBm, 3 seconds, 10 times) [Example] For the repeater with 30dBm Maximum Output power, 80dB Maximum Gain /30dB Gain control range, AssumingASD Level: 35dBm, ASD Time: 3second, ASD Count: 10. If the output power is 35dBm (ASD LEVEL) and higher for some reasons, the repeater will have shut down for 3 seconds (ASD TIME). If this repeats 10 times (ASD COUNT), the repeater will shut down completely. 34 4. Operation Alarms • Reported to Sprint : If an alarm occurs, the repeater will report directly to Sprint as a SNMP Trap so the LED of ALARM on the repeater does not blink. • On Site Alarm : If an alarm occurs, the LED of ALARM on the repeater will blink. For this alarm issued, refer to the troubleshooting. ClickUpload in the left menu. 4.5.5.1 Update: System Firmware 4.5.5 Upload ClickBrowse. Step 1 35 User’s Manual 4. Operation A pop-up window will appear. Select the firmware file and click Open. Step 2 ClickUPDATE. Step 3 A pop-up window will appear for rebooting after completing all the update processes. ClickOK to reboot the system. Step 4 36 4. Operation 4.5.5.2 Update: Web GUI ClickBrowse. Step 1 A pop-up window will appear. Select the GUI file and click Open. Step 2 ClickUPDATE. Step 3 37 User’s Manual A pop-up window will appear for rebooting after completing all the update processes. ClickOK to reboot the system. Step 4 Note After updating the Web GUI, please delete the Temporary Internet files and Cookies for the new GUI. ClickTools and Internet Options.... 38 4. Operation ClickDelete Files... and then che…

Text truncated - open the document above for the full version.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] September 14, 2007 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re: R-tron, Inc. FCC ID: STESNIDEN30C Wireless Repeater Part 90 Certification Request for Confidentiality To whom it may concern: We the undersigned R-tron,Inc. here by authorize ESTECH Co.,Ltd.(EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 90 approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, yours Sincerely, Jong Hwa, Park/R&D Center Director R&D Center R-tron, Inc.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] September 14, 2007 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re: R-tron, Inc. FCC ID: STESNIDEN30C Wireless Repeater Part 90 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, R-tron Inc. hereby requests confidentiality of the Block Diagram, Circuit Diagrams, Repeater Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which R-tron Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, R-tron Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, R-tron, Inc.

RSN-IDEN-30-C EUT-Photograph *Repeater* <Front View > < Rear View > <Top view> <Bottom view>

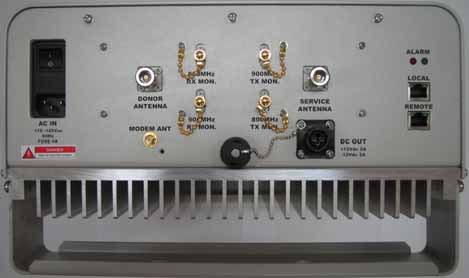

ma y n ot h armf ul in terference. RSN-iDEN-30 COMPLIES W ITH PART 90, FCC RULES. 110 -125V ~ , 60Hz , 4A :PRODUCT PART NUMBER POWER : FCC REG. NO. : STESNiDEN30 SERIAL NO. / DATE : E25 810 9 31CY I.T.E :MAKER MADE IN KOREA R-tron lnc. Operation is su bject to th e cond ition that this device Th is d ev ice co mpl ies with Part 1 5 of the FCC Rules. BRACKET LAN ALARM AC IN 110 -125V ~ 800MHz TX MON. 900MHz RX MON. DONOR ANTENNA SERVICE ANTENNA 900MHz TX MON. 800MHz RX MON.

<Left side view> <Right side view> < The Inside of the Repeater > *RF-Module* <RSN-iDEN-30 UDC Top view> <RSN-iDEN-30 800 UDC> <RSN-iDEN-30 900 UDC> <RSN-iDEN-30 HPA Top View> <RSN-iDEN-30 HPA> *MCU Board* *Communication & LED Board* <Front side> <Rear side>

S PG π4 S PG π4

Product Name Model Name RSN-iDEN-30-C ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT Wireless Repeater Report Number : ESTR0709-0171 of 28 Applicant FCC ID STESNIDEN30C ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 R-tron Inc. Report Number : ESTR0709-0171 of 28 FCC ID : STESNIDEN30C Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC Test Report Applicant Product Report Number RSN-iDEN-30-C KOREA R-tron Inc. Test Result Pass 2007-09-17 2007-7-30 ~ 2007-9-17 Other ESTR0709-017 Jisan IT Venture Center 3F, 1004-9 Doksna-Dong, Gumcheon- Gu, Seoul, Korea Wireless Repeater NONE R-tron Inc. Report Number : ESTR0709-0172 of 28 Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 90 Subpart I Tested by Approved by S.R. Kim/ Engineer (Signature) Jay Kim/ Engineering Manager (Signature) Report Number : ESTR0709-0172 of 28 FCC ID : STESNIDEN30C 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 8 6. Spurious and Harmonic Emission at Antenna Terminal Page 14 7. Field Strength of Spurious Radiation Page 18 8. Frequency stability Page 20 Contents ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0709-0173 of 28Report Number : ESTR0709-0173 of 28 FCC ID : STESNIDEN30C 1. General Information 1.1 EUT Description Frequency Rx :850.6MHz - 869MHz, 934.6MHz - 940MHz AC110V Power Rating ͑͑ ESTECH CO., LTD. http://www.estech.co.kr FCC ID STESNIDEN30C Modulation Type Product Name Model Name Wireless Repeater RSN-iDEN-30-C Tx :806MHz – 824MHz, 896MHz – 901MHz iDen(QAM) Report Number : ESTR0709-0174 of 28Report Number : ESTR0709-0174 of 28 FCC ID : STESNIDEN30C 2. Laboratory Information 3. Summary of Test Results Result ͑͑ ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. PASS PASS PASS PASS RF Output Power Occupied Bandwidth PASS Part 90 Field Strength of Spurious Radiation Frequency stability Spurious and Harmonic Emission at Antenna Terminal Report Number : ESTR0709-0175 of 28 FCC ID : STESNIDEN30C 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2008-03-02 Model E4407B Manufacturer Agilent ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Equipment Spectrum Analyzer The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Report Number : ESTR0709-0176 of 28 2008-03-02 2008-03-02 4.3.1 Test Results (800MHz Uplink) 29.70 29.95 30.00 30.00 29.8030.00 Measured Output power(dBm)Rated Output power(dBm) E4432B 50FH-010-5 824.00 815.00 806.00 Freq (MHz) HP JFW Signal Generator Attenuator Report Number : ESTR0709-0176 of 28 FCC ID : STESNIDEN30C 4.3.2 Test Results (800MHz Downlink) 4.3.3 Test Results (900MHz Uplink) ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Freq (MHz)Measured Output power(dBm)Rated Output power(dBm) 851.0029.7730.00 860.0029.9530.00 869.0029.7730.00 Report Number : ESTR0709-0177 of 28 4.3.4 Test Results (900MHz Downlink) 940.0029.6730.00 935.00 938.0030.0430.00 29.5230.00 901.0030.0130.00 Freq (MHz)Measured Output power(dBm)Rated Output power(dBm) Freq (MHz)Measured Output power(dBm)Rated Output power(dBm) 899.0030.4130.00 896.0030.0030.00 Report Number : ESTR0709-0177 of 28 FCC ID : STESNIDEN30C 4.4 Test Plot Input power (800MHz Uplink) 815MHz ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0709-0178 of 28 Output power (800MHz Uplink) 815MHz Report Number : ESTR0709-0178 of 28 FCC ID : STESNIDEN30C Input power (800MHz Downlink) 860MHz ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0709-0179 of 28 Output power (800MHz Downlink) 860MHz Report Number : ESTR0709-0179 of 28 FCC ID : STESNIDEN30C Input power (900MHz Uplink) 899MHz ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0709-01710 of 28 Output power (800MHz Uplink) 899MHz Report Number : ESTR0709-01710 of 28 FCC ID : STESNIDEN30C Input power (900MHz Downlink) 938MHz ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0709-01711 of 28 Output power (800MHz Downlink) 938MHz Report Number : ESTR0709-01711 of 28 FCC ID : STESNIDEN30C 5. Occupied Bandwidth 5.1 Test Procedure Unless specified elsewhere, channel spacings and bandwidths that will be authorized in the following frequency bands are given in the following Table. Standard Channel Spacing/Bandwidth Frequency Band Channel Spacing Auth…
