STESP-APA-002PCS Band CDMA Repeater

RSP-APA-002 (A-Band) User’s Manual RSP-APA-002 User’s Manual R-tron., Inc. 2/34 page Contents 1. Overview ------------------------------------------------------------------------ 5 2. Specifications ---------------------------------------------------------------- 6 2.1 System specifications ------------------------------------------------------- 6 2.2 Antenna specifications ------------------------------------------------------ 8 2.3 Donor Antenna Diagrams -------------------------------------------------- 9 2.4 Distributor Antenna Diagrams ------------------------------------------- 10 3. System Configuration -------------------------------------------------- 11 3.1 Block Diagram --------------------------------------------------------------11 4. Installation ---------------------------------------------------------------------12 4.1 Installation Overview -------------------------------------------------------12 4.2 Safety -----------------------------------------------------------------------12 4.3 Installation information -----------------------------------------------------12 4.4 Installing the repeater & Antenna ---------------------------------------13 5. Graphic User Interface (for maintenance) ------------------- 22 5.1 GUI Overview --------------------------------------------------------------- 22 5.2 Preliminary steps for GUI Execution & Maintenance ------------- 23 5.3 How to operate GUI & Functions -------------------------------------- 25 RSP-APA-002 User’s Manual R-tron., Inc. 3/34 page 1. Overview Figure 1.1 RSP-APA-002 Repeater R-tron RSP-APA-002 Repeater can be used in CDMA service hole spots like in-buildings, underground and tunnels to cover its service area. This repeater system designed for dual and simultaneous service, namely, it receives signals from the base station through donor antenna, amplifies the signals and re-transmits it to one or other mobile terminals. Also, it amplifies the signals which comes from mobile terminals through distributor antenna and re-amplifies it to base station. Using local OMT(Operation and Maintenance Terminal) which is connected between repeater control board and personal or laptop computer, it is possible to check or to control repeater status. With wireless modem which is in the repeater, it also enables to monitor Sprint WNMC(Wireless Network Management Center) in a remote place. RSP-APA-002 User’s Manual R-tron., Inc. 4/34 page 2. Specifications 2.1 Repeater specifications SPECIFICATION ITEM DOWN-LINK UP-LINK Repeater Type Band Specific Frequency Band A-Band Frequency Bandwidth 15MHz Frequency Range 1930 ~ 1945MHz 1850 ~ 1865MHz CDMA Frequency Error < ± 0.05ppm Rho (Pilot Only) > 0.912 RF Output Power 34dBm / Total 23dBm / Total Operating ~ -35dBm ~ -35dBm RF Input Level Maximum -10dBm System Gain 65~95dB Gain Control 0 ~ 30dB/1dB step ALC(Automatic Level Control) 10~34dBm - ASD(Automatic Shut Down) 10~37dBm - Fc ± 885kHz Min. 45dBc Min. 45dBc Fc ± 1.98MHz Min. 55dBc Min. 50dBc Spurious Emission Fc ± 2.25MHz Max. -13dBm Max. -13dBm Noise Power In-band Max. -13dBm / RBW, 1.23MHz Noise Figure Max. 5dB Ripple In Band Max. 2dB Characteristic Gain In Band ± 2dB 3dB Min. 14MHz Selectivity 40dB Max. 16MHz System Group Delay Max. 5 microseconds V.S.W.R Max. 1.5 : 1 RF Measurement Port 30dB ± 1dB Impedance 50Ω Operating Temperature / Humidity -30 ~ 50 / Max. 95% Cooling Air Convection / Heat sink Antenna Port Type-N female RF Connector Coupling Port Type-SMA female Local OMT RS-232C Wireless Modem 1X modem, SNMP RSP-APA-002 User’s Manual R-tron., Inc. 5/34 page Input voltage 110Vac +30%/-20% Size (W x H x D) 600 X 400 X 262 mm / 23.62 x 15.75 x 10.31 in Weight Less than 36.5Kg / Less than 80.47 lbs Table 2.1 Repeater Specification Figure 2.1 A body of the RSP-APA-002 RSP-APA-002 User’s Manual R-tron., Inc. 6/34 page 2.2 Antenna Specifications Specification Parameter Donor Distribution Frequency range 1850 ~ 1990MHz Frequency bandwidth 140MHz Antenna gain 16dBd ±1dB 12dBd ±1dB Horizontal 20°±3° 48°±5° Beam width Vertical 20°±3° 25°±3° Polarization Horizontal/Vertical Vertical VSWR < 1.5 First Sidelobe Suppression > 13dB Impedance 50 Ω Power Capability 200 Watts Front to back ratio > 40dB > 40dB Antenna Connector Port Type 1x7/16-Female Weight 9kg / 19.8lbs 5.5kg / 12.1lbs Dimension (W x H x D) 530 x 530 x 70 mm (21.2 x 21.2 x 2.8 inch) 500 x 300 x 110 mm (20.0 x 12.0 x 4.4 inch) Mounting Pole or Wall Radome(color) ASA FRP (Grey) Wind load (at 150 km/h) Front : 534 N Side : 107 N Rear : 534 N Table 2.2 Antenna Features RSP-APA-002 User’s Manual R-tron., Inc. 7/34 page 2.3 Donor Antenna Diagrams Figure 2.2 Donor Antenna RSP-APA-002 User’s Manual R-tron., Inc. 8/34 page 2.4 Distributor Antenna Diagrams Figure 2.3 Distributor Antenna RF EXPOSURE INFORMATION The antenna used for this transmitter must not exceed 20dBi and must be installed to provide a minimum separation distance of 1.5m from all persons. RSP-APA-002 User’s Manual R-tron., Inc. 9/34 page 3. System Configuration 3.1 Block Diagram Figure 3.1 shows the block diagram of a band specific repeater. This diagram is applicable to repeaters for CDMA systems. 3.1.1 Downlink signal path DL signal path gives a wireless mobile terminal path after receiving signal from base station, amplifying and noise filtering. Please refer to the following picture 3.1, RSP-APA-002 repeater block diagram. 3.1.2 Uplink signal path UL signal path gives a path after receiving signal from mobile terminal, amplifying and noise filtering. Please refer to the following picture 3.1, RSP-APA-002 repeater block diagram. PLL:Variable Donor Ant. G : 16dBd RF Input range -61 ~ -31 dBm HPA PLL:Variable System Gain : 95 dB System Gain : 95 dB RF SA W Att.(1) Att.(3) Att.(2) 15MHz (or 5MHz) SAW Filter RF SA W Att.(1) Att.(3) Att.(2) Distributor Ant. G : 12dBd RF Output (UL) 23dBm/Total RF Input range -72 ~ -42 dB m +45 dB 45dB -2 dB -2 dB+54 dB HPA 45dB -63 ~ -33 dBm 15MHz (or 5MHz) SAW Filter 36 dBm-9 dBm +45 dB -2 dB -…

Text truncated - open the document above for the full version.

NOTCHCELL 2.5W User’s Manual R-tron., Inc. 13/21 page 4. Block Diagram Figure 4.1 shows the block diagram of a band specific repeater. This diagram is applicable to repeaters for CDMA systems. 4.1 Downlink signal path DL signal path gives a wireless mobile terminal path after receiving signal from base station, amplifying and noise filtering. Please refer to the following picture 4.1, RSP-APA-002 repeater block diagram. 4.2 Uplink signal path UL signal path gives a path after receiving signal from mobile terminal, amplifying and noise filtering. Please refer to the following picture 4.1, RSP-APA-002 repeater block diagram. 4.3 Repeater Setup The repeater parameters can be set locally by means of a desktop or notebook running OMT. The PC is connected to the MCU via the RS-232 PC port. PLL:Variable Donor Ant. G : 16dBd RF Input range -61 ~ -31 dBm HPA PLL:Variable System Gain : 95 dB System Gain : 95 dB RF SA W Att.(1) Att.(3) Att.(2) 15MHz (or 5MHz) SAW Filter RF SA W Att.(1) Att.(3) Att.(2) Distributor Ant. G : 12dBd RF Output (UL) 23dBm/Total RF Input range -72 ~ -42 dBm +45 dB 45dB -2 dB -2 dB+54 dB HPA 45dB -63 ~ -33 dBm 15MHz (or 5MHz) SAW Filter 36 dBm-9 dBm +45 dB -2 dB -2 dB +54 dB -74 ~ -44 dBm25 dBm-20 dBm Duplexer RF Output (DL) 34dBm/Total Duplexer

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101~2(Rep.) Fax: +82-2-896-4107 [email protected] April 17. 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : R-Tron, Inc. FCC ID: STESP-APA-002 RF Repeater (CDMA) Part 24 Certification POWER OF ATTORNEY To whom it may concern: We the undersigned R-Tron, Inc. hereby authorize ESTECH Co.,Ltd. (EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 24 approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don ’t hesitate to contact us. Sincerely yours, Sincerely, ------------------------------------------------------ R-tron, Inc.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101~2(Rep.) Fax: +82-2-896-4107 [email protected] April 10. 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : R-Tron, Inc. FCC ID: STESP-APA-002 RF Repeater (CDMA) Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, R-Tron Inc. hereby requests confidentiality of the Circuit Diagrams, Repeater Description, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which R-tron Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, R-tron Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, ------------------------------------------------------ R-tron, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 14, 2006 RE: R-Tron, Inc. FCC ID: STE-SP-APA-002 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please revise your Form 731 to indicate the frequency range being the center frequency of the lowest channel to the center frequency of the highest channel. This is FCC policy for any broadband transmissions which operate in any non-channelized Rule sections. Part 24 does not specify the channelization, therefore this interpretation applies. 2.) The FCC ID on Form 731 does not match the Label. Is there a typo? 3.) FCC interpretations specify that all views of all circuit boards with all RF shielding removed should be submitted. It appears that many views include this shielding. Please review. 4.) The Confidentiality Request includes Exhibits that are not typically included in any Confidentiality request. In general, FCC will keep as Confidential only Schematics, Block Diagram, Operational Description, Parts and Tune Up procedures. Kindly provide a detailed rationale for including any additional Exhibits. We may need to seek guidance from FCC as required. 5.) The Manual includes a Block Diagram exhibit. Since you have requested Confidentiality treatment for all Block Diagrams, there appears to be a conflict. Please review. 6.) The Manual doers not contain any RF Exposure information for installers. Typically installers must be given instructions as to how to protect the general public from excessive RF Exposure. There is information contained within the separate RF Exposure exhibit which should appear in the Manual. 7.) If desired, an Agent Authorization request from R-Tron to Estech should be included with this filing. 8.) In general, all repeaters must provide a plot of any input signals and their levels. This does not appear to have been done. Please supply. 9.) You have only requested CDMA (F9W) as a legitimate input/output signal for this device. However, for North America there are many different schemes which can operate within the Part 24 bands. Since from the Block Diagram it appears that this device does not demodulate the received signal, kindly provide an explanation how only CDMA emissions will be selected and repeated. 10.) FYI: It would be useful to provide a gain table or chart showing how this device handles RF Pout changes relative to input signal level. As a suggestion, a chart showing input vs. output levels from an input level of -70 to -30dBm (these are simply suggested values) would be useful for understanding this device. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 April 14, 2006 Any questions about the content of this correspondence should be directed to the sender.

1 William Graff From: Sung Ryul Kim [[email protected]] Sent: Tuesday, April 18, 2006 6:58 PM To: 'William Graff' Subject: RE: www.AmericanTCB.com ATCB003381 | STESP-APA-002 | | | STESP-APA-002 _ATCB003381 Hello William, The answers of your comments are as follows. 1. The device supports only Block A band of US PCS. (15MHz band) So, we apply just PCS A band for it. 2. I uploaded the revised label form and 731 form of it on ATCB web. 3. I know for that. But, we can't open the duplexer. 4. I uploaded the revised confidentiality request letter on ATCB web. 5. Because we correct the confidentiality letter, the manual is ok. 6. It is included page 8 bottom of the manual. 7. I uploaded the Authorization letter on ATCB web. 8. It is included page 9 of RF test report. 9. The repeater is just an amplifier. So, it is not modulate and demodulate. It just amplifies the input CDMA signal. In this case, should we select which emission code? Please recommend us for it. My client wants to get the grant of it within tomorrow. If you need anything, let me know. Thanks. SUNG RYUL KIM Estech Co., Ltd. Rm.1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea TEL : +82-2-867-3201 FAX : +82-2-867-3204 International Test Laboratory for EMC /Safety /Telecom -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Friday, April 14, 2006 5:07 PM To: [email protected]; [email protected]; [email protected] Cc: [email protected]; [email protected] Subject: www.AmericanTCB.com ATCB003381 | STESP-APA-002 | | | STESP-APA- 002_ATCB003381 Regarding www.AmericanTCB.com application: ATCB ID: ATCB003381 FCC ID: STESP-APA-002 IC ID: NB ID: Account name: estech Please see attached comments for this filing. Best Regards, Bill 2 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President and Director of Engineering ~ AmericanTCB, Inc. ~ 6731 Whittier Ave, ~ McLean, VA 22101 ~ mailto:[email protected] ~ Direct Phone: (703) 880-6337 ~ Direct Mobile: (480) 459-6706 ~ Corporate Phone: (703) 847-4700 ~ Corporate FAX: (703) 847-6888 ~ Taiwan Mobile: +886 920399260 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

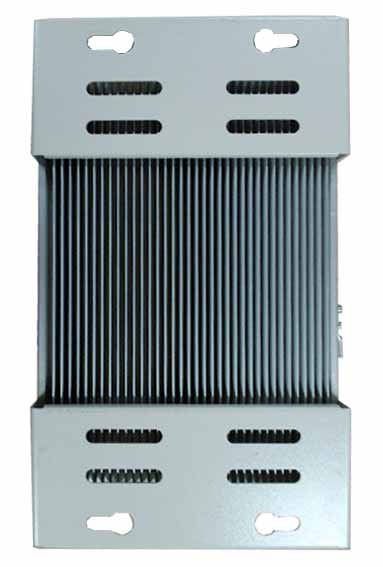

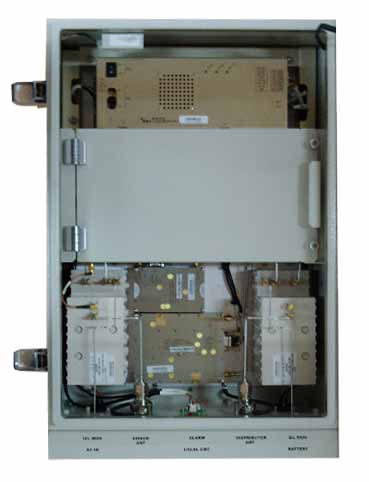

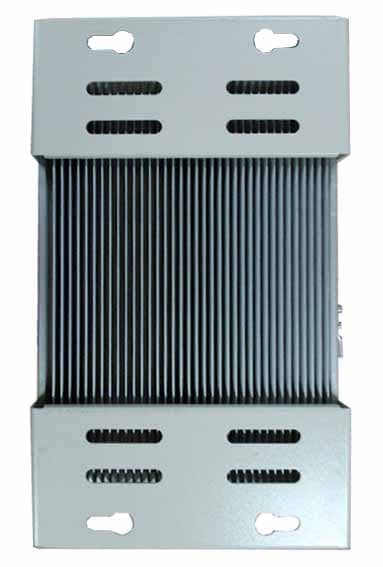

1. Main Box < Front View > < Rear View > < The Inside of the Repeater>

FCC ID Label

2. HPA - DL HPA - UL HPA 3. Up Down Converter 4. Duplexer - Duplexer – Base station - Duplexer – Mobile station 5. MCU 6. SNMP 7. PSU

1. Description of EUT 2. Friis Formula Friis transmission formula : S = (P out *G) / (4*π*r 2 ) S = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. EUT Operating condition • FCC ID : STESP-APA-002 • Model No. : RSP-APA-002 • Freq. Range : - Downlink: 1930 ~ 1945MHz - Uplink: 1850 ~ 1865MHz • Power Rating : AC110V, 60Hz • EUT Type : RF Repeater(CDMA), 1900MHz PCS Block A R = Prediction of MPE Limit The software provided by Manufacturer enabled the EUT to Maximum Output Power with downlink and uplink mode. Pd is the limit of MPE, 1mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. S PG π4 4. Test Results 4.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 19.15dBi or 82.224 (numeric). 4.2 Output Power into Antenna & Distance at RF Exposure value(1mW/cm 2 ) : MODE: Downlink Channel Channel Frequency (MHz) Maximum Output Power to Antenna (mW) R (m) 1501937.502535.1291.288 MODE: Uplink Channel Channel Frequency (MHz) Maximum Output Power to Antenna (mW) R (m) 1501857.50199.9860.362

Product Name Model Name Applicant FCC ID RSP-APA-002 R-TRON, Inc. STESP-APA-002 ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT PCS Repeater(CDMA) Report Number : ESTR0604-0041 of 29 FCC ID : STESP-APA-002 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ͑͑ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number RSP-APA-002 KOREA R-TRON, Inc. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 24 Subpart E Tested by Approved by S.R. Kim/ Engineer (Signature) Jay Kim/ Engineering Manager (Signature) ESTR0604-004 Jisan IT Venture Bldg., 2/3F, 1004-9/10, Doksan-Dong, Gumcheon- Gu, Seoul, Korea PCS Repeater(CDMA) NONE R-TRON, Inc. Test Result Pass 2006-04-06 2005-02-13 ~ 2006-04-06 Other Report Number : ESTR0604-0042 of 29 FCC ID : STESP-APA-002 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 11 6. Spurious and Harmonic Emission at Antenna Terminal Page 14 7. Field Strength of Spurious Radiation Page 24 8. Frequency stability Page 27 Contents ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-0043 of 29 FCC ID : STESP-APA-002 1. General Information 1.1 EUT Description Channel Uplink :1851.25 ~ 1863.75MHz Uplink&Downlink(25/150/275) CDMA Frequency Downlink :1931.25 ~ 1943.75MHz 110VAC(85 ~ 145VAC) Power Rating ͑͑ ESTECH CO., LTD. http://www.estech.co.kr FCC ID STESP-APA-002 Modulation Type Product Name Model Name PCS Repeater(CDMA) RSP-APA-002 Report Number : ESTR0604-0044 of 29 FCC ID : STESP-APA-002 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS ͑͑ ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard RF Output Power Occupied Bandwidth PASS 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Part 24 Field Strength of Spurious Radiation Frequency stability Spurious and Harmonic Emission at Antenna Terminal Report Number : ESTR0604-0045 of 29 FCC ID : STESP-APA-002 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests 4.3.1 Test Results (Uplink) Low25 Mid.150 High275 100-SA-MFN-30Bird Electronic Corp. 1857.50 1863.75 23.01 23.01 1851.2522.98 Freq (MHz)Power Output (dBm) Manufacturer Agilent Attenuator Ch No. ͑͑ESTECH CO., LTD. http://www.estech.co.kr Signal GeneratorE4432B Equipment Spectrum Analyzer The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Model E4407B HP Report Number : ESTR0604-0046 of 29 FCC ID : STESP-APA-002 4.3.2 Test Results (Downlink) Low25 Mid150 High275 ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Ch No.Freq (MHz)Power Output (dBm) 1931.2533.98 1937.5033.94 1943.7534.04 Report Number : ESTR0604-0047 of 29 FCC ID : STESP-APA-002 4.4 Test Plot Uplink RF Power Output (25) RF Power Output (150) RF Power Output (275) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-0048 of 29 FCC ID : STESP-APA-002 Downlink RF Power Output (25) RF Power Output (150) RF Power Output (275) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-0049 of 29 FCC ID : STESP-APA-002 Input Signal Output Power Uplink (150) Downlink (150) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-00410 of 29 FCC ID : STESP-APA-002 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests 5.3 Test Results (Uplink) (Downlink) The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. 2751863.751.37 100-SA-MFN-30 1501857.501.39 ChannelFrequency(MHz) Manufacturer Agilent HP ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal Generator EquipmentModel E4407B E4432B 251851.251.38 Spectrum Analyzer AttenuatorBird Electronic Corp. 26dB Bandwidth(MHz) ChannelFrequency(MHz)26dB Bandwidth(MHz) 251931.251.38 1501937.501.39 2751943.751.38 Report Number : ESTR0604-00411 of 29 FCC ID : STESP-APA-002 5.4 Test Plot Uplink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(150) 26dB Channel Bandwidith(275) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-00412 of 29 FCC ID : STESP-APA-002 Downlink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(150) 26dB Channel Bandwidith(275) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0604-00413 of 29 FCC ID : STESP-APA-002 6.…
