STESP-APP-020PCS Band CDMA Booster

Notchcell 20W Operating Manual Programmable Type Version 1.0 NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 2 / 57 CONTENT 1. OVERVIEW 3 2. SPECIFICATIONS 4 2.1 NOTCHCELL 20W 4 2.2 ANTENNA 5 3. INSTALLATION 6 3.1 GENERAL 6 3.2 TECHNICAL SPECIFICATION 7 3.3 INSTALLING INFORMATION 11 4. OPERATION 29 4.1 ISOLATION TEST POCEDURE OF ANTENNA 29 5. GRAPHIC USER INTERFACE 31 5.1 INTRODUCTION 31 5.2 GETTING STARTED 32 5.3 CONNECTING TO THE NOTCHCELL 33 5.4 SETUP & STATUS MODE SYSTEM DISPLAY 35 5.5 REPEATER SET USING GUI 37 APPENDIX A. SYSTEM PARAMETERS 49 A.1 SYSTEM STATE WINDOW 49 A.2 MENU SELECTION WINDOW 52 APPENDIX B. MODEM 55 B.1 SYSTEM WINDOW 55 B.2 MODEM WINDOW 57 NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 3 / 57 1. Overview NOTCHCELL repeater can be used in CDMA service hole spots like in-buildings, underground and tunnels to cover its service area. This repeater system designed for dual and simultaneous service, namely, it receives signals from the base station through donor antenna, amplifies the signals and re-transmits it to one or other mobile terminals. Also, it amplifies the signals which comes from mobile terminals through distributor antenna and re-amplifies it to base station. Using local OMT(Operation and Maintenance Terminal) which is connected between repeater control board and personal or laptop computer, it is possible to check or to control repeater status. With wireless modem which is in the repeater, it also enables to monitor Sprint WNMC(Wireless Network Management Center) in a remote place. Figure 1.1 NOTCHCELL repeater NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 4 / 57 2. Specifications 2.1 Notchcell 20W Repeater SPECIFICATION ITEM DOWN-LINK UP-LINK Repeater Type Band Selective (5,10,15,20,5+5,10+5,15+5MHz) Frequency Range 1930 ~ 1990MHz 1850 ~ 1910MHz CDMA Frequency Error < ± 0.05ppm Rho (Pilot Only) > 0.912 RF Output Power 43dBm / Total 28dBm / Total Operating ~ -30dBm ~ -30dBm RF Input Level Maximum (abnormal) +10dBm System Gain 65~95dB Gain Control 0 ~ 30dB/1dB step ALC(Automatic Level Control) 13~43dBm - ASD(Automatic Shut Down) 15~45dBm - Fc ± 885kHz Min. 45dBc Fc ± 1.98MHz Min. 50dBc Spurious Emission Fc ± 2.25MHz Max. -13dBm Noise Power In-band Max. -13dBm / RBW, 1.23MHz Noise Figure Max. 5dB Ripple In Band Max. 3dB 5M 3dB : Min. 4MHz, 40dB : 6MHz 10M 3dB : Min. 9MHz, 40dB : 11MHz 15M 3dB : Min. 14MHz, 40dB : 16MHz Selectivity 20M 3dB : Min. 19MHz, 40dB : 21MHz System Group Delay Max. 5 microseconds V.S.W.R Max. 1.5 : 1 RF Measurement Port 30dB ± 1dB Impedance 50Ω Cooling Air Convection / Heat sink Antenna Port Type-N female RF Connector Coupling Port Type-SMA female Local OMT RS-232C Wireless Modem 1X modem, SNMP Table 2.1 Specifications of Notchcell 20W NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 6 / 57 3. Installation 3.1 General 3.1.1 Overview This standard provides a reasonable and efficient installation method for the RF repeater in consideration of site conditions and particularity of the installation process. 3.1.2 Structure - Technical details: Description on the configuration and standard for the main box. - Installation of cabinet: Description on the installation method of main box and PSU (Power Supply Unit) box. - AC power supply: Description on the AC input to the AC distribution panel. - Grounding: Description on the grounding of the main box and PSU box. - Power feeder cable: Description on the installation method of antenna and power feeder cable. 3.1.3 Scope of application - This standard presents all sorts of information on the repeater and the installation standard for the reasonable and efficient construction as well as the smooth process. - This standard presents general technical conditions for power supplies, groundings, and other execution designs. - This standard presents the installation of equipments, construction and details to be considered under the site conditions. - All construction works must be performed in conformity to this standard, but are subject to the site conditions. 3.1.4 Safety management 3.1.4.1 Objective This safety regulation defines the requirements for eliminating dangerous causes and preventing accidents in workers’ conducting their duties at the site. 3.1.4.2 Scope of application Site representatives, safety managers or site supervisors are responsible for safety of the site workers and the public. They shall take the full measures to prevent possible accidents. NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 7 / 57 3.2 Technical specification 3.2.1 Environmental Conditions ITEM STANDARD Power supply 110Vac ± 20% / 50/60Hz ±5% or +24Vdc battery backup available (option) Operating temperature - 30 ~ +50 Humidity 95 % Consumption power 400W(Normal) / 700W(Max.) Rainfall 100 mm/Hr Water proof NEMA 4x Wind pressure 60m/s 3.2.2 Mechanical specification 3.2.2.1 Main box NO. Title NO. Title 1 Name Plate 6 DL Amplifier 2 Base 7 Duplexer(Mobile station) 3 Heat Sink 8 UDC(Up Down Converter) 4 MTG Bracket 9 DC/DC Converter 5 Duplexer(Base station) 10 UL Amplifier Figure 3.1 Main box ITEM SPECIFICATION RF Connector N-female Size (W x H x D) 710 X 470 X 370 mm / 27.95 x 18.50 x 14.57 inch Weight Less than 50Kg / Less than 110 lbs NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 8 / 57 3.2.2.2 PSU box NO. Title NO. Title 1 Name Plate 3 Heat Sink 2 Base 4 MTG Bracket Figure3.2 PSU box ITEM SPECIFICATION Size (W x H x D) 450 X 385 X 315 mm / 17.72 X 15.16 X 12.40 inch Weight Less than 25Kg / Less than 55lbs NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 9 / 57 3.2.2.3 Donor antenna Figure3.3 Donor antenna ITEM SPECIFICATION RF Connector 1 X 7/16-female Antenna 1020 X 675 X 116 mm / 40.16 X 26.57 X 4.57 inch Size (W x H x D) Shipping box 1130 X 785 X 270 mm / 44.49 X 30.91 X 10.63 inch Weight Less than 20 kg / Less than 45 lbs NOTCHCELL 20W OPERATING MANUAL R-tron America, Inc. Page: 10 / 57 3.2.2.4 Distributor antenna Figure3.4 Distributor an…

Text truncated - open the document above for the full version.

B B l l o o c c k k d d i i a a g g r r a a m m BPF(4R3) 1880MHz 1960MHz HMC485 1880M->160M 1960M->240M LPF Coupler (-15dBm) ATT(1) (0~30 dB) Type5 (BW:5M) Input Det. Type1 (BW:5M) Type2 (BW:10M) Type3 (BW:15M) Type4 (BW:20M) RF SAW 1880MHz RF SAW 1880MHz RF SAW 1880MHz HMC244G16 MASWSS0 005TR Coupler (-15dBm) Splitter c LPF HMC485 1880M->160M MASWSS0 005TR ATT (2) 0~30 dB VVA AV102 Coupler (-15dBm) LPF PAD(TH) BPF(4R3) 1880MHz BPF(4R3) 1880MHz BPF(4R3) 1880MHz HMC485 160M->1880M HMC485 160M->1880M Splitter LO:1720MHz LO:1720MHzLO:1720MHz LO:1720MHz BPF(4R3) 1880MHz LPFLPF VVA DIODE BPF(4R3) 1880MHz (BW:60MHz) PLL 1880MHz (BW:60MHz) ISO Pilot Input Det. -90 ~ -50dBm Start : 2V RF SAW 1880MHz UL ISO DET. AD8307 AG-604 AG-604 LPF HMC485 1880M->85.38M PLL BPF(4R3) 1794.62MHz (BW:60MHz) PLL 1794.62MHz (BW:60MHz) VVA DIODE Crystal SAW 85.38MHz PLL HPA BPF(4R3) 1960MHz HMC485 1960M->240M LPF Coupler (-15dBm) Duplexer ATT(1) (0~30 dB) Type5 (BW:5M) Type1 (BW:5M) Type2 (BW:10M) Type3 (BW:15M) Type4 (BW:20M) RF SAW 1960MHz RF SAW 1960MHz RF SAW 1960MHz HMC244G16 MASWSS0 005TR Coupler (-15dBm) Splitter c LPF HMC485 1960M->240M MASWSS0 005TR ATT (2) 0~30 dB VVA AV102 Coupler (-15dBm) LPF PAD(TH) BPF(4R3) 1960MHz BPF(4R3) 1960MHz BPF(4R3) 1960MHz HMC485 240M->1960M HMC485 240M->1960M Splitter LO:1720MHz LO:1720MHzLO:1720MHz LO:1720MHz BPF(4R3) 1960MHz LPFLPF VVA DIODE DL OUT 1960MHz (BW:60MHz) LPA Duplexer DL IN 1960MHz (BW:60MHz) Input Det. UL IN 1880MHz (BW:60MHz) ISO OUT 1880MHz (BW:60MHz) UL OUT 1880MHz (BW:60MHz)

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] May 24. 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : R-tron, Inc. FCC ID: STESPAPP020 RF Repeater (CDMA) Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, R-tron Inc. hereby requests confidentiality of the Circuit Diagrams, Repeater Description, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which R-tron Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, R-tron Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, R-tron, Inc.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] May 24. 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : R-tron, Inc. FCC ID: STESPAPP020 RF Repeater (CDMA) Part 24 Certification Request for Confidentiality - This R-tron Inc. RF Repeater system was designed and tested for IS-95 series(CDMA) specifications. Therefore, maximum function can be done when the repeater will be used under CDMA circumstance. - As for GSM and DCS 1800(GPRS), R-tron Inc. RF Repeater may not meet the specifications. - In other words, when it comes to GSM or DCS 1800(GPRS) situation, R-tron Inc. can not afford to guarantees repeater full functions. For example, one of the differences between GSM and CDMA is power control algorithm. - For that reason, this R-tron RF Repeater system absolutely should be used in CDMA communication and expected end-customer of this repeater system is Sprint which is CDMA(PCS 1900) operator. Sincerely, R-tron, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 5, 2006 RE: R-Tron, Inc FCC ID: STESP-APP-020 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please provide both Internal and External photographs for this device. 2.) Please remove the reference to Photographs in the Confidentiality Request 3.) The tune-up procedure provided is insufficient. How is this device tuned up at the factory? What are the target RF power values? 4.) Please provide a Parts List. 5.) This device contains a receiver as part of a Licensed transmitter. Therefore the regulatory statements of 15.19(a)(1) would apply. Please review and add this statement to the EUT as appropriate. 6.) FYI: The plots provided in Section 5.4 of the Test Report are very difficult to read. In the future, please do not send plots which are so “short and wide” in aspect ratio. Larger plots would be appreciated 7.) Because of the RF power and antenna gain of this device, it is advisable that installation instructions be given indicating how to minimize RF exposure to all persons. Please note the RF Exposure exhibit indicates that a minimum distance of ~115cm (depending on antenna gain) should be followed. Please review. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Jisan IT Venture Center 2,3F, 1004-9,10, Doksan-Dong, Gumcheon-Gu, Seoul, Korea Tel: +82-2-896-4101 Fax: +82-2-896-4107 [email protected] May 24. 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : R-tron, Inc. FCC ID: STESP-APP-020 RF Repeater (CDMA) Part 24 Certification Request for Confidentiality To whom it may concern: We the undersigned R-tron,Inc. here by authorize ESTECH Co.,Ltd.(EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 24 approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, yours Sincerely, R-tron, Inc.

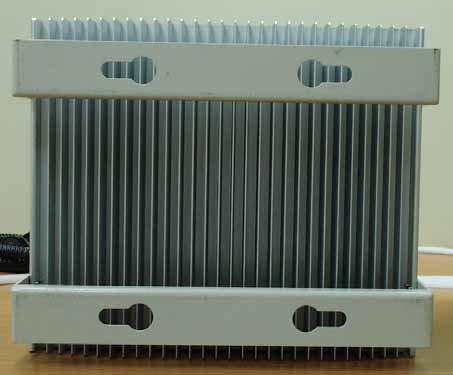

1. Main Box < Front View > < Rear View > < The Inside of the Repeater> 2. PSU Box < Front View > < Rear View > < The Inside of the Repeater>

3. MCPA - DL MCPA - UL MCPA 3. Up Down Converter < The Inside of the DL UDC> < The Inside of the DL UDC> < The Inside of the UL UDC> < The Inside of the UL UDC> 4. Duplexer - Duplexer – Base station - Duplexer – Mobile station 5. MCU 6. SNMP 7. PSU 8. DC to DC Converter

S PG π4

Product Name Model Name Applicant FCC ID ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT PCS Repeater(CDMA) ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 RSP-APP-020 R-TRON, Inc. STESP-APP-020 Report Number : ESTR0605-0101 of 29 FCC ID : STESP-APP-020 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date Test Result Pass 2006-05-23 2005-04-26 ~ 2006-05-23 Other ESTR0605-010 Jisan IT Venture Bldg., 2/3F, 1004-9/10, Doksan-Dong, Gumcheon- Gu, Seoul, Korea PCS Repeater(CDMA) NONE R-TRON, Inc. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 24 Subpart E Tested by Approved by S.R. Kim/ Engineer (Signature) Jay Kim/ Engineering Manager (Signature) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number RSP-APP-020 KOREA R-TRON, Inc. Report Number : ESTR0605-0102 of 29 FCC ID : STESP-APP-020 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 11 6. Spurious and Harmonic Emission at Antenna Terminal Page 14 7. Field Strength of Spurious Radiation Page 24 8. Frequency stability Page 27 Contents ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-0103 of 29 FCC ID : STESP-APP-020 1. General Information 1.1 EUT Description Input: 110VAC(85 ~ 145VAC) Power Rating ͑͑ ESTECH CO., LTD. http://www.estech.co.kr FCC ID STESP-APP-020 Modulation Type Product Name Model Name PCS Repeater(CDMA) RSP-APP-020 Channel Uplink :1851.25 ~ 1908.75MHz Uplink&Downlink(25/600/1175) CDMA Frequency Downlink :1931.25 ~ 1988.75MHz Report Number : ESTR0605-0104 of 29 FCC ID : STESP-APP-020 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS Frequency stability Spurious and Harmonic Emission at Antenna Terminal PASS 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Part 24 Field Strength of Spurious Radiation Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard RF Output Power Occupied Bandwidth ͑͑ ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Report Number : ESTR0605-0105 of 29 FCC ID : STESP-APP-020 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests 4.3.1 Test Results (Uplink) Low25 Mid.600 High1175 100-SA-MFN-30Bird Electronic Corp.Attenuator ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal GeneratorE4432B Equipment Spectrum Analyzer The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Model E4407B HP Manufacturer Agilent Ch No. 1880.00 1908.75 Freq (MHz)Power Output (dBm) 28.02 28.03 1851.2528.01 Report Number : ESTR0605-0106 of 29 FCC ID : STESP-APP-020 4.3.2 Test Results (Downlink) Low25 Mid600 High1175 43.03 1988.7542.98 ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Ch No.Freq (MHz)Power Output (dBm) 1931.2543.00 1960.00 Report Number : ESTR0605-0107 of 29 FCC ID : STESP-APP-020 4.4 Test Plot Uplink RF Power Output (25) RF Power Output (600) RF Power Output (1175) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-0108 of 29 FCC ID : STESP-APP-020 Downlink RF Power Output (25) RF Power Output (600) RF Power Output (1175) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-0109 of 29 FCC ID : STESP-APP-020 Input Signal Output Power Uplink (600) Downlink (600) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-01010 of 29 FCC ID : STESP-APP-020 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests 5.3 Test Results (Uplink) (Downlink) 6001960.001.38 11751988.751.37 ChannelFrequency(MHz)26dB Bandwidth(MHz) 251931.251.38 1.38 Spectrum Analyzer 26dB Bandwidth(MHz) AttenuatorBird Electronic Corp.100-SA-MFN-30 Agilent HP ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal Generator EquipmentModel E4407B E4432B The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. 1.38 6001880.001.38 ChannelFrequency(MHz) Manufacturer 11751908.75 251851.25 Report Number : ESTR0605-01011 of 29 FCC ID : STESP-APP-020 5.4 Test Plot Uplink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(600) 26dB Channel Bandwidith(1175) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-01012 of 29 FCC ID : STESP-APP-020 Downlink 26dB Channel Bandwidith(25) 26dB Channel Bandwidith(600) 26dB Channel Bandwidith(1175) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0605-01013 of 29 FCC ID …

Text truncated - open the document above for the full version.
