SDM630 Mobile Radio DMR Tier II Operating Instructions TNMUE0108 Issue 1.1 Simoco Australasia Pty Ltd 1270 Ferntree Gully Road Scoresby Victoria, 3179 Australia ISO9001 Li c.QEC20848 S AI Global SDM630 DMR TIER II – OPERATING INSTRUCTIONS © SimocoGroup Australasia 2013 page 2 TNM-U-E-0108 Issue 1.1 ASSOCIATED DOCUMENTATION The following documentation is available for use with the SDM600 series of products: TNM-U-E-0110 SDM630 DMR User Guide TNM-I-E-0038 SDM600 Installation Sheet To order copies of any of the above publications, or any other Simoco product, contact Simoco Australasia on +61 3-9730-3999 or send a Fax on +61 3-9730-3968. The Simoco web site also has a comprehensive list of documentation available for download. http://www.simoco.com.au ABOUT THIS DOCUMENT This publication is copyright and no part may be reproduced without prior permission of Simoco Australasia. Due to our policy of continuous improvement to our products and services, technical specifications and claims, correct at time of publication, may be subject to variation without prior notice. Simoco Australasia has endeavoured to ensure that the information in this document is fairly and accurately stated, but does not accept liability for any errors or omissions. SDM630 DMR TIER II – OPERATING INSTRUCTIONS © SimocoGroup Australasia 2013 page 3 TNM-U-E-0108 Issue 1.1 SAFETY 1. Do NOT operate your radio, without a hands free kit, whilst driving a vehicle. 2. Do NOT operate your radio in an explosive atmosphere. Obey the 'Turn Off Twoway Radios' signs where these are posted, e.g. on a petrol station forecourt. 3. Do NOT touch the antenna while the radio is transmitting. HINTS FOR USING THE RADIO • When speaking, hold the microphone a few centimetres from your mouth and speak across it, rather than into it. • Keep the length of your conversation to a minimum and replace the microphone on its cradle after use. • When it is possible to move location, avoid making calls from known poor signal-strength areas such as the radio systems fringe areas (limit of range) or from screened or shadowed areas, e.g. an underground car park or underpass. • To avoid unnecessary drain on the vehicle battery, keep the engine running when using the radio for extensive periods of time. SDM630 DMR TIER II – OPERATING INSTRUCTIONS © SimocoGroup Australasia 2013 page 4 TNM-U-E-0108 Issue 1.1 CONTENTS 1. INTRODUCTION..................................................................................................6 1.1 Overview......................................................................................................6 1.2 Configuration ..............................................................................................6 1.3 Installation...................................................................................................6 1.4 Modes of Operation ....................................................................................6 2. CONTROLS.........................................................................................................7 3. MENU SYSTEM.................................................................................................10 3.1 Menu Navigation .......................................................................................11 4. MENU SCREENS ..............................................................................................13 4.1 Channel Screen.........................................................................................13 4.2 Menus.........................................................................................................16 4.2.1 Zone Menu ..............................................................................................16 4.2.2 Squelch ...................................................................................................17 4.2.3 Mute Adjust .............................................................................................18 4.2.4 Phonebook Menu ....................................................................................19 4.2.5 User Options ...........................................................................................20 4.2.6 Contrast ...................................................................................................21 4.2.7 Alert Volume ............................................................................................22 4.2.8 Radio Information ....................................................................................23 4.2.9 RSSI (Received Signal Strength Indication) ............................................24 4.2.10 Setup Menu .............................................................................................25 4.2.11 Stored Calls .............................................................................................26 4.2.12 Messages ................................................................................................27 4.2.13 Scan Edit Menu .......................................................................................35 4.2.14 No Menu ..................................................................................................37 5. COMMON FUNCTIONS AND FACILITIES .......................................................38 5.1 SwitchOn/SwitchOff ...............................................................................38 5.2 Volume Adjustment ..................................................................................38 5.3 Receiving (Single Channel Screen).........................................................38 5.4 Received Individual Calls.........................................................................38 5.4.1 Stored Calls Screen.................................................................................39 5.5 Transmitting ..............................................................................................39 5.6 Scan/vote Functions............................…

Text truncated - open the document above for the full version.

Re: Simoco Australasia Pty Ltd Letter of Authorisation: To Whom It May Concern: Please be advised that Simoco Australasia Pty Ltd authorises Andrew Cutler of EMC Technologies Ltd to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or a Telecommunications Certification Body. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 26/07/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDM600UW Certification: FCC Request for Confidentiality. To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Parts List • Schematics • Operational Description • Block Diagram • Tune Up Instruction Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 26/07/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDM600UW Certification: Frequency Programming To Whom It May Concern: The frequency of operation of the STZSDM600UW mobile radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. The STZSDM600UW radio requires the operating frequencies to be programmed through the use of an external device only available to service or maintenance personnel. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 26/07/2013 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDM600UW Certification: 47 CFR Part 2.1033(c)(8) To Whom It May Concern: The DC voltage applied to the final stages of the Radio Frequency amplifier of the STZSDM600UW mobile transceiver is nominally 13.8 volts and the DC current into the final stages is typically 5.0 amps. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 26/07/2013 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDM600UW Certification: Spectrum Efficiency 47 CFR Part 90.203(j) Compliance. To Whom It May Concern: This is to certify that the requirements of 47 CFR Part 90.203(j)(4) and (5) spectrum efficiency standard of one voice channel per 12.5kHz of channel bandwidth are met by the STZSDM600UW mobile radio as demonstrated by the tests conducted on the sample radio provided (11k0F3E emission). Additionally in this sample, the 4FSK data rate is in accordance with ETSI TS 102 361-1, that is 9600 bits per second in a 12.5kHz channel bandwidth using TDMA, therefore the STZSDM600UW transmitted data satisfies the requirement of 4800 bits per second per 6.25kHz of channel bandwidth (7K60FXE and 7K60FXD emissions). Thank you for your attention to this matter. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 26/07/2013 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

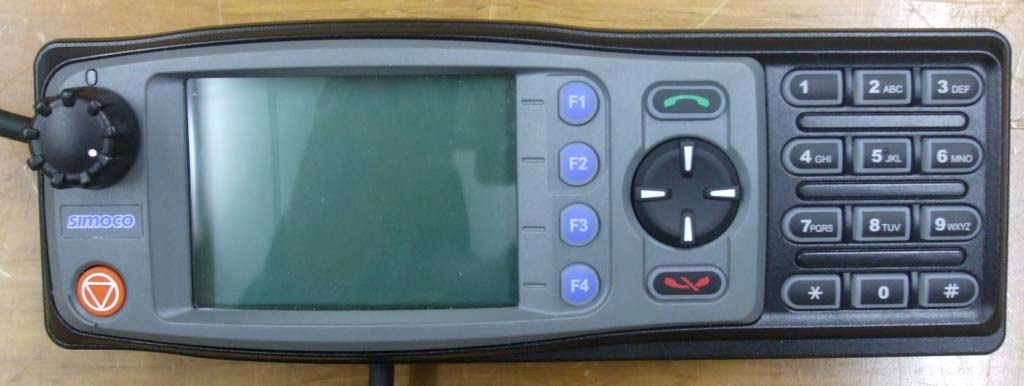

____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. 10. PHOTOGRAPHS MAR630CH Controller ____________________________________________________________________________________________________________________________________________________________________________ Page 28 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. MAR610CM Controller

____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. 10. PHOTOGRAPHS MAR630CH Controller Label on product

Internal photos – Top View Internal photos – Bottom view

____________________________________________________________________________________________________________________________________________________________________________ Page 25 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. Exposure of humans to RF fields As per Section 1.1310 mobile transmitters are required to be operated in a manner that ensures the public is not exposed to RF energy levels in accordance with OST/OET Bulletin Number 65. Calculations have been made using the General Public/Uncontrolled Exposure limits. Minimum safe distances have been calculated below. Power density, mW/cm 2 = E 2 /3770 - Occupational / Controlled Exposure limit will be 1.47 mW/cm 2 (f/300 = 440 MHz/300) - General Population / Uncontrolled exposure limit will be 0.293 mW/cm 2 (f/1500 = 440 MHz/1500) The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, transmitter duty cycle and separation distance in metres: E, V/m = (√(30 * P * G)) / d Controlled Uncontrolled E = 1.47 W/cm 2 = E 2 /3770 E = 0.293 W/cm 2 = E 2 /3770 E= √1.47*3770 E= √0.293*3770 E = 74.4 V/m E = 33.2 V/m The rated maximum transmitter power = 25 watts. Typically the transmitter would be operated using a quarter wave whip antenna with a gain of 2.14 dBi (1.64). The client has declared a duty cycle of 50% as the device operates on a push to talk basis Controlled Uncontrolled d = √ (30 * P * G*DC) / E d = √ (30 * 25 * 1.64 * 0.5) / 74.4 d = √ (30 * 25 * 1.64 * 0.5 ) / 33.2 d = 0.333 metres or 33.3 cm d = 0.747 metres or 74.7 cm Result: Complies if the safe distances defined for each environment are applied.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307, Newton Auckland 1145 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Simoco SDM600 UW UHF Mobile Transceiver tested to the Code of Federal Regulations (CFR) 47 Part 90 –Private Land Mobile Services for Simoco Australasia Pty Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. Table of Contents 1. COMPLIANCE STATEMENT 3 2. RESULT SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. TEST SAMPLE DESCRIPTION 4 6. ATTESTATION 6 7. TEST RESULTS 7 8. TEST EQUIPMENT USED 26 9. ACCREDITATIONS 26 10. PHOTOGRAPHS 27 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. 1. COMPLIANCE STATEMENT The Simoco SDM600 UW UHF Mobile Transceiver complies with the limits defined in 47 CFR Part 90 and 47 CFR Part 2 when tested in-accordance with the test methods described in 47 CFR Part 2. 2. RESULT SUMMARY The results of testing carried out between 21 st August and 6 th September 2013 are summarised below. Clause Description Result 90.203 Certification required Noted 2.1046 90.205 RF power output Power and antenna height limits Noted Complies 2.1047 2.1047(a) 2.1047(b) 90.211(a) Modulation Characteristics Low pass filter response Modulation limiting characteristics Modulation characteristics Noted Noted Noted Complies 2.1049 2.202 90.207 90.209 90.210 Occupied bandwidth Bandwidths Types of emissions Bandwidth limitations Emission masks Noted Noted Complies Complies Complies 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Complies 2.1055 90.213 Frequency stability Frequency stability Noted Complies 90.214 Transient frequency behaviour Complies 1.1310 Radio frequency exposure limits Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company Name Simoco Australasia Pty Ltd Address 1270 Ferntree Gully Road Scoresby State Victoria, 3179 Country Australia Contact Mr Robert Stowell 5. TEST SAMPLE DESCRIPTION Brand Name Simoco Model Number SDM600 UW Product UHF Mobile Transceiver Manufacturer Simoco Manufactured in Taiwan Designed in Australia Serial Number 36MUW1332300PN FCC ID STZDM600UW ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. The test sample has sockets for a transmit antenna and an accessory (Handset (PTT TX & RX Audio)) interface. The sample tested has the following specifications: Rated Transmitter Output Power 25.0 Watts (44.0 dBm). Transmitter FCC Frequency Bands Part 90: 421- 512 MHz Test frequencies Chl Frequency MHz Power Watts Spacing kHz 2 440.175 25 12.5 3 476.175 25 12.5 4 511.975 25 12.5 Emission Designators / Modes of operation 11k2F3E – Analogue speech 7k60FXE – DMR 4FSK 9600 bps TDMA digital speech and data 7k60FXD – DMR 4FSK 9600 bps TDMA digital data Power Supply Lead acid rechargeable battery DC voltage supply typically 13.8 Vdc. Standard Temperature and Humidity Temperature: +15C to + 30C maintained. Relative Humidity: 20% to 75% observed. Standard Test Power Source Standard Test Voltage: 13.8 Vdc Extreme Temperature High Temperature: + 50C maintained. Low Temperature: - 30 C maintained. Extreme Test Voltages High Voltage: 15.6 Vdc Low Voltage: 10.8 Vdc ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 30 Test Report No 130818.4 25 th September 2013. This report may not be reproduced except in full. 6. AT T E S TAT I O N This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report does not contain corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my…
