STZSDP600UWUHF Portable Transceiver

SDP650 PORTABLE RADIO USER MANUAL TNM-U-E-0115, Issue – 1.4 June 2015 Field House, Uttoxeter Old Road Derby DE1 1NH Tel: +44 (0) 1332 375500 FAX: +44 (0) 1332 375501 http://www.simocogroup.com 1270 Ferntree Gully Road, Scoresby Victoria, 3179 Australia Tel: +61 (0)3 9730 3999 FAX: +61 (0)3 9730 3988 http://www.simocogroup.com © Simoco 2015 SDP650 – USER MANUAL TNM-U-E-0115 Jun 15 (Iss. 1.4) Page 2 PREFACE PREFACE DECLARATION This User Manual covers the Digital Mobile Radio (DMR) Operating Instructions for the SDP650 Portable Radio Transceiver. Any performance figures quoted are subject to normal manufacturing and service tolerances. The right is reserved to alter the equipment described in this manual in the light of future technical development. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. COPYRIGHT All information contained in this document is the property of Simoco. All rights are reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Simoco. COMPUTER SOFTWARE COPYRIGHTS The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. DISCLAIMER There are no warranties extended or granted by this document. Simoco accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. EQUIPMENT AND MANUAL UPDATES In the interests of improving the performance, reliability or servicing of the equipment, Simoco reserves the right to update the equipment or this document or both without prior notice. SDP650 – USER MANUAL TNM-U-E-0115 Jun 15 (Iss. 1.4) Page 3 PREFACE ERRORS AND OMISSIONS The usefulness of this publication depends upon the accuracy and completeness of the information contained within it. Whilst every endeavour has been made to eliminate any errors, some may still exist. It is requested that any errors or omissions noted should be reported to either of the following who are part of the Simoco group: Field House Uttoxeter Old Road, Derby. DE1 1NH. UK 1270 Ferntree Gully Road, Scoresby Victoria. 3179 Australia Tel: +44 (0) 871 741 1050 Tel: +61 (0)3 9730 3999 E-mail: [email protected] E-mail: [email protected] DOCUMENT HISTORY Issue Date Comments 1.0 January 2013 Initial Issue. 1.1 July 2013 Additional General Precaution added, plus changes to Support page email addresses. 1.2 August 2013 1.3 October 2013 Details of Technical Support Ticket System added to Support page. 1.4 9 June 2015 FCC Part 15 Compliance added to WARNINGS page, plus changes to RF Exposure Compliance Distances for Bodyworn applications (Table 1). Details of Duplex Operation included (Section 4.9). RELATED DOCUMENTS 1. TNM-M-E-0033. SDP600 Series DMR Portable Radio Transceivers – Service Manual. 2. TNM-U-E-0117. SDP650 Portable Radio – Brief User Guide. 3. TNM-U-E-0118. PAR-600CRG1 Single Rapid Charger – SDP650/660 Instruction Manual. To order printed copies of this or any of the above publications, please contact Simoco. See the Support page for contact information. A comprehensive list of documentation is available for download on the Simoco website http://www.simocogroup.com via the Partner Portal. SDP650 – USER MANUAL TNM-U-E-0115 Jun 15 (Iss. 1.4) Page 4 CONTENTS TABLE OF CONTENTS Page Title Page ...................................................................................................................................... 1 Preface .......................................................................................................................................... 2 Table of Contents (This List) ....................................................................................................... 4 List of Figures .............................................................................................................................. 6 List of Tables ................................................................................................................................ 6 Personal Safety ............................................................................................................................ 7 Warnings ...................................................................................................................................... 7 Compliance with RF Energy Exposure Guidelines (United States and Canada) ...................... 9 General Notes ............................................................................................................................ 12 Simoco Support ......................................................................................................................... 13 Abbreviations ............................................................................................................................. 15 Glossary ..................................................................................................................................... 16 1 INTROD…

Text truncated - open the document above for the full version.

SDP660 PORTABLE RADIO USER MANUAL TNM-U-E-0114, Issue 1.4 June 2015 Field House, Uttoxeter Old Road Derby DE1 1NH Tel: +44 (0) 1332 375500 FAX: +44 (0) 1332 375501 http://www.simocogroup.com 1270 Ferntree Gully Road, Scoresby Victoria, 3179 Australia Tel: +61 (0)3 9730 3999 FAX: +61 (0)3 9730 3988 http://www.simocogroup.com © Simoco 2015 SDP660 – USER MANUAL TNM-U-E-0114 Jun 15 (Iss. 1.4) Page 2 PREFACE PREFACE DECLARATION This User Manual covers the Digital Mobile Radio (DMR) Operating Instructions for the SDP660 Portable Radio Transceiver. Any performance figures quoted are subject to normal manufacturing and service tolerances. The right is reserved to alter the equipment described in this manual in the light of future technical development. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. COPYRIGHT All information contained in this document is the property of Simoco. All rights are reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Simoco. COMPUTER SOFTWARE COPYRIGHTS The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. DISCLAIMER There are no warranties extended or granted by this document. Simoco accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. EQUIPMENT AND MANUAL UPDATES In the interests of improving the performance, reliability or servicing of the equipment, Simoco reserves the right to update the equipment or this document or both without prior notice. SDP660 – USER MANUAL TNM-U-E-0114 Jun 15 (Iss. 1.4) Page 3 PREFACE ERRORS AND OMISSIONS The usefulness of this publication depends upon the accuracy and completeness of the information contained within it. Whilst every endeavour has been made to eliminate any errors, some may still exist. It is requested that any errors or omissions noted should be reported to either of the following who are part of the Simoco group: Field House Uttoxeter Old Road, Derby. DE1 1NH. UK 1270 Ferntree Gully Road, Scoresby Victoria. 3179 Australia Tel: +44 (0) 871 741 1050 Tel: +61 (0)3 9730 3999 E-mail: [email protected] E-mail: [email protected] DOCUMENT HISTORY Issue Date Comments 1.0 January 2013 Initial Issue. 1.1 July 2013 Additional General Precaution added, plus changes to Support page email addresses. 1.2 25 July 2013 Special functions ‘Man Down’, ‘Lone worker’ and ‘DMR All Calls Dial String’ added. Section 9 – Dial Strings added, plus other minor amendments. 1.3 14 October 2013 Details of Technical Support Ticket System added to Support page. 1.4 9 June 2015 FCC Part 15 Compliance added to WARNINGS page, plus changes to RF Exposure Compliance Distances for Bodyworn applications (Table 1). Details of Duplex Operation included (Section 5.12). RELATED DOCUMENTS 1. TNM-M-E-0033. SDP600 Series DMR Portable Radio Transceivers – Service Manual. 2. TNM-U-E-0116. SDP660 Portable Radio – Brief User Guide. 3. TNM-U-E-0118. PAR-600CRG1 Single Rapid Charger – SDP650/660 Instruction Manual. To order printed copies of this or any of the above publications, please contact Simoco. See the Support page for contact information. A comprehensive list of documentation is available for download on the Simoco website http://www.simocogroup.com via the Partner Portal. SDP660 – USER MANUAL TNM-U-E-0114 Jun 15 (Iss. 1.4) Page 4 CONTENTS TABLE OF CONTENTS Page Title Page ...................................................................................................................................... 1 Preface .......................................................................................................................................... 2 Table of Contents (This List) ....................................................................................................... 4 List of Figures .............................................................................................................................. 6 List of Tables ................................................................................................................................ 7 Personal Safety ............................................................................................................................ 8 Warnings ...................................................................................................................................... 8 Compliance with RF Energy Exposure Guidelines (United States and Canada) .................... 10 General Notes ............................................................................................................................ 13 Support – Contact Information ................................................................................................. 14 Abbreviations ............................................................................................................................. 16 Glossary ........…

Text truncated - open the document above for the full version.

Re: STZSDP600UW Certification: Extended Frequency Justification. Dear Sir/ Madam, Simoco Australasia Pty Ltd would like to submit the following justification to show the frequency range as 440 – 512 MHz on the Grant of Equipment Authorization for STZSDP600UW equipment. This frequency range is applicable to the Federal Government and FCC Part 90 radiocommunication systems that include public agencies, emergency services, commercial, business and industrial services. This equipment will be marketed to the users listed in these services that account for the majority of radiocommunication operations on this band (refer to the list below). Frequency: Application: Grant Notes 440 – 454 Part 90 EF 454 – 456 Other EF 456 – 462.5375 Part 90 EF 462.5375 – 462.7375 Other EF 462.7375 – 467.5375 Part 90 EF 467.5375 – 467.7375 Other EF 467.7375 – 512 Part 90 EF Also the frequency of operation of the STZSDP600UW portable radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. Programmed operating frequencies shall be in strict accordance with the above listed frequencies and the user’s FCC license conditions. From the FCC KDB634187 guide, as an alternative to listing the exact frequencies, we acknowledge that FCC rules would be violated if the STZSDP600UW equipment were programmed and operated on unauthorized frequencies. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 07/12/2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDP600UW Certification: Frequency Programming To Whom It May Concern: The frequency of operation of the STZSDP600UW portable radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. The STZSDP600UW radio requires the operating frequencies to be programmed through the use of an external device only available to service or maintenance personnel. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 07/12/2014 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDP600UW Certification: 6.25 kHz Equivalence Attestation. To Whom It May Concern: The Simoco SDP600 series of portable radios are designed to operate in accordance with the ETSI TS102 361 Digital Mobile Radio Systems standard. The ETSI DMR standard is based on two-slot TDMA technology utilising 4FSK digital modulation operating at 9600 bps on 12.5 kHz channel spacing with time slot durations of 30 ms. The SDP600 portable radio uses the AMBE+2 half-rate vocoder and can operate on either of two independent voice traffic channels operating in alternating 30 ms time slots on a single 12.5 kHz physical channel. The slots consist of two 108-bit payload fields and one 48-bit synchronization field. Each slot has a total length of 30 ms but only 27.5 ms are used for the 264 bits content, which is sufficient to carry 60 ms of compressed speech using 216 bits payload. In summary the implementation of the DMR TDMA technology described above in the SDP600 UW portable shows that it complies with 47 CFR Part 90.203 (j) (4)(ii), that is one voice channel per 6.25 kHz bandwidth or equivalence by using either of the two voice channels per 12.5 kHz bandwidth and for 47 CFR Part 90.203 (j) (5), the data message bit rate is 9600 bps per 12.5 kHz bandwidth and so is equivalent to the required 4800 bps in a 6.25 kHz channel bandwidth. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 04/06/2015 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDP600UW Certification: Spectrum Efficiency 47 CFR Part 90.203(j) Compliance. To Whom It May Concern: This is to certify that the requirements of 47 CFR Part 90.203(j)(4) and (5) spectrum efficiency are met by the STZSDP600UW portable radio as demonstrated by the tests conducted on the sample radio provided. The tests show that the 4FSK data rate is in accordance with ETSI TS 102 361-1, that is 9600 bits per second in a 12.5 kHz bandwidth to satisfy the data rate requirement of 4800 bits per second per 6.25 kHz of channel bandwidth (7K60FXD emissions). Additionally the STZSDP600UW uses the AMBE+2 half-rate vocoder to compress 60 ms of normal speech into a 27.5 ms, 264 bit burst. These bursts are sent in alternate 30 ms TDMA slots and so comply with the equivalence of one voice channel per 6.25 kHz bandwidth (7K60FXE emission). Additionally the radio also meets the requirement of one voice channel per 12.5kHz of channel bandwidth for analogue speech (11k0F3E emission). Thank you for your attention to this matter. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 07/12/2014 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: Simoco Australasia Pty Ltd Letter of Authorisation: To Whom It May Concern: Please be advised that Simoco Australasia Pty Ltd authorises Mr Andrew Cutler of EMC Technologies (NZ) Ltd to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or Telecommunications Certification Body. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 07/12/2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

Re: STZSDP600UW Certification: FCC Request for Confidentiality. To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0.457 and 0.459 of the commission’s rules and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Parts List • Schematics • Operational Description • Block Diagram • Tune Up Instruction Yours sincerely, Simoco Australasia Pty Ltd Robert Stowell Senior Engineer Date: 27/05/2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669

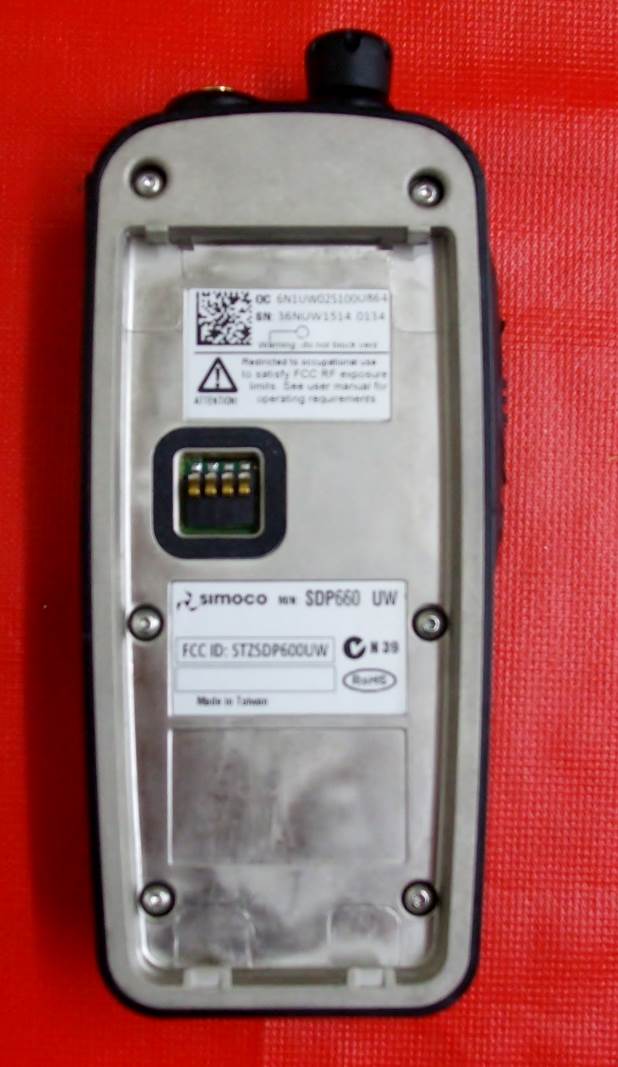

SDP650UW Front Case SDP660UW Front Case SDP660UW ID Label SDP660UW ID Label FCC ID label RF exposure label ____________________________________________________________________________________________________________________________________________________________________________ Page 25 of 27 Test Report No 150317.1 22 nd May 2015. This report may not be reproduced except in full. 9. PHOTOGRAPHS External Photos

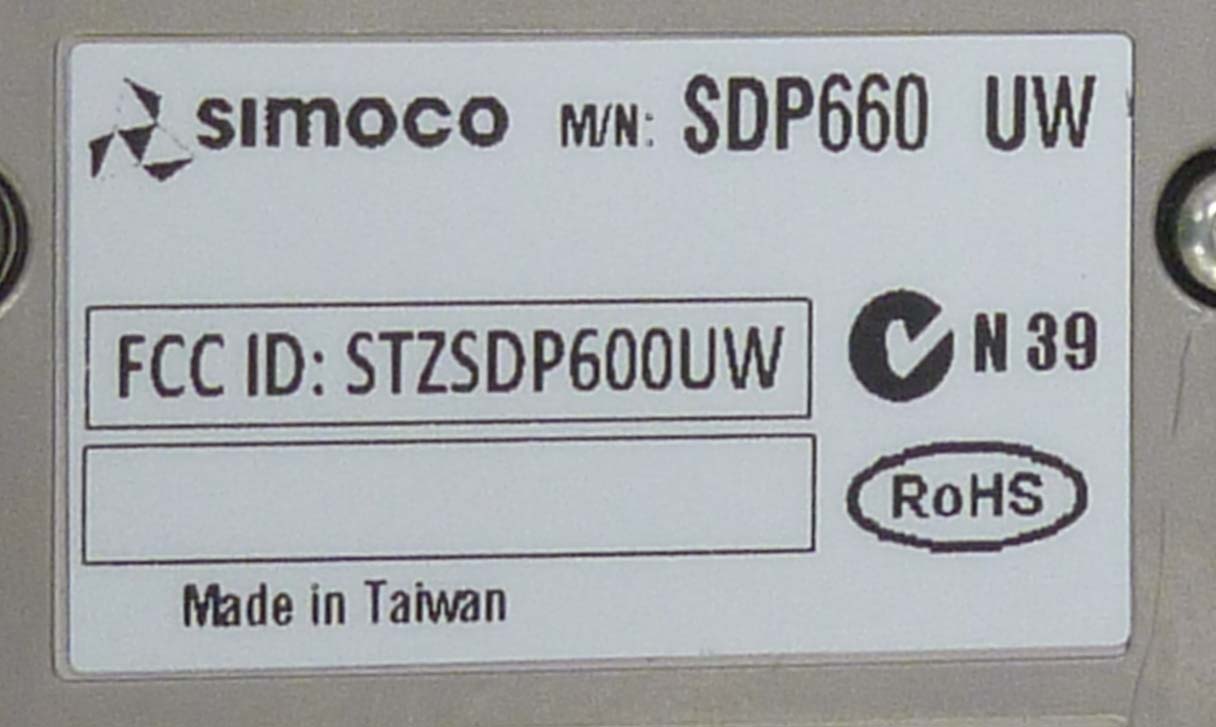

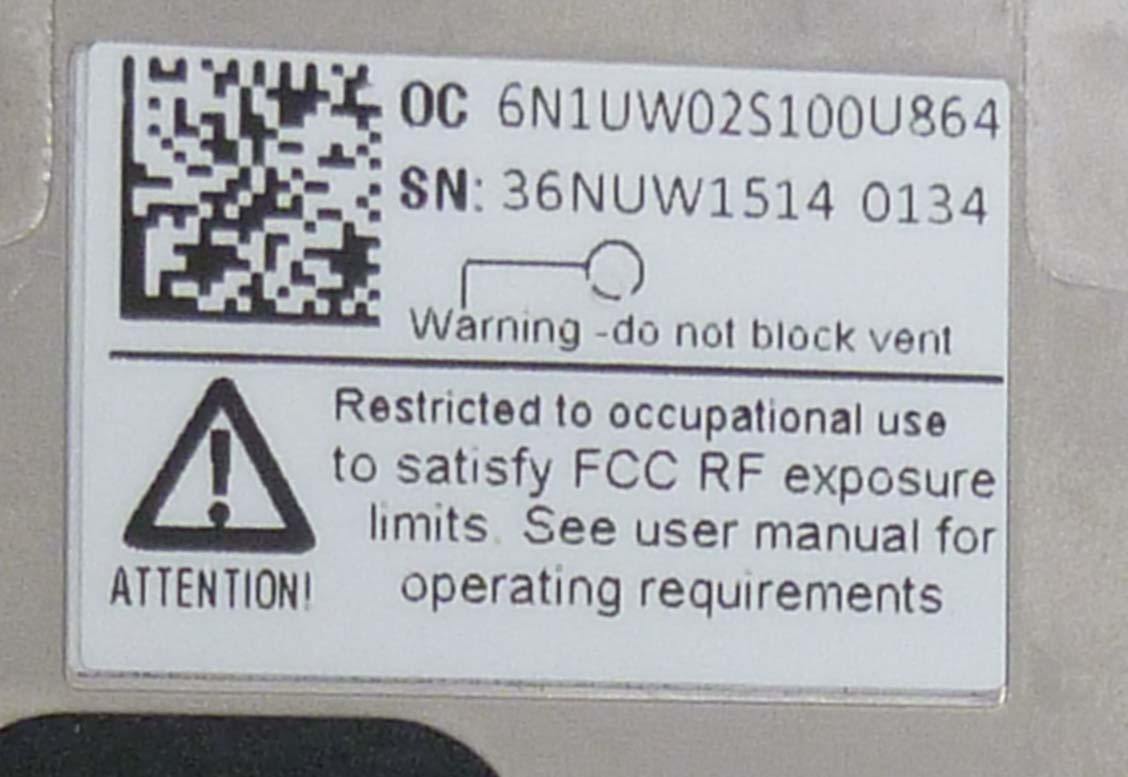

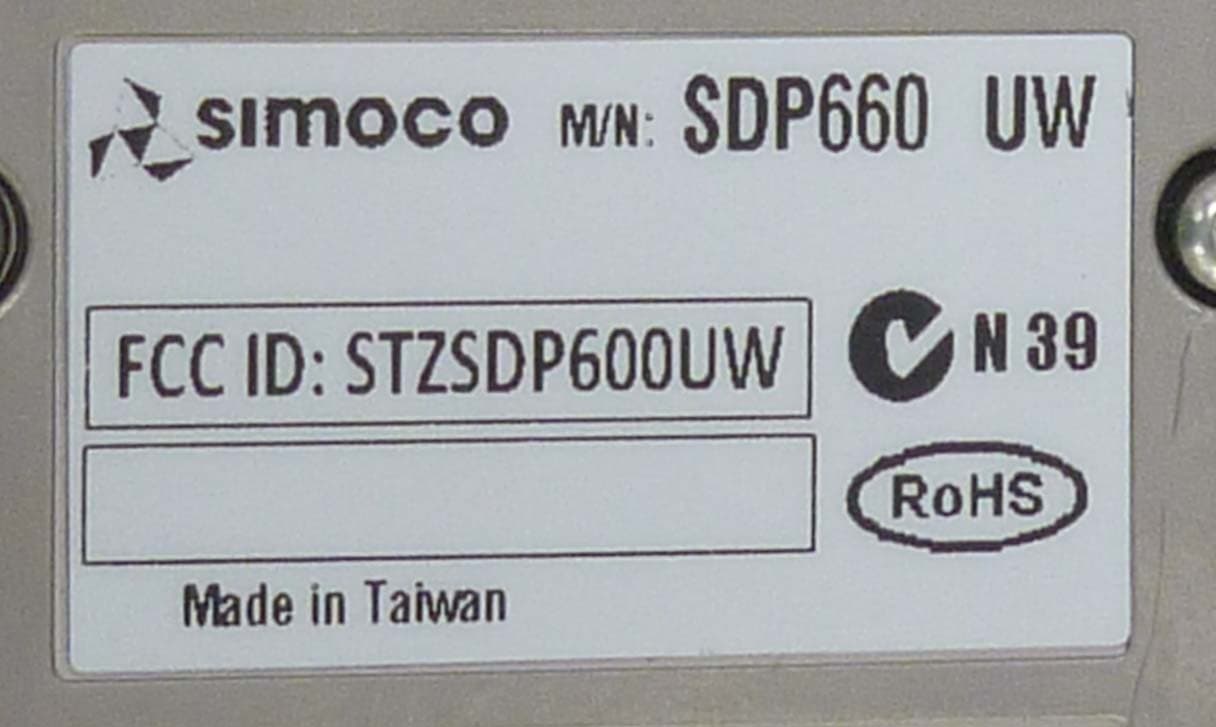

SDP660UW ID Label SDP660UW ID Label FCC ID label RF exposure label

SDP650UW Front Case SDP660UW Front Case SDP660UW ID Label SDP660UW ID Label SDP600 Case and PCB Assy SDP600UW Bottom with LCD SDP600UW PCB Bottom No Shield SDP600UW Bottom with Shield

Report No.: M140624FR Page 17 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A1 Test Sample Photographs Battery 1 Battery 2 DUT DUT Report No.: M140624FR Page 18 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A2 Test Sample Photographs Default Audio Accessory PAR-9180LMS2 Alternative Audio Accessory PAR-9180LMW1 Alternative Audio Accessory PAR-600LMS4 Holster Report No.: M140624FR Page 19 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A3 TEST SETUP PHOTOGRAPHS Touch Left Position Tilted Left Position Report No.: M140624FR Page 20 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A4 Test Setup Photographs Touch Right Position Tilted Right Position Report No.: M140624FR Page 21 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A5 Test Setup Photographs Tilted Left with Holster Position Report No.: M140624FR Page 22 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A6 TEST SETUP PHOTOGRAPHS Face Frontal Position Belt Clip Position Report No.: M140624FR Page 23 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A7 Test Setup Photographs Face Frontal with Holster Position Holster Position

Report No.: M140624FR Page 24 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX B Plots Of The SAR Measurements Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Report No.: M140624FR Page 25 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Lab: EMCTech Test File: M140624 PTT 450 MHz Face Frontal FCC 26-06-14.da52:0 DUT Name: Simoco PTT transmitter, Type: SDP660 UW, Serial: 56KUW1415 05SL Configuration: Face Frontal Communication System: 0 - CW (0); Communication System Band: Simoco 450 MHz; Frequency: 440.1 MHz, Communication System PAR: 0.00 dB; PMF: 0.00; Duty Cycle: 1:1.00 Medium Parameters used: f=440 MHz; σ = 0.84 S/m; ε r = 45.2; ρ = 1000.0g/cm 3 Phantom section: Flat Section DASY Configuration: Probe: ET3DV6 - SN1380; ConvF: (7.31,7.31,7.31); Calibrated: 13/12/2013; Sensor-Surface: 4 mm (Mechanical Surface Detection) Electronics: DAE3 Sn442; Calibrated: 10/12/2013 Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1101 DASY52 52.8.8(1222); SEMCAD X Version 14.6.10 (7331) Face Frontal/Channel 1 Test/Area Scan (281x81x1): Interpolated grid: dx=1.5 mm, dy=1.5 mm; Maximum value of SAR (interpolated) = 6.010 W/kg Face Frontal/Channel 1 Test/Zoom Scan (21x21x36)/Cube 0: Interpolated grid: dx=1.6 mm, dy=1.6 mm, dz=1.0 mm; Reference Value = 77.140 V/m; Power Drift = -0.20 dB Averaged SAR: SAR(1g) = 5.570 W/kg; SAR(10g) = 4.180 W/kg Maximum value of SAR (interpolated) = 7.240 W/kg 0 dB = 6.01 W/kg = 7.79 dBW/kg SAR Measurement Plot 1 Report No.: M140624FR Page 26 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M140624FR Page 27 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Lab: EMCTech Test File: M140624 PTT 450 MHz Face Frontal FCC 26-06-14.da52:0 DUT Name: Simoco PTT transmitter, Type: SDP660 UW, Serial: 56KUW1415 05SL Configuration: Face Frontal Communication System: 0 - CW (0); Communication System Band: Simoco 450 MHz; Frequency: 458.0 MHz, Communication System PAR: 0.00 dB; PMF: 0.00; Duty Cycle: 1:1.00 Medium Parameters used: f=458 MHz; σ = 0.86 S/m; ε r = 44.8; ρ = 1000.0g/cm 3 Phantom section: Flat Section DASY Configuration: Probe: ET3DV6 - SN1380; ConvF: (7.31,7.31,7.31); Calibrated: 13/12/2013; Sensor-Surface: 4 mm (Mechanical Surface Detection) Electronics: DAE3 Sn442; Calibrated: 10/12/2013 Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1101 DASY52 52.8.8(1222); SEMCAD X Version 14.6.10 (7331) Face Frontal/Channel 2 Test/Area Scan (221x81x1): Interpolated grid: dx=1.5 mm, dy=1.5 mm; Maximum value of SAR (interpolated) = 8.030 W/kg Face Frontal/Channel 2 Test/Zoom Scan (21x21x36)/Cube 0: Interpolated grid: dx=1.6 mm, dy=1.6 mm, dz=1.0 mm; Reference Value = 90.141 V/m; Power Drift = -0.14 dB Averaged SAR: SAR(1g) = 7.440 W/kg; SAR(10g) = 5.570 W/kg Maximum value of SAR (interpolated) = 9.770 W/kg 0 dB = 8.03 W/kg = 9.05 dBW/kg SAR Measurement Plot 2 Report No.: M140624FR Page 28 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M140624FR Page 29 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Lab: EMCTech Test File: M140624 PTT 450 MHz Face Frontal FCC 26-06-14.da52:0 DUT Name: Simoco PTT transmitter, Type: SDP660 UW, Serial: 56KUW1415 05SL Configuration: Face Frontal Communication System: 0 - CW (0); Communication System Band: Simoco 450 MHz; Frequency: 476.0 MHz, Communication System PAR: 0.00 dB; PMF: 0.00; Duty Cycle: 1:1.00 Medium Parameters used: f=476 MHz; σ = 0.87 S/m; ε r = 44.5; ρ = 1000.0g/cm 3 Phantom section: Flat Section DASY Configuration: Probe: ET3DV6 - SN1380; ConvF: (7.31,7.31,7.31); Calibrated: 13/12/2013; Sensor-Surface: 4 mm (Mechanical Surface Detection) Electronics: DAE3 Sn442; Calibrated: 10/12/2013 Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1101 DASY52 52.…

Text truncated - open the document above for the full version.

Report No.: M140624FR Page 63 of 108 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Lab: EMCTech Test File: M140624 PTT 450 MHz Body Worn FCC 01-07-14.da52:1 DUT Name: Simoco PTT transmitter, Type: SDP660 UW, Serial: 56KUW1415 05SL Configuration: Holster (12mm Spacing) Communication System: 0 - CW (0); Communication System Band: Simoco 450 MHz; Frequency: 440.1 MHz, Communication System PAR: 0.00 dB; PMF: 0.00; Duty Cycle: 1:1.00 Medium Parameters used: f=440 MHz; σ = 0.91 S/m; ε r = 55.3; ρ = 1000.0g/cm 3 Phantom section: Flat Section DASY Configuration: Probe: ET3DV6 - SN1380; ConvF: (7.49,7.49,7.49); Calibrated: 13/12/2013; Sensor-Surface: 4 mm (Mechanical Surface Detection) Electronics: DAE3…
