SUZ-PBMPointBlank Module

Dell™ S300wi Projector User’s Guide Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your projector. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION:A CAUTION indicates a potential for property damage, personal injury, or death. ____________________ Information in this document is subject to change without notice. © 2010 Dell Inc. All rights reserved. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of T EXAS INSTRUMENTS INCORPORATED; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model S300wi April 2010 Rev. A00 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 2.4GHz RF Wireless Pen Specification 1. Interactve Pen Model: PBP Certification FCC 15C RSS-210 Radio Technology SRD band systems (MSK) Modulation Schemes MSK CARRIER FREQUENCY OF EACH CHANNEL 2402.25MHz ~ 2481.25MHz ANTENNA TYPE Ceramic antenna, without connecter (Antenna Gain: 3.0dBi) Channel Numbers USA/CANADA: 11 2. Interactive Module Model:PBM (Inside projector wireless link to PBP) Certification FCC 15C RSS-210 Radio Technology SRD band systems (MSK) Modulation Schemes MSK CARRIER FREQUENCY OF EACH CHANNEL 2402.25MHz ~ 2481.25MHz ANTENNA TYPE Folded Dipole antenna, without connecter (Antenna Gain: 7.4dBi) Channel Numbers USA/CANADA: 11 Contents3 Contents 1Your Dell Projector. . . . . . . . . . . . . . . . . . 7 About Your Projector . . . . . . . . . . . . . . . . . 8 About Your Interactive Pen . . . . . . . . . . . . . . 9 2Connecting Your Projector. . . . . . . . . . . . 11 Installing the Antenna . . . . . . . . . . . . . . . 12 Connecting to a Computer . . . . . . . . . . . . . . . . 13 Connecting a Computer Using a VGA Cable . . . . 13 Monitor Loop-Through Connection Using VGA Cables . . . . . . . . . . . . . . . . . . . . . 14 Connecting a Computer Using an RS232 cable. . . 15 Connecting a Computer Using an USB Display . . . 16 Connecting a Computer Using Wireless . . . . . . 17 Connecting a DVD Player . . . . . . . . . . . . . . . . 18 Connecting a DVD Player Using an S-Video Cable .18 Connecting a DVD Player Using a Composite Video Cable . . . . . . . . . . . . . . . . . . . . . 19 Connecting a DVD Player Using a Component Video Cable . . . . . . . . . . . . . . . . . . . . . 20 Connecting a DVD Player Using an HDMI Cable . . 21 Connecting to Local Area Network . . . . . . . . . . . 22 To project an image and control the projector that is connected to a network through an RJ45 cable. . . 22 Professional Installation Options: Installation for Driving Automatic Screen . . . . . . . . . . . . . 23 Contents5 PICTURE (in PC Mode) . . . . . . . . . . . . . . . 46 PICTURE (in Video Mode). . . . . . . . . . . . . . 47 DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 49 DISPLAY (in Video Mode) . . . . . . . . . . . . . . 51 LAMP . . . . . . . . . . . . . . . . . . . . . . . . 52 SET UP . . . . . . . . . . . . . . . . . . . . . . . 52 OTHERS . . . . . . . . . . . . . . . . . . . . . . . 57 Wireless Networking Installation . . . . . . . . . . . . 67 S300wi Wireless Application Software . . . . . . . 71 USB Display Driver Installation . . . . . . . . . . . . . 75 Presentation to Go (PtG) Installation . . . . . . . . . . 76 PtG Viewer . . . . . . . . . . . . . . . . . . . . . 77 Photo Viewer . . . . . . . . . . . . . . . . . . . . 77 PtG/Photo Functi…

Text truncated - open the document above for the full version.

FCC ID: SUZ-PBM Report No.: RF990222L04 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch March 26, 2010 Dear Application Examiner, Coretronic Corp., It’s a PointBlank Module, FCC ID: SUZ-PBM would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CC250. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is CC250. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an data cable extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: SUZ-PBM Report No.: RF990222L04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

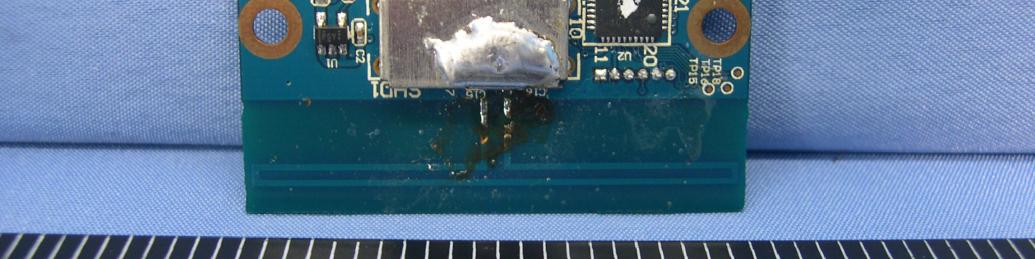

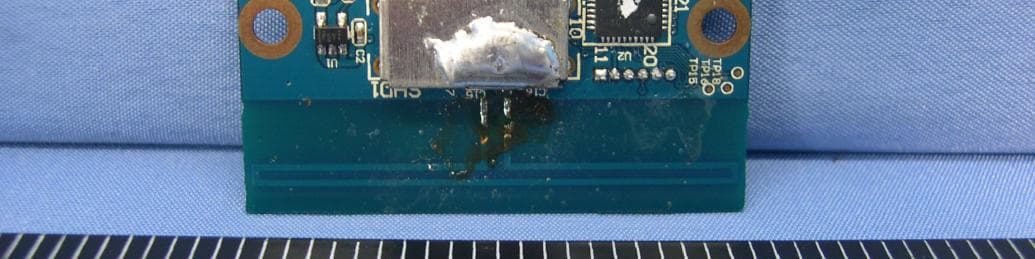

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: SUZ-PBM FCC LABEL FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2

Report No.: RF990222H04 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990222H04 MODEL NO.: PBM RECEIVED: Feb. 22, 2010 TESTED: Feb. 26 to Mar. 22, 2010 ISSUED: Mar. 25, 2010 APPLICANT: Coretronic Corp. ADDRESS: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 28 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. Report No.: RF990222H04 2 Report Format Version 3.0.1 Table of Contents 1 CERTIFICATION.............................................................................................3 2 SUMMARY OF TEST RESULTS.....................................................................4 2.1 MEASUREMENT UNCERTAINTY..................................................................4 3 GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.2 DESCRIPTION OF TEST MODES..................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4 DESCRIPTION OF SUPPORT UNITS............................................................7 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................7 4 TEST PROCEDURES AND RESULTS...........................................................8 4.1 CONDUCTED EMISSION MEASUREMENT..................................................8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................8 4.1.2 TEST INSTRUMENTS....................................................................................8 4.1.3 TEST PROCEDURES.....................................................................................9 4.1.4 TEST SETUP..................................................................................................9 4.1.5 EUT OPERATING CONDITIONS..................................................................10 4.1.6 TEST RESULTS.............................................................................................11 4.2 RADIATED EMISSION MEASUREMENT.....................................................13 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................13 4.2.2 TEST INSTRUMENTS..................................................................................14 4.2.3 TEST PROCEDURES...................................................................................15 4.2.4 DEVIATION FROM TEST STANDARD.........................................................15 4.2.5 TEST SETUP................................................................................................16 4.2.6 EUT OPERATING CONDITIONS..................................................................16 4.2.7 TEST RESULTS............................................................................................17 4.3 CONDUCTED - OUT BAND MEASUREMENT.............................................24 4.3.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................24 4.3.2 TEST INSTRUMENTS..................................................................................24 4.3.3 TEST PROCEDURE.....................................................................................24 4.3.4 DEVIATION FROM TEST STANDARD.........................................................24 4.3.5 EUT OPERATING CONDITION....................................................................24 4.3.6 TEST RESULTS............................................................................................25 5 INFORMATION ON THE TESTING LABORATORIES..................................27 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.........................................................28 Report No.: RF990222H04 3 Report Format Version 3.0.1 1 CERTIFICATION PRODUCT : PointBlank Module BRAND NAME : Coretronic MODEL NO. : PBM TESTED : Feb. 26 to Mar. 22, 2010 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : Coretronic Corp. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: PBM) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 25, 2010 ( Claire Kuan, Specialist ) TECHNICAL ACCEPTANCE : , DATE: Mar. 25, 2010 ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: Mar. 25, 2010 ( May Chen, Deputy Manager ) Report No.: RF990222H04 4 Report Format Version 3.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test PASS Minimum passing margin is -21.17dB at 0.455MHz 15.249 Radiated Emission Test PASS Minimum passing margin is -2.6dB at 2483.5MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Conducted Emission 2.45 dB Radiated …
