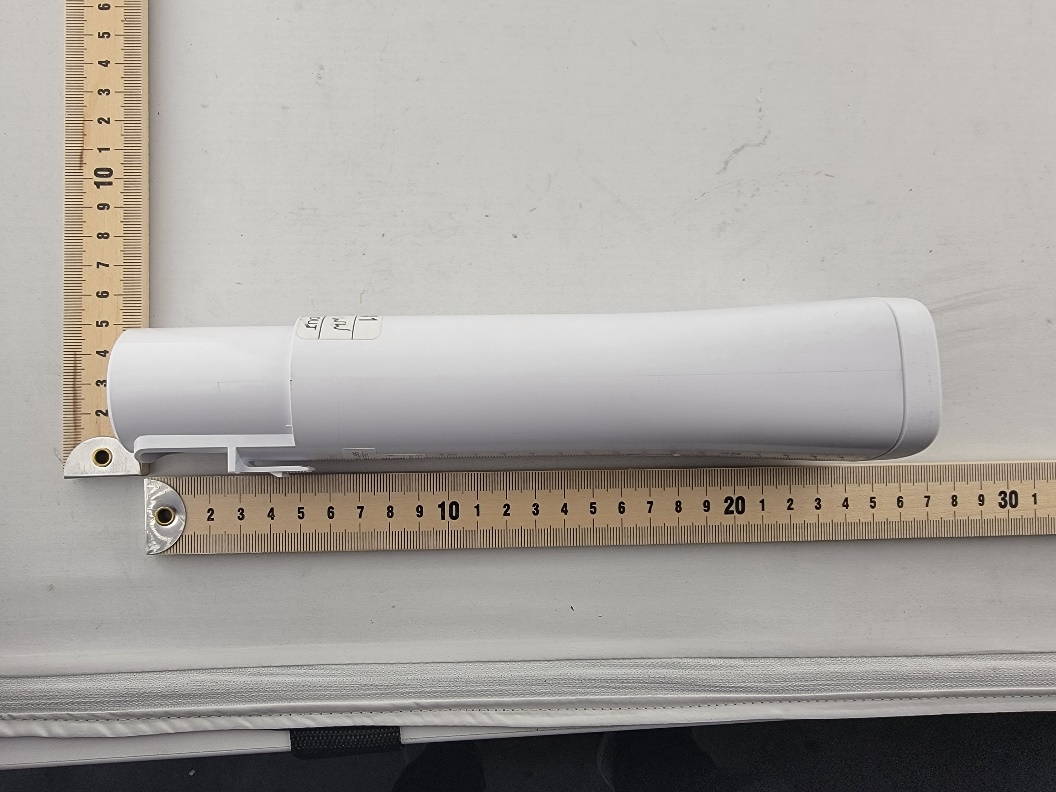

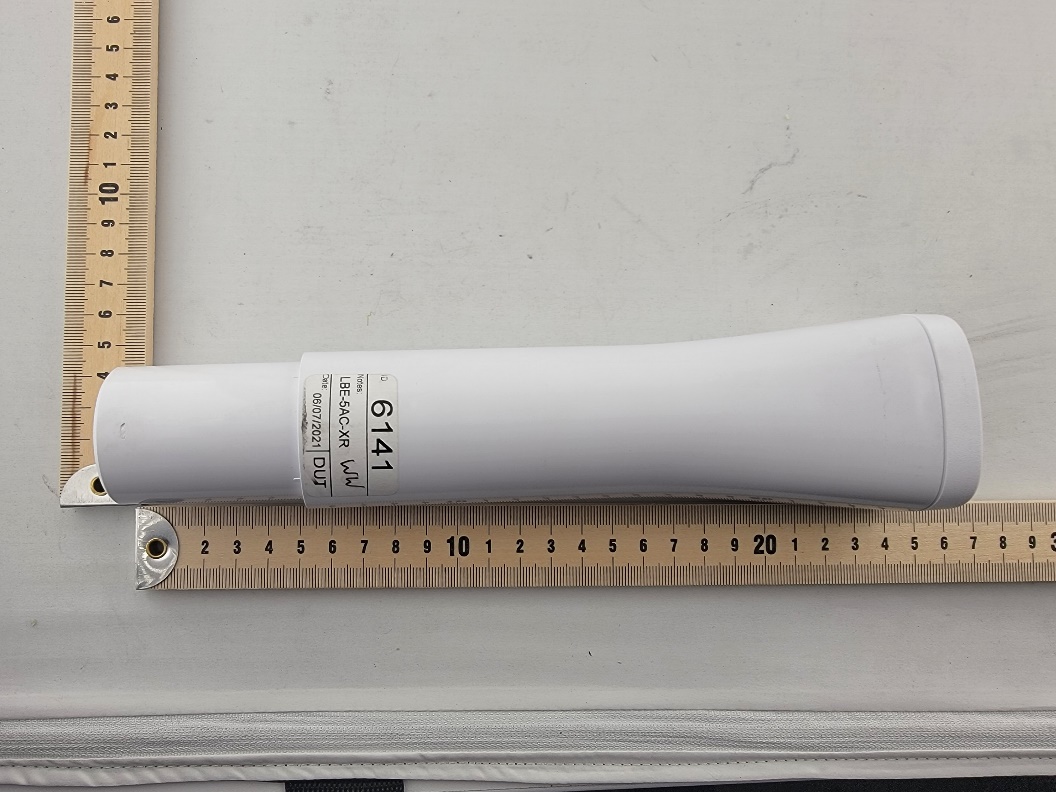

SWX-LBE5ACXRDigital Transmission Radio

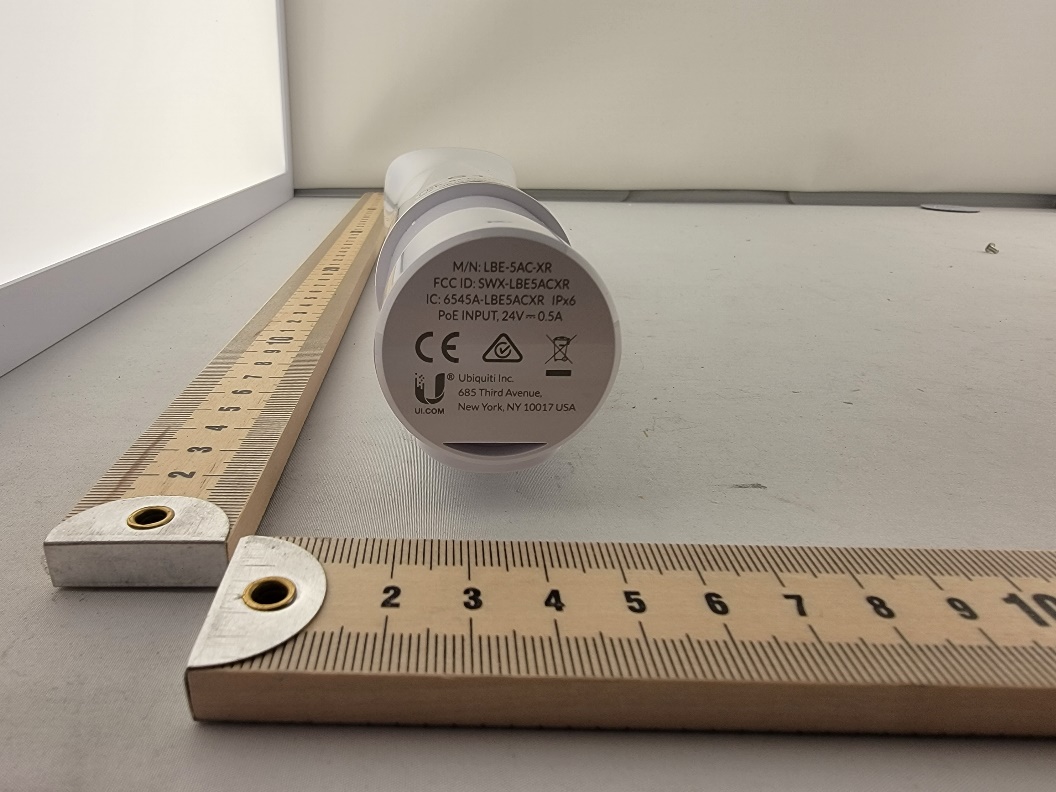

E-Label User Information FCC ID: SWX-LBE5ACXR IC ID: 6545A-LBE5ACXR Ubiquiti Inc. will be incorporating the E-Label procedures per FCC KDB 784748-D02 and RSS-Gen Annex B. The information below is what will be included in the E-Labeling. E-label and warning statements can be found in the device/controller GUI under Device > Settings > About. Detailed compliance information including Declaration of Conformity is available at the following internet address: ui.com/compliance FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generated, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user bill be required to correct the interference at his own expense. ISED Canada CAN ICES-3 (A) / NMB-3 (A) This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (A) / NMB-3 (A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilize en conflit avec tout autre antenne ou transmetteur.

Date: 04/08/2021 TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-LBE5ACXR, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation Software Security Document The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual/QIG It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mark Feil Ubiquiti lnc. Compliance Manager 685 3 RD AVE. • NEW Y0RK, NY 10071 • www.ui.com

§ 15.247, Bluetooth, Wi-Fi § 15.407, UNII-1, UNII-3 § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies 15.247 Bluetooth @ 2402 – 2480 MHz; 15.247 Wi-Fi @ 2412 – 2462 MHz; 15.407 UNII-1 @ 5180 – 5245 MHz; 15.407 UNII-3 @ 5735 – 5840 MHz Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) Test Results: FCC Frequency (MHz) Con. Pwr. (dBm) Con. Pwr. (mW) Ant. Gain (dBi) Ant. Gain numeric Pwr. Density (mW/cm 2 ) Limit (mW/cm 2 ) Margin Distance (cm) Result 2480 7.71 5.90 * 5.1 3.24 0.01 1.0 -0.99 20 Pass 2437 17.87 61.24 * 2 3.24 0.02 1.0 -0.98 20 Pass 5245 25.27 336.51* 3 2.00 0.13 1.0 -0.87 20 Pass 5760 20.43 110.41 * 3 2.00 0.05 1.0 -0.95 20 Pass * The LBE-5AC-XR may have simultaneously transmission of the 15.247 Bluetooth, 15.247 2.4 GHz Wi-Fi, 15.407 UNII-1 or UNII-3. Asterisk notes the worst case of the possible simultaneously transmitter combinations. Due to the 1 for 1 back off while using the higher gain antenna, the EIRP remains the same and therefore the MPE calculation does not change. Simultaneously Transmitters Summed: 0.01 (Bluetooth) + 0.02 (2.4 GHz WiFi) + 0.13 (UNII-1) + 0.05 (UNII-3) = 0.21 Limit of 1.0 – 0.26 (summed value) = -0.79 Margin The safe distance for SWX-LBE5ACXR where Power Density is less than the MPE Limit listed above was found to be 20 cm.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-LBE5ACXR ISED ID 6545A-LBE5ACXR Equipment Under Test LBE-5AC-XR Test Report Serial Number TR6348_02 Date of Test(s) 23 – 25, 29 June 1, 9 July and 12 August 2021 Report Issue Date 5 August 2021 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-1_02 Page 2 of 34 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified C ompliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name airMAX Model Number LBE-5AC-XR FCC ID SWX-LBE5ACXR ISED ID 6545A-LBE5ACXR On this 5 th day of August 2021, I individually and for Unified C ompliance Laboratory certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified C ompliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified C ompliance Laboratory Written By: Joseph W. Jackson Reviewed By: Alex Macon 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-1_02 Page 3 of 34 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 5 August 2021 02 Amended Test Results in Sections 5.3 and 5.6 - Added information in Sections 2.6, 4.2, 5.1, 5.3, 5.4, 5.5 and 5.6 Added elevation data 13 August 2021 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-1_02 Page 4 of 34 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 6 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment ................................................................................................................................... 11 4.1 Conducted Emissions at Mains Ports .......................................................................................... 11 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 11 4.3 Radiated Emissions ..................................................................................................................... 12 4.4 Equipment Calibration ................................................................................................................ 13 4.5 Measurement Uncertainty ........................................................................................................... 13 5 Test Results ......................................................................................................................................... 14 5.1 §15.203 Antenna Requirements ....................................…

Text truncated - open the document above for the full version.

1 / 27 LBE-5AC-XR UNII-1 Annex 2 / 27 Summary Test Frequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB 5175.000 24.0 40.000000 PASS RF output power 5175.000 24.0 40.000000 PASS Power Spectral Density 5175.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5175.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5200.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5200.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5230.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5230.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5180.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5180.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5200.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5200.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5225.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5225.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5185.000 24.0 60.000000 PASS Occupied Channel Bandwidth 99% 5185.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5200.000 24.0 60.000000 PASS Occupied Channel Bandwidth 99% 5200.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5220.000 24.0 60.000000 PASS Occupied Channel Bandwidth 99% 5220.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5195.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5195.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 5200.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5200.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 5210.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5210.000 24.0 80.000000 PASS 3 / 27 Emission Bandwidth 26 dB (5175 MHz; 24.000 dBm; 40 MHz) 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5175.000000 48.450000 --- --- 5151.975000 5200.425000 DUT Frequency (MHz) Max Level (dBm) Result 5175.000000 -12.7 PASS Bandwidth Measurement Setting Instrument Value Target Value Start Frequency 5.11500 GHz 5.11500 GHz Stop Frequency 5.23500 GHz 5.23500 GHz Span 120.000 MHz 120.000 MHz Le ve l in d Bm 4 / 27 RBW 300.000 kHz ~ 400.000 kHz VBW 1.000 MHz >= 900.000 kHz SweepPoints 800 ~ 800 Sweeptime 50.625 μs AUTO Reference Level -5.000 dBm -5.000 dBm Attenuation 15.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off RF output power (5175 MHz; 24.000 dBm; 40 MHz) Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5175.000000 5.2 30.0 5.2 85.070 PASS OSP PowerMeter settings Setting Instrument Value Target Value Measurement Time 1.000 s 1.000 s Points 1000000 1000000 Time resolution 1.000 μs 1.000 μs Power Spectral Density (5175 MHz; 24.000 dBm; 40 MHz) Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5175.000000 5183.316832 -12.664 17.0 PASS Ports Port State 1 used 2 used Measurement Setting Instrument Value Target Value Start Frequency 5.15500 GHz 5.15500 GHz Stop Frequency 5.19500 GHz 5.19500 GHz Span 40.000 MHz 40.000 MHz RBW 1.000 MHz <= 1.000 MHz VBW 3.000 MHz >= 3.000 MHz SweepPoints 101 ~ 80 Sweeptime 2.020 ms 2.020 ms Reference Level 0.000 dBm 0.000 dBm Attenuation 20.000 dB AUTO Detector RMS RMS SweepCount 100 100 Filter 3 dB 3 dB Trace Mode Average Power Average Power Sweeptype Sweep AUTO Preamp off off Occupied Channel Bandwidth 99% (5175 MHz; 24.000 dBm; 40 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5175.000000 36.750000 --- --- 5156.625000 5193.375000 5 / 27 DUT Frequency (MHz) Result 5175.000000 PASS Bandwidth Measurement Setting Instrument Value Target Value Start Frequency 5.13500 GHz 5.13500 GHz Stop Frequency 5.21500 GHz 5.21500 GHz Span 80.000 MHz 80.000 MHz RBW 500.000 kHz >= 400.000 kHz VBW 2.000 MHz >= 1.500 MHz SweepPoints 320 ~ 320 Sweeptime 18.906 μs AUTO Reference Level -5.000 dBm -5.000 dBm Attenuation 15.000 dB AUTO Detector MaxPeak MaxPeak Le ve l in d Bm 6 / 27 SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Emission Bandwidth 26 dB (5200 MHz; 24.000 dBm; 40 MHz) 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5200.000000 46.350000 --- --- 5177.275000 5223.625000 DUT Frequency (MHz) Max Level (dBm) Result 5200.000000 -4.4 PASS Bandwidth Le ve l in d Bm 7 / 27 Occupied Channel Bandwidth 99% (5200 MHz; 24.000 dBm; 40 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5200.000000 37.000000 --- --- 5181.625000 5218.625000 DUT Frequency (MHz) Result 5200.000000 PASS Bandwidth Emission Bandwidth 26 dB (5230 MHz; 24.000 dBm; 40 MHz) Le ve l in d Bm 8 / 27 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5230.000000 48.300000 --- --- 5205.775000 5254.075000 DUT Frequency (MHz) Max Level (dBm) Result 5230.000000 -0.2 PASS Bandwidth Occupied Channel Bandwidth 99% (5230 MHz; 24.000 dBm; 40 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) Le ve l in d Bm 9 / 27 5230.000000 36.500000 --- --- 5211.875000 5248.375000 DUT Frequency (MHz) Result 5230.000000 PASS Bandwidth Emission Bandwidth 26 dB (5180 MHz; 24.000 dBm; 50 MHz) 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.000000 57.250000 --- --- 5152.375000 5209.625000 DUT Frequency (MHz) Max Level (dBm) Result Le ve l in d Bm 10 / 27 5180.000000 -3.1 PASS Bandwidth Occupied Channel Bandwidth 99% (5180 MHz; 24.000 dBm; 50 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.000000 44.750000 --- --- 5157.625000 5202.375…

Text truncated - open the document above for the full version.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-LBE5ACXR ISED ID 6545A-LBE5ACXR Equipment Under Test LBE-5AC-XR Test Report Serial Number TR6348_01 Date of Test(s) 23, 24, 28, 29 June and 9 July 2021 Report Issue Date 19 August 2021 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-3_01 Page 2 of 27 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified Compliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name airMAX Model Number LBE-5AC-XR FCC ID SWX-LBE5ACXR ISED ID 6545A-LBE5ACXR On this 19 th day of August 2021, I individually and for Unified Compliance Laboratory certify that the statements made in this engineering report are true, complete and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified Compliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified Compliance Laboratory Written By: Joseph W. Jackson Reviewed By: Alex Macon 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-3_01 Page 3 of 27 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 19 August 2021 427 West 12800 South, Draper, UT 84020 TR6348_LBE-5AC-XR_FCC_15.407_UNII-3_01 Page 4 of 27 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 6 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment ................................................................................................................................... 11 4.1 Conducted Emissions at Mains Ports .......................................................................................... 11 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 11 4.3 Radiated Emissions ..................................................................................................................... 12 4.4 Equipment Calibration ................................................................................................................ 13 4.5 Measurement Uncertainty ........................................................................................................... 13 5 Test Results ......................................................................................................................................... 14 5.1 §15.203 Antenna Requirements .................................................................................................. 14 5.2 Conducted Emissions at Mains Ports Data .......................................................…

Text truncated - open the document above for the full version.

1 / 91 LBE-5AC-XR UNII-3 Annex 2 / 91 Summary Test Frequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB 5735.000 24.0 10.000000 PASS RF output power 5735.000 24.0 10.000000 PASS Power Spectral Density 5735.000 24.0 10.000000 PASS Minimum Emission Bandwidth 6 dB 5735.000 24.0 10.000000 PASS Occupied Channel Bandwidth 99% 5735.000 24.0 10.000000 PASS Frequency Error 5735.000 24.0 10.000000 PASS Tx Spurious Emission 5735.000 24.0 10.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 10.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 10.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 10.000000 PASS Tx Spurious Emission 5790.000 24.0 10.000000 PASS Emission Bandwidth 26 dB 5840.000 24.0 10.000000 PASS Minimum Emission Bandwidth 6 dB 5840.000 24.0 10.000000 PASS Occupied Channel Bandwidth 99% 5840.000 24.0 10.000000 PASS Frequency Error 5840.000 24.0 10.000000 PASS Tx Spurious Emission 5840.000 24.0 10.000000 PASS Emission Bandwidth 26 dB 5740.000 24.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5740.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 5740.000 24.0 20.000000 PASS Tx Spurious Emission 5740.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 20.000000 PASS Tx Spurious Emission 5790.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 5835.000 24.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5835.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 5835.000 24.0 20.000000 PASS Tx Spurious Emission 5835.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 5745.000 24.0 30.000000 PASS Minimum Emission Bandwidth 6 dB 5745.000 24.0 30.000000 PASS Occupied Channel Bandwidth 99% 5745.000 24.0 30.000000 PASS Tx Spurious Emission 5745.000 24.0 30.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 30.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 30.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 30.000000 PASS Tx Spurious Emission 5790.000 24.0 30.000000 PASS Emission Bandwidth 26 dB 5830.000 24.0 30.000000 PASS Minimum Emission Bandwidth 6 dB 5830.000 24.0 30.000000 PASS Occupied Channel Bandwidth 99% 5830.000 24.0 30.000000 PASS Tx Spurious Emission 5830.000 24.0 30.000000 PASS Emission Bandwidth 26 dB 5750.000 24.0 40.000000 PASS Minimum Emission Bandwidth 6 dB 5750.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5750.000 24.0 40.000000 PASS Tx Spurious Emission 5750.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 40.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 40.000000 PASS Tx Spurious Emission 5790.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5825.000 24.0 40.000000 PASS Minimum Emission Bandwidth 6 dB 5825.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 5825.000 24.0 40.000000 PASS Tx Spurious Emission 5825.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 5755.000 24.0 50.000000 PASS Minimum Emission Bandwidth 6 dB 5755.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5755.000 24.0 50.000000 PASS Tx Spurious Emission 5755.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 50.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 50.000000 PASS Tx Spurious Emission 5790.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5820.000 24.0 50.000000 PASS Minimum Emission Bandwidth 6 dB 5820.000 24.0 50.000000 PASS Occupied Channel Bandwidth 99% 5820.000 24.0 50.000000 PASS Tx Spurious Emission 5820.000 24.0 50.000000 PASS Emission Bandwidth 26 dB 5760.000 24.0 60.000000 PASS Minimum Emission Bandwidth 6 dB 5760.000 24.0 60.000000 PASS 3 / 91 Occupied Channel Bandwidth 99% 5760.000 24.0 60.000000 PASS Tx Spurious Emission 5760.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 60.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 60.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 60.000000 PASS Tx Spurious Emission 5790.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5815.000 24.0 60.000000 PASS Minimum Emission Bandwidth 6 dB 5815.000 24.0 60.000000 PASS Occupied Channel Bandwidth 99% 5815.000 24.0 60.000000 PASS Tx Spurious Emission 5815.000 24.0 60.000000 PASS Emission Bandwidth 26 dB 5770.000 24.0 80.000000 PASS Minimum Emission Bandwidth 6 dB 5770.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5770.000 24.0 80.000000 PASS Tx Spurious Emission 5770.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 5790.000 24.0 80.000000 PASS Minimum Emission Bandwidth 6 dB 5790.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5790.000 24.0 80.000000 PASS Tx Spurious Emission 5790.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 5805.000 24.0 80.000000 PASS Minimum Emission Bandwidth 6 dB 5805.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 5805.000 24.0 8…

Text truncated - open the document above for the full version.
