SWX-RM5802.11n 2x2 MIMO BaseStation

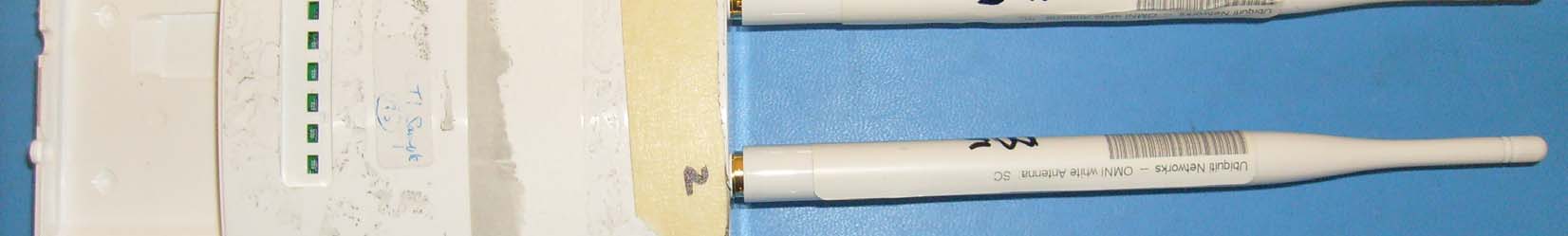

Carrier Class airMAX ™ BaseStation 1 Introduction Introduction Thank you for purchasing a Rocket Series product. This Quick Start Guide is for use with the following model: ModelOperating Frequency Rocket M55.25 - 5.6 GHz and 5.65 - 5.85 GHz Package Contents Rocket M5Metal Strap24V PoE Adapter Carrier Class AirMAX ™ BaseStation Power CordQuick Start Guide Installation Requirements • Antenna needs to have clear line of sight to the sky. • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable 2 Rocket ™ M5 Hardware Overview Antenna Connectors Removable Cover Ethernet Port USB Port Note: The USB port is reserved for future use. 3 Hardware Overview LEDs Power The Power LED will light steady green when the Rocket M5 is connected to a power source. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made to the Ethernet port and flash when there is activity. Signal The first Signal LED is lit when the wireless signal strength is above -94 dBm, the second LED when the wireless signal strength is above -80 dBm, the third LED when the wireless signal strength is above -73 dBm, and the fourth LED when the wireless signal strength is above -65 dBm. Note: By default, the Signal LEDs represent the wireless signal strength with default threshold values. In the airOS interface, you can modify the threshold values for each LED. The settings can be configured on the Advanced tab under Signal LED Thresholds. 4 Rocket ™ M5 Connecting the Rocket M5 1. Connect the RF cables to the connectors labeled Chain 0 and Chain 1 on the Rocket M5. 2. Slide the Rocket M5 on to the antenna mount. Mounting on a Dish AntennaMounting on a Sector Antenna 5 Connecting the Rocket M5 3. Attach the RF cables from the Rocket M5 to the connectors on the antenna. Connecting to a Dish AntennaConnecting to a Sector Antenna 6 Rocket ™ M5 Connecting Power over Ethernet 1. Remove the port cover by lifting the release latch on the bottom of the Rocket M5 and sliding the cover off. 2. Connect an Ethernet cable to the Ethernet port and to the Ethernet port labeled POE on the PoE Adapter. 7 Connecting Power over Ethernet 3. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 4. Connect the power cord to the power port on the PoE Adapter. Connect the other end of the power cord to a power outlet. 5. Replace the port cover. 8 Rocket ™ M5 airOS Confirmation Verify connectivity in the airOS interface. 1. Make sure that your host machine is connected via Ethernet to the Rocket M5. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your Web browser and type http://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login. Note: U.S. product versions are locked to the U.S. Country Code to ensure compliance with FCC regulations. The airOS Interface will appear, allowing you to customize your settings as needed. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. 9 Specifications Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. Specifications Rocket M5 Specifications Dimensions16 x 8 x 3 cm Weight0.5 kg Ports(1) 10/100 Ethernet Port RF Connectors(2) RPSMA (Waterproof ) EnclosureOutdoor UV Stabilized Plastic Max Power Consumption6.5 Watts Power Supply24V, 1A PoE Supply Included Power MethodPassive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature-30 to 75° C (-22 to 167° F) Operating Humidity5 to 95% Condensing Shock and VibrationsETSI300-019-1.4 Operating Frequency5.25 - 5.6 GHz and 5.65 - 5.85 GHz 10 Rocket ™ M5 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. 3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death. c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment. 11 General Warranty General Warranty UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warr…

Text truncated - open the document above for the full version.

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 December 21, 2011 National Technical Systems 41039 Boyce Road Fremont, CA, 94538 RE: CONFIDENTIALITY REQUEST FOR RocketM5 (FCC ID: SWX-RM5) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We request that the schematics, block diagram and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 December 21, 2011 National Technical Systems 41039 Boyce Road Fremont, CA, 94538 RE: Professional Installation for Ubiquiti Networks Model RocketM5 To Whom It May Concern: This product is designed for outdoor point to point broadband wireless. It is available through special distribution channels worldwide serving system integrators in the Wireless Internet Service Provider Industry. A professional installer with experience in extended Ethernet cable deployment, tower mounting, and Ubiquiti AirMax system knowledge will be required to properly enable the equipment. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 MET Report: EMCS81509B-FCC247_Rev1 © 2009, MET Laboratories, Inc. Page 51 of 150 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 26.95 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 7dBi Omni Antenna Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (495.45mW) G = Antenna Gain (5.01 numeric) R = Distance (20cm) S = (495.45*5.01/ 4*3.14*20.0 2 )= (2483.13 / 5024) = 0.4942 mW/cm 2 @ 20cm separation R = (495.45*5.01/ 4*3.14*1.0) 1/2 = (2483.13/ 12.56) 1/2 = 14.061 cm MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 26.95 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 20 dBi Sector Antenna where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (495.45mW) G = Antenna Gain (100.00 numeric) R = Distance (20cm) S = (495.45*100/ 4*3.14*20.0 2 )= (49545.02/ 5024) = 9.862 mW/cm 2 @ 20cm separation R = (495.45*100/ 4*3.14*1.0) 1/2 = (49545.02/ 12.56) 1/2 = 62.806 cm Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 MET Report: EMCS81509B-FCC247_Rev1 © 2009, MET Laboratories, Inc. Page 52 of 150 MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 26.95 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 24dBi Panel Antenna where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (495.45mW) G = Antenna Gain (251.19 numeric) R = Distance (20cm) S = (495.45*251.19/ 4*3.14*20.0 2 )= (124451.50/ 5024) = 24.771 mW/cm 2 @ 20cm separation R = (495.45*251.19/ 4*3.14*1.0) 1/2 = (124451.50/ 12.56) 1/2 = 99.542cm MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 26.95 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 30 dBi Grid Antenna where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (495.45mW) G = Antenna Gain (1000.00 numeric) R = Distance (20cm) S = (495.45*1000/ 4*3.14*20.0 2 )= (495450.20/ 5024) = 98.617 mW/cm 2 @ 20cm separation R = (495.45*1000/ 4*3.14*1.0) 1/2 = (495450.20/12.56) 1/2 = 198.612 cm MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 26.95 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 30 dBi Dish Antenna where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (495.45mW) G = Antenna Gain (1000.00 numeric) R = Distance (20cm) S = (495.45*1000/ 4*3.14*20.0 2 )= (495450.20/ 5024) = 98.617 mW/cm 2 @ 20cm separation R = (495.45*1000/ 4*3.14*1.0) 1/2 = (495450.20/12.56) 1/2 = 198.612 cm Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 MET Report: EMCS81509B-FCC247_Rev1 © 2009, MET Laboratories, Inc. Page 53 of 150 MIMO Mode: MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 28.99dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 7dBi Omni Antenna Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (792.5mW) G = Antenna Gain (5.01 numeric) R = Distance (20cm) S = (792.5*5.01/ 4*3.14*20.0 2 )= (3971.915 / 5024) = 0.790 mW/cm 2 @ 20cm separation R = (792.5*5.01/ 4*3.14*1.0) 1/2 = (3971.915 /12.56) 1/2 = 17.78 cm EUT maximum antenna gain = 30dBi Dish Antenna Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (792.5mW) G = Antenna Gain (1000 numeric) R = Distance (20cm) S = (792.5*1000/ 4*3.14*20.0 2 )= (792501.3 / 5024) = 157.74 mW/cm 2 @ 20cm separation R = (792.5*1000/ 4*3.14*1.0) 1/2 = (792501.3 /12.56) 1/2 = 251.19 cm

5GHz Antenna List M5 1. 30dBi Dual-Polarity Dish 2. 24dBi Dual-Polarity Panel 3. 30dBi Grid Antenna 4. 20dBi Dual-Polarity Sector 5. 7dBi Omni Antenna Ubiquiti RD-5G-30 Beamwidth: 4 degrees Diameter: 927mm Gain: 30dBi 1. 2. Ubiquiti RP-5G-24 Beamwidth: 6degrees 15.2in x 15.2in x 1.12 in. (386mm x 386mm x 28.4mm) Gain: 24dBi 3. Ubiquiti AG-5G-30 Gain: 30dBi Dimensions: 15.7 x 23.6 inches (400 x 600 mm) 4. Ubiquiti AMS-5G-20 Gain: 20dBi Dimensions: 31 x 6.5 x 2.5 inches 5. Ubiquiti O-5G-7 Gain: 7dBi Dimensions: Length: 197mm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory December 23, 2011 Ubiquiti Networks 495-499 Montague Expressway Milpitas, CA 95035 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, RocketM5 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks\EMCS81509C-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page M5 CFR Title 47, Part 15, Subpart B and C, RSS-210 & ICES-003 MET Report: EMCS81509C-FCC247 © 2011, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model RocketM5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS81509C-FCC247 December 23, 2011 Prepared For: Ubiquiti Networks 495-499 Montague Expressway Milpitas, CA 95035 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page M5 CFR Title 47, Part 15, Subpart B and C, RSS-210 & ICES-003 MET Report: EMCS81509C-FCC247 © 2011, MET Laboratories, Inc. Page iii of vii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model RocketM5 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status RocketM5 CFR Title 47, Part 15, Subpart B and C, RSS-210 & ICES-003 MET Report: EMCS81509C-FCC247 © 2011, MET Laboratories, Inc. Page iv of vii Report Status Sheet Revision Report Date Reason for Revision  December 23, 2011 Initial Issue. Electromagnetic Compatibility Ubiquiti Networks Table of Contents RocketM5 CFR Title 47, Part 15, Subpart B and C, RSS-210 & ICES-003 MET Report: EMCS81509C-FCC247 © 2011, MET Laboratories, Inc. Page v of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................5 E. Equipment Configuration ....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation ..............................................................................................................................................8 I. Method of Monitoring EUT Operation ...............................................................................................................8 J. Modifications ....................................................…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M5 CFR Title 47, Part 15, Subpart B & ICES-003 Conducted Emission Limits Test Setup Photograph 2. Conducted Emissions, Test Setup MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 13 of 150 Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M5 CFR Title 47, Part 15, Subpart B & ICES-003 Radiated Emission Limits Test Setup Photograph 3. Radiated Emission, Test Setup Photograph 4. Radiated Emission, Test Setup, Above 1 GHz MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 19 of 150 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 Conducted Emission Limits Test Setup Photograph 5. Conducted Emissions, Test Setup, 15.207 MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 25 of 150 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 Radiated Spurious Emissions – Test Setup Photographs Photograph 6. Test Equipment and Setup for Various Radiated Measurements – Omni Antenna Photograph 7. Test Equipment and Setup for Various Radiated Measurements – Omni Antenna, Combined MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 77 of 150 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 Photograph 8. Test Equipment and Setup for Various Radiated Measurements – Dish Photograph 9. Test Equipment and Setup for Various Radiated Measurements – Grid MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 78 of 150 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5 CFR Title 47, Part 15, Subpart C & RSS-210 Photograph 10. Test Equipment and Setup for Various Radiated Measurements – Panel Photograph 11. Test Equipment and Setup for Various Radiated Measurements – Sector MET Report: EMCS81509B-FCC247 © 2009, MET Laboratories, Inc. Page 79 of 150
