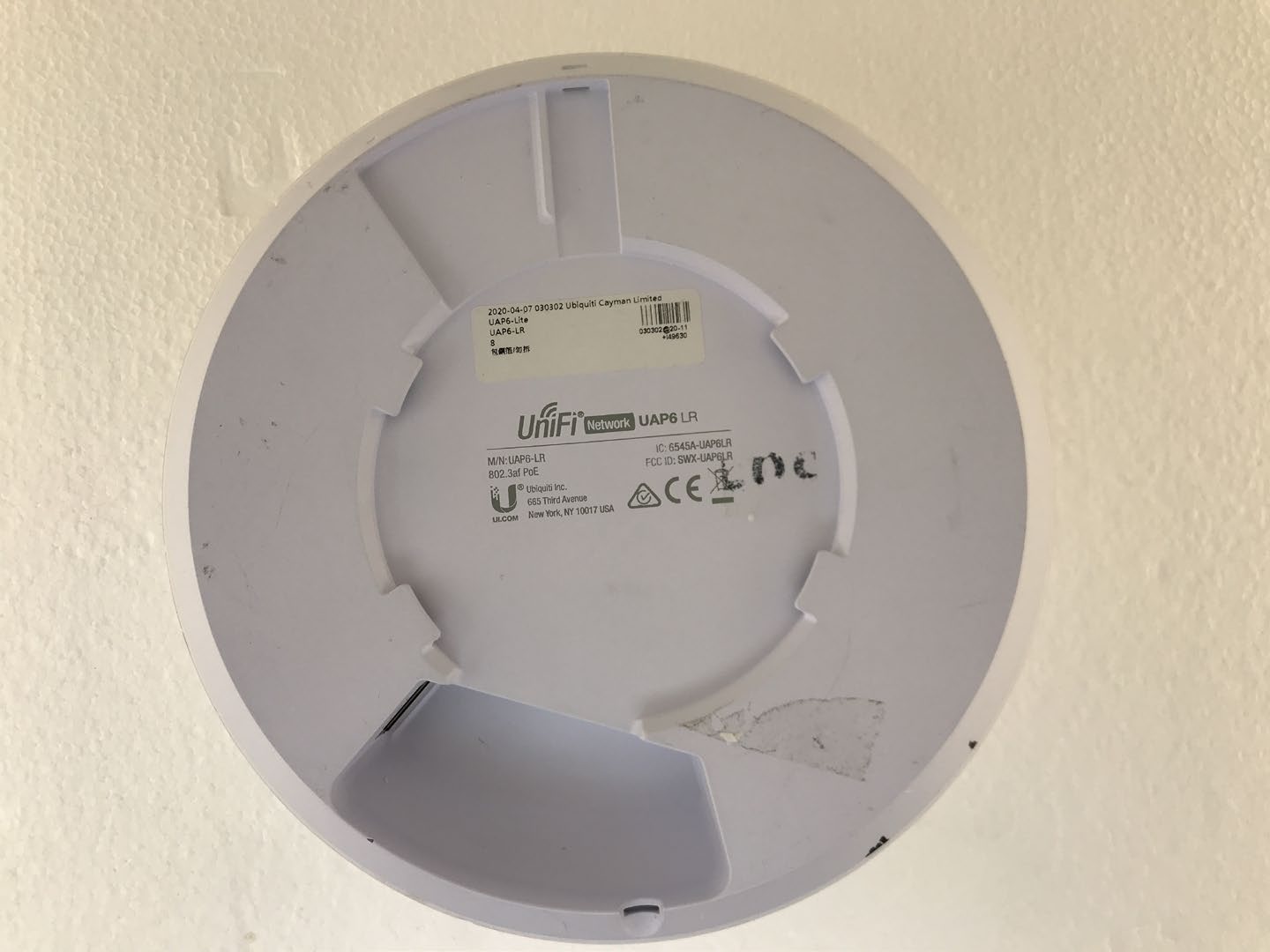

SWX-U6LRDigital Transmission Radio

SPECIFICATIONS/Model:U6-Lite MECHANICAL Dimensions φ160x32.65mm Weight without mounting)300g (with mounting)315g Enclosure Characteristics PC 110 + Die casting- ADC 12 Mounting Characteristics PC + SGCC HARDWARE Processor Specs 880 MHz MIPS® 1004KEc Memory Information DDR3 SDRAM 2Gbit Management Interface Ethernet Networking Interface 1x RJ45 GbE Buttons reset LEDs White/Brue Power Method 802.3af Power Supply 802.3af Supported Voltage Range 44 to 57VDC Max. TX Power 2.4 GHz 23 dBm 5 GHz 23 dBm MIMO 2.4 GHz 2x2 5 GHz 2x2 Operating Temperature -10C~60C Operating Humidity 5 to 95% Noncondensing SOFTWARE Wi-Fi Standards 802.11a/b/g/Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The following apply to Class A products This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The following apply to Class B products "This equipment has been tested and found to comply with the limits for a Class B digital device. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help." ISED Canada CAN ICES-3(A/B)/NMB-3(A/B) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A/B)/NMB-3(A/B) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

Date:5/08/2020 TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-U6LR, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation Software Security Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mark Feil Ubiquiti lnc. Compliance Manager 685 3 RD AVE. • NEW Y0RK, NY 10071 • www.ui.com

UNII 3 § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies @ 5725 - 5850 MHz and 2400 – 2483.5 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) Test Results: FCC Frequency (MHz) Con. Pwr. (dBm) Con. Pwr. (mW) Ant. Gain (dBi) Ant. Gain numeric Pwr. Density (mW/cm 2 ) Limit (mW/cm 2 ) Margin Distance (cm) Result 5775 28.9 776 7 5.01 0.773 1.0 -0.227 20 Pass 2437 26.2 417 6 3.98 0.33 1.0 -0.66 20 Pass *There is no simultaneous transmission The safe distance for SWX-U6LR where Power Density is less than the MPE Limit listed above was found to be 20 cm.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6LR Equipment Under Test U6-LR Test Report Serial Number TR4211_01 Date of Test(s) 28 April, 1 May and 6 May 2020 Report Issue Date 11 May 2020 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-1_01 Page 2 of 21 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified Compliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U6-LR FCC ID SWX-U6LR ISED ID 6545A-U6LR On this 11 th day of May 2020, I individually and for Unified Compliance Laboratory certify that the statements made in this engineering report are true, complete and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified Compliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the federal government. Unified Compliance Laboratory Written By: Alex Macon Reviewed By: Joseph W. Jackson 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-1_01 Page 3 of 21 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 11 May 2020 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-1_01 Page 4 of 21 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 7 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location ................................................................................................................................ 9 4 Test Equipment ................................................................................................................................... 10 4.1 Conducted Emissions at Mains Ports .......................................................................................... 10 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 10 4.3 Radiated Emissions ..................................................................................................................... 11 4.4 Equipment Calibration ................................................................................................................ 12 4.5 Measurement Uncertainty ........................................................................................................... 12 5 Test Results ......................................................................................................................................... 13 5.1 §15.203 Antenna Requirements .................................................................................................. 13 5.2 Conducted Emissions at Mains Ports Data ................................................................................. 13 5.3 §15.403(i) 26 dB Emissions Bandwidth .........................................…

Text truncated - open the document above for the full version.

UNII-1 Annex Summary TestFrequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB5180.00030.020.000000PASS RF output power5180.00030.020.000000PASS Power Spectral Density5180.00030.020.000000PASS Occupied Channel Bandwidth 99%5180.00030.020.000000PASS Emission Bandwidth 26 dB5210.00030.020.000000PASS Occupied Channel Bandwidth 99%5210.00030.020.000000PASS Emission Bandwidth 26 dB5240.00030.020.000000PASS Occupied Channel Bandwidth 99%5240.00030.020.000000PASS Emission Bandwidth 26 dB5190.00030.040.000000PASS Occupied Channel Bandwidth 99%5190.00030.040.000000PASS Emission Bandwidth 26 dB5210.00030.040.000000PASS Occupied Channel Bandwidth 99%5210.00030.040.000000PASS Emission Bandwidth 26 dB5230.00030.040.000000PASS Occupied Channel Bandwidth 99%5230.00030.040.000000PASS Emission Bandwidth 26 dB5210.00030.080.000000PASS Occupied Channel Bandwidth 99%5210.00030.080.000000PASS FCC 15.407 2018 2020-05-063 / 333:08:51 PM Emission Bandwidth 26 dB (5180 MHz; 30.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.00000019.800000------5170.0500005189.850000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5180.000000-0.3PASS -50 -40 -30 -20 -10 0 5 5150 5160 5170 5180 5190 5200 5210 Level in dBm Frequency in MHz 26 dB Bandwidth 19.800 MHz Bandwidth FCC 15.407 2018 2020-05-064 / 333:08:51 PM Measurement SettingInstrument Value Target Value Start Frequency5.15000 GHz5.15000 GHz Stop Frequency5.21000 GHz5.21000 GHz Span60.000 MHz60.000 MHz RBW200.000 kHz~ 200.000 kHz VBW3.000 kHz>= 3.000 kHz SweepPoints600~ 600 Sweeptime1.915 msAUTO Reference Level-5.000 dBm-5.000 dBm Attenuation15.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount500500 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2020-05-065 / 333:08:51 PM RF output power (5180 MHz; 30.000 dBm; 20 MHz) Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5180.00000027.129.034.198.608PASS OSP PowerMeter settings SettingInstrument Value Target Value Measurement Time1.000 s1.000 s Points10000001000000 Time resolution1.000 μs1.000 μs FCC 15.407 2018 2020-05-066 / 333:08:51 PM Power Spectral Density (5180 MHz; 30.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5180.0000005178.81188113.70316.0PASS Ports PortState 1used 2used 3used 4used Measurement SettingInstrument Value Target Value Start Frequency5.17000 GHz5.17000 GHz Stop Frequency5.19000 GHz5.19000 GHz Span20.000 MHz20.000 MHz RBW1.000 MHz<= 1.000 MHz VBW3.000 MHz>= 3.000 MHz SweepPoints101~ 40 Sweeptime2.020 ms2.020 ms Reference Level20.000 dBm20.000 dBm Attenuation40.000 dBAUTO DetectorRMSRMS SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2020-05-067 / 333:08:51 PM Occupied Channel Bandwidth 99% (5180 MHz; 30.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.00000019.200000------5170.3500005189.550000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5180.000000PASS -30 -20 -10 0 10 15 5160 5170 5180 5190 5200 Level in dBm Frequency in MHz 99 % Bandwidth 19.200 MHz Bandwidth FCC 15.407 2018 2020-05-068 / 333:08:51 PM Measurement SettingInstrument Value Target Value Start Frequency5.16000 GHz5.16000 GHz Stop Frequency5.20000 GHz5.20000 GHz Span40.000 MHz40.000 MHz RBW200.000 kHz>= 200.000 kHz VBW1.000 MHz>= 600.000 kHz SweepPoints400~ 400 Sweeptime28.477 μsAUTO Reference Level-5.000 dBm-5.000 dBm Attenuation15.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount500500 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2020-05-069 / 333:08:51 PM Emission Bandwidth 26 dB (5210 MHz; 30.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5210.00000030.100000------5195.3500005225.450000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5210.0000002.4PASS -40 -30 -20 -10 0 5 5180 5190 5200 5210 5220 5230 5240 Level in dBm Frequency in MHz 26 dB Bandwidth 30.100 MHz Bandwidth FCC 15.407 2018 2020-05-0610 / 333:08:51 PM FCC 15.407 2018 2020-05-0611 / 333:08:51 PM Occupied Channel Bandwidth 99% (5210 MHz; 30.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5210.00000019.200000------5200.4500005219.650000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5210.000000PASS -20 -10 0 10 20 5190 5195 5200 5205 5210 5215 5220 5225 5230 Level in dBm Frequency in MHz 19.200 MHz Bandwidth FCC 15.407 2018 2020-05-0612 / 333:08:51 PM FCC 15.407 2018 2020-05-0613 / 333:08:51 PM Emission Bandwidth 26 dB (5240 MHz; 30.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5240.00000019.800000------5230.0500005249.850000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5240.000000-0.1PASS -50 -40 -30 -20 -10 0 5 5210 5220 5230 5240 5250 5260 5270 Level in dBm Frequency in MHz 26 dB Bandwidth 19.800 MHz Bandwidth FCC 15.407 2018 2020-05-0614 / 333:08:51 PM FCC 15.407 2018 2020-05-0615 / 333:08:51 PM Occupied Channel Bandwidth 99% (5240 MHz; 30.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5240.00000019.100000------5230.4500005249…

Text truncated - open the document above for the full version.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6LR Equipment Under Test U6-LR Test Report Serial Number TR4211_01 Date of Test(s) 28 April, 1 May and 6 May 2020 Report Issue Date 11 May 2020 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-3_01 Page 2 of 19 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified Compliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U8-LR FCC ID SWX-U6LR ISED ID 6545A-U6LR On this 11 th day of May 2020, I individually and for Unified Compliance Laboratory certify that the statements made in this engineering report are true, complete and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified Compliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the federal government. Unified Compliance Laboratory Written By: Alex Macon Reviewed By: Joseph W. Jackson 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-3_01 Page 3 of 19 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 11 May 2020 427 West 12800 South, Draper, UT 84020 TR4211_U6-LR_UNII-3_01 Page 4 of 19 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 7 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location ................................................................................................................................ 9 4 Test Equipment ................................................................................................................................... 10 4.1 Conducted Emissions at Mains Ports .......................................................................................... 10 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 10 4.3 Radiated Emissions ..................................................................................................................... 11 4.4 Equipment Calibration ................................................................................................................ 12 4.5 Measurement Uncertainty ........................................................................................................... 12 5 Test Results ......................................................................................................................................... 13 5.1 §15.203 Antenna Requirements .................................................................................................. 13 5.2 Conducted Emissions at Mains Ports Data ................................................................................. 13 5.3 §15.403(i) 26 dB Emissions Bandwidth .........................................…

Text truncated - open the document above for the full version.

UNII-3 Annex Summary TestFrequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB5745.00030.020.000000PASS Minimum Emission Bandwidth 6 dB5745.00030.020.000000PASS Occupied Channel Bandwidth 99%5745.00030.020.000000PASS Frequency Error5745.00030.020.000000PASS Tx Spurious Emission5745.00030.020.000000PASS Emission Bandwidth 26 dB5775.00030.020.000000PASS Minimum Emission Bandwidth 6 dB5775.00030.020.000000PASS Occupied Channel Bandwidth 99%5775.00030.020.000000PASS Tx Spurious Emission5775.00030.020.000000PASS Emission Bandwidth 26 dB5825.00030.020.000000PASS Minimum Emission Bandwidth 6 dB5825.00030.020.000000PASS Occupied Channel Bandwidth 99%5825.00030.020.000000PASS Frequency Error5825.00030.020.000000PASS Tx Spurious Emission5825.00030.020.000000PASS Emission Bandwidth 26 dB5755.00030.040.000000PASS Minimum Emission Bandwidth 6 dB5755.00030.040.000000PASS Occupied Channel Bandwidth 99%5755.00030.040.000000PASS Tx Spurious Emission5755.00030.040.000000PASS Emission Bandwidth 26 dB5775.00030.040.000000PASS Minimum Emission Bandwidth 6 dB5775.00030.040.000000PASS Occupied Channel Bandwidth 99%5775.00030.040.000000PASS Tx Spurious Emission5775.00030.040.000000PASS Emission Bandwidth 26 dB5795.00030.040.000000PASS Minimum Emission Bandwidth 6 dB5795.00030.040.000000PASS Occupied Channel Bandwidth 99%5795.00030.040.000000PASS Tx Spurious Emission5795.00030.040.000000PASS Emission Bandwidth 26 dB5775.00030.080.000000PASS Minimum Emission Bandwidth 6 dB5775.00030.080.000000PASS Occupied Channel Bandwidth 99%5775.00030.080.000000PASS Tx Spurious Emission5775.00030.080.000000PASS FCC 15.407 2018 2020-05-063 / 6111:04:28 AM Emission Bandwidth 26 dB (5745 MHz; 30.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.00000039.400000------5724.4500005763.850000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5745.00000010.4PASS -30 -20 -10 0 10 15 57155720 5730 5740 5750 5760 57705775 Level in dBm Frequency in MHz 26 dB Bandwidth 39.400 MHz Bandwidth FCC 15.407 2018 2020-05-064 / 6111:04:28 AM FCC 15.407 2018 2020-05-065 / 6111:04:28 AM Minimum Emission Bandwidth 6 dB (5745 MHz; 30.000 dBm; 20 MHz) Customized settings. 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.00000015.8500000.500000---5736.7750005752.625000 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5745.0000009.4PASS -20 -10 0 10 20 25 5725 5730 5735 5740 5745 5750 5755 5760 5765 Level in dBm Frequency in MHz 6 dB Bandwidth 15.850 MHz Bandwidth FCC 15.407 2018 2020-05-066 / 6111:04:28 AM FCC 15.407 2018 2020-05-067 / 6111:04:28 AM Occupied Channel Bandwidth 99% (5745 MHz; 30.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.00000022.300000------5733.0500005755.350000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5745.000000PASS -30 -20 -10 0 10 15 57155720 5730 5740 5750 5760 57705775 Level in dBm Frequency in MHz 99 % Bandwidth 22.300 MHz Bandwidth FCC 15.407 2018 2020-05-068 / 6111:04:28 AM FCC 15.407 2018 2020-05-069 / 6111:04:28 AM Frequency Error (5745 MHz; 30.000 dBm; 20 MHz) Result DUT Frequency (MHz) Frequency (MHz) Difference (ppm) Frequency Difference (kHz) Limit Min (MHz) Limit Max (MHz) Result 5745.0000005744.9840022.785-15.998500------PASS -10 0 10 20 30 35 5730 5735 5740 5745 5750 5755 5760 Level in dBm Frequency in MHz Frequency stability Pre Center frequencyMax Hold 5.745 GHz -20 -10 0 10 20 25 5735 5740 5745 5750 5755 Level in dBm Frequency in MHz Frequency stability Edge pointsMax HoldCent…
