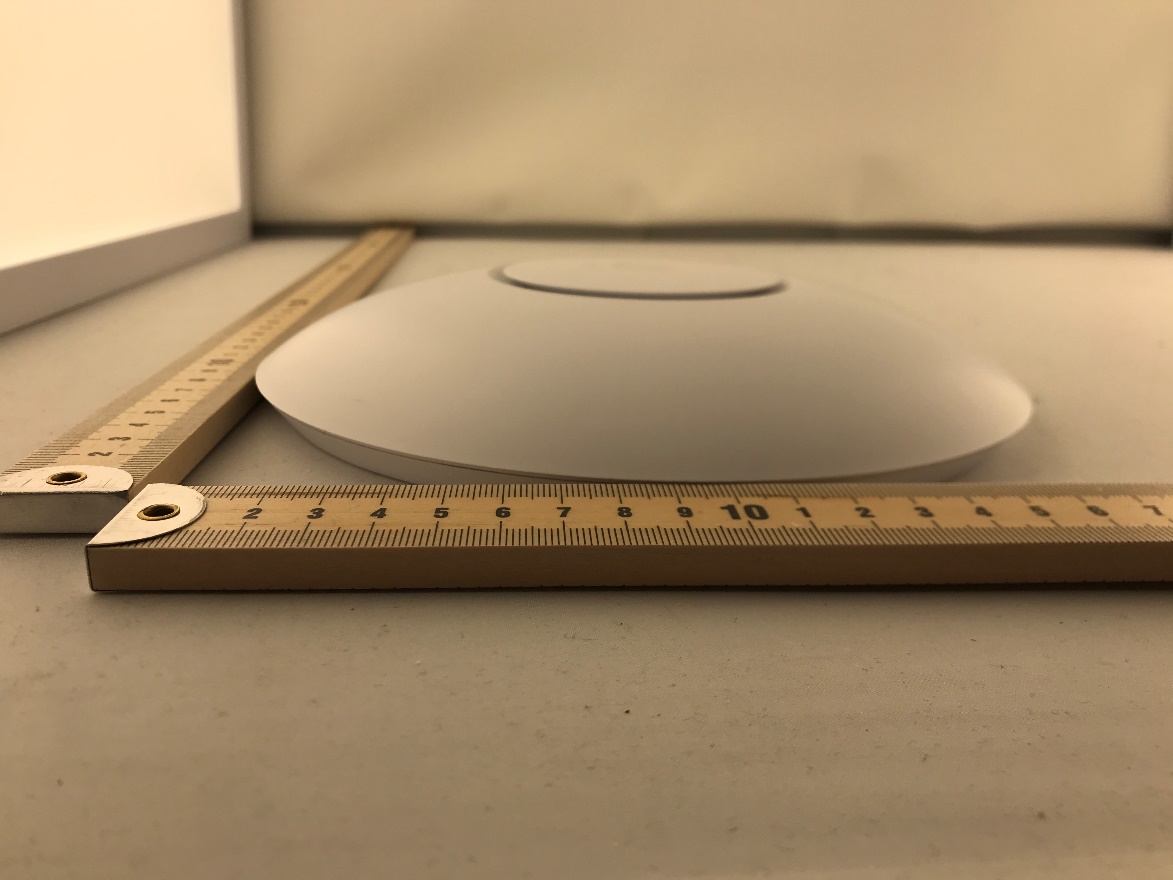

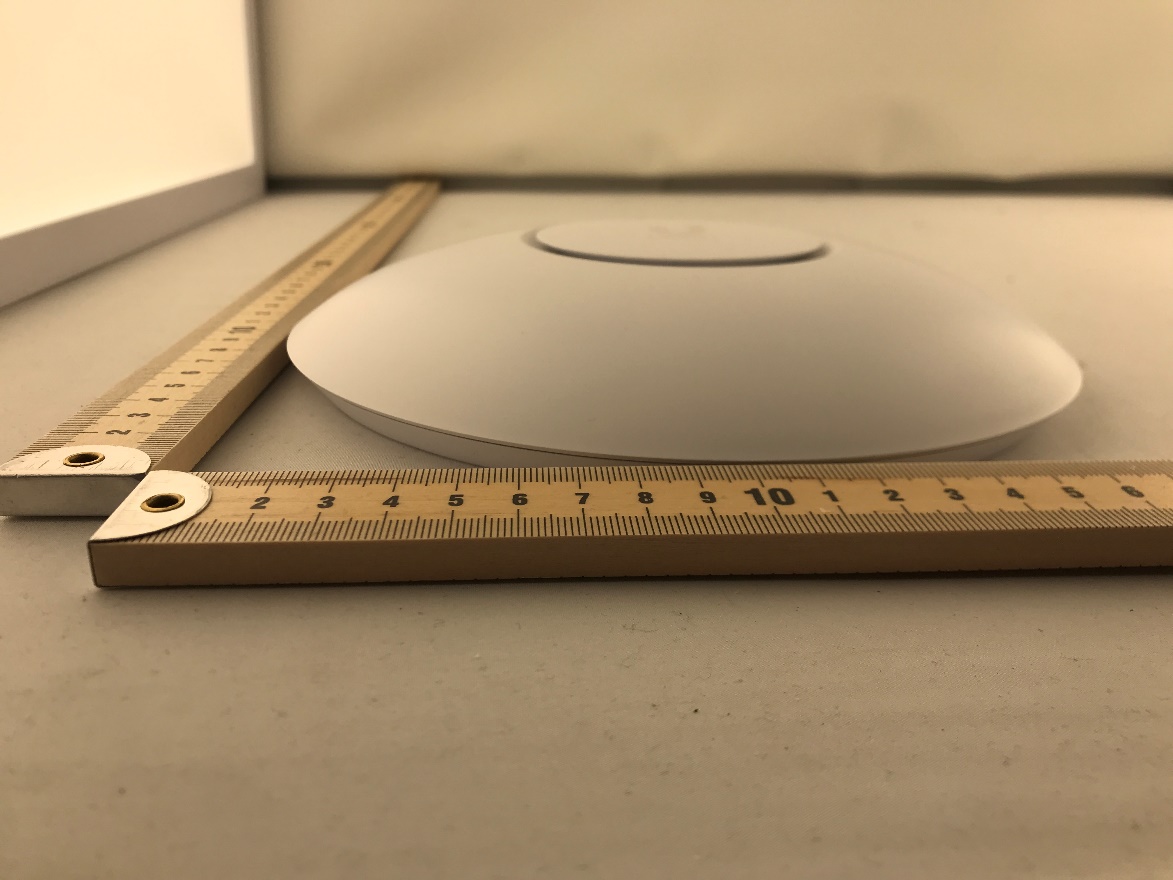

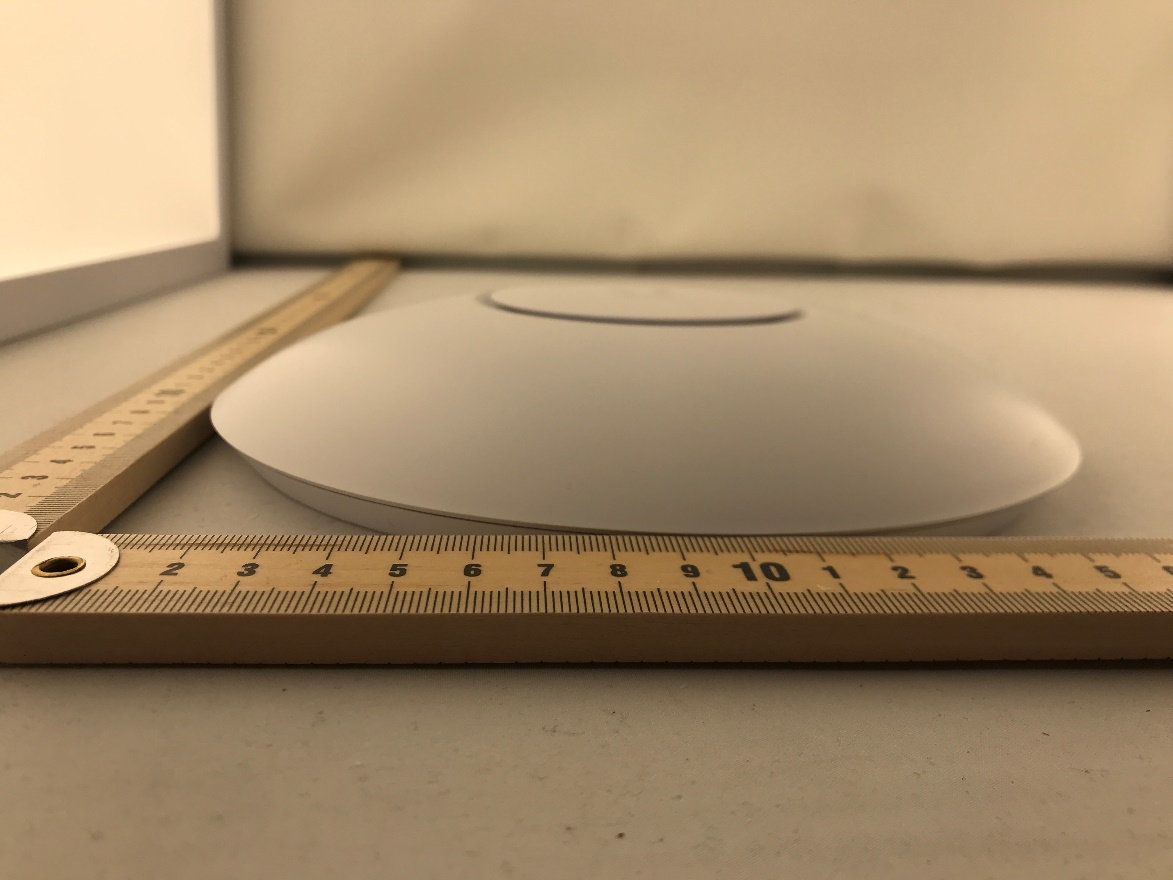

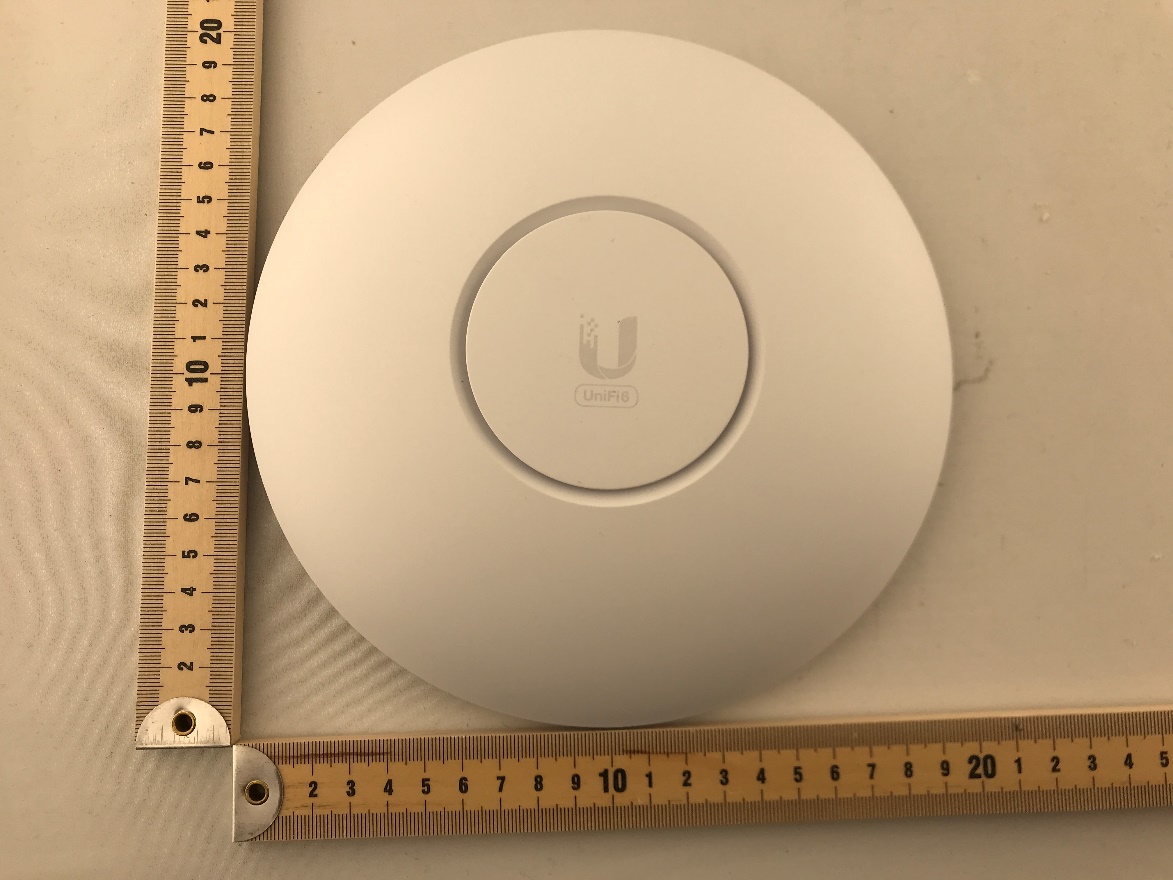

SWX-U6PRORDigital Transmission Radio

E-Label User Information FCC ID: SWX-U6PROR IC ID: 6545A-U6PROR Ubiquiti Inc. will be incorporating the E-Label procedures per FCC KDB 784748-D02. The information below is what will be included in the E-Labeling. E-label and warning statements can be found in the device/controller GUI under Device > Settings > About. Detailed compliance information including Declaration of Conformity is available at the following internet address: ui.com/compliance FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generated, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user bill be required to correct the interference at his own expense. ISED Canada CAN ICES-3 (A) / NMB-3 (A) This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (A) / NMB-3 (A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilize en conflit avec tout autre antenne ou transmetteur.

Date:2021/2/16 TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-U6PROR, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation Software Security Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mark Feil Ubiquiti , lnc. Compliance Manager 685 3 RD AVE. 27 TH FLOOR • NEW Y0RK, NY 10071 • www.ui.com

Power of Attorney Date: 2021/01/20 Dear Sir or Madam, I hereby have entrusted the following entity to be an authorized agent regarding application for Type Certification. Ubiquiti Inc. also authorizes the following entity to be a proxy to handle all certification matters. Unified Compliance Laboratories Address : 427 W 12800 South Draper Utah 84020 e-mail : [email protected] Applicant : Ubiquiti Inc. Address : 685 Third Avenue ,New York NY 10017 United States Of America Name and Job Title. : Mark Feil / Compliance Director E-mail : [email protected] Tel. : 385-200-1617

UNII 1 § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies @ 5180 – 5240 MHz, 5745 – 5825 MHz and 2400 – 2483.5 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) Test Results: FCC Frequency (MHz) Con. Pwr. (dBm) Con. Pwr. (mW) Ant. Gain (dBi) Ant. Gain numeric Pwr. Density (mW/cm 2 ) Limit (mW/cm 2 ) Margin Distance (cm) Result 5240 26.5 446.68 6.0 3.98 0.35 1.0 -0.65 20 Pass 2447 24.7 295.12 6.0 3.98 0.23 1.0 -0.77 20 Pass 2402 13.1 20.42 3.0 2.00 0.01 1.0 -0.99 20 Pass *There is no simultaneous transmission or the WiFi transmitters. The safe distance for SWX-U6PROR where Power Density is less than the MPE Limit listed above was found to be 20 cm.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6PROR ISED ID 6545A-U6PROR Equipment Under Test U6-Pro Test Report Serial Number TR5784_01 Date of Test(s) 13, 14, 21, 27 January 2021; 2 February 2021 Report Issue Date 4 February 2021 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-1_01 Page 2 of 32 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified Compliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U6-Pro FCC ID SWX-U6PROR 6545A-U6PROR On this 4th day of February 2021, I individually and for Unified Compliance Laboratory certify that the statements made in this engineering report are true, complete and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified Compliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified C ompliance Laboratory Written By: Noah Vickers Reviewed By: Alex Macon 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-1_01 Page 3 of 32 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 4 February 2021 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-1_01 Page 4 of 32 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 7 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment ................................................................................................................................... 11 4.1 Conducted Emissions at Mains Ports .......................................................................................... 11 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 11 4.3 Radiated Emissions ..................................................................................................................... 12 4.4 Equipment Calibration ................................................................................................................ 13 4.5 Measurement Uncertainty ........................................................................................................... 13 5 Test Results ......................................................................................................................................... 14 5.1 §15.203 Antenna Requirements .................................................................................................. 14 5.2 Conducted Emissions at Mains Ports Data ................................................................................. 14 5.3 §15.403(…

Text truncated - open the document above for the full version.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6PROR ISED ID 6545A-U6PROR Equipment Under Test U6-Pro Test Report Serial Number TR5784_01 Date of Test(s) 18, 21, 25, 27 January 2021 Report Issue Date 5 February 2021 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10019 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-3_01 Page 2 of 25 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified Compliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U6-Pro FCC ID SWX-U6PROR ISED ID 6545A-U6PROR On this 5th day of February 2021, I individually and for Unified Compliance Laboratory certify that the statements made in this engineering report are true, complete and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified Compliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified C ompliance Laboratory Written By: Noah Vickers Reviewed By: Alex Macon 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-3_01 Page 3 of 25 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 5 February 2021 427 West 12800 South, Draper, UT 84020 TR5784_U6-Pro_15.407_UNII-3_01 Page 4 of 25 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 7 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment ................................................................................................................................... 11 4.1 Conducted Emissions at Mains Ports .......................................................................................... 11 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 11 4.3 Radiated Emissions ..................................................................................................................... 12 4.4 Equipment Calibration ................................................................................................................ 13 4.5 Measurement Uncertainty ........................................................................................................... 13 5 Test Results ......................................................................................................................................... 14 5.1 §15.203 Antenna Requirements .................................................................................................. 14 5.2 Conducted Emissions at Mains Ports Data ................................................................................. 14 5.3 §15.403(i) 26 dB …

Text truncated - open the document above for the full version.

TR5784 U6-Pro UNII-1 Annex Summary TestFrequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB5180.00024.020.000000PASS RF output power5180.00024.020.000000PASS Power Spectral Density5180.00024.020.000000PASS Occupied Channel Bandwidth 99%5180.00024.020.000000PASS Emission Bandwidth 26 dB5210.00024.020.000000PASS RF output power5210.00024.020.000000PASS Power Spectral Density5210.00024.020.000000PASS Occupied Channel Bandwidth 99%5210.00024.020.000000PASS Emission Bandwidth 26 dB5240.00024.020.000000PASS RF output power5240.00024.020.000000PASS Power Spectral Density5240.00024.020.000000PASS Occupied Channel Bandwidth 99%5240.00024.020.000000PASS Emission Bandwidth 26 dB5190.00024.040.000000PASS RF output power5190.00024.040.000000PASS Power Spectral Density5190.00024.040.000000PASS Occupied Channel Bandwidth 99%5190.00024.040.000000PASS Emission Bandwidth 26 dB5230.00024.040.000000PASS RF output power5230.00024.040.000000PASS Power Spectral Density5230.00024.040.000000PASS Occupied Channel Bandwidth 99%5230.00024.040.000000PASS Emission Bandwidth 26 dB5210.00024.080.000000PASS RF output power5210.00024.080.000000PASS Power Spectral Density5210.00024.080.000000PASS Occupied Channel Bandwidth 99%5210.00024.080.000000PASS FCC 15.407 2018 2021-02-033 / 391:07:25 PM Emission Bandwidth 26 dB (5180 MHz; 24.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.00000021.400000------5169.4500005190.850000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5180.0000001.3PASS -50 -40 -30 -20 -10 0 5 5150 5160 5170 5180 5190 5200 5210 Level in dBm Frequency in MHz 26 dB Bandwidth 21.400 MHz Bandwidth FCC 15.407 2018 2021-02-034 / 391:07:25 PM Measurement SettingInstrument Value Target Value Start Frequency5.15000 GHz5.15000 GHz Stop Frequency5.21000 GHz5.21000 GHz Span60.000 MHz60.000 MHz RBW200.000 kHz~ 200.000 kHz VBW1.000 MHz>= 600.000 kHz SweepPoints600~ 600 Sweeptime37.969 μsAUTO Reference Level-5.000 dBm-5.000 dBm Attenuation15.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount200200 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2021-02-035 / 391:07:25 PM RF output power (5180 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5180.00000020.030.020.086.097PASS OSP PowerMeter settings SettingInstrument Value Target Value Measurement Time1.000 s1.000 s Points10000001000000 Time resolution1.000 μs1.000 μs FCC 15.407 2018 2021-02-036 / 391:07:25 PM Power Spectral Density (5180 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5180.0000005188.3168325.10617.0PASS Ports PortState 1used 2used 3used 4used Measurement SettingInstrument ValueTarget Value Start Frequency5.17000 GHz5.17000 GHz Stop Frequency5.19000 GHz5.19000 GHz Span20.000 MHz20.000 MHz RBW1.000 MHz<= 1.000 MHz VBW3.000 MHz>= 3.000 MHz SweepPoints101~ 40 Sweeptime2.020 ms2.020 ms Reference Level10.000 dBm10.000 dBm Attenuation30.000 dBAUTO DetectorRMSRMS SweepCount100100 Filter3 dB3 dB Trace ModeAverage PowerAverage Power SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2021-02-037 / 391:07:25 PM Occupied Channel Bandwidth 99% (5180 MHz; 24.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.00000019.100000------5170.4500005189.550000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5180.000000PASS -50 -40 -30 -20 -10 0 5 5160 5170 5180 5190 5200 Level in dBm Frequency in MHz 99 % Bandwidth 19.100 MHz Bandwidth FCC 15.407 2018 2021-02-038 / 391:07:25 PM Measurement SettingInstrument Value Target Value Start Frequency5.16000 GHz5.16000 GHz Stop Frequency5.20000 GHz5.20000 GHz Span40.000 MHz40.000 MHz RBW200.000 kHz>= 200.000 kHz VBW1.000 MHz>= 600.000 kHz SweepPoints400~ 400 Sweeptime28.477 μsAUTO Reference Level-5.000 dBm-5.000 dBm Attenuation15.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount200200 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2021-02-039 / 391:07:25 PM Emission Bandwidth 26 dB (5210 MHz; 24.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5210.00000024.800000------5197.2500005222.050000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5210.0000006.8PASS -40 -30 -20 -10 0 10 5180 5190 5200 5210 5220 5230 5240 Level in dBm Frequency in MHz 26 dB Bandwidth 24.800 MHz Bandwidth FCC 15.407 2018 2021-02-0310 / 391:07:25 PM FCC 15.407 2018 2021-02-0311 / 391:07:25 PM RF output power (5210 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5210.00000024.830.024.886.082PASS FCC 15.407 2018 2021-02-0312 / 391:07:25 PM Power Spectral Density (5210 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5210.0000005201.4851499.98317.0PASS Ports PortState 1used 2used 3used 4used FCC 15.407 2018 2021-02-0313 / 391:07:25 PM Occupied Channel Bandwidth 99% (5210 MHz; 24.000 dBm; 20 MHz) Customized settings. 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5210.00000019.300000------5200.3500005219.650000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5210.000000PASS -30 -20 -10 0 10 15 5190 5195 5200 5205 5210 5215 5220 5225 5230 Level in dBm Frequency in MHz 99 % Bandwidth 19.300 MHz Bandwidth FCC 15.407…

Text truncated - open the document above for the full version.

TR5784 U6-Pro UNII-3 Annex Summary TestFrequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB5745.00024.020.000000PASS RF output power5745.00024.020.000000PASS Power Spectral Density5745.00024.020.000000PASS Minimum Emission Bandwidth 6 dB5745.00024.020.000000PASS Occupied Channel Bandwidth 99%5745.00024.020.000000PASS Frequency Error5745.00024.020.000000PASS Tx Spurious Emission5745.00024.020.000000PASS Emission Bandwidth 26 dB5775.00024.020.000000PASS Minimum Emission Bandwidth 6 dB5775.00024.020.000000PASS Occupied Channel Bandwidth 99%5775.00024.020.000000PASS Frequency Error5775.00024.020.000000PASS Tx Spurious Emission5775.00024.020.000000PASS Emission Bandwidth 26 dB5825.00024.020.000000PASS Minimum Emission Bandwidth 6 dB5825.00024.020.000000PASS Occupied Channel Bandwidth 99%5825.00024.020.000000PASS Frequency Error5825.00024.020.000000PASS Tx Spurious Emission5825.00024.020.000000PASS Emission Bandwidth 26 dB5755.00024.040.000000PASS Minimum Emission Bandwidth 6 dB5755.00024.040.000000PASS Occupied Channel Bandwidth 99%5755.00024.040.000000PASS Tx Spurious Emission5755.00024.040.000000PASS Emission Bandwidth 26 dB5775.00024.040.000000PASS Minimum Emission Bandwidth 6 dB5775.00024.040.000000PASS Occupied Channel Bandwidth 99%5775.00024.040.000000PASS Tx Spurious Emission5775.00024.040.000000PASS Emission Bandwidth 26 dB5795.00024.040.000000PASS Minimum Emission Bandwidth 6 dB5795.00024.040.000000PASS Occupied Channel Bandwidth 99%5795.00024.040.000000PASS Tx Spurious Emission5795.00024.040.000000PASS Emission Bandwidth 26 dB5775.00024.080.000000PASS Minimum Emission Bandwidth 6 dB5775.00024.080.000000PASS Occupied Channel Bandwidth 99%5775.00024.080.000000PASS Tx Spurious Emission5775.00024.080.000000PASS FCC 15.407 2018 2021-01-183 / 701:31:34 PM Emission Bandwidth 26 dB (5745 MHz; 24.000 dBm; 20 MHz) Customized settings. 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.00000021.300000------5734.4500005755.750000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5745.0000006.3PASS -40 -30 -20 -10 0 10 5725 5730 5735 5740 5745 5750 5755 5760 5765 Level in dBm Frequency in MHz 26 dB Bandwidth 21.300 MHz Bandwidth FCC 15.407 2018 2021-01-184 / 701:31:34 PM Measurement SettingInstrument Value Target Value Start Frequency5.72500 GHz5.72500 GHz Stop Frequency5.76500 GHz5.76500 GHz Span40.000 MHz40.000 MHz RBW200.000 kHz~ 200.000 kHz VBW1.000 MHz>= 600.000 kHz SweepPoints400~ 400 Sweeptime28.477 μsAUTO Reference Level-5.000 dBm-5.000 dBm Attenuation15.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount200200 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2021-01-185 / 701:31:34 PM RF output power (5745 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5745.00000024.0---24.085.928PASS OSP PowerMeter settings SettingInstrument Value Target Value Measurement Time1.000 s1.000 s Points10000001000000 Time resolution1.000 μs1.000 μs FCC 15.407 2018 2021-01-186 / 701:31:34 PM Power Spectral Density (5745 MHz; 24.000 dBm; 20 MHz) Customized settings. Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5745.0000005753.9108917.08830.0PASS Ports PortState 1used 2used 3used 4used Measurement SettingInstrument Value Target Value Start Frequency5.73500 GHz5.73500 GHz Stop Frequency5.75500 GHz5.75500 GHz Span20.000 MHz20.000 MHz RBW500.000 kHz<= 500.000 kHz VBW2.000 MHz>= 1.500 MHz SweepPoints101~ 80 Sweeptime2.020 ms2.020 ms Reference Level20.000 dBm20.000 dBm Attenuation40.000 dBAUTO DetectorRMSRMS SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff StablemodeTraceTrace Stablevalue0.30 dB0.30 dB Run4 / max. 15max. 15 Stable3 / 33 Max Stable Difference0.00 dB0.30 dB FCC 15.407 2018 2021-01-187 / 701:31:34 PM Minimum Emission Bandwidth 6 dB (5745 MHz; 24.000 dBm; 20 MHz) Customized settings. 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.00000019.2000000.500000---5735.3750005754.575000 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5745.0000002.0PASS -30 -20 -10 0 10 5725 5730 5735 5740 5745 5750 5755 5760 5765 Level in dBm Frequency in MHz 6 dB Bandwidth 19.200 MHz Bandwidth FCC 15.407 2018 2021-01-188 / 701:31:34 PM Measurement SettingInstrument Value Target Value Start Frequency5.72500 GHz5.72500 GHz Stop Frequency5.76500 GHz5.76500 GHz Span40.000 MHz40.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints800~ 800 Sweeptime56.836 μsAUTO Reference Level20.000 dBm20.000 dBm Attenuation40.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount200200 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff FCC 15.407 2018 2021-01-189 / 701:31:…

Text truncated - open the document above for the full version.
