Model: UAP-AC Pro 2.4G antenna 3T3R, antenna use UAP2: UniFi AP band 2.4-2.5GHz gain 6 dBi down tilt 10deg for ceiling mount VSWR 1.5:1 UAP2-ceiling_az.png UAP2-ceiling_el.png UAP2-wall_az.png UAP2-wall_el.png CSV Files: ● UAP2-ceiling_2500Vaz.csv ● UAP2-ceiling_2500Vel.csv ● UAP2-wall_2500Vaz.csv ● UAP2-wall_2500Vel.csv Pattern Files: ant Use Notepad.exe to read ceiling mount UAP2-ceiling.ant wall mount UAP2-wall.ant

Model: UAP-AC Pro 5G antenna 3T3R , antenna use UAP5: UniFi AP band 5.15-5.9 GHz gain 6 dBi down tilt 10deg for ceiling mount VSWR 1.5:1 UAP5-ceiling_az.png UAP5-ceiling_el.png UAP5-wall_az.png UAP5-wall_el.png CSV Files: ● UAP5-ceiling_5500Vaz.csv ● UAP5-ceiling_5500Vel.csv ● UAP5-wall_5500Vaz.csv ● UAP5-wall_5500Vel.csv Pattern Files: ant Use notepad.exe to read ceiling mount UAP5-ceiling.ant wall mount UAP5-wall.ant

RF_160, Issue 02 Declaration of Authorization We Name: Ubiquiti Networks, Inc. Address: 12F, No. 105, Song Ren Rd., Sin Yi District, City: Taipei City Country: Taiwan Declare that: Name Representative of agent: Delia Feng (1) Agent Company name: Cerpass Technology Corporation Address: No.3, 2F-11, YuanQu St., City: Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: UAP AC Type designation: UAP-AC, UAP-AC Outdoor Trademark: Ubiquiti on our behalf. Date: 2013/03/19 City: Taipei City Name: Jocelyn Wang (2) Function: Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Ubiquiti Networks, Inc. Address :12F, No. 105, Song Ren Rd., Sin Yi District, City: Taipei City Country: Taiwan To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: SWX-UAPAC Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date:2013/03/19 Name and signature of applicant: Jocelyn Wang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

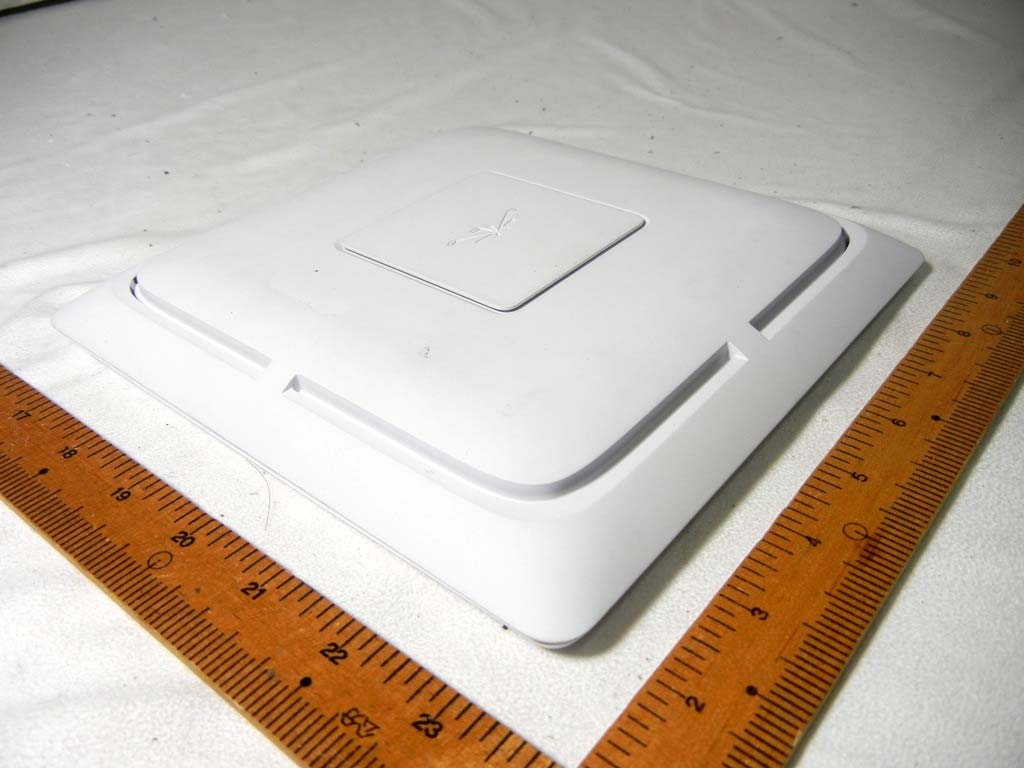

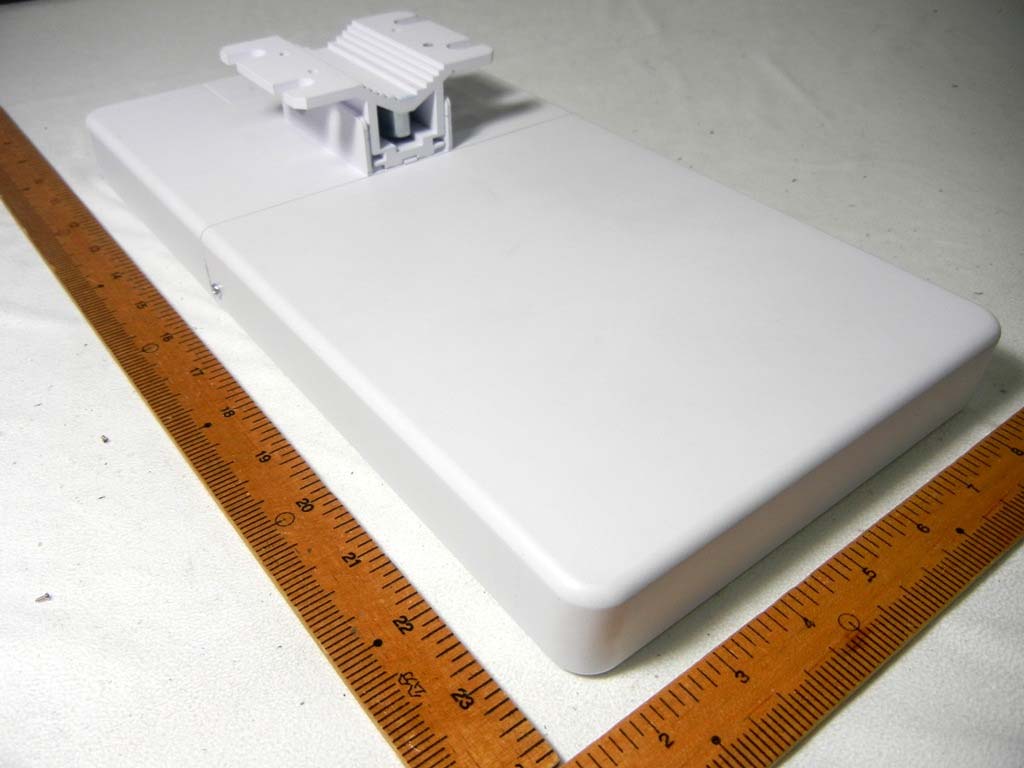

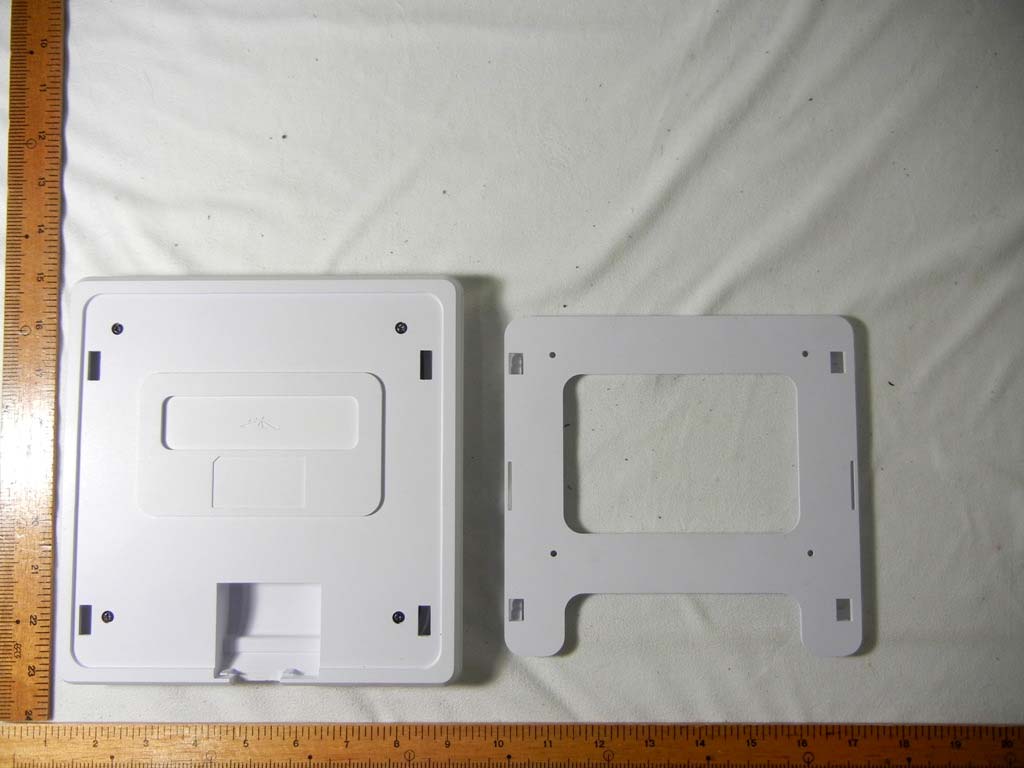

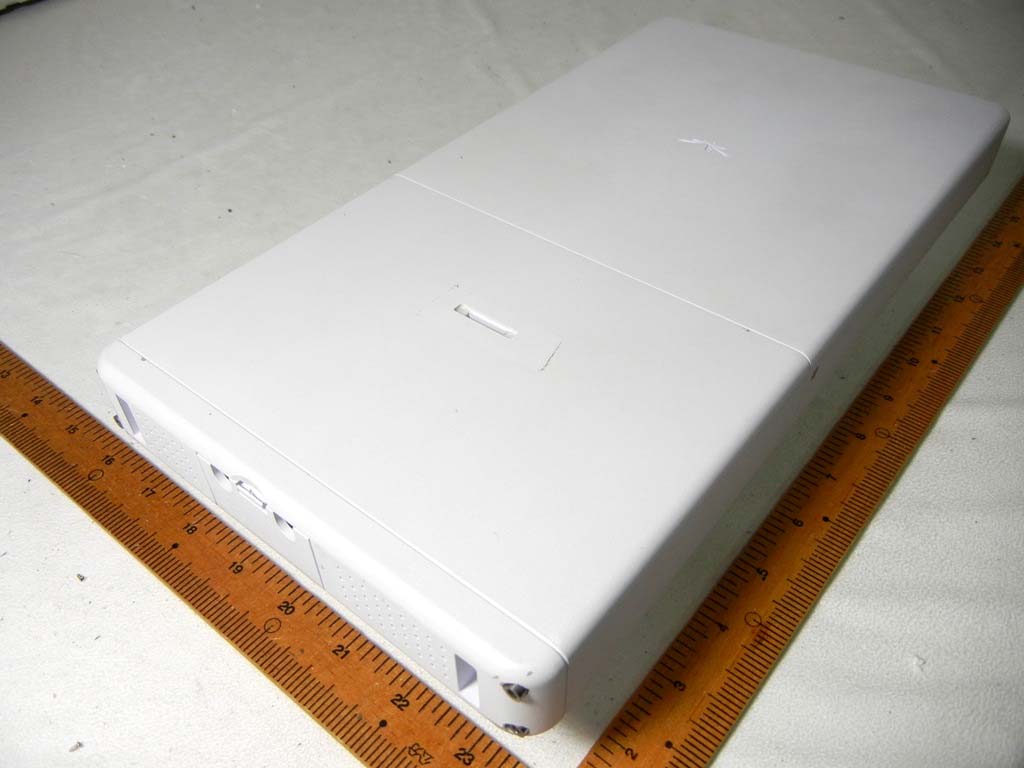

CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A17 FCC ID : SWX-UAPAC Appendix A. Photographs of EUT Model No.: UAP-AC CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A9 of A17 FCC ID : SWX-UAPAC Model No.: UAP-AC Outdoor CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A10 of A17 FCC ID : SWX-UAPAC

CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A12 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A13 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A14 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A15 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A16 of A17 FCC ID : SWX-UAPAC CERPASS TECHNOLOGY CORP. Report No.: TEFE1301045 Cerpass Technology Corp. Issued Date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A17 of A17 FCC ID : SWX-UAPAC

CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : SWX-UAPAC Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT UAP AC Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 21.29 dBm (134.62 mW) 802.11g: 24.75 dBm (298.83 mW) 802.11n (20MHz): 24.74 dBm (297.72 mW) 802.11n (40MHz): 24.65 dBm (291.94 mW) 802.11ac(20MHz): 24.95 dBm(312.83 mW) 802.11ac(40MHz): 24.67 dBm(293.23 mW) 802.11ac(80MHz): 24.54 dBm(284.19 mW) Antenna gain (Max) ANT R: 6 dBi ANT M: 6 dBi ANT L: 6 dBi Directional antenna gain for N mode: 10.77 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 24.95 dBm (312.83 mW) at 5785 MHz (with numeric 10.77 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : SWX-UAPAC TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : SWX-UAPAC Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 21.29 10.77 20 0.320 1 802.11g 2412-2462 24.75 10.77 20 0.709 1 802.11n (20MHz) 2412-2462 24.74 10.77 20 0.708 1 802.11n (40MHz) 2422-2452 24.65 10.77 20 0.693 1 802.11ac (20MHz) 5180-5240 24.95 10.77 20 0.743 1 802.11ac (40MHz) 5190-5260 24.67 10.77 20 0.696 1 802.11ac (80MHz) 5210 24.54 10.77 20 0.676 1 802.11ac (20MHz) 5745-5286 10.27 10.77 20 0.025 1 802.11ac (40MHz) 5755-5795 11.69 10.77 20 0.035 1 802.11ac (80MHz) 5775 11.37 10.77 20 0.033 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 256 FCC ID : SWX-UAPAC FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Ubiquiti Networks Inc. Address : 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Equipment : UAP AC Model No. : UAP-AC Outdoor, UAP-AC Trade Name : Ubiquiti FCC ID : SWX-UAPAC  The test result refers exclusively to the test presented test model / sample.,  Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full.  The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 256 FCC ID : SWX-UAPAC Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ....................................................................................................... 10 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement Equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 4.6 Test Photographs ..................................................................................................................... 26 5. Test of Radiated Emission ............................................................................................................... 27 5.1 Test Limit .................................................................................................................................. 27 5.2 Test Procedures ....................................................................................................................... 27 5.3 Typical Test Setup .................................................................................................................... 28 5.4 Measurement Equipment ......................................................................................................... 28 5.1 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 29 5.2 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 29 5.3 Test Result and Data (Above 1GHz) ........................................................................................ 77 5.4 Test Photographs (30MHz~1GHz) ......................................................................................... 149 5.5 Test Photographs (Above 1GHz) ........................................................................................... 151 6. 6dB Bandwidth Measurement Data ............................................................................................... 153 6.1 Test Limit ................................................................................................................................ 153 6.2 Test Procedures ..................................................................................................................... 153 6.3 Test Setup Layout .................................................................................................................. 153 6.4 Measurement Equipment ....................................................................................................... 153 6.5 Test Result and Data .............................................................................................................. 154 7. Maximum Peak and Average Output Power ......................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 153 of 256 FCC ID : SWX-UAPAC 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d. The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100047 2012/03/01 2013/02/28 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 154 of 256 FCC ID : SWX-UAPAC 6.5 Test Result and Data Test Date: Jan. 23, 2013 Temperature: 22°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) ANT R ANT M ANT L 802.11b (1Mbps) 01 2412 8.0 8.0 8.1 06 2437 8.0 8.0 8.0 11 2462 8.0 8.0 8.1 802.11g (6Mbps) 01 2412 16.4 16.4 16.4 06 2437 16.4 16.4 16.4 11 2462 16.4 16.4 16.4 802.11n HT20 (6.5Mbps) 01 2412 17.7 17.6 17.6 06 2437 17.6 17.7 17.6 11 2462 17.6 17.6 17.6 802.11n HT40 (13.5Mbps) 03 2422 35.8 35.8 35.8 06 2437 36.2 36.2 36.2 09 2452 35.8 36.2 36.2 Test Date: Jan. 22, 2013 Temperature: 22°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) ANT R ANT M ANT L 802.11ac VHT20 (6.5Mbps) 149 5745 17.6 17.6 17.6 157 5785 17.6 17.6 17.7 165 5825 17.6 17.6 17.6 802.11ac VHT40 (13.5Mbps) 151 5755 36.4 36.4 36.4 159 5795 36.4 36.4 36.4 802.11ac VHT80 (29.3Mbps) 155 5755 76.0 76.4 76.0 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 155 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11b (1Mbps), ANT R Channel: 01 Modulation Standard: 802.11b (1Mbps), ANT M Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 156 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11b (1Mbps), ANT L Channel: 01 Modulation Standard: 802.11b (1Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 157 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11b (1Mbps), ANT M Channel: 06 Modulation Standard: 802.11b (1Mbps), ANT L Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 158 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11b (1Mbps), ANT R Channel: 11 Modulation Standard: 802.11b (1Mbps), ANT M Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 159 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11b (1Mbps), ANT L Channel: 11 Modulation Standard: 802.11g (6Mbps), ANT R Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 160 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11g (6Mbps), ANT M Channel: 01 Modulation Standard: 802.11g (6Mbps), ANT L Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 161 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11g (6Mbps), ANT R Channel: 06 Modulation Standard: 802.11g (6Mbps), ANT M Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 162 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11g (6Mbps), ANT L Channel: 06 Modulation Standard: 802.11g (6Mbps), ANT R Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 163 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11g (6Mbps), ANT M Channel: 11 Modulation Standard: 802.11g (6Mbps), ANT L Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 164 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11n HT20 (6.5Mbps), ANT R Channel: 01 Modulation Standard: 802.11n HT20 (6.5Mbps), ANT M Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 165 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11n HT20 (6.5Mbps), ANT L Channel: 01 Modulation Standard: 802.11n HT20 (6.5Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 166 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11n HT20 (6.5Mbps), ANT M Channel: 06 Modulation Standard: 802.11n HT20 (6.5Mbps), ANT L Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 167 of 256 FCC ID : SWX-UAPAC Modulation Standard: 802.11n HT20 (6.5Mbps), ANT R Channel: 11 Modulation Standard: 802.11n HT20 (6.5Mbps), ANT M Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1301045 Cerpass Technology Corp. Issued date : Mar. 22, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 168 of 256 FCC ID : SWX-UAPAC Modulation…
