SWX-UDMPROSEUniFi Network Dream Machine Pro SE

Ubiquiti Inc.
UniFi Network Dream Machine Pro SE - FCC ID SWX-UDMPROSE - Ubiquiti Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 04, 2021
Application Purpose
Original Equipment
Date of Application
Jun 16, 2021
Equipment Note
UniFi Network Dream Machine Pro SE
Frequency Range
2402.00000000 - 2480.00000000
Company
Ubiquiti Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

Internal Photos

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Datasheet UDM-Pro-SE 2 of 3 Mechanical Hardware Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") Weight 4.95 kg (10.91 lb) Enclosure materials Aluminum CNC, SGCC steel Mount material SGCC steel rack mount Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz System memory 4 GB DDR4 Storage Integrated 128 GB SSD IDS/IPS troughput 3.5 Gbps* *Measured with iPerf3 Max. power consumption 50W Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz (1) USP-RPS DC input, 52VDC, 3.46A Power supply AC/DC, Internal, 240W Supported voltage range 100 to 240VAC Management interface Ethernet Bluetooth Networking interfaces (1) WAN: 100/1,000/2,500 Mbps RJ45 ethernet (8) LAN: 10/100/1000 Mbps RJ45 ethernet SFP+ interfaces (1) WAN: 1/10G SFP+ (1) LAN: 1/10G SFP+ PoE interfaces (8) PoE+ IEEE 802.3af (pair A 1, 2+; 3, 6-) Total available PoE 130W Max. PoE+ wattage per port by PSE 15.4W Voltage range 802.3af mode 44 to 57V ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV LCM display (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade Icon: rmware upgrading Button Factory reset Operating temperature -10 to 40° C (14 to 104° F) Dream Machine Pro Special Edition UniFi rack-mountable 10Gbps controller gateway with integrated PoE switch and 128GB of internal storage The UniFi Dream Machine Pro Special Edition is an all-in-one, enterprise-class network and security gateway that bundles 10 Gbps SFP+ WAN capability, a Gigabit PoE switch, and a network video recorder with 128 GB of storage–and lets you manage it all from a single web or mobile interface. The UDM-Pro-SE, powered by UniFi OS, gives you full control over all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers, and offers seamless access to upcoming UniFi software controllers. The device’s integrated Bluetooth radio also simplifes initial setup and conguration, which can be completed in minutes with the UniFi Mobile app. The UDM-Pro-SE promotes end-to-end simplicity, allowing you to build home and business networks easily and run them smoothly. Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ui.com/support/warranty ©2021 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, UniFi, and UniFi Network are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. LEDs Operating humidity 5 - 95% noncondensing Certifcations CE, FCC, IC Ethernet White: link/activity SFP+ White: link/activity HDD White: disk activity, amber: disk error RPS Blue: ready Compliance FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his ownexpense. This radio transmitter (FCC ID: SWX-UDMPROSE) has been approved by FCC. ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device.This radio transmitter (IC: 6545A-UDMPROSE) has been approved by ISED Canada. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Le présent émetteur radio (IC: 6545A-UDMPROSE) a été approuvé par ISDECanada. IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT : Déclaration sur l’exposition aux rayonnements : • Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. • Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous. • Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils.

Cover Letter(s)

RF_160, Issue 04 Ubiquiti Inc. Declaration of Authorization We Name: Ubiquiti Inc. Address: 685 Third Avenue City: New York, NY Country: United States, 10017 Declare that: Name Representative of agent: Leslie Chiu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., City: Taoyuan City 33848 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: UniFi Network Dream Machine Pro SE Type designation: UDM-Pro-SE Trademark: UBIQUITI Validity/ expiry date on our behalf. Date: Apr. 16, 2021 City: New York Name: Mark Feil (2) Function: Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Cover Letter(s)

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Ubiquiti Inc. Address: 685 Third Avenue City: New York, NY, 10017 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SWX-UDMPROSE Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For marketing purpose Planned Release Date STC: 180 days from the date of grant. (notes 2, 3, 4, 5) Date: 2021/4/16 Name and signature of applicant: Mark Feil Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

External Photos

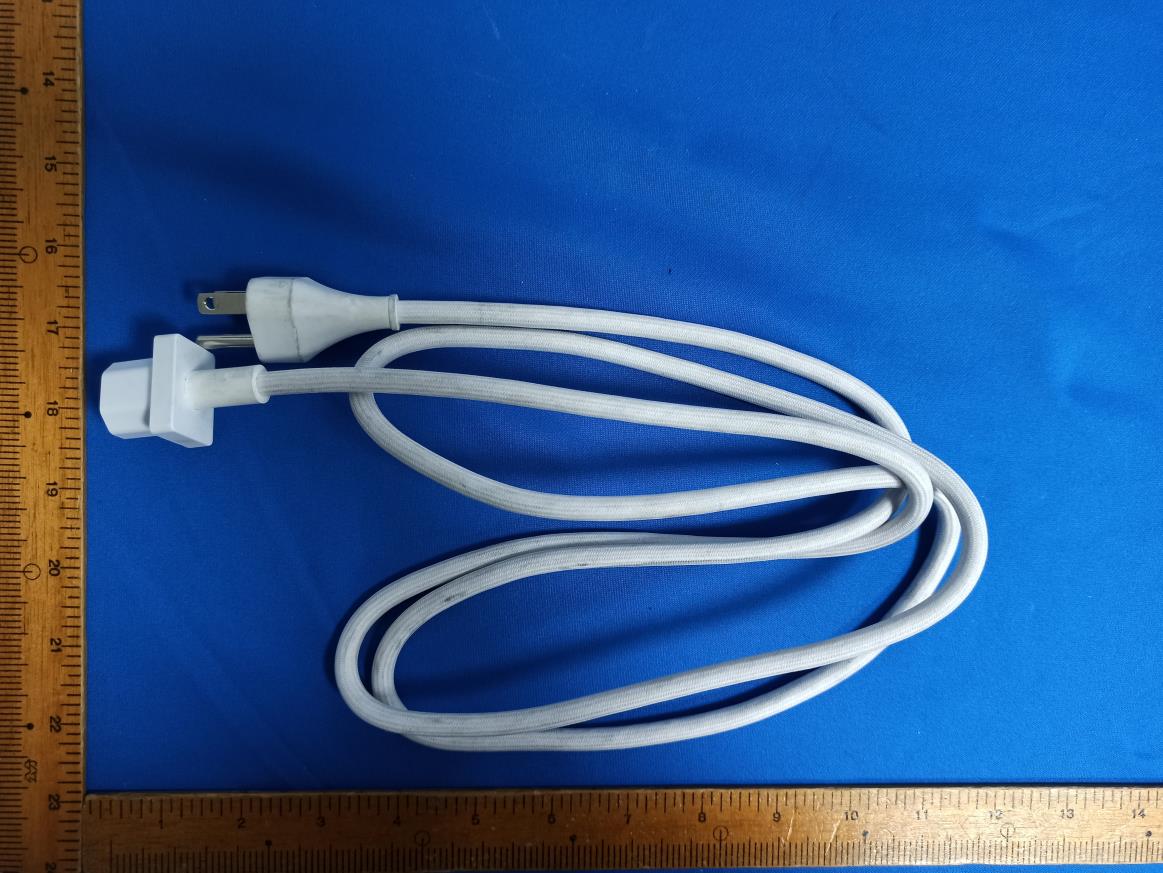

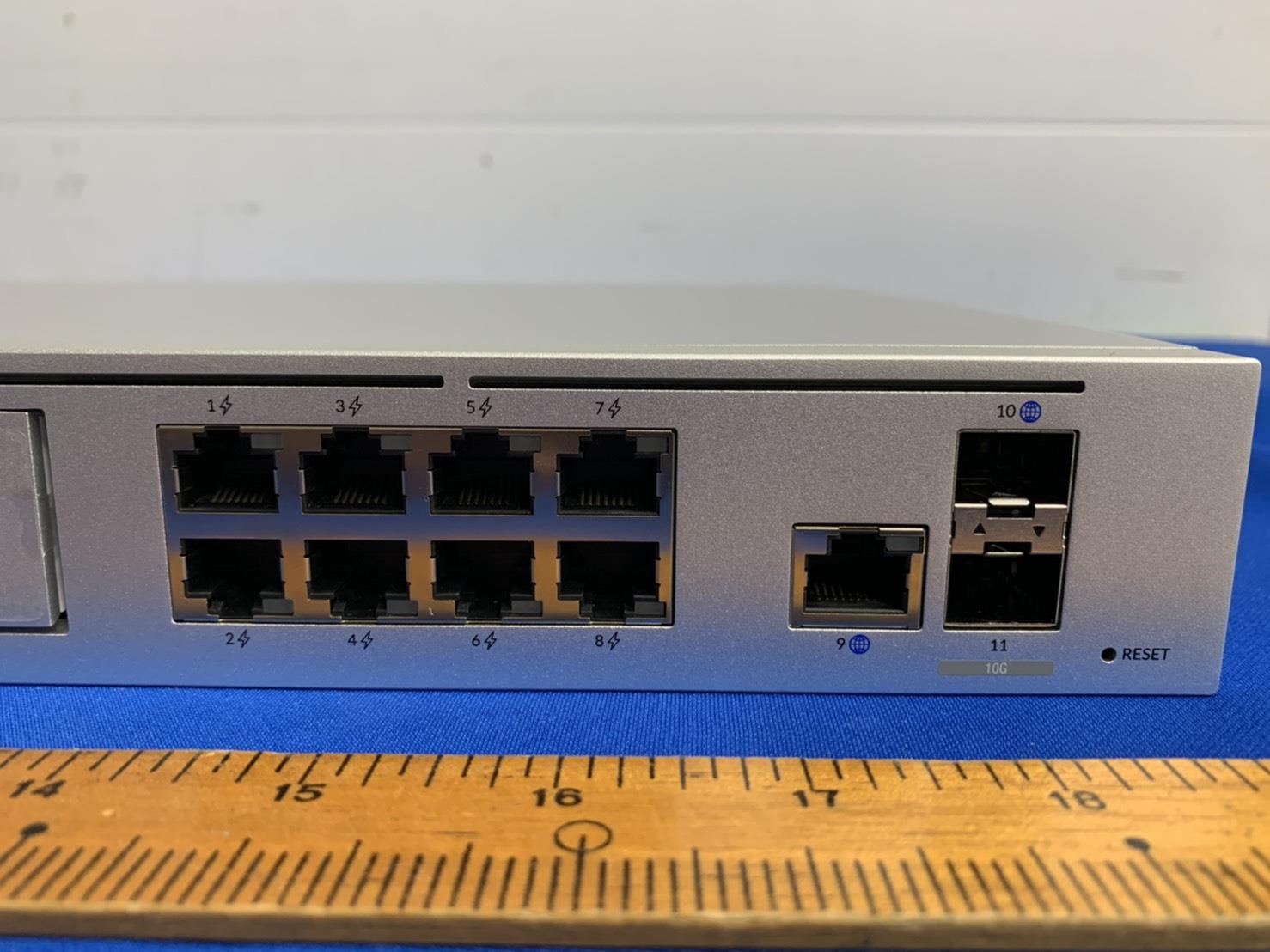

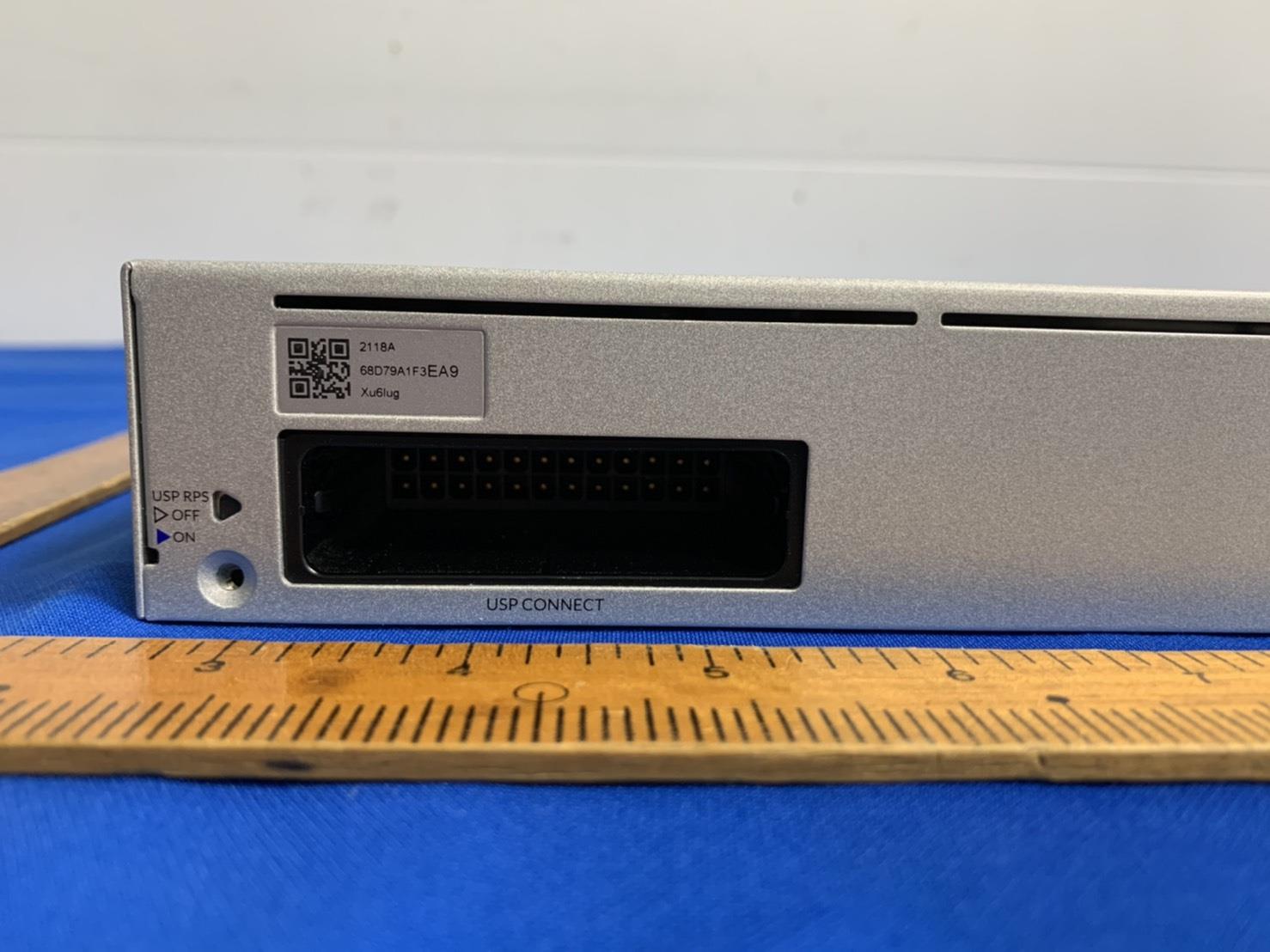

CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 1 of 7 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 2 of 7 CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 3 of 7 CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 4 of 7 CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 5 of 7 CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 6 of 7 Power Cord Brand: WELL SHIN TECHNOLOGY CO., LTD., Model: WS-010A-4+WS-002-15 CERPASS TECHNOLOGY CORP. Report No.: 21030107 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 Page No. : 7 of 7 Power Cord Brand: WELL SHIN TECHNOLOGY CO., LTD., Model: WS-010A-4+WS-002-15

RF Exposure Info

CERPASS TECHNOLOGY CORP. Report No.: 21030107-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 T-FD-506-0 Ver 1.4 Page No. : 43 of 45 FCC ID. : SWX-UDMPROSE 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 8.32dBm (6.792mW) at 2480MHz (with 3.3dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 21030107-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 T-FD-506-0 Ver 1.4 Page No. : 44 of 45 FCC ID. : SWX-UDMPROSE 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 21030107-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 T-FD-506-0 Ver 1.4 Page No. : 45 of 45 FCC ID. : SWX-UDMPROSE 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2402-2480 8.32 8.82 3.30 20 0.003 1 ----------THE END OF REPORT----------

Test Report

CERPASS TECHNOLOGY CORP. Report No.: 21030107-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 T-FD-506-0 Ver 1.4 Page No. : 1 of 45 FCC ID. : SWX-UDMPROSE FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UniFi Network Dream Machine Pro SE Model No. : UDM-Pro-SE Trade Name : UBIQUITI FCC ID. : SWX-UDMPROSE I HEREBY CERTIFY THAT : The sample was received on Mar. 12, 2021 and the testing was completed on Mar. 18, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21030107-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 25, 2021 T-FD-506-0 Ver 1.4 Page No. : 2 of 45 FCC ID. : SWX-UDMPROSE CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 9 4. Antenna Requirements ..................................................................................................................... 11 4.1 Standard Applicable ................................................................................................................. 11 4.2 Antenna Construction and Directional Gain ............................................................................. 11 5. Test of AC Power Line Conducted Emission ................................................................................. 12 5.1 Test Limit .................................................................................................................................. 12 5.2 Test Procedures ....................................................................................................................... 12 5.3 Typical Test Setup .................................................................................................................... 13 5.4 Test Result and Data ................................................................................................................ 14 5.5 Test Photographs ..................................................................................................................... 16 6. Test of Spurious Emission (Radiated) ............................................................................................ 17 6.1 Test Limit .................................................................................................................................. 17 6.2 Test Procedures ....................................................................................................................... 18 6.3 Typical Test Setup .................................................................................................................... 19 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 21 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 21 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 23 6.7 Restricted Bands of Operation ................................................................................................. 29 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 30 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 31 7. Test of Spurious Emission (Conducted) ......................................................................................... 33 7.1 Test Limit .................................................................................................................................. 33 7.2 Test Procedure ......................................................................................................................... 33 7.3 Test Setup Layout .................................................................................................................... 33 7.4 Test Result and Data ................................................................................................................ 33 8. On Time, Duty Cycle and Measurement methods ......................................................................... 36 8.1 Test Limit .................................................................................................................................. 36 8.2 Test Procedure ................................…
