SZO-RR06Chip-machine to program numbers to RACE RESULT Raw-Transponders

race result AG Joseph-von-Fraunhofer-Straße 11, 76327 Pfinztal Germany +49 (721) 961 409 01 [email protected] Chip2Go Quick Reference Guide Chip2Go allows you to program RACE RESULT raw transponders ready to stick directly to bibs. Raw transponders are fed in to the Chip2Go from a roll, encoded to the required number and fed out ready to easily remove and stick directly to a bib. The unit features a chip check antenna on the front side to easily check a transponder's code. Number entry can be achieved through either: • Touchscreen keypad entry (with optional sequential count-up / count-down) • USB number pad • USB barcode scanner The Chip2Go will only work with RACE RESULT raw transponders, these can be purchased in either single or duo configuration. The machine will automatically recognise these and will program either a single tags or two identical tags according to the roll. System Setup Screw in the power cable to the rear of the unit and the Chip2Go will power on automatically. Chip2Go machines are shipped with a 15v power supply using the same connector as Loop Boxes and Track Boxes. Note that a Loop Box power supply only provides 12v, the Chip2Go will still run but motor speed will be reduced. To prepare transponders first raise the mounting arm by pulling the black quick release latch and pulling the arm up until the latch clicks back in to lock the arm in place, the roll then fits on the arm. Push back the silver brake plate and feed the plastic liner through the upper section of the unit until the first transponder is just visible below the red plate but ensure that the transponder does not cover the white programming antenna. If the programming antenna is already covered by a transponder then this transponder will be fed past the antenna and cannot be used. race result AG Joseph-von-Fraunhofer-Straße 11, 76327 Pfinztal Germany +49 (721) 961 409 01 [email protected] On the display push Feed, or manual feed forward, and push the liner in to the slit below the programming antenna until the rollers catch the plastic liner and pull it through. The machine will keep feeding forward until the first transponder is positioned over the progamming antenna. Once finished you can tear off the excess liner by using the serrated cutter on the lower slit, you should cut the liner here with a transponder still in place as the excess liner is required to feed in to the system at the next start-up. On the display select Switch Mode and then press manual feed reverse to feed the liner back out of the lower section, if the liner was not cut then it may require multiple presses to fully remove. The transponders can now be pulled out from the upper secction, the roll removed and the mounting arm returned to it's transport position. To power down the unit simply remove the power supply. Barcode Scanner Configuration When using the barcode scanner for the first time it is necessary to scan the included QR code in order to set the scanner's configuration to correctly work with Chip2Go machines / barcodes. This should be done once for each individual barcode scanner. The QR code is attached below and should be printed out and scanned. Transponder Number Entry Touchscreen Keypad (Single Number) Using the built-in touchscreen display you can program the machine to encode either an individual number or a series of numbers counting up or down from a starting number. When the system is first turned on it will display the number keypad, simply type your desired chip number and hit enter, the transponder will be encoded to that number and the number on the screen will automatically increase by one. To return to this mode press STOP from count up/ count down, or BACK from the mode selection screen. Count Up / Count Down The system can continuously encode chips in a series counting up or down from a number, to do this first enter the desired starting number on the touchscreen keypad then press SWITCH MODE and select either n count up or n count down from the mode selection screen depending on your requirement. race result AG Joseph-von-Fraunhofer-Straße 11, 76327 Pfinztal Germany +49 (721) 961 409 01 [email protected] Once pressed the machine will immediately start encoding with the first number in the sequence, once this transponder is removed the machine will then automatically encode the following number and feed this transponder forward. This will continue counting up or down continuously, until the number reaches 9,999,999 or 0 respectively. To manually stop the system simply push the STOP button on the display before removing the final transponder you require. External Input (Keypad / Barcode Scanner) You can connect a USB number keypad (supplied) or USB barcode scanner (optional) to the Chip2Go as an external input device. Any USB Keypad may be used, the supplied one was chosen for it's inclusion of a backspace, however a * will also act as a backspace. Only the barcode scanner available directly from race result is officially supported, this also includes the mount to attach to the unit. To use an external input press Switch Mode and select external scanner keypad. Simply enter the desired number with the keypad and press enter or scan the corresponding barcode to encode the transponder. The system will display the previous number which was encoded on the display. If using a barcode scanner the barcode must be the correct format. All bibs purchased from race result with the standard barcode will be compatible, if using your own barcodes then check the Barcode Format is correct. Barcode Format Chip2Go machines will only read barcodes using Code 128 standard, other barcode formats will not be read correctly. Barcodes must use a start code with "#" followed by the bib number followed by "~", the bib number will stop being read at the ~ character and any characters after this point will be ignored. If ordering bibs directly from race result, ensure to request Chip2Go barcodes to be included. You can a…

Text truncated - open the document above for the full version.

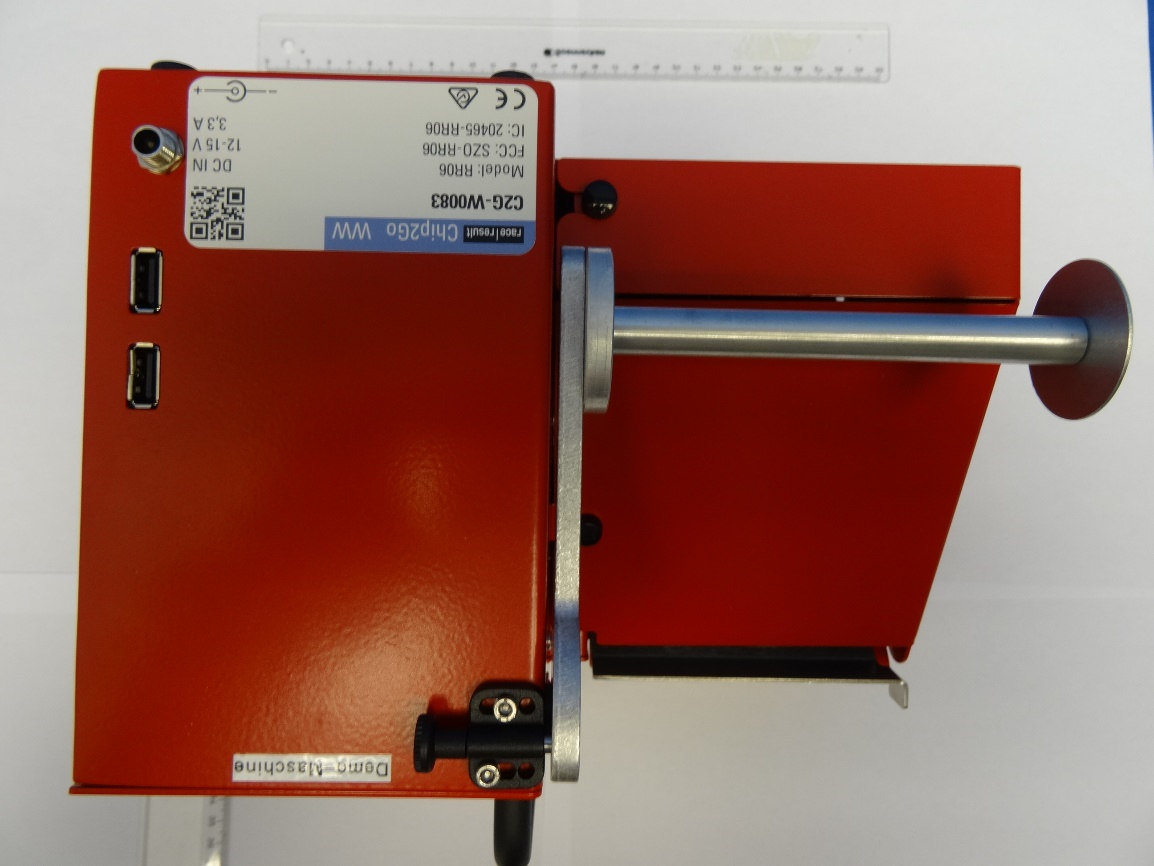

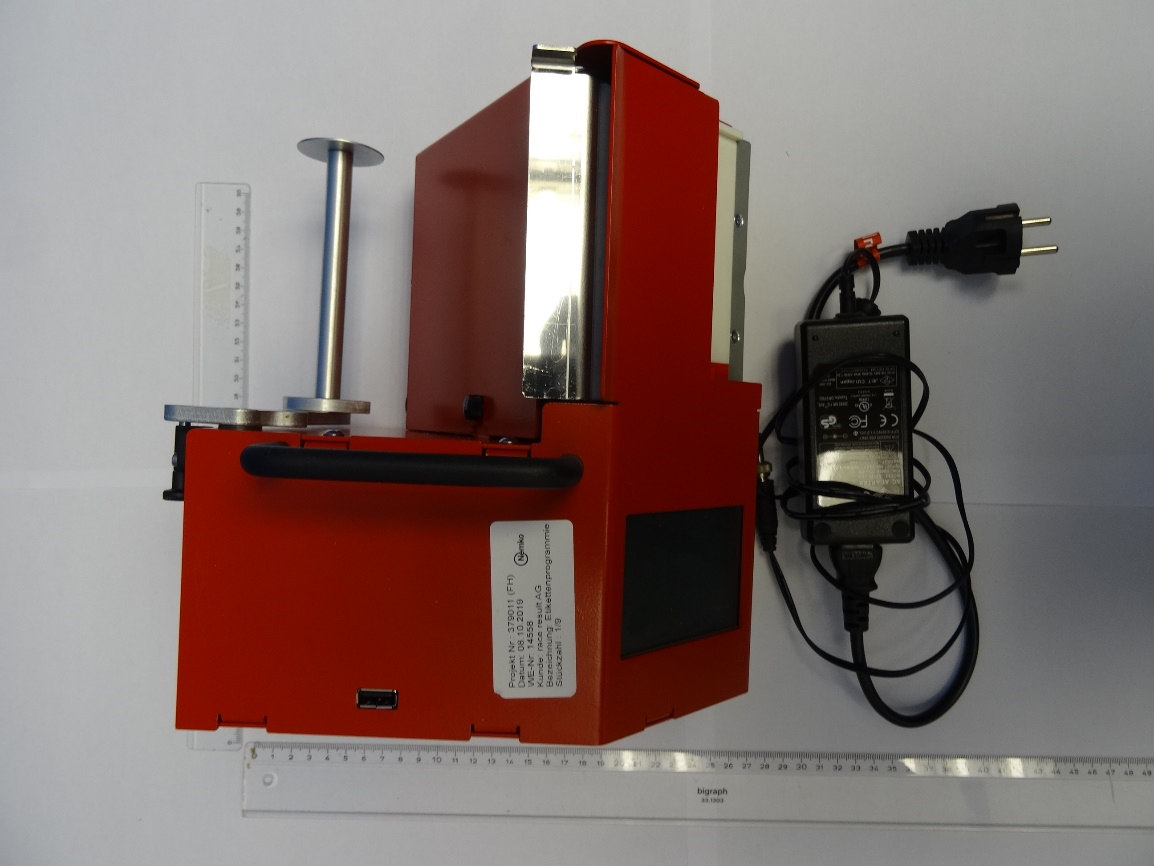

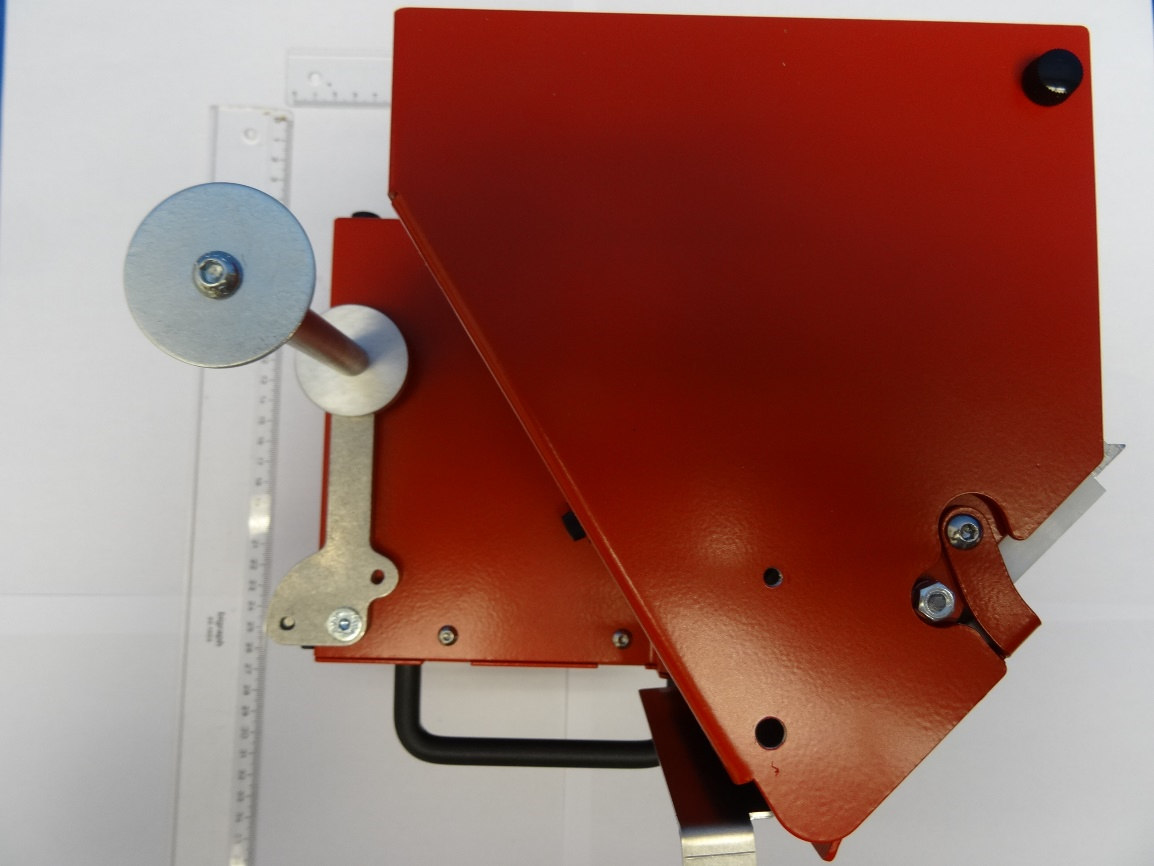

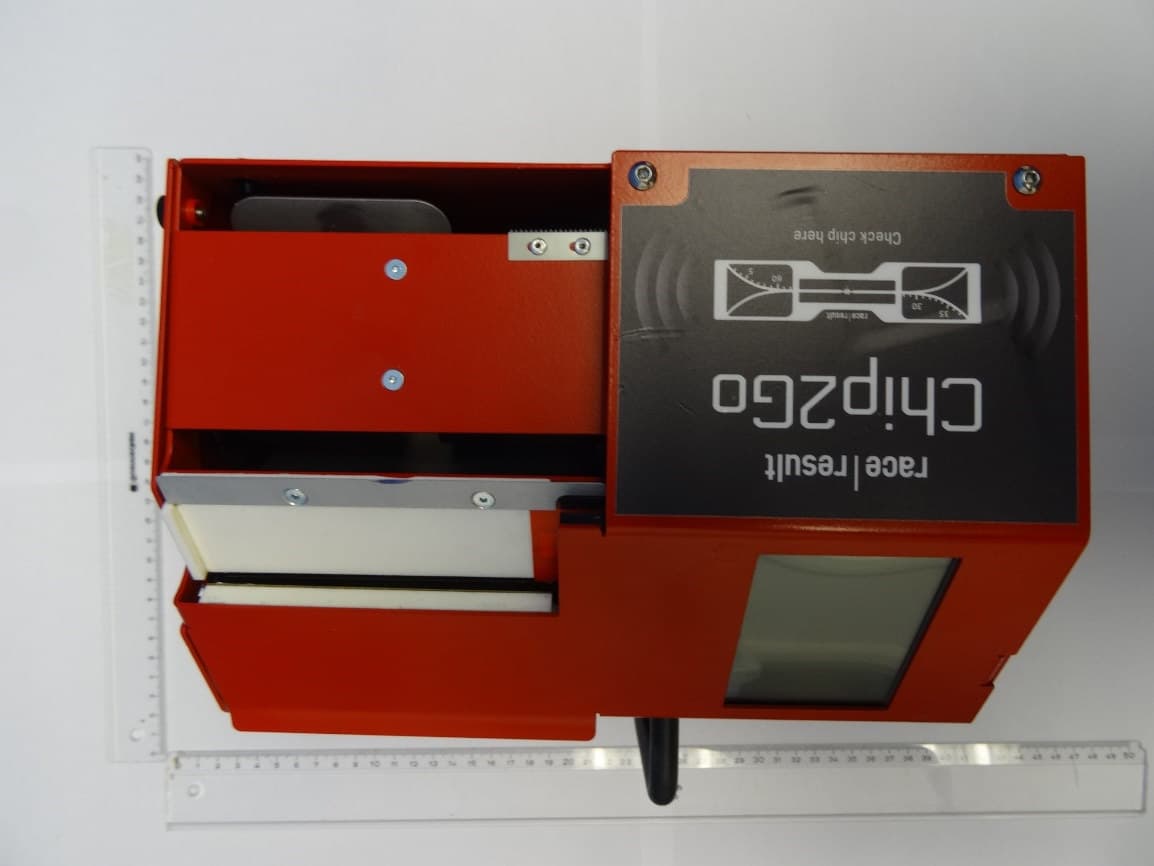

Nemko GmbH & Co. KG Reetzstraße 58 D-76327 Pfinztal Tel.: + 49 (0) 7240 – 63 - 0 Fax: + 49 (0) 7240 – 63 - 11 EUT EXTERNAL PHOTOS TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Page 1 (4) Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany EUT EXTERNAL PHOTOS Sample top side EUT EXTERNAL PHOTOS FCC Part 15.247 TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 2 (4) Sample front side Sample left side EUT EXTERNAL PHOTOS FCC Part 15.247 TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 3 (4) Sample right side Sample rear side EUT EXTERNAL PHOTOS FCC Part 15.247 TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 4 (4) Sample front side Sample with cable

Nemko GmbH & Co. KG Reetzstraße 58 D-76327 Pfinztal Tel.: + 49 (0) 7240 – 63 - 0 Fax: + 49 (0) 7240 – 63 - 11 EUT INTERNAL PHOTOS TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Page 1 (2) Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany EUT INTERNAL PHOTOS Sample front side EUT INTERNAL PHOTOS FCC Part 15.247 TO REPORT NO.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 2 (2) Sample rear side

I-No: 399615 www.nemko.com 1 / 2 1. Declaration of RF exposure compliance for exemption from routine evaluation limits Applicant: race result AG Joseph-von-Fraunhofer-Str. 11 76327 Pfinztal Germany Nemko ident. no.: 379011 Number of pages: 2 Product Chip2go Model name: RR06 FCC ID: SZO-RR06 Manufacturer: race result AG Joseph-von-Fraunhofer-Str. 11 76327 Pfinztal Germany Exposure Conditions: During normal operation, user extremities can come within 20 cm of the internal antenna and therefore product is considered as “Portable”. 4.3.1. Standalone SAR test exclusion considerations: Calculation for the antenna 1 Prediction of MPE I-No: 399615 www.nemko.com 2 / 2 4.3.1. Standalone SAR test exclusion considerations: Calculation for the antenna 2 2. Attestation ATTESTATION: I attest that the testing was performed by a FCC listed test laboratory, that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: January 22, 2021 Name: Peter Lukas, Lab Manager

TEST REPORT FCC Part 15.247 Report no.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 2 (61) CONTENTS 1 INFORMATION ............................................................................................................ 3 1.1 Test Item ...................................................................................................................... 3 1.2 Normal test conditions .................................................................................................. 4 1.3 Test Engineer(s) ........................................................................................................... 4 1.4 Description of modification for Modification Filing ........................................................ 4 1.5 Family List Rational ...................................................................................................... 4 1.6 Antenna Requirement .................................................................................................. 4 1.7 Worst-Case Configuration and Mode ........................................................................... 4 1.8 Comments .................................................................................................................... 4 2 TEST REPORT SUMMARY ........................................................................................ 5 2.1 General ......................................................................................................................... 5 2.2 Test Summary .............................................................................................................. 6 3 TEST RESULTS .......................................................................................................... 7 3.1 Power Line Conducted Emissions ............................................................................... 7 3.2 Number of Operating Frequencies ............................................................................... 9 3.3 Channel Separation ................................................................................................... 11 3.4 Occupancy Time ........................................................................................................ 16 3.5 Occupied Bandwidth .................................................................................................. 18 3.6 Peak Power Output .................................................................................................... 22 3.7 Conducted Emissions at Antenna Connector ............................................................ 25 3.8 Restricted Bands of operation .................................................................................... 29 3.9 Spurious Emissions (Radiated) .................................................................................. 30 4 MEASUREMENT UNCERTAINTY ............................................................................ 58 5 LIST OF TEST EQUIPMENT ..................................................................................... 59 6 BLOCK DIAGRAM .................................................................................................... 60 6.1 Power Line Conducted Emission ............................................................................... 60 6.2 Test Site Radiated Emission ...................................................................................... 60 TEST REPORT FCC Part 15.247 Report no.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 3 (61) 1 INFORMATION 1.1 Test Item Name : Chip2Go FCC ID : SZO-RR06 Industry Canada ID : 20465-RR06 Model/version : Chip2Go RR06 Serial number: C2G-W0083 Software version: 1.0.2 (firmware); 2.1.2_E (firmware UHF-module) Frequency Range : 917.10 – 926.90 MHz (US band) Number of Channels: 50 Operating Modes : RFID Type of Modulation : Digital ASK Output Power (radiated) : 5.94 mW Type of Power Supply : AC Adaptor: CUI SDI50-15-U (100 – 240V, 50 – 60Hz) Antenna Connector : None (internal antenna) Number of Antennas 2 Antenna Diversity Supported : No Smart Antennas or MMO No Description of Test Item Chip2Go is a programming device for passive transponders for sports timing. The RFID transponders are automatically transported and programmed from a roll. The device can be operated via a touch screen or a USB numeric keypad. At the front there is an additional antenna to check the programmed transponders. The antennas operate in the 865 - 927 MHz frequency range. (US Band: 917.10 – 926.90 MHz) TEST REPORT FCC Part 15.247 Report no.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 4 (61) 1.2 Normal test conditions Temperature: 19 - 22 °C Relative humidity: 36 - 45 % Normal test voltage: 120V / 60Hz The values are the limit registered during the test period. 1.3 Test Engineer(s) Frederic Hupbauer 1.4 Description of modification for Modification Filing Not applicable. 1.5 Family List Rational Not Applicable. 1.6 Antenna Requirement Is the antenna detachable? Yes No If detachable, is the antenna connector non-standard? Yes No Type of antenna connector: N/A Ref. FCC §15.203 1.7 Worst-Case Configuration and Mode Radiated Emissions was performed with the EUT set to transmit at the channel with the highest output power as worst-case scenario. 1.8 Comments The measurement were done with the EUT powered by 120V / 60Hz. It was checked that power variations between 85% and 115% did not have any influence on the measurements. The radiated measurements are tested on three axes. All ports were populated during spurious emission measurements. TEST REPORT FCC Part 15.247 Report no.: 379011-01 FCC ID: SZO-RR06 Nemko GmbH & Co. KG, Reetzstraße 58, 76327 Pfinztal, Germany Page 5 (61) 2 TEST REPORT SUMMARY 2.1 General All measurements are tracable to national standards. The tests were conducted for the purpose of demonstrating compliance with FCC CFR…
