T2DV829Wireless Presenter

Integrative Mini Presenter User's Manual Be sure to carefully read this user manual first for the proper use of the Integrative Mini Presenter and keep it for future reference. 1 Table of Contents Introduction ..................................................................... 2 I. Operation system ........................................................ 2 II. Functions .................................................................. 3 III. Operating Hints .......................................................... 3 IV. Battery installation ..................................................... 4 V. Technical parameters .................................................. 5 VI. Safety Measures ....................................................... 5 2 Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! It contains two parts: transmitter and USB receiver. Features: 1. Easy carry The transmitter and receiver are integrated into one unit to easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and control distance is 10-meters / 32-feet away, so you never need to stand at beside of your computer. 3. Multifunctional presenter It combines the functions of a laser pointer and hotkeys. 4. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operation System Windows 98, Se, Me, 2000, XP, Mac OS, Linux, Vista, Win 7 ( Attention : you may need Win98 disk if your computer runs under Win98/SE operating system. 3 II. Functions: Function table: Page Up Page Down Play PowerPoint, Press again to exit ( For PowerPoint only ) Blank Screen ( For PowerPoint play only ) Alt+Tab Laser Pointer III. Operating Hints For optimal performance and RF reception place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices. 4 IV. Battery installation ● The product is powered by 2x AAA battery. ● Push and remove the battery cover. ● Insert 2x AAA battery into the battery holder. ● Put the battery cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one. V . Technical parameters Transmitter RF Frequency 2.4GRF Control distance 10 meters Laser distance Up to 200M Battery AAA X2 Working voltage 2.4-3.0V Sleep current ＜10uA Dimension 105.0X30.0X14.0MM Weight 44.7g（Include receiver） 5 Receiver Operation system Windows 98/Se/Me/2000/XP/ Mac OS/ Linux/ Windows Vista /Win 7 Interface USB1.1 , Compatible with USB2.0 Working voltage USB electricity supply (4.5-5.5V) Dimension 21.7X14.5X7.4MM Weight 2g VI. Safety Measures  To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam.  Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface.  Keep the presenter away from children.  Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars.  Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards. NOTE The product adopts advance RF technology, the USB receiver will identify the first transmitter which is used. If you want to use different transmitters with the same receiver, please pull off the receiver and plug it again, after 6 seconds, press any key of the transmitter you want to use. Then it can work successfully. 6 Warning sticker: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

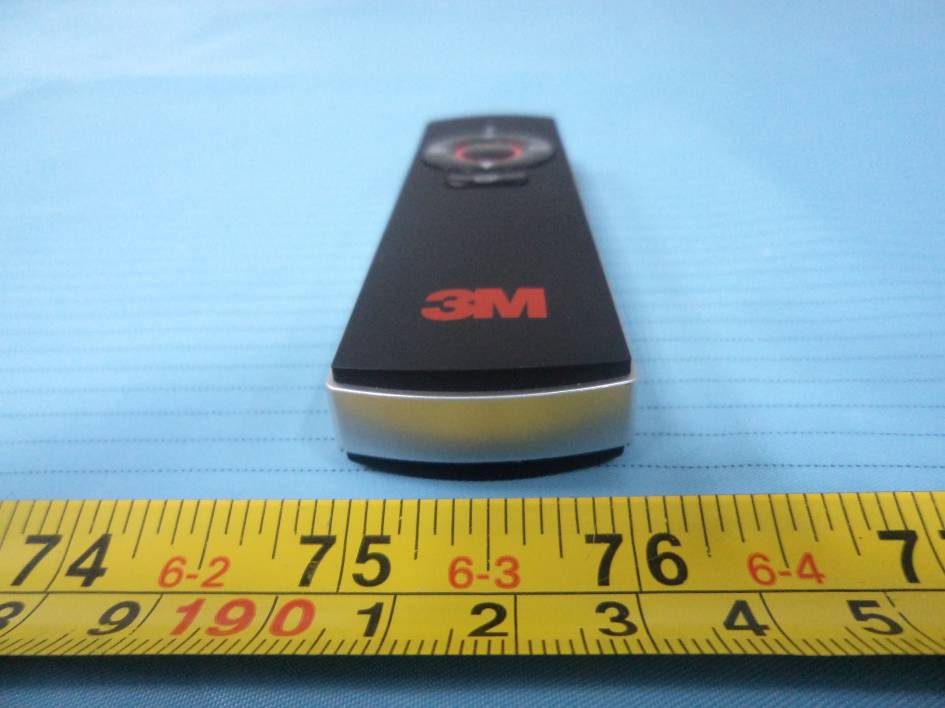

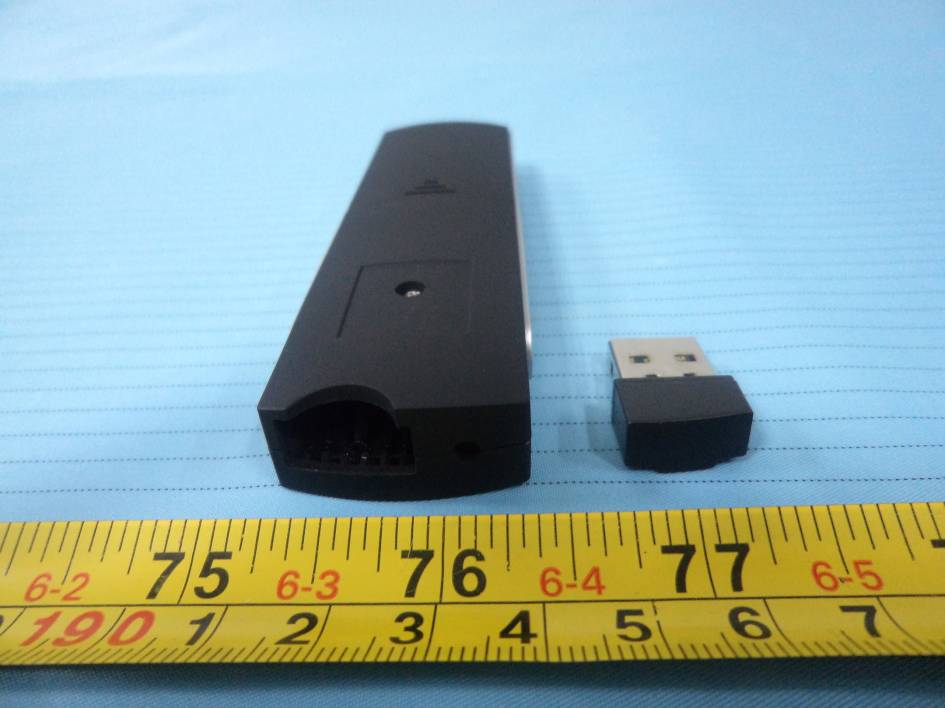

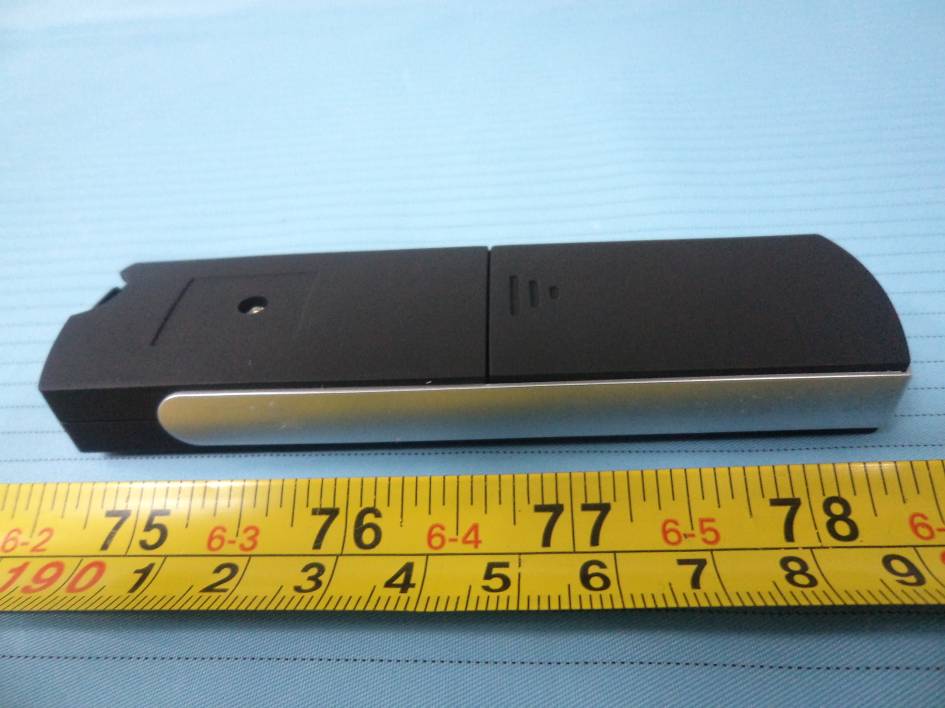

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Antenna

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.249 TEST REPORT For Vson Technology Co., Ltd. 5 Floor, A Building, Weixinda Xichen Industrial Park, Baoan District, Shenzhen 518102, China FCC ID: T2DV829 Report Type: Original Report Product Type: Wireless Presenter Test Engineer: Jimmy Xiao Report Number: RSZ111226004-00 Report Date: 2012-01-06 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111226004-00 FCC Part15.249 Page 2 of 12 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC§15.203 - ANTENNA REQUIREMENT..............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................7 FCC§15.205(A) §15.209(A) §15.249(A) §15.249(C) §15.249(D) §15.35 - RADIATED EMISSIONS .....................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 TEST EQUIPMENT SETUP..............................................................................................................................................8 EUT SETUP..................................................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111226004-00 FCC Part15.249 Page 3 of 12 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Vson Technology Co., Ltd.’s product, model: V-829 (FCC ID: T2DV829), or the "EUT" as referred to in this report was a Wireless Presenter, which measures approximately: 10.0 cm (L) x 3.4 cm (W) x 1.1cm (H), rated input voltage: DC 3V battery. * All measurement and test data in this report was gathered from production sample serial number: 1112084 (Assigned by BACL, Shenzhen). The EUT was received on 2011-12-26 Objective This report is prepared on behalf of Vson Technology Co., Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The tests were performed in order to determine compliance with FCC Part 15, Su…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Spurious Radiated Emissions Above 1 GHz: Spurious Radiated Emissions
