T2DV832Wireless Presenter

Wireless presenter User Manual Be sure to carefully read this user manual first for the proper use of the Integrative Presenter and keep it for future reference. 1 Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! It contains two parts: transmitter and USB receiver. Mini receiver can be put into transmitter. Features: 1. Easy carry The transmitter and receiver are integrated into one unit for easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and the controlling distance is up to 10-meters / 30-feet away, so you never have to stand at beside of your computer. 3. Multifunctional presenter It combines the functions of a laser pointer and hotkeys. 4. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operating System Windows 2000 and above, Windows XP, Vista, Win 7, Win8 II. Operating Hints 1. For optimal performance and RF reception, please place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices. 2 2. If battery is low, the control distance will be shorter, please replace battery in time. 3. The presenter will enter into sleep mode if there is no operation about 10 minutes. It will wake up if laser key is pressed. III. Functions: Functions Functions instruction Power switch power on or power off Power Indicator light Turn on the power switch, the light above the switch will be on; If entering into the sleep mode or turning off the power switch, the light will go out Laser Indicator light The laser indicator light will be on if you press the upper part of presenter. Release your hand, the light will be off. 3 Page Up The point (A position) is remote center. Slide from right of the point to left of the point. Page Down Slide from left of the point to right of the point. Play/Esc Play PowerPoint: Slide from upper of the point to lower of the point, Esc: Repeat above operation (For PowerPoint only) Blank screen Slide from lower of the point to upper of the point (For PowerPoint play only) Laser Press the upper part of presenter to emit laser beam Laser hole Emit laser beam IV. Battery installation z The product is powered by 1x AAA battery. z Open the battery cover, and insert 1x AAA battery into the battery holder. z Battery negative(-) is left and positive (+) is right as below z Put the battery cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one. 4 V. Technical parameters Transmitter RF Frequency 2.437GHz RF Output power 0dBm Sensitivity -90dBm Control distance Up to 10 meters Laser wavelength 650nm Laser distance >200m Max output ＜1mW or ＜5mW Battery 1 x AAA Working voltage 1.2～1.5V Sleep current ＜100uA Dimension 124*35*24mm Receiver Operation system Windows 2000 and above, Windows XP, Vista, Win 7，Win8 Interface USB1.1 , Compatible with USB2.0 Working voltage USB electricity supply (4.5～5.5V) Dimension 36.5*14.6*7mm VI. Safety Measures z To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam. z Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface. z Keep the presenter away from children. z Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars. z Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards. 5 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 6 NOTE The product adopts advance RF technology, the USB receiver will identify the first transmitter which is used. If you want to use different transmitters with the same receiver, please pull off the receiver and plug it again, after 6 seconds, press any key of the transmitter you want to use. Then it can work successfully.

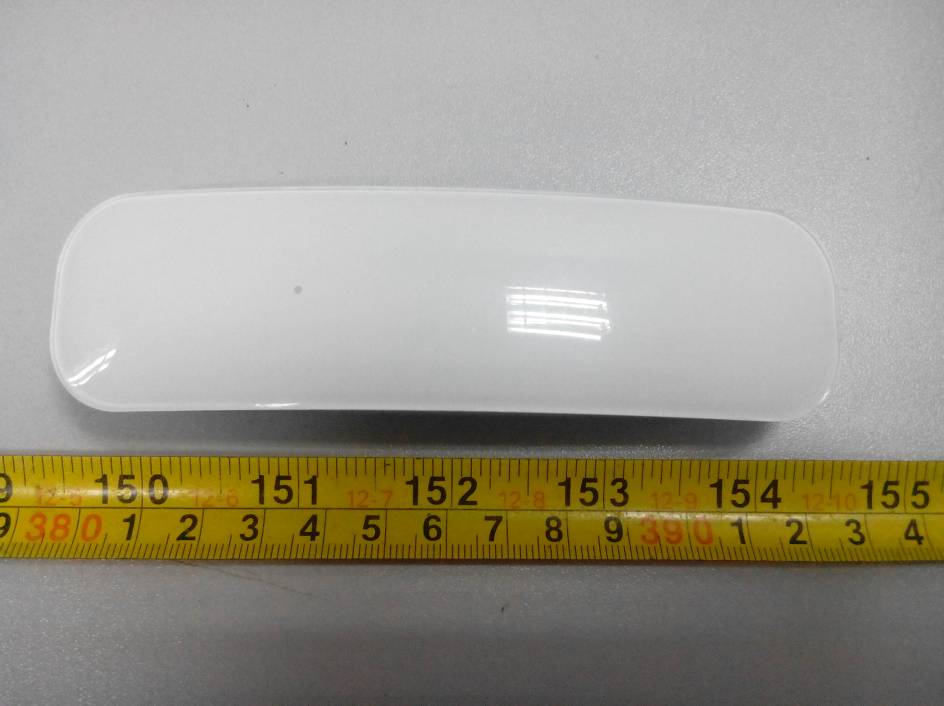

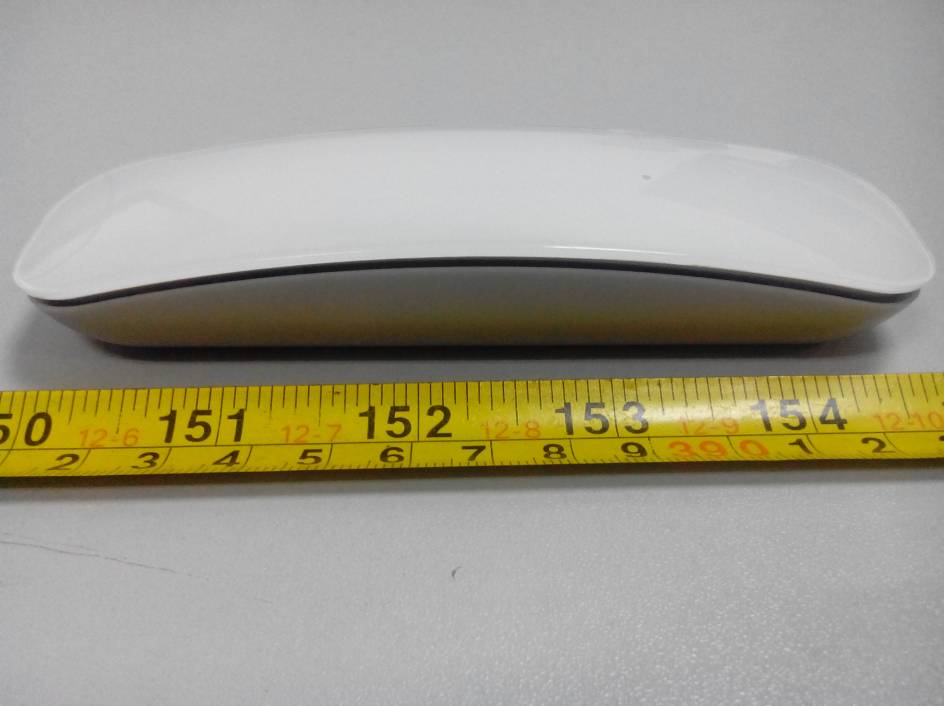

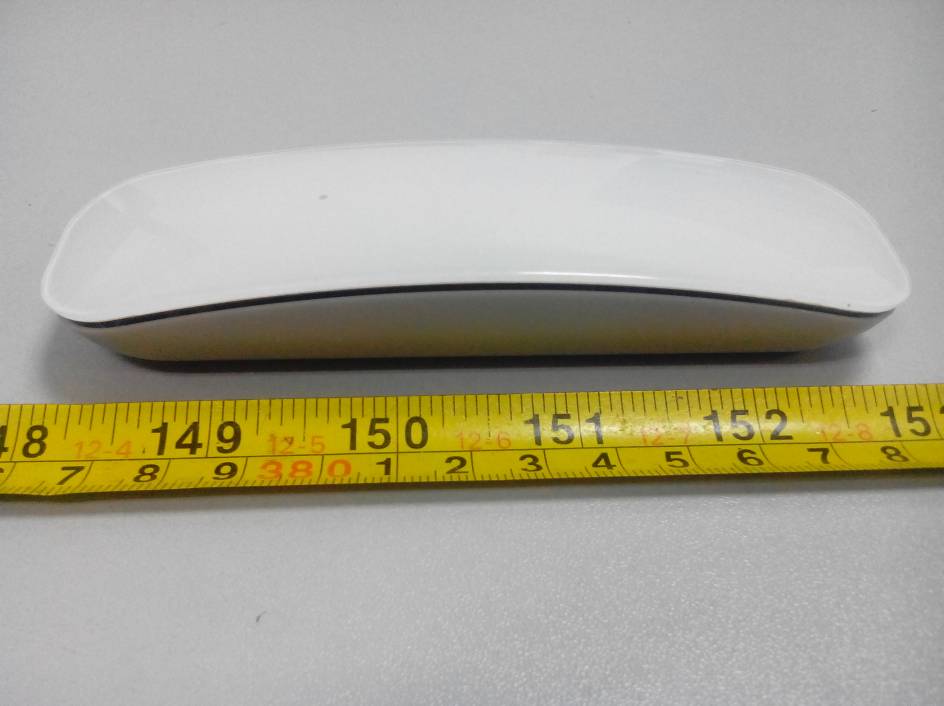

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View 1 EUT – Side View 2

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View An tenna

Circuit Description Our V896 is a tool for PPT Presentation，and it includes the following functions: Page up, Page down,Blank and laser pointer. The features of 2.437G RF technology are strong interference capability, high sensitivity, long distance, and no directional requirement. (1) Keyboard circuit consists of k1-K4. They are all pushing switch, used as a simple on-off switch by connecting to the MCU in the circuit. (2) MCU is EM78P153SN，it is an 8-bit micro controller and processor with low-power and high-speed CMOS technology, with a 1024*13-bits OTP-ROM within it. The work voltage in the circuit is 3V. And the available temperature is 0 degrees Centigrade to +70 degrees Centigrade. (3) 2.437GHz RF transmitter is consist of U2(BK2423) ，etc, Antenna While Key is pressed, the status of MCU PIN is changed, MCU wake up from sleep. It commands U2 send 2.437GHz RF signal. The BK2423 is a low cost true single chip 2.437GHz transceiver designed for very low power wireless applications. The circuit is intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band at 2400-2483.5 MHz. (4) Laser pointer is consist of D2、Q1、Q2、Q3、R3, R4, R5, R6 etc. D2 is a 650nm red laser diode. The operating voltage of D2 in the circuit is 3V. Q2、Q3 are NPN surface mounted transistor. They are response for current control and amplify. While K3 is pressed, MCU command the D2 send 650nm laser.

V832 V1.0 2011-10-17 rjb 116-2001-0008 DIVISION: TITLE: Sheet of VSON Electrical Technology LTD. DRAWN BY: CHECKED BY: APPROVED BY: PART NO: MOD NO: DOC NO: R&D 1 1 DIVISION: TITLE: Sheet of DRAWN BY: CHECKED BY: APPROVED BY: PART NO: MOD NO: DOC NO: R&D 1 1 X1 16M C17 4.7uF(0603) 1 CE 2 CSN 3 SCK 4 MOSI 5 MISO 6 IRQ 7 VDD 8 VSS 9 X1 10 X2 11 VDDPA 12 RFP 13 RFN 14 VSS 15 VDD 16 IREF 17 VSS 18 VDD 19 CDVDD 20 VSS U3 BK2423 1 P50 2 P67 3 P66 4 VDD 5 P65/OSCI 6 P64/OSCO 7 P63/RST 8 P62/TCC 9 P61 10 P60/INT 11 VSS 12 P53 13 P52 14 P51 U4 EMC153 R3 10 L4 1nH L3 4.7NH D3 Q2 BC817 Q1 BC817 E B C Q3 BC807-40 C16 0.1U C15 0.1U R4 20K 1% C14 4.0P C18 1P L2 12NH C12 1.2P C9 27P C8 27P R12 1M R11 10K R9 10K R8 4.7K R7 6.8K(0603) C13 0.1U D1 RedLed R6 2K R10 NC D2 BlueLed R13 1K L1 100uH(CD32) + C5 22U(1206) C10 1uF(0603) 1 GND 2 LX 3 VOUT U2 QX2304 C11 10uF(1206) BAT_1V5 S1 C7 0.1uF K2 K5 K3 R1 47R C6 4.7uF K4 R2 47K 1 2 3 4 J1 1 2 3 4 J2 K1 1 CREF 2 IADJ 3 S3 4 BP 5 OD/T2 6 PD 7 DVSS 8 NC 9 SO1 10 SO0 11 OT0/T0 12 OT1/T1 13 DVDD 14 DVSS 15 DVSS 16 DSSS 17 SO2 18 SO3 19 ASS 20 TCFG 21 S0 22 S1 23 S2 24 AVSS U1 CP2524 C1 1uF R5 20K 3V 3V BLACK KEY_LASER LASERTX 2421_MOSI ANT 2421_MISO 2421_MOSI 2421_SCK 2421_CSN LASERTX 3V 3V 3V 3V LASER_LED BLACK PAGEUP PAGEDOWN 3V PAGEUP PAGEDOWN F5 PD/POWER_LED 2421_SCK KEY_BLACK KEY_F5 KEY_PAGEDOWN KEY_PAGEUP KEY_F5 KEY_BLACK KEY_F5 KEY_PAGEUP KEY_LASER F5 2421_MISO 2421_CSN LASER_LED PD/POWER_LED PD/POWER_LED

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.249 TEST REPORT For Vson Technology Co., Ltd. 5 Floor, A Building, Weixinda Xichen Industrial Park, Baoan District, Shenzhen 518102, China FCC ID: T2DV832 Report Type: Original Report Product Type: Wireless Presenter (Transmitter Unit) Test Engineer: Mike Hu Report Number: RSZ130807001-00B Report Date: 2013-09-03 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130807001-00B FCC Part 15.249 Page 2 of 12 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS...............................................................................................................................5 FCC§15.203 - ANTENNA REQUIREMENT..............................................................................................................6 APPLICABLE STANDARD..............................................................................................................................................6 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................6 FCC§15.205, §15.209 & §15.249- RADIATED EMISSIONS ....................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 TEST EQUIPMENT SETUP..............................................................................................................................................7 EUT SETUP..................................................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC§15.215(C) – 20DB BANDWIDTH.....................................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA.............................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
