T2DV9Wireless Presenter

1 Users Manual It is wireless presenter as a laser pointer, a wireless mouse, a wireless keyboard and a portable storage device. It is tailored as a convenient hand y-tool for presentations, teaching, meetings, speeches, training. It consists of two parts: transmitter and USB receiver. I. Setup: Plug the receiver into the USB po rt on your PC. The system will automatically search for the new hardware and complete the setup. ( Attention : you may need Win98 disk if your co mputer runs under Win98/SE operating system..) II. Function: Start Mouse pointer up Start slide show Mouse pointer left Page up M ou se le ft click Laser EscapeMouse pointer rightBlank screenMouse pointer downPage downM ou se righ t clickSw itchin g be tw ee nKeyboard and mouse UBS plug LED A) When the switch is put on “KEYBOARD”, it functions as a wireless keyboard as below: Laser: press “LASER POINTER ” key to generate red laser light Page up: press “ LEFT “key. The f unction is like Page Up on a keyboard Page down: press “ RIGHT “key. The function is like Page Down on a keyboard Start: Press “ key and generate start function of computer Blank screen : press “ “key to make function ( Press once again to come back to the show status ). Shortcut : press “ < ” key to start the slide show through shortcut after you open one file under PowerPoint Escape: press “ > ” key to make escape function on computer B) When you select the switch on “MOUSE”, it functions as a wireless mouse as below Laser: press “LASER POINTER ” key to generate red laser light Mouse Left button function: press “ LEFT ” key Mouse Right button function: press “ RIGHT ” key Mouse Up: press “ “key and make the mouse point move up Mouse Down: press “ “key and make the mouse point move down Mouse Left move: press “ < ” key and make the point move to left Mouse Right move: press “ > “key and make the point move to right ( Tip: pinpoint the mouse to get exact position of the pointer, pointer will move faster when pressing without pause.) C) Built-in flash memory is available (64/128/256/512/1024MB) III. Technical parameters: Remote Controller Receiver Control Distance 25 meters Hardware IBM PC/AC & NoteBook, Apple Battery AAA(7) 2 Operating System Windows98/ME/2000/XP, Linux, Mac Working Voltage 2.4—3. 5V Compatible inte rface USB1.1 USB2.0 Wireless sending method RF Working Voltage USB bus cable supply (4.5—5.5V) Frequency 433.92Mhz Wire less receiving method RF Modulati on OOK Fre quency 433.92Mhz Output Power 0dbm Modul ation OOK Laser Power <1mw/5mw Receiver sensitivity -100 dbm Wave length 650nm Size 73 27 17mm Size 119 31 17mm Weight 16g Weight 58g

V9 Transmitter Block Diagram MCU V9 Transmitter Block Diagram

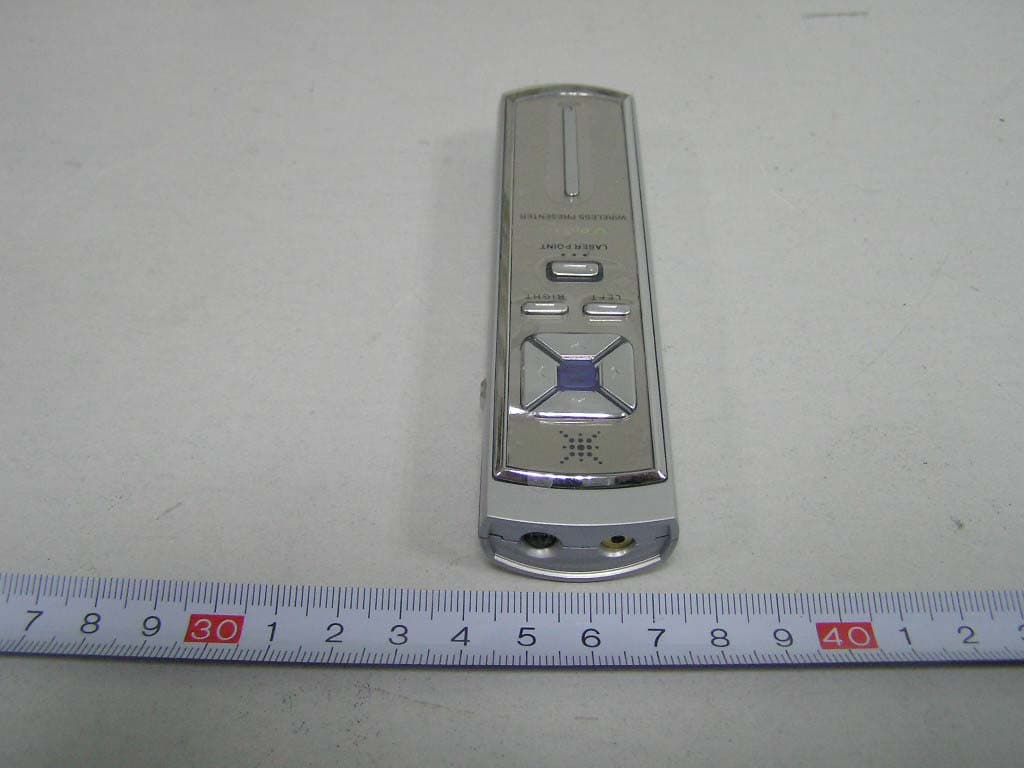

External Photos EUT Top View EUT Bottom View

ID Label Label FCC ID: T2DV9

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

ID Label Label FCC ID: T2DV9 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT - Inside View EUT – PCB Top View EUT –PCB Bottom View

Circuit Description The operating voltage of Control Circuit is 5V. The RN5RK501A Step-up power from 3v to 5V, Step-up circuit is consist of D4, D5, L1, U3, C8, C4 Keyboard circuit is consist of k1-k7, R1, R6, R7, R8 LED indication is consist of D1, R3 Laser pointer is consist of Q1, R2, R4, D3 RF transmitter is consist of Q6, Q7, R10, R11, X2, C1, C9, C11, L2, L3, Antenna MCU is EM78P153S MCU received the sign of Keyboard to execute corresponding operate. The pin14 of U1 output low level to light LED (D1) when anyone key be pressed. The pin12 of U1 output high level to light Laser (D3) when key7 be pressed. The pin13 of U1 output pulse wave when key1-key6 be pressed.

Specification Remote Controller Receiver Control Distance ＞25 meters Hardware IBM PC/AC & Notebook, Apple Battery AAA(7)×2 Operating System Windows98/ME/2000/XP, Linux, Mac Working Voltage 2.4—3.5V Compatible interface USB1.1 USB2.0 Wireless sending method RF Working Voltage USB bus cable supply (4.5—5.5V) Frequency 433.92Mhz±75kHz Wireless receiving method RF Modulation OOK Frequency 433.92Mhz Output Power 0dbm Modulation OOK Laser Power <5 mW Receiver sensitivity -100 dbm Wave length 650nm Size 71×26×14.5mm Size 120×30×13mm Weight 10g Weight 30g

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Vson Technology Co., Ltd. 5 Floor, A building, Weixinda Xichen Industrial Park, Baoan District, Shenzhen, China FCC ID: T2DV9 March 7, 2006 This Report Concerns: Original Report Equipment Type: Wireless presenter Test Engineer: Kamn Hu Report No.: RSZ06021602 Test Date: December 15, 2005-March 1, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Vson Technology Co., Ltd. FCC ID: T2DV9 Report # RSZ06021602 Page 2 of 16 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................13 REQUIREMENT...........................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE.........................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission - Front View (30-1000MHz) Radiated Emission - Rear View (30-1000MHz) Radiated Emission - Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz)
