T2DVSR24Wireless remote / Wireless presenter

1 Wireless remote / Wireless presenter User's Manual Be sure to carefully read this user’s manual first for the proper use of the Mini Presenter and keep it for future reference. 2 Table of Contents Introduction..................................................................... 2 I. Operation system ........................................................ 2 II. Parts description ......................................................... 3 III. Installation ................................................................. 4 IV. Functions ................................................................... 5 V. Functions table ........................................................... 6 VI. Operating Hints ......................................................... 10 VII. Battery installation .................................................. 10 VIII. Troubleshooting....................................................... 12 IX. Technical parameters ................................................ 12 Safety Measures............................................................. 13 3 Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! The presenter provides two working modes----Cursor Mode and Presenter mode. It contains two parts: remote control and USB receiver Advantage: 1. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and control distance up to 15-meters / 50-feet away, so you never have to stand at beside of your computer. 2. Multifunctional presenter It combines the functions of a laser pointer and keyboard hotkeys etc. If you need flash memory, the receiver supports to be added built-in flash memory. ( 64/128/256/512/1024MB optional ). 3. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operation System Windows 98,Se,Me,2000,XP, Mac OS, Linux 4 II. Parts Description USB Receiver LED 5 III. Functions table: Fn: Switch between Cursor Mode and Presenter Mode A) Presenter Mode PageUp PageDown Play Powerpoint Blank Screen Laser ESC Esc 6 B) MousePointer Mode Mouse point up Mouse point down Mouse point left Mouse point right Laser L Mouse left key Attention: There are two kind of speeds that the cursor move (LowSpeed and HighSpeed) (1) Push&Hold for less 1 second: LowSpeed (2) Push&Hold for over 1 second: HighSpeed LowSpeed: getting exact position HighSpeed: Locating Fast C) Built-in flash memory is optional (no memory/64/128/256/512/1024MB ) 7 V. Battery installation The remote is powered by 1x CR2032 battery. Push and remove the battery compartment cover. Insert 1x CR2032 battery into the battery holder. Put the battery compartment cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one. ① ② ④ ③ 8 VI. Technical parameters Transmitter Control distance Up to 15 meters Battery 1 x CR2032 Working voltage 3V Sleep current 1uA Output Power 0dBm Laser Power <1mw or 5mw Wave length 630-680nm Frequency 2.402GHz Wireless method RF Dimension 32×87×8mm Weight 17g Receiver Operation system Windows 98/Se, Me, 2000, XP, Mac OS, Linux USB version USB1.1 Compatible USB2.0 Working voltage 4.5-5.5v Frequency 2.402GHz Wireless method RF Working voltage USB electricity supply (4.5-5.5V) Dimension 32×63×8mm Weight 11g 9 Safety Measures z To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam. z Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface. z Keep the presenter away from young children. z Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars. z Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards. 10 Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device.

Block Diagram MCU MCU

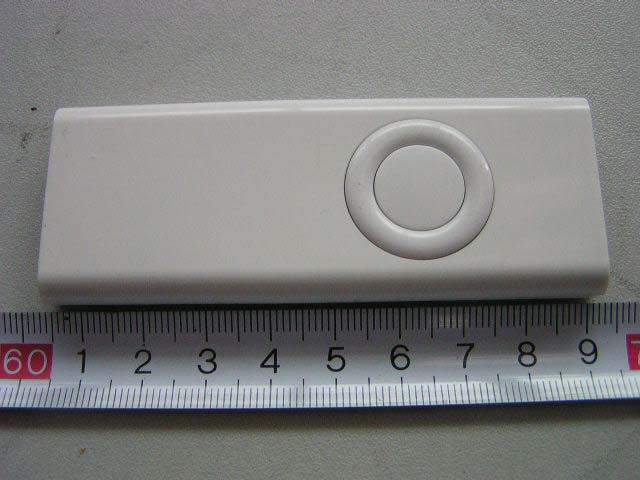

External Photos V-810: EUT- Front View V-810: EUT- Back View V-812: EUT- Front View V-812: EUT- Back View V-3360: EUT- Front View V-3360: EUT- Back View

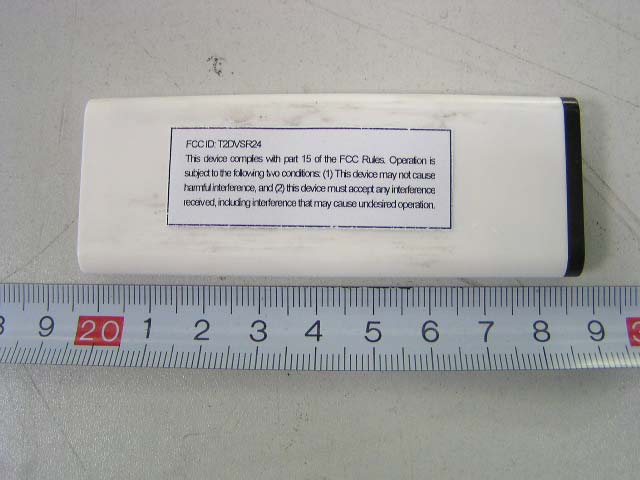

ID Label Label FCC ID: T2DVSR24 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT-Inside View (1) EUT-Inside View (2) EUT- PCB Top View EUT- PCB Bottom View

Circuit Description Keyboard circuit is consist of k1-k7 Laser pointer is consist of Q2, R3, R5, R6, D2 2.4G RF transmitter is consist of U3 (NRF2402) etc, Antenna MCU is EM78P153S

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Vson Technology Co., Ltd. 5 Floor, A Building, Weixinda Xichen Industrial Park, Xixiang Town, Baoan District, Shenzhen, China FCC ID: T2DVSR24 September 26, 2006 This Report Concerns: Original Report Equipment Type: Wireless remote / Wireless presenter Test Engineer: Deny Xiong Report No.: RSZ06091310 Test Date: September 20, 2006 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Vson Technology Co., Ltd. FCC ID: T2DVSR24 Report # RSZ06091310 Page 2 of 13 FCC PART 15.249 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................2 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................2 OBJECTIVE...................................................................................................................................................................2 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................2 TEST METHODOLOGY..................................................................................................................................................2 TEST FACILITY.............................................................................................................................................................2 SYSTEM TEST CONFIGURATION ..........................................................................................................................2 JUSTIFICATION.............................................................................................................................................................2 EQUIPMENT MODIFICATIONS.......................................................................................................................................2 CONFIGURATION OF TEST SETUP.................................................................................................................................2 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................2 SUMMARY OF TEST RESULTS ...............................................................................................................................2 §15.203 - ANTENNA REQUIREMENT......................................................................................................................2 STANDARD APPLICABLE..............................................................................................................................................2 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................2 §15.205 §15.209(A) §15.249(A) - RADIATED EMISSION ........................................................................................2 MEASUREMENT UNCERTAINTY....................................................................................................................................2 EUT SETUP..................................................................................................................................................................2 EMI TEST RECEIVER SETUP.........................................................................................................................................2 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................2 TEST PROCEDURE........................................................................................................................................................2 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................2 TEST RESULTS SUMMARY............................................................................................................................................2 TEST DATA..................................................................................................................................................................2 §15.249(D) – OUT OF BAND EMISSION ..................................................................................................................2 STANDARD APPLICABLE..............................................................................................................................................2 TEST PROCEDURE........................................................................................................................................................2 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................2 TEST DATA..................................................................................................................................................................2 Vson Technology Co., Ltd. FCC ID: T2DVSR24 Report # RSZ06091310 Page 3 of 13 FCC PART 15.249 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Vson Technology Co., Ltd .’s product, model number: Wireless presenter V-810 or the "EUT" as refer…
