T35JS-2DIGITAL GAME CALLER-BLOODHOUND

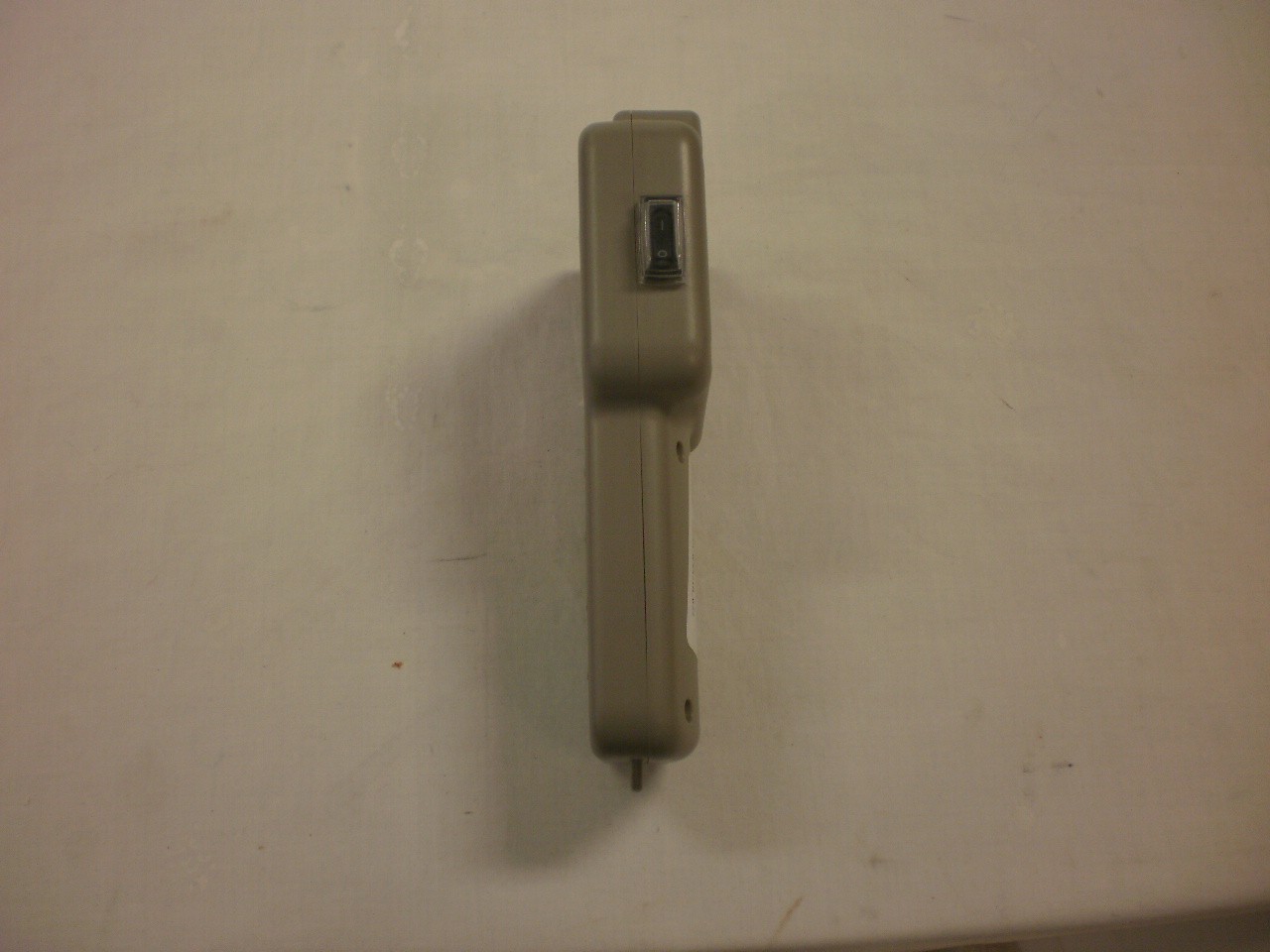

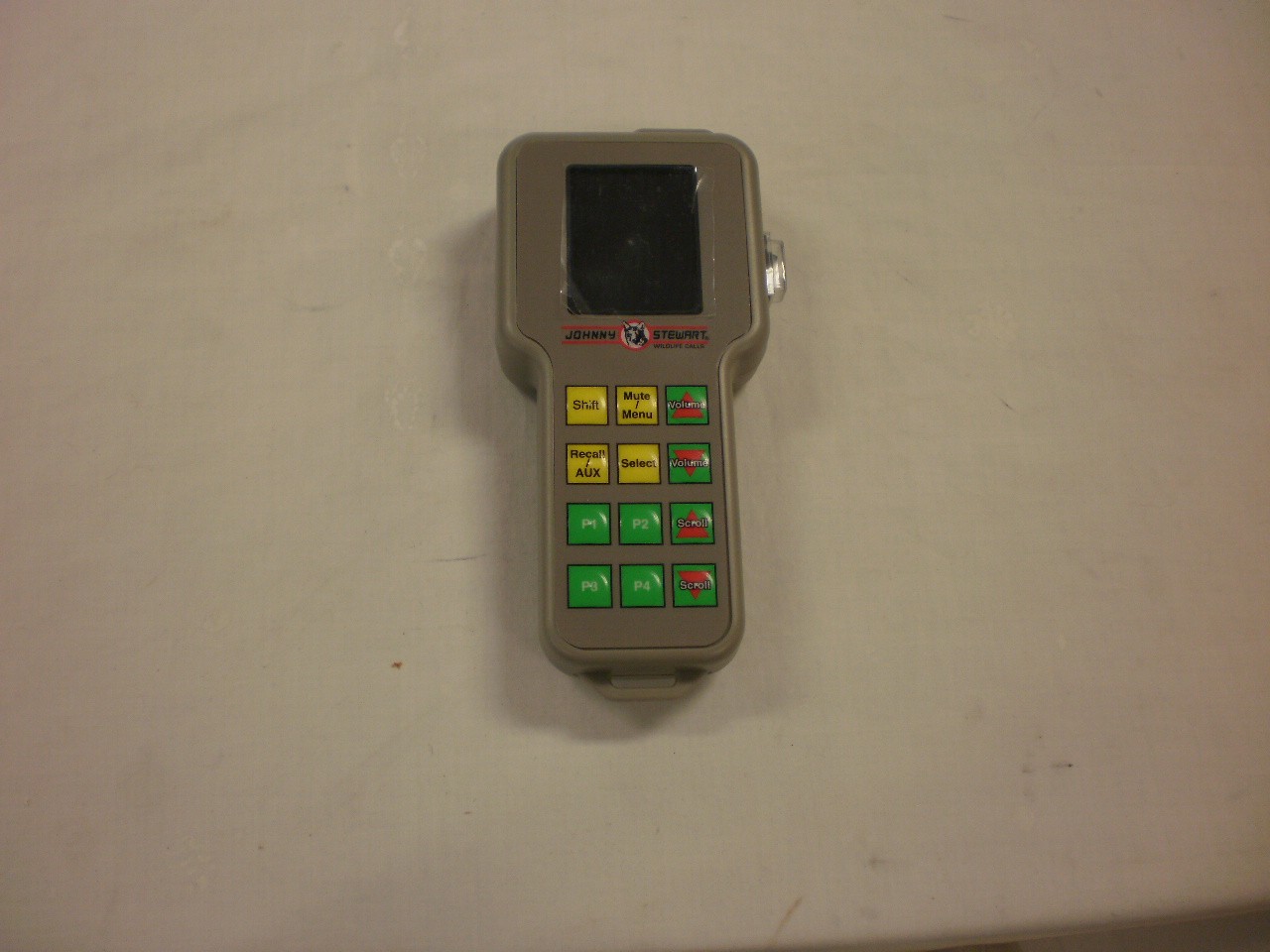

APPLICANT: HUNTERS SPECIALTIES INC. FCC ID: T35JS-2 EXTERNAL PHOTOS

Hunter’s Specialties Inc. MDL: JS ‐ 2 S/N JS2Rxxxxxx FCC I D : T35JS ‐ 2 FCC ID: T35JS 2 IC: 8676A ‐ JS2 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference and 2) this device must accept any interference received, ildi it f th t i nc l u di ng i n t er f erence th a t may cause undesired operation. www.hunterspec.com Made in China

APPLICANT: HUNTERS SPECIALTIES INC. FCC ID: T35JS-2 INTERNAL PHOTOS

FCC PART 15.249 AND IC RSS-210 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant HUNTERS SPECIALTIES, INC. Address 6000 HUNTINGTON COURT N.E. CEDAR RAPIDS IOWA 52402 USA FCC ID T35JS-2 IC 8676A-JS2 Model Number JS-2 Product Description DIGITAL GAME CALLER - BLOODHOUND Date Sample Received 6/08/2012 Date Tested 6/18/2012 Tested By Nam Nguyen Approved By Mario R. de Aranzeta Report Number 1017AZUT12TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate #0955-01 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-2 IC: 8676A-JS2 REPORT #: O:\H\HUNTERS_T35\1017AZUT12\Extra1017AZUT12\1017AZUT12TestReport.doc Page 2 of 21 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ......................................................................................................................... 3 GENERAL INFORMATION .................................................................................................................. 4 EMC EQUIPMENT LIST ..................................................................................................................... 5 TEST PROCEDURES ......................................................................................................................... 6 RADIATION INTERFERENCE ............................................................................................................. 7 OCCUPIED BANDWIDTH ................................................................................................................... 8 BAND EDGE COMPLIANCE ............................................................................................................... 9 DUTY CYCLE ................................................................................................................................... 15 POWER LINE CONDUCTED INTERFERENCE .................................................................................. 17 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-2 IC: 8676A-JS2 REPORT #: O:\H\HUNTERS_T35\1017AZUT12\Extra1017AZUT12\1017AZUT12TestReport.doc Page 3 of 21 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: June/18/2012 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-2 IC: 8676A-JS2 REPORT #: O:\H\HUNTERS_T35\1017AZUT12\Extra1017AZUT12\1017AZUT12TestReport.doc Page 4 of 21 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description DIGITAL GAME CALLER - BLOODHOUND FCC ID T35JS-2 IC 8676A-JS2 Model Number JS-2 Operating Frequency TX: 2439.80 MHz RX: Same No. of Channels 1 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable AC Adaptor Charger (For USB port) Model No: BLX-TC01 Input: 100 – 240 VAC, 50 – 60 Hz Output: 5 V, 500 mA Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications none Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-2 IC: 8676A-JS2 REPORT #: O:\H\HUNTERS_T35\1017AZUT12\Extra1017AZUT12\1017AZUT12TestReport.doc Page 5 of 21 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 9/23/10 9/23/12 Frequency Counter HP 5385A 2730A03025 CAL 8/17/11 8/17/13 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 7/18/11 7/18/13 Digital Multimeter Fluke FLUKE-77 35053830 CAL 9/9/11 9/9/13 Power Meter Boonton Electronics 4531 11793 CAL 11/12/2010 11/12/2012 EMI Receiver Rohde & Schwarz ESIB40 100274 CAL 3/16/2012 3/16/2014 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 10/28/11 10/28/13 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 10/28/11 10/28/13 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Antenna ETS 3117 35923 12/7/2011 12/7/2013 Antenna Electro metrics LPA-25 1122 5/04/2011 5/04/2013 Antenna Electro metrics BIA-25 1096 5/04/2011 5/04/2013 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-2 IC: 8676A-JS2 REPORT: O:\H\HUNTERS_T35\1017AZUT12\Extra1017AZUT12\1017AZUT12TestReport.doc Page 6 of 21 Mdea 9.20.20…

Text truncated - open the document above for the full version.

APPLICANT: HUNTERS SPECIALTIES INC. FCC ID: T35JS-2 TEST SET UP PHOTOS RADIATED EMISSIONS POWERLINE CONDUCTED EMISSIONS
