T35JS-3DIGITAL GAME CALLER - GALLOWS

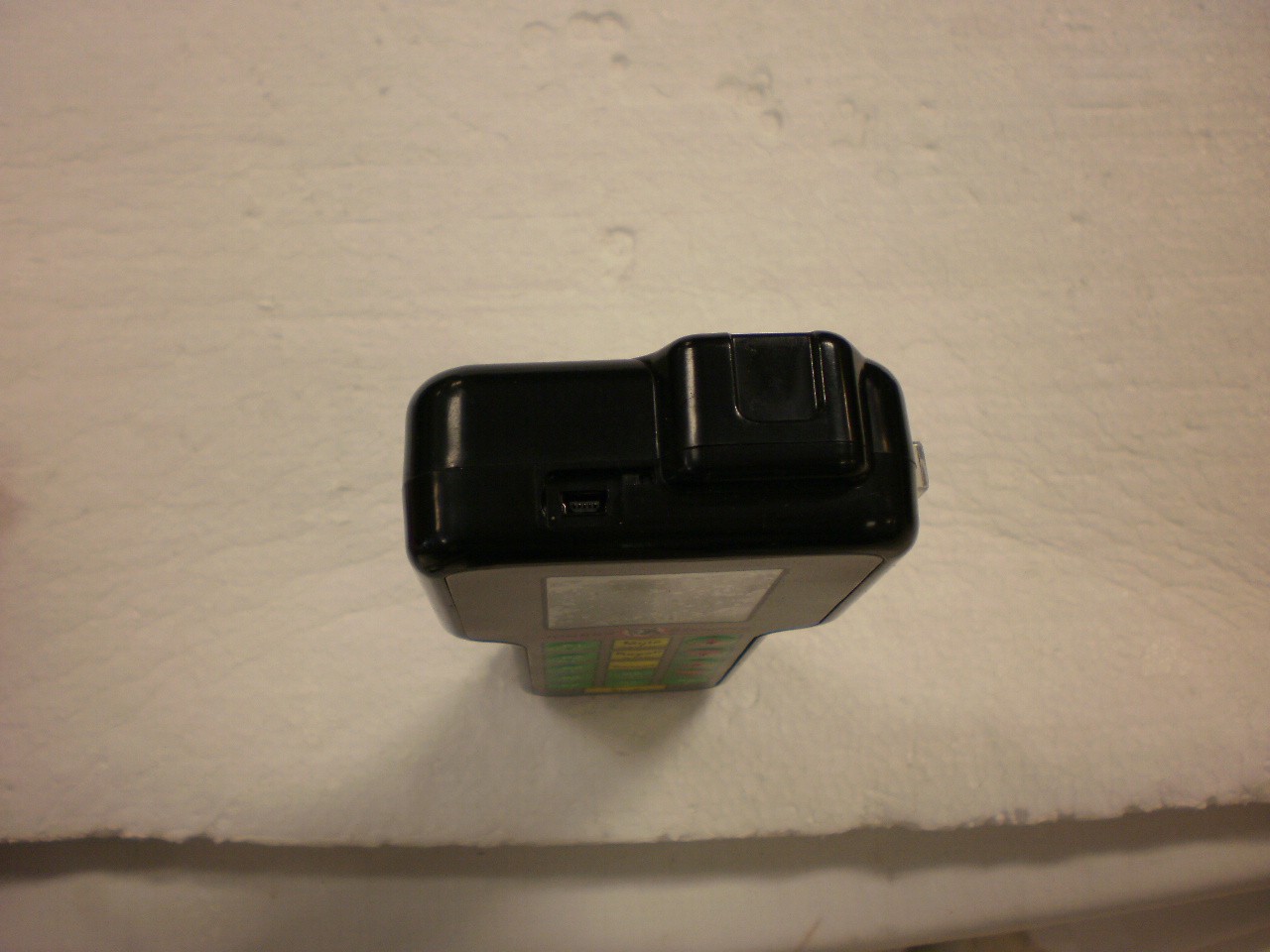

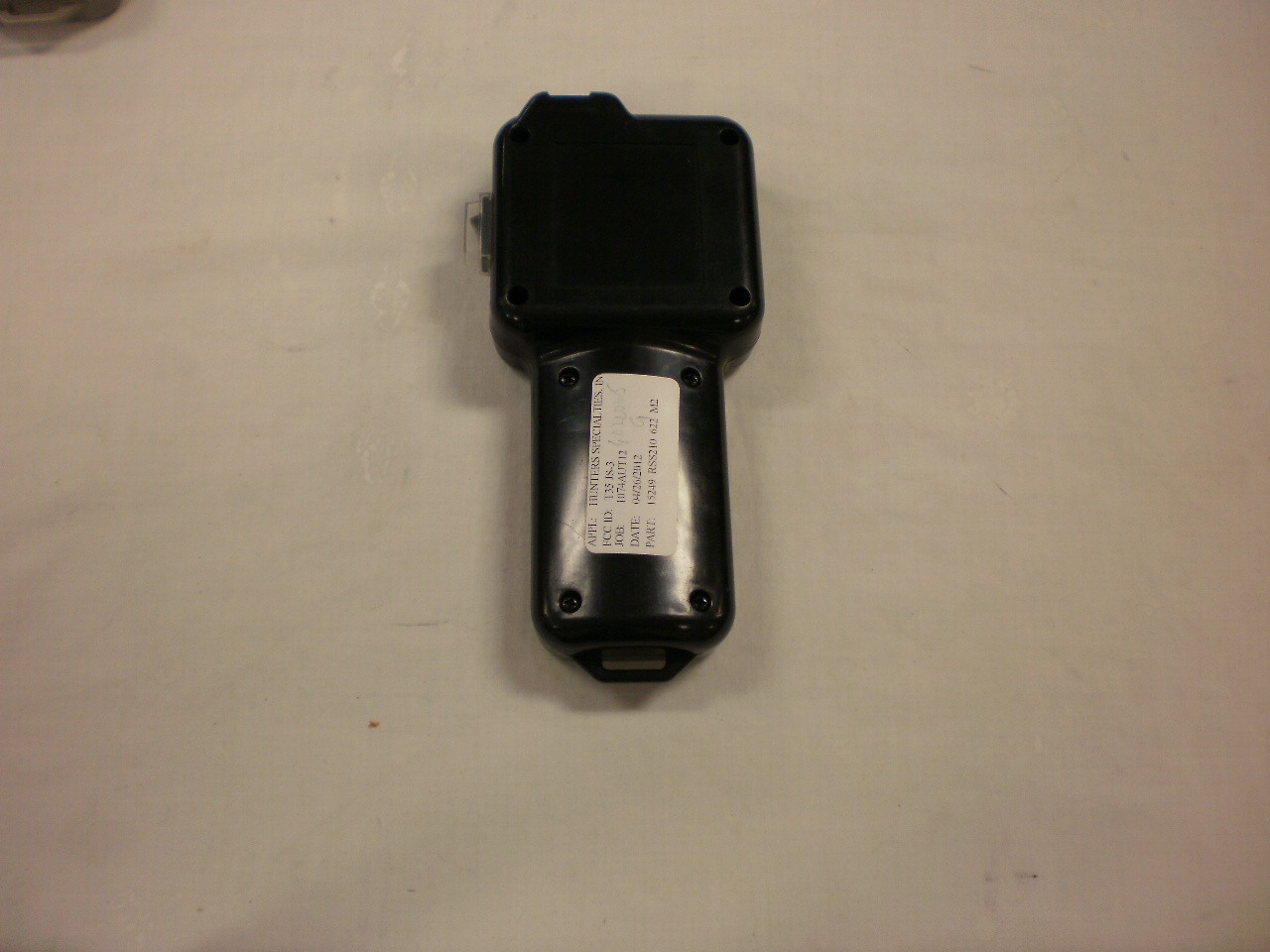

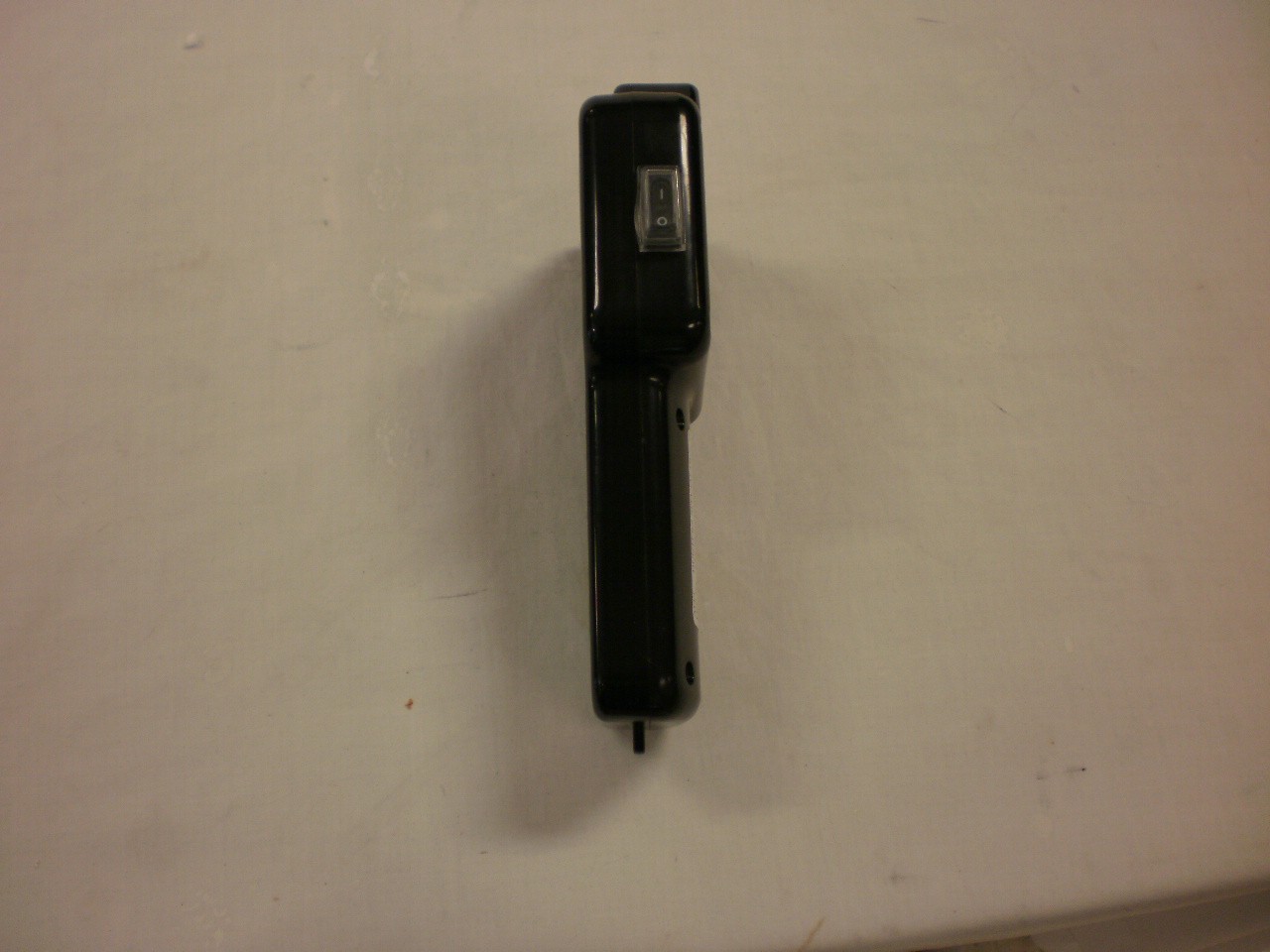

APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 EXTERNAL PHOTOS

Hunter’s Specialties Inc. MDL: JS-3 S/N JS1Rxxxxxx FCC ID: T35JS-3 IC: 8676A-JS3 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. www.hunterspec.com Made in China

APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 INTERNAL PHOTOS

FCC PART 15.249 AND IC RSS-210 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant HUNTERS SPECIALTIES, INC. Address 6000 HUNTINGTON COURT N.E. CEDAR RAPIDS IOWA 52402 USA FCC ID T35JS-3 IC 8676A-JS3 Model Number JS-3 Product Description DIGITAL GAME CALLER - GALLOWS Date Sample Received 6/19/2012 Date Tested 6/20/2012 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 1074ZUT12TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate #0955-01 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 IC: 8676A-JS3 REPORT #: O:\H\HUNTERS_T35\1074ZUT12\Extra1074ZUT12\1074ZUT12TestReport.doc Page 2 of 13 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ................................................................................................................... 3 GENERAL INFORMATION ............................................................................................................ 4 EMC EQUIPMENT LIST ................................................................................................................ 5 TEST PROCEDURES .................................................................................................................... 6 RADIATION INTERFERENCE ....................................................................................................... 7 OCCUPIED BANDWIDTH ............................................................................................................. 8 BAND EDGE COMPLIANCE ......................................................................................................... 9 DUTY CYCLE ............................................................................................................................. 12 POWER LINE CONDUCTED INTERFERENCE ............................................................................ 13 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 IC: 8676A-JS3 REPORT #: O:\H\HUNTERS_T35\1074ZUT12\Extra1074ZUT12\1074ZUT12TestReport.doc Page 3 of 13 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: July/12/2012 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 IC: 8676A-JS3 REPORT #: O:\H\HUNTERS_T35\1074ZUT12\Extra1074ZUT12\1074ZUT12TestReport.doc Page 4 of 13 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description DIGITAL GAME CALLER - GALLOWS FCC ID T35JS-3 Model Number JS-3 Operating Frequency TX: 2440.30 RX: Same DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 IC: 8676A-JS3 REPORT #: O:\H\HUNTERS_T35\1074ZUT12\Extra1074ZUT12\1074ZUT12TestReport.doc Page 5 of 13 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A 12/20/10 12/20/10 3-Meter OATS TEI N/A N/A 02/05/09 02/05/12 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 06/02/09 06/02/12 Frequency Counter HP 5385A 2730A03025 08/17/11 08/17/13 Frequency Counter HP 5352B 2632A00165 06/22/11 06/22/13 Digital Multimeter Fluke 77 43850817 02/22/12 02/22/13 Digital Multimeter Fluke FLUKE-77-3 79510405 06/13/11 06/13/13 Frequency Counter HP 5385A 3242A07460 06/22/11 06/22/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 09/23/10 09/23/12 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 05/10/10 Temperature Chamber Thermotron Corp. S1.2 Mini Max 25-1420-09 06/18/10 06/18/12 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 11/23/10 11/23/12 Analyzer Silver Tower RF Preselector HP 85685A 2926A00983 11/10/10 11/10/12 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 11/10/10 11/10/12 Antenna: Biconnical Eaton 94455-1 1057 05/31/11 05/31/13 Antenna: Log- Periodic Eaton 96005 1243 05/31/11 05/31/13 APPLICANT: HUNTERS SPECIALTIES, INC. FCC ID: T35JS-3 IC: 8676A-JS3 REPORT #: O:\H\HUNTERS_T35\1074ZUT12\Extra1074ZUT12\1074ZUT12TestReport.doc Page 6 of 13 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandw…
